I finally got started on my car tonight. Im fiberglassing a enclosure behind the drivers seat. The Subs (2 10" Punch HX2's) are going to be mounted behind the factory rear speakers. Im cutting a 4" hole in the sheet metal to port it down to my enclosure. Im going to streach form fiberglass to the subs to get a look much like the factory rears. This will make the subs enclosure appear very small. Im using a Type RF Rockford amp to run the subs and a pair of RF Q 6 1/2's. Im going to streach form fiberglass to it. Its going were the cover is behind the dr. seat. It will be mounted to my hidden enclosure. Im hiding a small punch amp under the storage compartment to run my rear RF 6 1/2's. In the dash Im doing a RF DVD/CD/AM/FM player w/ built in dolby digital 5.1, and center channel amplifier. It also controls the digital DSP on the Type RF amp. Below the radio Im doing a RF 4" mounted like a wave guide from 4" to DIN size for my center channel. It will be covered in grill cloth, and mounted it a custom dash kit. Im mounting a 6.8 elite Accele in the factory compartment. All my connections will be via Stinger. Rockford Fosgate is giving me everything 25% off cost. Stinger is giving me all my connections. Im going to post pics step, by step.
Pic 1
Pic 2
Pic 3

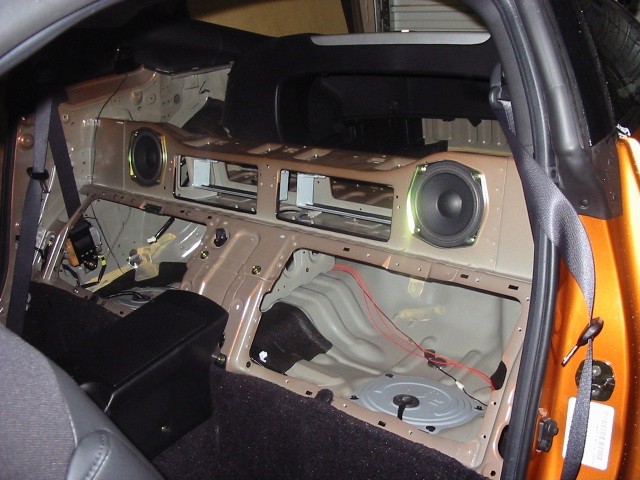

This is were Im cutting 4" holes.

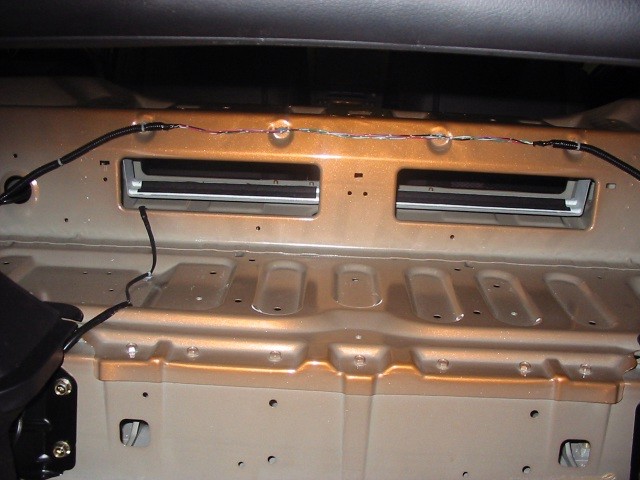

No those are not my amps power wire. That is the power, and ground when armed wires for my DEI window badges. They are now hidden. Im doing Stinger Expert 1/0 ga power wire, 3-12' Expert RCA's, 1-1.5" video RCA, Expert 1.5 farad cap, Expert ring terminals, Expert spk wire, and more than likely a SP1000 batt. Im going to keep up with it the best I can. I finished fiberglassing tonight, but ran out of room on my camera. Ill post pics of that as soon as I can as for now here are the materials I am currently using. Fish Man polyester resign.
I recomend tearing fiberglass mat instead of cutting. The ruff edges make a better bond between pieces.

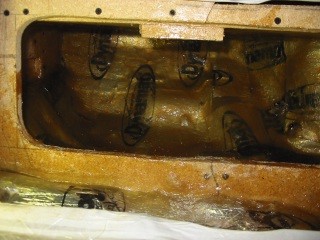

bottom fiberglass enclosure.
Box Max spray helps seal pin holes (if present), helps prevent standing waves, and deadens the enclosure.
Box Max applied to enclosure.
I measured my enclosure by filling it with packing foam, then putting the foam in a box, and multipling LxWxH divided by 1728. This will give you cuft. I have 1.67cuft of airspace in the bottom enclosure.

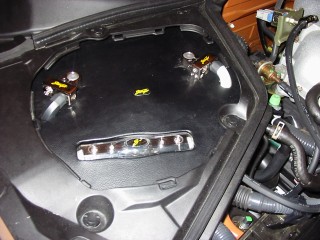

Batt. pics

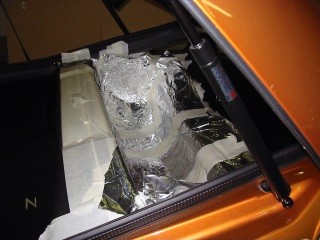

Taped up.

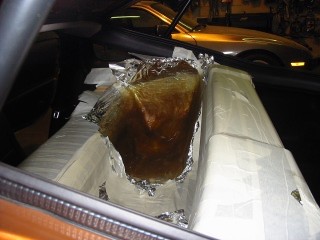

Glassed in.

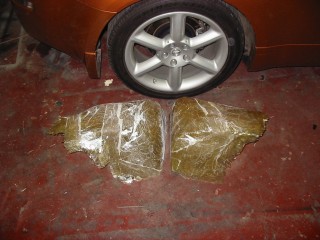

Fiberglass shell.
Framed shells w/ holes cut for porting to bottom enclosure. Ready for sub rings to be mouted and fleece wraped.
Framed w/ rings
Fleece stretched, and stapled over frame.

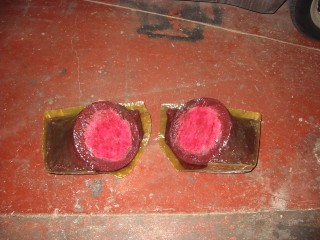

First coat of fiberglass.
Ready for body filler, and lots of sanding.
Poly primed, and ready for wrapping.

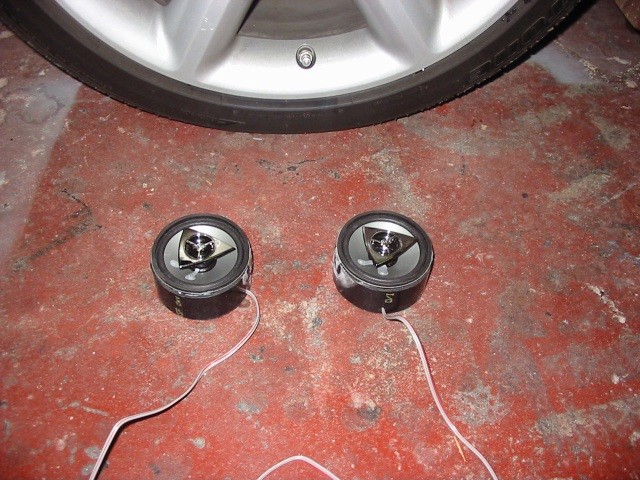

centers in 3" pvc enclosures.

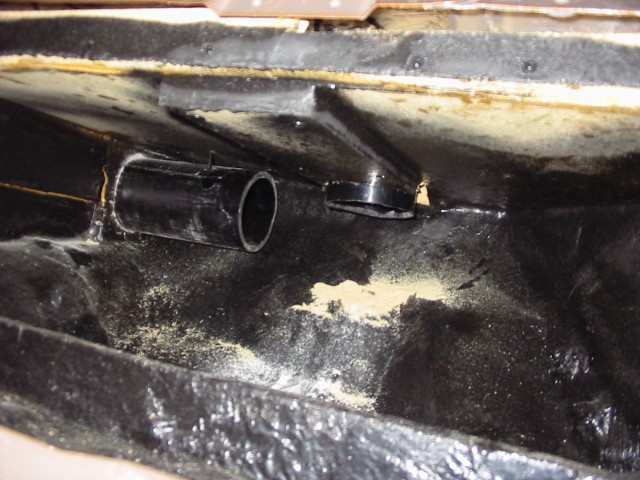

sub enclosure port to bottom enclosure.
jumper port from pass. enclosure to bottom enclosure.
You can tell because of the flash, but the edge of the plexi glows orange. This is the amp for my rears, and 1farad cap.

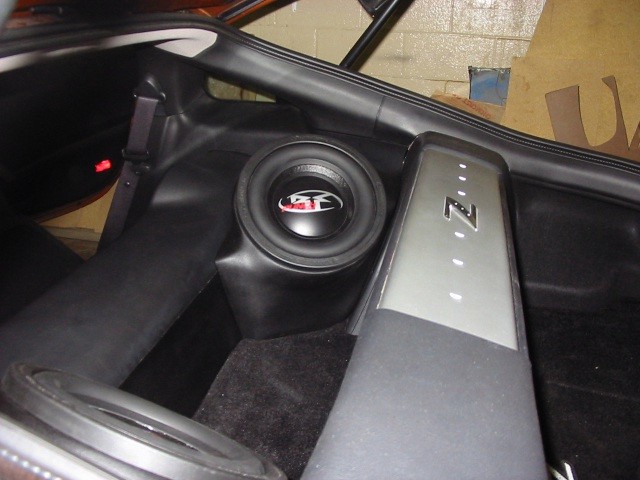

Sub pic.
another one.

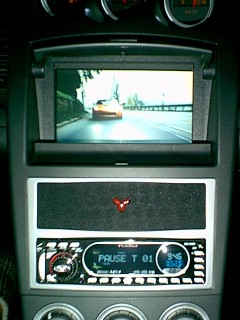

Deck w/ center channel above it, and 7in accele screen playing DVD.
Accele displaying CD info. It also will display the RF logo if you choose so. This is great for MP3's.
zand02max very politly stated. I could care less about SPL, and Im not a person to mislead people. Anyway Im fine w/ you not buying my story. On that note heres latest pics. Didnt get the installed pics because the paint was still wet. Ill install them tommorw and take pics.

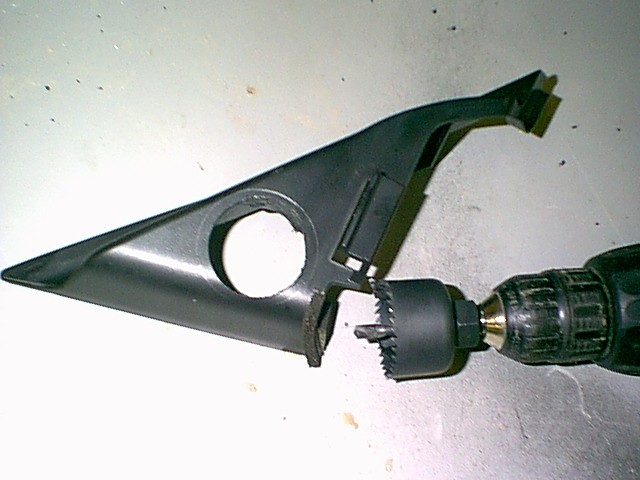

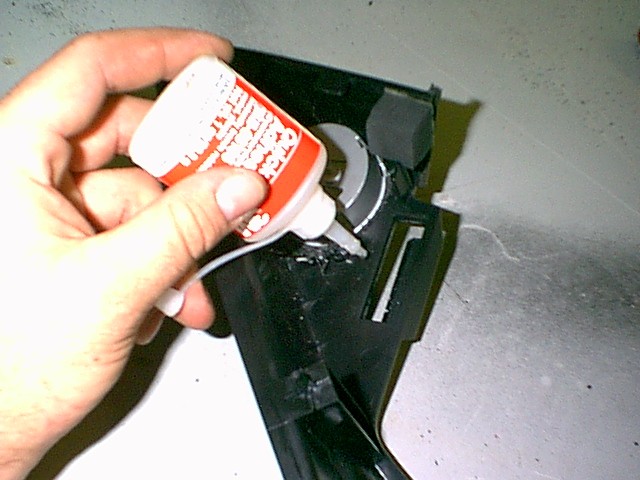

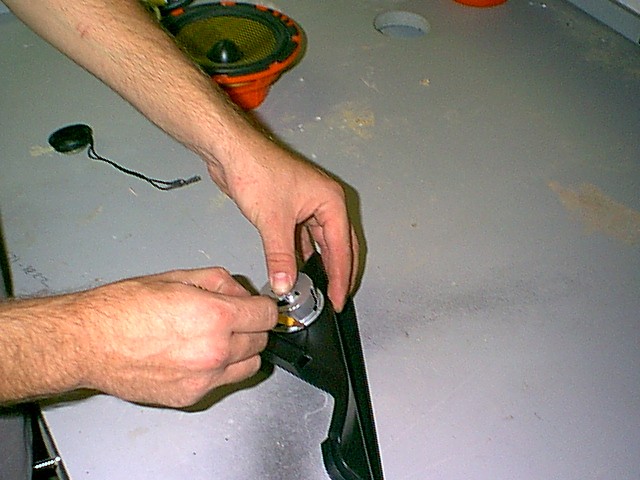

First trace your tweet trim w/ a pencil. You can use the flush trim, angle, or surface mount trim. Most tweets come w/ all 3. Then super glue that sucker in place. I use spray activater to dry the glue super fast.
tweet pic 3

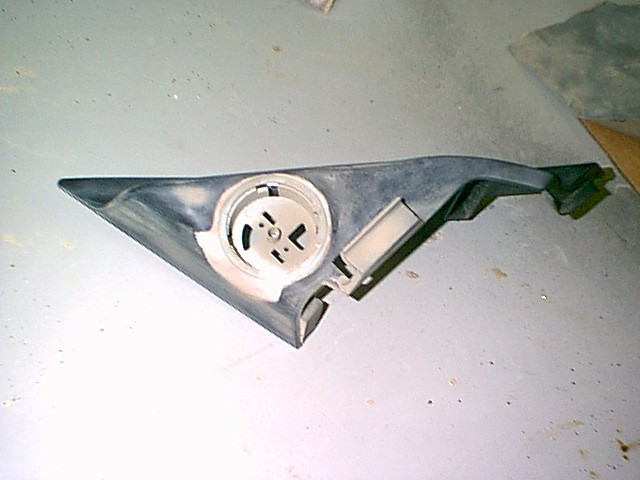

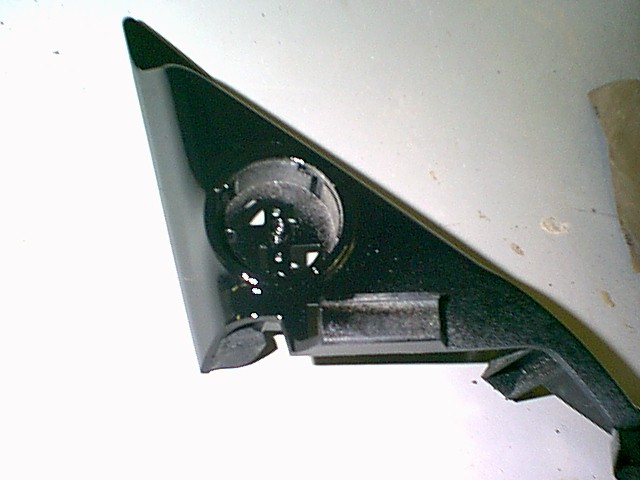

Then bondo, and sand.
Next prime, and paint w/ textured paint to get the factory look.
Door speaker.
Tweet in.

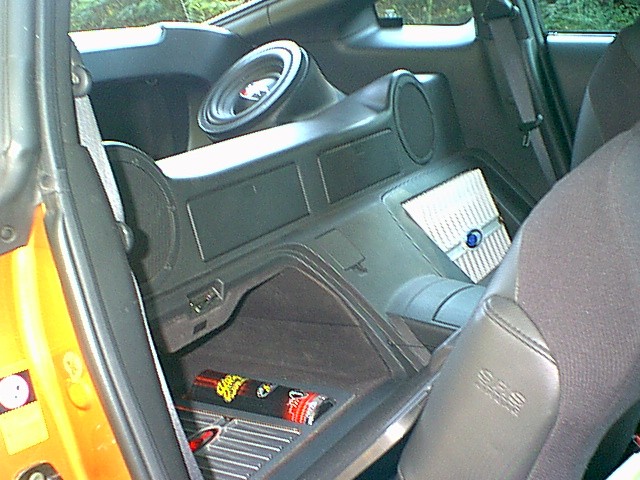

amps, sub, and cap
another sub pic.
painted dash kit.
Pic 1
Pic 2
Pic 3
This is were Im cutting 4" holes.
No those are not my amps power wire. That is the power, and ground when armed wires for my DEI window badges. They are now hidden. Im doing Stinger Expert 1/0 ga power wire, 3-12' Expert RCA's, 1-1.5" video RCA, Expert 1.5 farad cap, Expert ring terminals, Expert spk wire, and more than likely a SP1000 batt. Im going to keep up with it the best I can. I finished fiberglassing tonight, but ran out of room on my camera. Ill post pics of that as soon as I can as for now here are the materials I am currently using. Fish Man polyester resign.
I recomend tearing fiberglass mat instead of cutting. The ruff edges make a better bond between pieces.
bottom fiberglass enclosure.
Box Max spray helps seal pin holes (if present), helps prevent standing waves, and deadens the enclosure.
Box Max applied to enclosure.
I measured my enclosure by filling it with packing foam, then putting the foam in a box, and multipling LxWxH divided by 1728. This will give you cuft. I have 1.67cuft of airspace in the bottom enclosure.
Batt. pics
Taped up.
Glassed in.
Fiberglass shell.

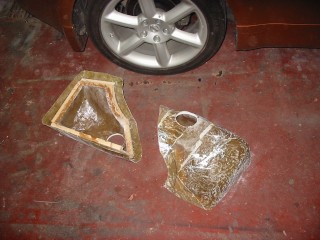

Framed shells w/ holes cut for porting to bottom enclosure. Ready for sub rings to be mouted and fleece wraped.
Framed w/ rings
Fleece stretched, and stapled over frame.
First coat of fiberglass.
Ready for body filler, and lots of sanding.
Poly primed, and ready for wrapping.
centers in 3" pvc enclosures.
sub enclosure port to bottom enclosure.
jumper port from pass. enclosure to bottom enclosure.
You can tell because of the flash, but the edge of the plexi glows orange. This is the amp for my rears, and 1farad cap.
Sub pic.
another one.
Deck w/ center channel above it, and 7in accele screen playing DVD.
Accele displaying CD info. It also will display the RF logo if you choose so. This is great for MP3's.
zand02max very politly stated. I could care less about SPL, and Im not a person to mislead people. Anyway Im fine w/ you not buying my story. On that note heres latest pics. Didnt get the installed pics because the paint was still wet. Ill install them tommorw and take pics.
First trace your tweet trim w/ a pencil. You can use the flush trim, angle, or surface mount trim. Most tweets come w/ all 3. Then super glue that sucker in place. I use spray activater to dry the glue super fast.
tweet pic 3
Then bondo, and sand.
Next prime, and paint w/ textured paint to get the factory look.
Door speaker.
Tweet in.
amps, sub, and cap
another sub pic.
painted dash kit.
