Default My audio setup, the installation begins

SEPTEMBER 2009 UPDATE, POST 56

so i started ripping apart the 350, getting ready for the new audio setup

I was looking for some more sound than stock but didn’t want to spend a ton doing it. I just bought my car a few months ago and I have a few other plans for it and I would prefer to spread the money out among various mods not just audio, so this is what I came up with.

this is what is going in



and a **** load of wires


i also have to build a box, and iam going to make a custom false floor setup

THEN



NOW



THEN



NOW



and the parts pile





i have 100 sq feet of FATMAT, Similar to dynamat. i working on installing a bunch of it now

Last edited by XERMAN2001; 09-22-2009 at 07:03 PM.
XERMAN2001 is offline   Reply With Quote
Old 10-07-2008, 05:43 PM   #2
XERMAN2001
Registered User
Thread Starter
iTrader: (1)

XERMAN2001's Avatar

Join Date: Feb 2008
Location: Toronto, Canada
Posts: 966
Thanks: 0
Thanked 1 Time in 1 Post
Default

UPDATE


before:



45 sq feet of fatmat and 8 hours of installation later
AFTER:





I still have a bunch of work left, that fatmat is so time consuming.
XERMAN2001 is offline   Reply With Quote
Old 10-07-2008, 05:45 PM   #3
XERMAN2001
Registered User
Thread Starter
iTrader: (1)

XERMAN2001's Avatar

Join Date: Feb 2008
Location: Toronto, Canada
Posts: 966
Thanks: 0
Thanked 1 Time in 1 Post
Default

UPDATE:

This audio install is taking FOR EVER, Iíve already spent over 20 hours on it and I am still not done.

The hatch BEFORE:


And AFTER:




This is 2 pieces, = 50 sq feet of FAT MAT, I ve already used 50 feet in the car already and I just opened the 2nd roll, (shown in pic) so this pic is of half of what i have used this point



Seats coming out, then carpet



Pass floor BEFORE:


And AFTER:



Driver floor BEFORE:



And AFTER:





--------------
----------------
-------------

Getting ready to start on the door and front speakers now
XERMAN2001 is offline   Reply With Quote
Old 10-07-2008, 10:57 PM   #4
Peteski
Registered User

Peteski's Avatar

Join Date: May 2004
Location: Appleton, Wisconsin
Posts: 327
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Looking good! I would love to do this but dont have the time and not really into adding all the weight.
Peteski is offline   Reply With Quote
Old 10-07-2008, 11:07 PM   #5
Spork
Registered User
iTrader: (6)

Spork's Avatar

Join Date: May 2007
Location: MN
Posts: 27,609
Thanks: 0
Thanked 1 Time in 1 Post
Default

Very nice!


I never did under my carpet, but now I think I may do it after all.


When you're done, tell me if it made a significant difference in road noise and cabin resonance.

You have a nice set of audio going in!
Spork is offline   Reply With Quote
Old 10-08-2008, 01:02 AM   #6
blackz123
Registered User
iTrader: (13)

blackz123's Avatar

Join Date: Jan 2008
Location: Orange County,California
Posts: 556
Thanks: 0
Thanked 1 Time in 1 Post
Default

did doin under the carpet make a difference?

how much did the mat cost
blackz123 is offline   Reply With Quote
Old 10-08-2008, 08:09 PM   #7
9292
Registered User
iTrader: (1)

Join Date: Oct 2006
Location: Brunei
Posts: 389
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Oh my, thats a lot of soundproofing. Looks awesome, sure wud like to take a ride on your Z after its done. Just wonderingif you can hear your aftermaket exhaust when its done. Overall lookin good man. Post updated pics
9292 is offline   Reply With Quote
Old 10-10-2008, 09:44 PM   #8
chopperman
Registered User
iTrader: (9)

chopperman's Avatar

Join Date: Jan 2007
Location: Long Island, NY
Posts: 1,314
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Updates!
chopperman is offline   Reply With Quote
Old 10-14-2008, 08:06 PM   #9
XERMAN2001
Registered User
Thread Starter
iTrader: (1)

XERMAN2001's Avatar

Join Date: Feb 2008
Location: Toronto, Canada
Posts: 966
Thanks: 0
Thanked 1 Time in 1 Post
Default

UPDATE

so far my 350 had not moved out of my driveway for 23 days. it suck not being able to drive it. i just bought it!!!!!!!!!

Well, I am stilling working on the never ending project here. 30 hours in so far.

Time to work on the doors



Skin off BEFORE





Stock front speaker


FAT MAT TIME -- AFTER

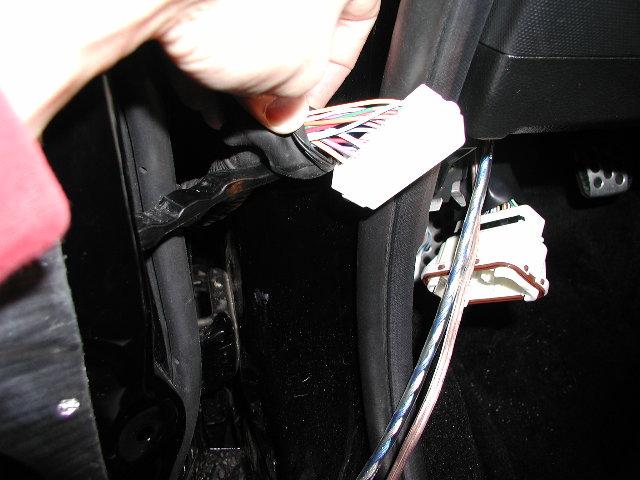

Now time to run the speaker wires. This was a PITA, it was the hardest part of this project so far. I spent like 5 hours just running the 2 wires........ DAM IT

So I ran them through the factory door harnesses. I removed the harness from both sides and carefully drilled out holed in the unused space to run the wires through.

(Not mine but gives a pic)





MINE AFTER IS DONE, see the blue wires on both sides. Nice and clean just like from the factory



Now it was time to make an adaptor plate for the aftermarket 6 Ĺ speaker. I wanted it to mount in the stock location for a first made a cardboard template of the stock speaker housing. Then I used it to make a bracket out of MDF, then a spacer ring and metal ring to bring the speaker further out to clear the window glass.



Then I applied 2 layers of fiberglass resin to the adaptor and sanded it smooth for extra strength. I drilled all of the holes, attached to door with factory screws, attached wires and the speaker.



door skin back on



Re cap

Stock speaker



Aftermarket speaker -- this barely fit, there is only like a 5mm of clearance between the speaker, door skin and window glass. Thatís like 2 coins on each side.



THAT IS ALL FOR NOW

I WILL KEEP YOU UPDATED
XERMAN2001 is offline   Reply With Quote
Old 10-15-2008, 03:09 AM   #10
Joe@Sage
Registered User
iTrader: (6)

Join Date: Aug 2007
Location: Virginia Beach
Posts: 264
Thanks: 0
Thanked 0 Times in 0 Posts
Default Dyna mat

I did my floor boards ,doors ,roof ,hatch ect, makes a huge diffrence.
Joe@Sage is offline   Reply With Quote
Old 10-16-2008, 07:23 PM   #11
XERMAN2001
Registered User
Thread Starter
iTrader: (1)

XERMAN2001's Avatar

Join Date: Feb 2008
Location: Toronto, Canada
Posts: 966
Thanks: 0
Thanked 1 Time in 1 Post
Default

i did everything except the roof, i ran out of Fat Fat, i bought 100 sq feet, i thought that would be enough. nope
XERMAN2001 is offline   Reply With Quote
Old 11-06-2008, 06:23 AM   #12
350Zrida
Registered User

350Zrida's Avatar

Join Date: Jan 2007
Location: Fort Irwin
Posts: 883
Thanks: 0
Thanked 1 Time in 1 Post
Default

Updates??
350Zrida is offline   Reply With Quote
Old 11-08-2008, 11:24 PM   #13
orgasm_donor
Registered User
iTrader: (4)

orgasm_donor's Avatar

Join Date: Jul 2004
Location: Vancouver, BC
Posts: 515
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Wow looks a LOT like my car! I use Hushmat. I am about 2/3's done and I have used about 80 sq. feet so far. I did my ceiling and it made a phenominal difference. I highly recommend the ceiling for road noise and resonance cancellation.
orgasm_donor is offline   Reply With Quote
Old 11-10-2008, 08:05 PM   #14
autodrifter4
Registered User

autodrifter4's Avatar

Join Date: Aug 2008
Location: Georgia
Posts: 214
Thanks: 0
Thanked 0 Times in 0 Posts
Default

you wanna make me a speaker spacer
autodrifter4 is offline   Reply With Quote
Old 11-20-2008, 08:24 PM   #15
XERMAN2001
Registered User
Thread Starter
iTrader: (1)

XERMAN2001's Avatar

Join Date: Feb 2008
Location: Toronto, Canada
Posts: 966
Thanks: 0
Thanked 1 Time in 1 Post
Default

UPDATE:

Now that it’s all snowy and crappy and I am less busy I finally have time to post an update

I finished installing most of the build but because it was so time consuming I decided to finish the rest in the spring. The car was put back together around the 1st week of October.

This is what I have done so far:
-installed front speakers
-installed rear speakers
-installed deck
-installed 100 sq feet of fat mat
-Installed all audio wiring

What still needs to be done in the spring:

-Build custom sub box
-installed sub
-install amps
-Build custom trim plate/false floor

-----------

After the front speakers were in I finished installing the fat mat in the rear and I ran all of the wiring.

BEFORE:



AFTER:









Then I had to trim the plastic panel covering the rear speakers so the would clear.


All of the wires in the rear ready to go






Tucking the wires away so the spare tire can go back in. (until spring when it will be removed and I can finish the project)

XERMAN2001 is offline   Reply With Quote
Old 11-20-2008, 08:25 PM   #16
XERMAN2001
Registered User
Thread Starter
iTrader: (1)

XERMAN2001's Avatar

Join Date: Feb 2008
Location: Toronto, Canada
Posts: 966
Thanks: 0
Thanked 1 Time in 1 Post
Default

Deck installed. I had to modify the plastic adaptor plate and the mounting bracket to get the deck to fit correctly but it got it to work.

BEFORE:



AFTER:









The rear back together. While the car was apart I also decided to install a 2nd glove box door since that’s location was not being used anyway.









And just to show how much extra space I have just acquired. I use this bag to carry my cleaning supplies, believe it or not I can get it to fit in the 2nd glove box.





---------------------------------------

Well that’s it for now.

After these pics were taken I was able to enjoy the car for another 4 weeks or so then it went away for the winter.

When I have fully completed the install I will post pics of the final product.
XERMAN2001 is offline   Reply With Quote
Old 04-21-2009, 05:13 PM   #17
XERMAN2001
Registered User
Thread Starter
iTrader: (1)

XERMAN2001's Avatar

Join Date: Feb 2008
Location: Toronto, Canada
Posts: 966
Thanks: 0
Thanked 1 Time in 1 Post
Default

UPDATE UPDATE

Well its spring time now, so its time to start working on my 350Z audio project again.

This is what I have done so far:
-installed front speakers
-installed rear speakers
-installed deck
-installed 100 sq feet of fat mat
-Installed all audio wiring

What still needs to be done

-Build custom sub box
-installed sub
-install amps
-Build custom trim plate/false floor

Since I am not a professional audio installer I didnít want to risk damaging the audio equipment so I made replicas out of cardboard. Pros could probably complete this job in less than a 3rd of the time itís going to take me but because I am not a pro I wanted to take me time and mock the complete system in cardboard before cutting the MDF.

I started this a few weeks ago and this is what I have so far.

Scale cardboard replicas of the Infinity amps and sub.




Thinking about placement.






Given the cubic air space requirements of the sub and space available to me I made a scale replica of the box out of cardboard. The recommended air space for the sub is .75 cubic sq feet, the box will measure around 22inch x 6 inch x 13 inch x Ĺ think mdf = .72 cubic sq feet.

I also started to make the area that the amps will mount on.

Pics




XERMAN2001 is offline   Reply With Quote
Old 04-22-2009, 08:01 AM   #18
adamtaylorpcb
Registered User
iTrader: (7)

adamtaylorpcb's Avatar

Join Date: Feb 2008
Location: Panama City Beach, FL
Posts: 890
Thanks: 0
Thanked 0 Times in 0 Posts
Default

you could probably squeeze more space if needed by adding wings to the bottom of the box yo follow the contours of the trunk area

or just load it with poly fill
adamtaylorpcb is offline   Reply With Quote
Old 04-22-2009, 01:17 PM   #19
XERMAN2001
Registered User
Thread Starter
iTrader: (1)

XERMAN2001's Avatar

Join Date: Feb 2008
Location: Toronto, Canada
Posts: 966
Thanks: 0
Thanked 1 Time in 1 Post
Default

Quote:
Originally Posted by adamtaylorpcb View Post
you could probably squeeze more space if needed by adding wings to the bottom of the box yo follow the contours of the trunk area

or just load it with poly fill
do to limited space i may have to go with 1/2 inch MDF for the box, the subs recommended air space is .75 cubic sq feet, the box will measure around 23.5inch x 5.75 inch x 13 inch x Ĺ think mdf = 0.74 cubic sq feet. With a 1/2 thick box i will have 3 mm of clearance between the bottom of the sub and the box, is this enough?

I was told that the 1 250 rms sub in a 1/2 inch box of that size reinforced with fiberglass resin should be strong enough. My other option is to lose some air space and go with thicker MDF but i don't know how the sub will respond to it.

i dont want to make the box any taller than 5.75 inchs or this would end up raising the floor level higher than before. So if i make it out of 3/4 inch mdf i would have to make the bottom of the box out of fiberglass to contour to the floor and leave enough room to clear the sub. I would also need to add poly, the box would be around .64 cubic sq feet and i need .75 cubic sq feet. how much poly would i need to add?

Last edited by XERMAN2001; 04-23-2009 at 04:21 PM.
