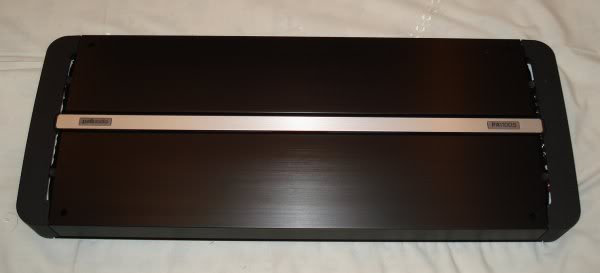

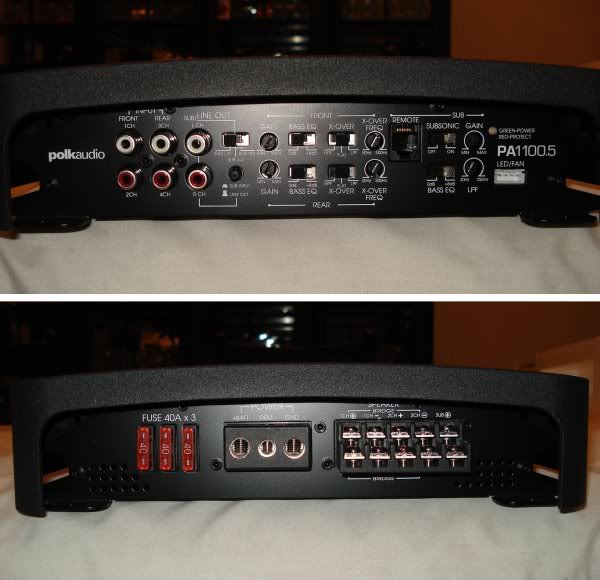

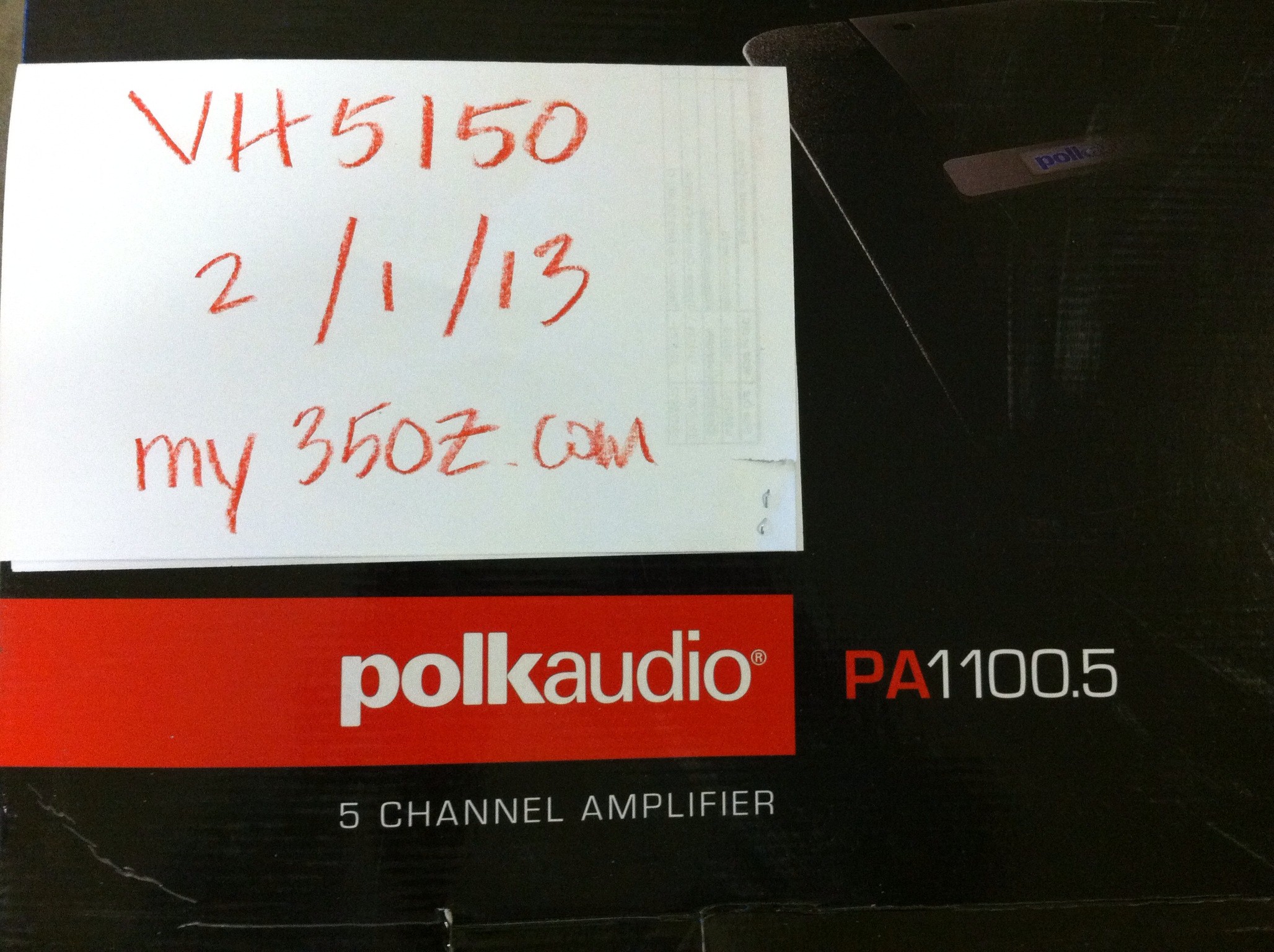

Polk Audio PA1100.5 Five Ch. Amp BNIB!!!!!!
BNIB!!!!!! Purchased about three years ago but never installed. Must sell. Asking $375 obo. Free shipping. Verified Paypal only. Thanks.
SPECS:
5-Channel Class D Car Amplifier
• RMS Power Rating:
o 4 ohms: 80 watts x 4 chan. + 280 watts x 1 chan.
o 2 ohms: 125 watts x 4 chan. + 400 watts x 1 chan.
o Bridged, 4 ohms: 250 watts x 2 chan. (Channels 1-4)
o Mono, 1 ohm: 600 watts x 1 chan. (Channel 5 Only)
• Max power output: 200 watts x 4 chan. + 1200 watts x 1 chan.
• PWM (Pulse Width Modulated) MOSFET power supply
• Wired remote volume level control included
• LED power and protection indicators
• Selectable bass boost (0, +8 dB at 40 Hz)
• Double-layer fiberglass epoxy printed circuit boards
• 5/4/3 channel operation
• Subwoofer channel is externally bridgeable with a PA600.1 for even more power! Bridged power is 1200 watts (2 ohm) RMS and 2400 watts Max power!
• Connection for optional LED light bar or optional amplifier cooling
• RCA preamp outputs
• Power/ground-reversal, thermal, short, current, overdraw, and low impedance protection circuitry
• Cast aluminum textured end caps
• Switchable 180° phase inversion
• Variable input sensitivity optimizes match with different signal sources
• Unity gain pass-through RCA jacks
• Mounting hardware with rubber isolation grommets and extra fuses included.
• Effective Damping Factor: >150
• Anodized extruded brushed-aluminum cover for maximum heat dissipation
• Chrome-plated RCA level inputs
• Chrome-plated screw terminals
• Variable high-pass filter (50-500 Hz, 12 dB/octave)
• Variable low-pass filter (50-500 Hz, 12 dB/octave)
• Subsonic Filter (24 dB at variable frequencies)
• CEA-2006 compliant amplifier
• Frequency response: 20-20000 Hz
• Dimensions: 26-5/16"L x 10-5/16"W x 2-9/16"H
SPECS:
5-Channel Class D Car Amplifier
• RMS Power Rating:
o 4 ohms: 80 watts x 4 chan. + 280 watts x 1 chan.
o 2 ohms: 125 watts x 4 chan. + 400 watts x 1 chan.
o Bridged, 4 ohms: 250 watts x 2 chan. (Channels 1-4)
o Mono, 1 ohm: 600 watts x 1 chan. (Channel 5 Only)
• Max power output: 200 watts x 4 chan. + 1200 watts x 1 chan.
• PWM (Pulse Width Modulated) MOSFET power supply
• Wired remote volume level control included
• LED power and protection indicators
• Selectable bass boost (0, +8 dB at 40 Hz)
• Double-layer fiberglass epoxy printed circuit boards
• 5/4/3 channel operation
• Subwoofer channel is externally bridgeable with a PA600.1 for even more power! Bridged power is 1200 watts (2 ohm) RMS and 2400 watts Max power!
• Connection for optional LED light bar or optional amplifier cooling
• RCA preamp outputs
• Power/ground-reversal, thermal, short, current, overdraw, and low impedance protection circuitry
• Cast aluminum textured end caps
• Switchable 180° phase inversion
• Variable input sensitivity optimizes match with different signal sources
• Unity gain pass-through RCA jacks
• Mounting hardware with rubber isolation grommets and extra fuses included.
• Effective Damping Factor: >150
• Anodized extruded brushed-aluminum cover for maximum heat dissipation
• Chrome-plated RCA level inputs
• Chrome-plated screw terminals
• Variable high-pass filter (50-500 Hz, 12 dB/octave)
• Variable low-pass filter (50-500 Hz, 12 dB/octave)
• Subsonic Filter (24 dB at variable frequencies)
• CEA-2006 compliant amplifier
• Frequency response: 20-20000 Hz
• Dimensions: 26-5/16"L x 10-5/16"W x 2-9/16"H
