Spent the day installing my oil cooler. I'm very happy with how it came out. Having the Setrab brackets make it pretty simple. The cooler is a 19 row Earls unit, but the Setrab brackets fit it fine.
I decided to mount the cooler right to the bumper beam. Its a few inches offcenter to allow airflow to the power steering cooler.
I started by marking, drilling and tapping holes in the beam to attach the bracket to. The bracket is actually upside down in the first couple pictures just to make it easier to see everything.
Using some 6mm bolts, attached the braket to the beam
Now with the beam installed on the car.
A view of the lines from above
A view of the billet Earls sandwich.
A view of mini-me, my matching Earls PS Cooler that I had laying around from another project. This was pretty easy to mount. I just used a piece of angle aluminum for the bracket and it mounts to the stock nut inserts for the original PS cooler brackets.
All buttoned up. I noticed quite a few bugs and pebbles hit the condensor, so I installed a wire screen to keep things clean.
Next up will be an oil temp gauge once I decided where I want to mount the sender.
__________________
2004 CS Track. Stoptech 14" F&R, Tien Flex w/ edfc, DC headers, Enkei's, Koyo rad, Motordyne, JWT, Nimso Exhaust, Braille.
2006 Velocity Red MazdaSpeed 6. Magnaflow, AEM CAI.
Great job. Don't think he has to worry about a thermostat in So. Cal!
I like how you mounted the radiator with the hoses up (get all the air out), but I don't like how you are blocking the radiator. Could you mount it on either side of the radiator?
__________________
Oversteer is when you hit the wall with the back of the car.
Understeer is when you hit the wall with the front of the car.
HorsePower is how fast you hit the wall.
Torque is how far you move the wall.
Yeah, no need for a thermostat in So. Cal. I've owned other cars with a setup like this and the temp always sits at 180° during normal driving in the winter. Plus they are one more restriction in the oil flow which I don't want.
I don't think the air flow will be much of a problem. These coolers are very free flowing. Plus, I have the Koyo 53mm radiator, which is MUCH larger than stock. Look at the Koyo side by side with the stocker.
Quote:
Originally Posted by MoodDude
Great job. Don't think he has to worry about a thermostat in So. Cal!
I like how you mounted the radiator with the hoses up (get all the air out), but I don't like how you are blocking the radiator. Could you mount it on either side of the radiator?
__________________
2004 CS Track. Stoptech 14" F&R, Tien Flex w/ edfc, DC headers, Enkei's, Koyo rad, Motordyne, JWT, Nimso Exhaust, Braille.
2006 Velocity Red MazdaSpeed 6. Magnaflow, AEM CAI.

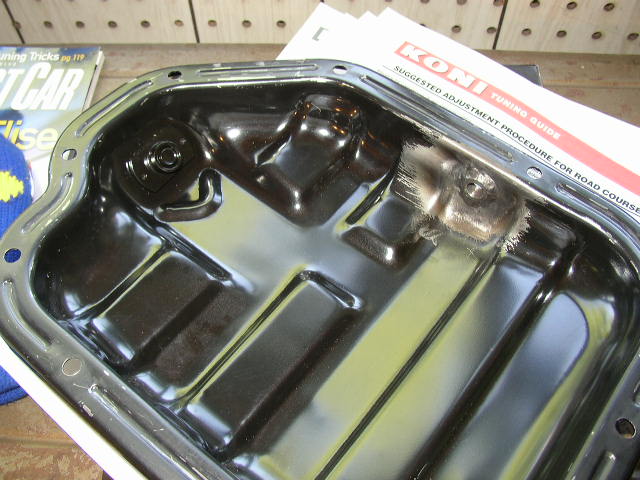

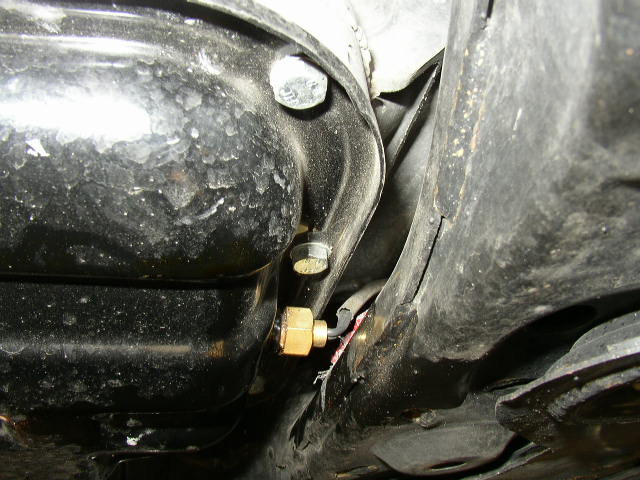

Too bad you didn't measure oil temps prior to adding the cooler. May I suggest you add a bung to the oil pan, and measure the oil temp there. I did last year. I'll look for a pic......OK, found 2:
I added a Oil temp gauge before my oil cooler - temperatures dropped and I never have gotten it over 90 C - even when I push her really hard. My oil cooler is identical size to 350Zteve, don't think he needs one now.
Yes, Koyo makes a huge different, I install mine next week!
__________________
Oversteer is when you hit the wall with the back of the car.
Understeer is when you hit the wall with the front of the car.
HorsePower is how fast you hit the wall.
Torque is how far you move the wall.
Too bad you didn't measure oil temps prior to adding the cooler. May I suggest you add a bung to the oil pan, and measure the oil temp there. I did last year. I'll look for a pic......OK, found 2:
This is good work but there is an easier plug'n play solution for this:
I have a brand new Setrab cooler I never insalled on my last car. After seeing these pictures I might put it on the Z. Are you able to drain the oil from the cooler at oil changes?
I have a brand new Setrab cooler I never insalled on my last car. After seeing these pictures I might put it on the Z. Are you able to drain the oil from the cooler at oil changes?
No, there is no easy way to drain the cooler during oil changes.
__________________
2004 CS Track. Stoptech 14" F&R, Tien Flex w/ edfc, DC headers, Enkei's, Koyo rad, Motordyne, JWT, Nimso Exhaust, Braille.
2006 Velocity Red MazdaSpeed 6. Magnaflow, AEM CAI.
No, there is no eazy way to drain the cooler during oil changes.
Really don't see this as an issue, if you change your oil and filter often!
Also, I installed the oil cooler and put a T on one of lines and installed my oil temp gauge to this.
__________________
Oversteer is when you hit the wall with the back of the car.
Understeer is when you hit the wall with the front of the car.
HorsePower is how fast you hit the wall.
Torque is how far you move the wall.
Very nice install. Is there room for an intercooler in there too if you're F/I? Looks like it's getting pretty crowded behind that bumper facia.
__________________ Special thanks to sponsors, Rotora, iNTOUCH Computer and Pitstop Performance. Former SCCA National, IMSA and FIA competition licenses, and 12 Hours of Sebring Finisher. Two time podium finisher - Redline Time Attack. Winner - 2006 Silver State Classic, 145mph Class.
Very nice install. Is there room for an intercooler in there too if you're F/I? Looks like it's getting pretty crowded behind that bumper facia.
I fit my Oil cooler next to the APS intercooler and I have the stock front bumper. There is room for the oil cooler on the drivers side.
__________________
Oversteer is when you hit the wall with the back of the car.
Understeer is when you hit the wall with the front of the car.
HorsePower is how fast you hit the wall.
Torque is how far you move the wall.
350Zteve: Do you have a parts list by chance for the oil cooler parts?
The sandwich is a #517 20x1.5mm Earls Billet, small oring.
The cooler is their 19row cooler, but I dont know the part number.
The mounting bracket is by Setrab, but fits the Earls cooler with a little bit of grinding on the bracket washers.
Lines and fittings are all Aeroquip from Summit racing. I used 3 90° -10 socketless and 1 120° -10 socketless fittings.
You need 2 3/8NPT to -10male adapters on the sandwich.
You need 2 -10male oring to -10 male AN on the cooler.
I used about 8-9ft of Aeroquip -10 socketless hose.
Earls makes socketless fittings and hose too. Where in socal are you? I bought the cooler, brackets and sandwich from Earls in Hawthorne on Hawthorne Blvd at the 405.
__________________
2004 CS Track. Stoptech 14" F&R, Tien Flex w/ edfc, DC headers, Enkei's, Koyo rad, Motordyne, JWT, Nimso Exhaust, Braille.
2006 Velocity Red MazdaSpeed 6. Magnaflow, AEM CAI.
thing o beauty!!! great job Zteve!! However, Chuck Norris would just give high oil temps a roundhouse to the head and it would go back down..
__________________ Cheston s Sponsors: TechnoSquare|Cosworth|StopTech|Toyo Tires|OS Giken USA|KW Suspension|Koyo Radiators|Motul|GT Spec|K&N|HAWK Performance|Performance Nissan|Rays Engineering|Finishline Autocraft. Thanks: Z1auto|VIP Status. Join the Salad Bar Club. Castrol Syntec Top Car Challenge '09: 2nd Place (Team Super Street). Sport Compact Car Magazine Ultimate Street Car Challenge 2008: 2nd Place.
thing o beauty!!! great job Zteve!! However, Chuck Norris would just give high oil temps a roundhouse to the head and it would go back down..
You know if Chuck Norris would cut his beard - there would be another fist underneath!
__________________
Oversteer is when you hit the wall with the back of the car.
Understeer is when you hit the wall with the front of the car.
HorsePower is how fast you hit the wall.
Torque is how far you move the wall.
Just wondering about this. Since it was mentioned about changing your oil and draining the oil cooler is there any way that you can mount the oil cooler upside down so it drains downwards?
