Hey all,
Finally got around to mocking up in sketch up the two thoughts I have for the cold air intake..

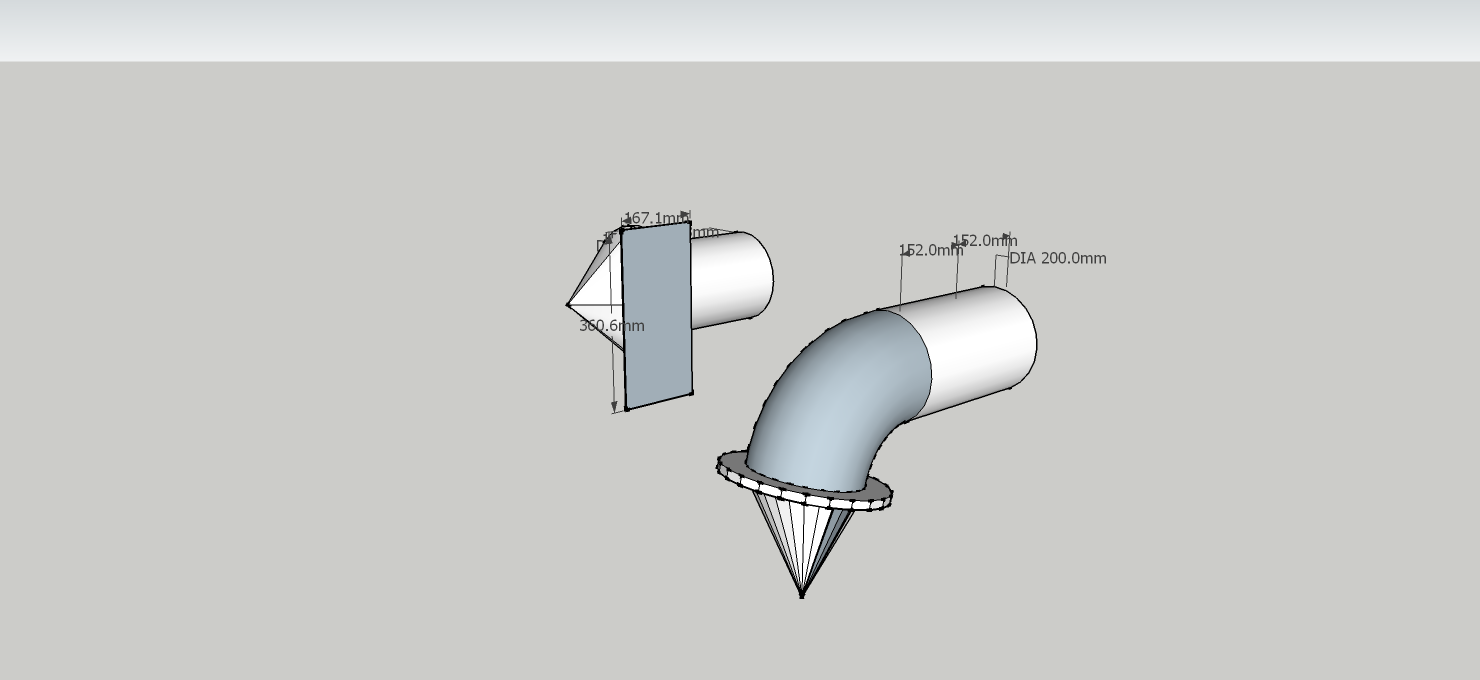

First intake (on the left) intends to go down, behind the bumper

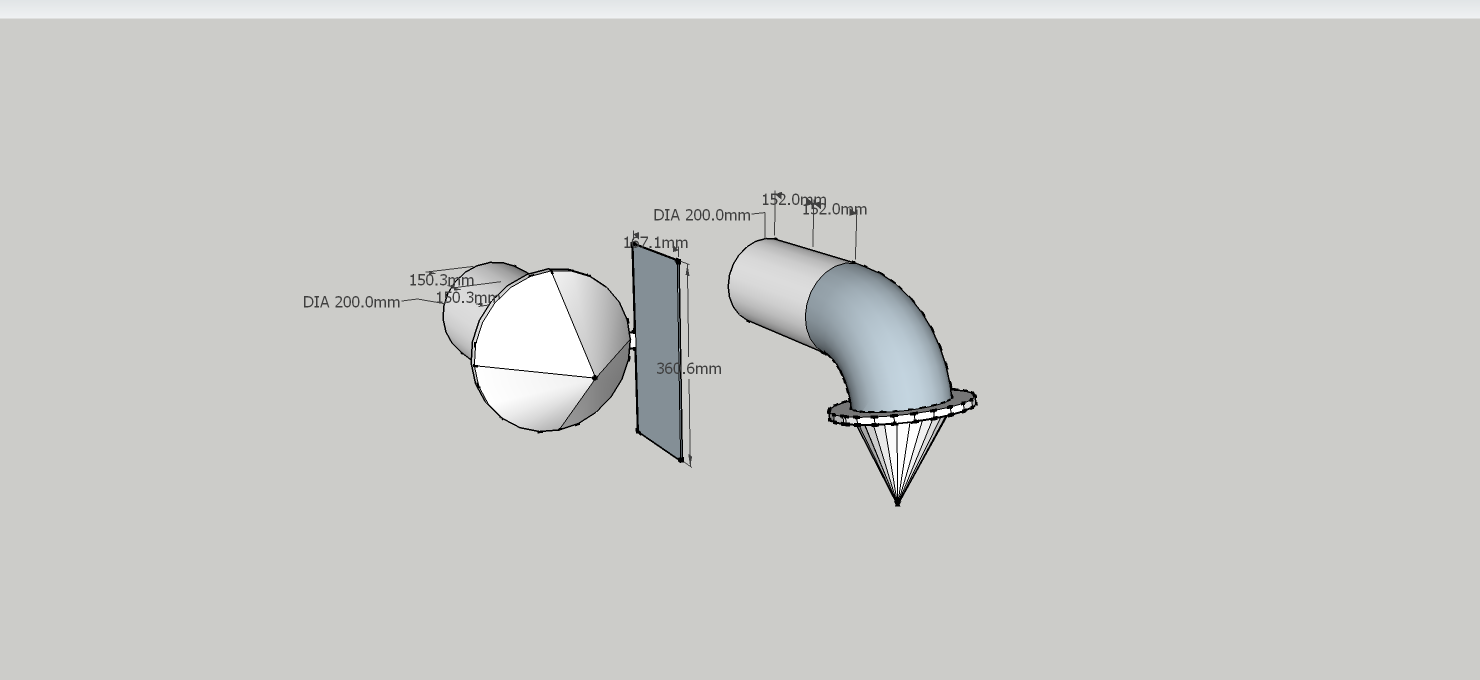

Second intake (on the right) goes to where the existing panel filter is with a heat shield on the appropriate side.
Thoughts?
Finally got around to mocking up in sketch up the two thoughts I have for the cold air intake..
First intake (on the left) intends to go down, behind the bumper
Second intake (on the right) goes to where the existing panel filter is with a heat shield on the appropriate side.
Thoughts?
#4
New Member
iTrader: (14)
Do you have the fabrication skills to cut/weld the proper mate for the MAF sensors or are you going to somehow cut/re-use the stock plastic tubing (since they are part of the stock air boxes)? I assume that your proposed tubing isn't going to be plastic..? What conical filters will you be using and what are their dimensions..?
#6
Registered User
Join Date: Jul 2014
Location: brooklyn
Posts: 1,144
Likes: 0
Received 0 Likes
on
0 Posts
that's all I did
#7
Registered User
Thread Starter
I kind of wanted to see if I could make my own and get any gains from it.
If I can get gains from it, it will cost me a fraction of the JWT pop Charger and INjen CAI
If I can get gains from it, it will cost me a fraction of the JWT pop Charger and INjen CAI
Trending Topics
#11
Registered User
Thread Starter
Do you have the fabrication skills to cut/weld the proper mate for the MAF sensors or are you going to somehow cut/re-use the stock plastic tubing (since they are part of the stock air boxes)? I assume that your proposed tubing isn't going to be plastic..? What conical filters will you be using and what are their dimensions..?
Sorry - fully forgot to reply to this last night.
I believe I do, however if I end up NOT having the skills, I have a great welder friend that can.
The tubing is going to be (most likely) intercooler piping.
Using HKS mushroom filters.
#12
New Member
iTrader: (14)
^^^ Intercooler piping? Again this comes back to where both MAF sensors secure themselves to the intake piping.. It's plastic. The stock piping is also permanently attached to the airbox. Are you going to be cutting the air boxes off and using a silicone coupler to attach intercooler piping..? Or... What?
#13
Registered User
Thread Starter
These are just idea's that I am throwing up at the moment.
Intercooler piping, why? Because it is cheap, easy to come by and will function no differently than the plastic would.
I will have a look further into the car this weekend and figure out the plan of attack for the MAF's and mounting.
Intercooler piping, why? Because it is cheap, easy to come by and will function no differently than the plastic would.
I will have a look further into the car this weekend and figure out the plan of attack for the MAF's and mounting.
#15
Registered User
Thread Starter
Hmm, if injens Dynos are anything to go by, I should be looking at a small Torque Gain.
Worth a shot, found a good/reliable place to source steel, so I shall mock some up this weekend, and see how we go!
Worth a shot, found a good/reliable place to source steel, so I shall mock some up this weekend, and see how we go!
#17
Registered User
Thread Starter
The dimensions were most defs NOT to scale, they were there so that I could actually print screen a decent looking intake design.
Need to measure up the factory pipe size, and grab some steel that size.
The final will NOT be made of steel for a few reasons.
Weight being the number one
Need to measure up the factory pipe size, and grab some steel that size.
The final will NOT be made of steel for a few reasons.
Weight being the number one
#18
Registered User
Thread Starter
So, I started with this.
Pretty stoked for $30 (plus the poddy -_-)
Turned it into this
And finished it like this ;D You can see I have welded a plate in for the MAF sensor, in the same location as the factory one.
Pretty stoked for $30 (plus the poddy -_-)
Turned it into this
And finished it like this ;D You can see I have welded a plate in for the MAF sensor, in the same location as the factory one.
#19
Registered User
Thread Starter
So that is quite obviously a very... Hori dori mock up.
But that's fine, it's airtight rah rah rah.
I have to make up one more of those, once I have done that I will have twin "pop chargers" if you will.
Once that's been done, I will get to work on finishing the CAI based off of K and N's design.
To prove that this was/wasn't a waste of my time, I will be doing a few dyno runs.
3 dyno runs with the car sitting totally factory
3 dyno runs with the "pop filters"
and finally,
3 dyno runs with the K and N based design.
I will average out each three sets of runs, and find out the final power numbers.
Hopefully this should all be done within the next 3 weeks.
But that's fine, it's airtight rah rah rah.
I have to make up one more of those, once I have done that I will have twin "pop chargers" if you will.
Once that's been done, I will get to work on finishing the CAI based off of K and N's design.
To prove that this was/wasn't a waste of my time, I will be doing a few dyno runs.
3 dyno runs with the car sitting totally factory
3 dyno runs with the "pop filters"
and finally,
3 dyno runs with the K and N based design.
I will average out each three sets of runs, and find out the final power numbers.
Hopefully this should all be done within the next 3 weeks.
#20
Registered User
Thread Starter
So, I have found a way to get a nice 90 deg bend in without using a 90 deg bend silicone pipe.
Should have some money next week to play with it and finally (yuss) install it all.
Should have some money next week to play with it and finally (yuss) install it all.
