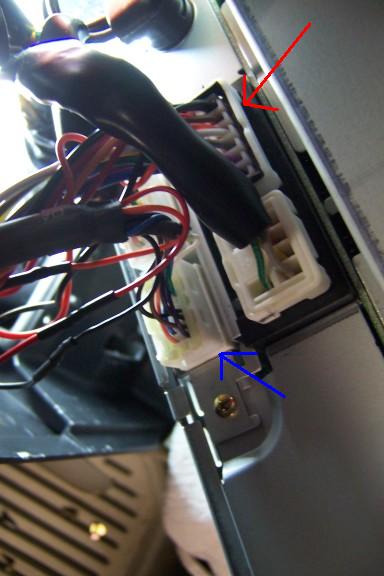

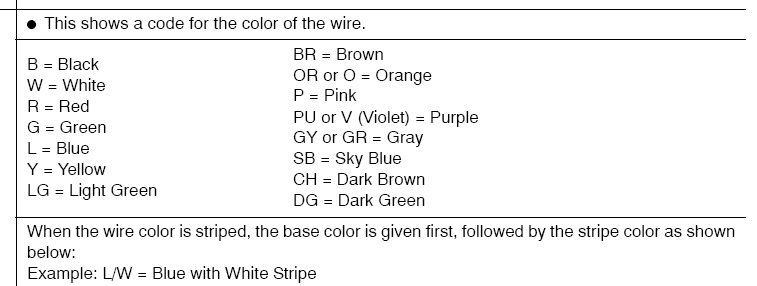

OK guys, long story short. While installing an ipod interface for my Bose system I got the wiring in a connector F'd up. If anyone is switching steros or doing anything like that I'd appreciate it if you can help me with the wire color code for the 10-pin connector with the red arrow. Attached is a diagram of the connector with color code. If you have the back of the stereo opened up I'd really appreciate your help. Right now I have no sound, no control over the A/C, no rear or front defroster functionality. Arrrgh!!!! I'm trying Infiniti and Bose. No luck so far.
Here ya go sport. This might help. I found it on a search..
https://my350z.com/forum/showthread....arness+diagram
https://my350z.com/forum/showthread....arness+diagram
Originally Posted by 16psibrick
I
audio:
Radio 12v
yellow
+
radio harness
Radio Ground (chassis)
Radio Ignition lt. green + radio harness
Radio Illumination red/blue + radio harness
Factory Amp Turn-on green/yellow + radio harness
Power Antenna green/white + radio harness
LF Speaker +/- blue/red - black/white +,- radio harness
RF Speaker +/- yellow/red - red/white +,- radio harness
LR Speaker +/- lt. green/red - black/yellow +,- radio harness
RR Speaker +/- blue/orange - black/pink +,- radio harness
all wiring guide courtesy of DEI
