BPL ..., another question, if I may. It looks like you're using the computer to play MP3's. Are you connecting the output of the PC sound to the input of the Sony WX-7700MDX? If so, how are you doing that?
Thanks - zzzBaby
Thanks - zzzBaby
#22
@zzzBaby

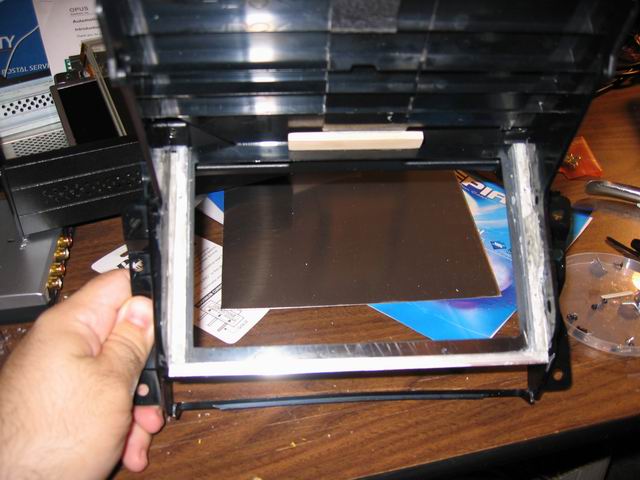

I'll post some pics of the motorized door and how I mounted the screen. Here is a pic of the back of the cluster lid assembly. Using the touch panel as a template, I epoxied some square aluminum tube in place to create a frame. The inside of the frame needs to be filed down so it's really smooth and the screen isn't too tight. I learned this the hard way by cracking my first touch panel.
I'll post some pics of the motorized door and how I mounted the screen. Here is a pic of the back of the cluster lid assembly. Using the touch panel as a template, I epoxied some square aluminum tube in place to create a frame. The inside of the frame needs to be filed down so it's really smooth and the screen isn't too tight. I learned this the hard way by cracking my first touch panel.
#24

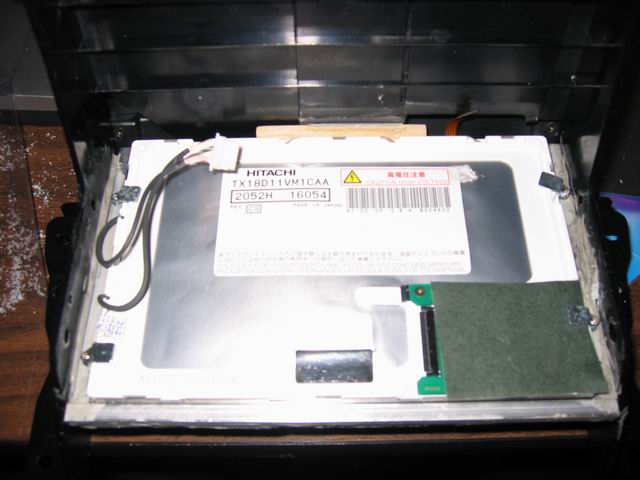

Here is the cluster lid mounted in the dash. I chopped out the back of the case that the screen came in to use as a mount for the LCD controller board. I then attached this to the cluster lid with small L brackets. Sorry I don't have a better picture of this... Also, you can see how the controller for the door attached to the back of the triple guage cluster at the top. It connects to the door with that white ribbon cable.
Last edited by BPL; 10-10-2004 at 03:41 PM.
#25

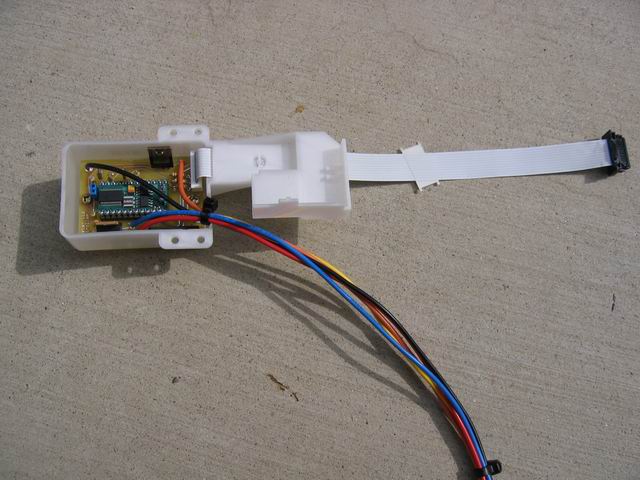

This is the door controller circuit that a friend and I designed. If there is interest we could do a writeup on how to build one. Also, I have 5 of the bare printed circuit boards left (I ordered 6 total) if anyone wants to buy one. Note that I cannot provide the plastic mounting bracket or the ribbon cable that connects to the door. Those came with the OEM controller which I wasn't able to get to work. It shouldn't be too difficult to figure out how to get by without those though.
#26
Originally posted by zzzBaby
BPL ..., another question, if I may. It looks like you're using the computer to play MP3's. Are you connecting the output of the PC sound to the input of the Sony WX-7700MDX? If so, how are you doing that?
Thanks - zzzBaby
BPL ..., another question, if I may. It looks like you're using the computer to play MP3's. Are you connecting the output of the PC sound to the input of the Sony WX-7700MDX? If so, how are you doing that?
Thanks - zzzBaby
#27
Registered User
iTrader: (22)
Join Date: Jun 2003
Location: Illinios
Posts: 438
Likes: 0
Received 0 Likes
on
0 Posts
Choppped?
In your description of parts, you note the case as "chopped".
PC:
VIA Epia M10000 Motherboard
Travla C134 Case (Chopped to fit in the Z)
Hitachi 40GB laptop HD
Slot loading DVD/CDRW
Lilliput 7" VGA touchscreen
4 port USB 2.0 hub
Linksys USB wireless-g NIC
USB GPS receiver (forgot brand)
USB SoundBlaster MP3+
Could you elaborate and pics would be nice.
thanks
Cliff Nix
Bloomington IL
PC:
VIA Epia M10000 Motherboard
Travla C134 Case (Chopped to fit in the Z)
Hitachi 40GB laptop HD
Slot loading DVD/CDRW
Lilliput 7" VGA touchscreen
4 port USB 2.0 hub
Linksys USB wireless-g NIC
USB GPS receiver (forgot brand)
USB SoundBlaster MP3+
Could you elaborate and pics would be nice.
thanks
Cliff Nix
Bloomington IL
#28
Registered User
Join Date: Mar 2003
Location: BayArea
Posts: 15
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by BPL
The Sony HU has aux in that I'm using for the computer sound. I'm using a USB SoundBlaster MP3+ and connecting it using a 1' Stinger RCA cable.
The Sony HU has aux in that I'm using for the computer sound. I'm using a USB SoundBlaster MP3+ and connecting it using a 1' Stinger RCA cable.
I'm thinking of installiing either the Sony WX-7700MDX or this one (also Japan Only):
#29
Registered User
iTrader: (8)
Join Date: Jan 2003
Location: B - low
Posts: 486
Likes: 0
Received 0 Likes
on
0 Posts
Like BrickydZ said , please show the process of "chopping" the case to work. Looks like you did a real clean job, and also did you use the navigation plate where the front of the computer sticks out or did you chop that too ?
#30
I can't seem to post the pictures of the case... It tells me that I'm not allowed to attach anything over 1 byte or something tiny like that. Is there a limit to the number of attachments I can post? Also, the attached images in posts are showing up as links instead of being displayed (even though it's set to display in my profile). Any ideas?
EDIT: Ok, I guess this stuff was changed intentionally. I'll get the pics up on a server tomorrow...
EDIT: Ok, I guess this stuff was changed intentionally. I'll get the pics up on a server tomorrow...
Last edited by BPL; 10-12-2004 at 07:26 PM.
#31
Registered User
Join Date: Mar 2004
Location: Austin Tx
Posts: 74
Likes: 0
Received 0 Likes
on
0 Posts
I have the same setup excpt I have the PC under the seat. Great job on fitting it in the Den, What interface did u use?
I am tired of Winamp and the small words. I have wireless G setup with a booster. its great. Combined with Netstumbler and AIRsnare I can trap networks on the road and surf. Plug up a webcam and record your race, or print out documents to my portable printer. Attach the OBDII port device to your PC and Dyno your car on the Street. Endless options......
Did you use the Opus power supply, or are u direct to the battery for power? IE when u turn off your car does the pc turn off as well?
Great setup, from One ZPC user to the next...
I am tired of Winamp and the small words. I have wireless G setup with a booster. its great. Combined with Netstumbler and AIRsnare I can trap networks on the road and surf. Plug up a webcam and record your race, or print out documents to my portable printer. Attach the OBDII port device to your PC and Dyno your car on the Street. Endless options......
Did you use the Opus power supply, or are u direct to the battery for power? IE when u turn off your car does the pc turn off as well?
Great setup, from One ZPC user to the next...
#33
Thx guys!
@SIX
The interface is one that I wrote myself called MediaFurnace. I'll probably release it for anyone that's interested after I tie up a few loose ends. It's a bretty basic interface but it looks nice and is very easy to use while driving.
I'll have to check out Netstumbler and AIRsnare. Do you need a specific type of wireless NIC or a bigger antenna?
Yep, I am using the 90w Opus power supply. It's powering the touchscreen, PC, wireless NIC (USB), and DVD drive. I have a 4 port USB hub for the other devices and that is powered my ACC using a 3 amp voltage regulator to bring it down to 5v.
@SIX
The interface is one that I wrote myself called MediaFurnace. I'll probably release it for anyone that's interested after I tie up a few loose ends. It's a bretty basic interface but it looks nice and is very easy to use while driving.
I'll have to check out Netstumbler and AIRsnare. Do you need a specific type of wireless NIC or a bigger antenna?
Yep, I am using the 90w Opus power supply. It's powering the touchscreen, PC, wireless NIC (USB), and DVD drive. I have a 4 port USB hub for the other devices and that is powered my ACC using a 3 amp voltage regulator to bring it down to 5v.
#34
Registered User
Join Date: Mar 2004
Location: Austin Tx
Posts: 74
Likes: 0
Received 0 Likes
on
0 Posts
Cool, I'm very Intrested in the Interface..Looks Clean.. The Nic I use Linksys G, with a Hawkwing Antenna, it's about 25$ at best buy or compusa. U will need to extend the cable because its only 3 feet, that will cost about 7$.
Airsnare and netstumbler are complatable with almost all Nic's. I have not found on that did not work. Both netstumbler and airsnare are free. The bad thing about the Hawkwing Antenna is that I just toss it in the back its white and about 1 foot and a half tall. What MOBO u running?
VIA M?
I admire the small case and I see u took out the Power supply cut the back end off and put the pwr external to the unit. GJ.
Curious as to how u mounted it into the Den, use a special mout?
ThX
6
Airsnare and netstumbler are complatable with almost all Nic's. I have not found on that did not work. Both netstumbler and airsnare are free. The bad thing about the Hawkwing Antenna is that I just toss it in the back its white and about 1 foot and a half tall. What MOBO u running?
VIA M?
I admire the small case and I see u took out the Power supply cut the back end off and put the pwr external to the unit. GJ.
Curious as to how u mounted it into the Den, use a special mout?
ThX
6
#35
Ok, I thought I had some better pics of the case modification but I guess not... Here's the case without the cover on it. You can see that the power supply is gone and the front has been moved back in it's place. I ended up removing about 2" of the tray, just barely enough to reattach the front and have the components fit. The cut was directly to the front of the motherboard and you can barely see the bronze weld.
