Hello I’m completely updating this post I now have found more wires. my male connector and a random connector that didn’t go to anything got ripped off and now I’m trying the connect a new one on however I have no clue on where they go. I’ve spent about 2 1/2 hours in trying to find a wiring diagram or someone with pictures with my same wire color. If someone could help it would be great

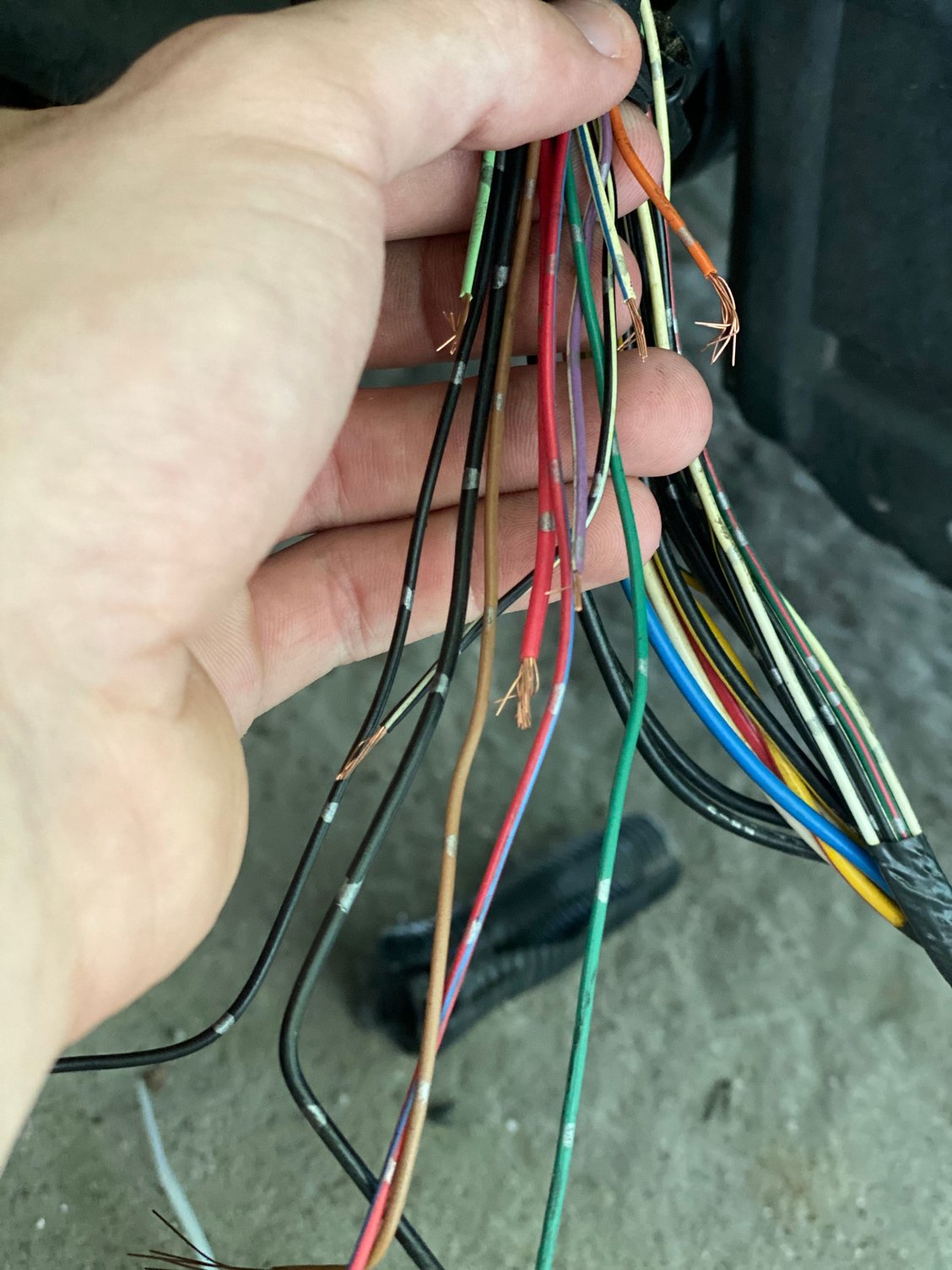

The wires:
1.thick black
2.thin black
3.black/white
4.brown
5.green
6.purple/white
7.thick red
8.red blue
9.orange
10.white/blue
11.light green/blue



Have you checked the FSM wiring diagrams?



Yes, ive checked alot of the diagrams. now im not the best reader on them yes but none of them seem to match my color of wires



This is a question almost impossible to answer from behind a keyboard. It really needs a hands-on approach with an owner of another '06 Z33. Have you considered going to your local Z club and seeing if anybody there might own one that can help you? Conversely, you could put out a post listing your location (other than "yep") and seeing if there's anybody near you willing to help. If you live anywhere near Denver, Colorado I'd help in a more direct manner. I've done it before for Colorado Z owners.



Almost impossible

Pass/right side for '06:

Pinout
1 2 3 4
5 6 7 8

1 = Black: side marker/parking light -
2 = Purple/White: Turn signal +
3 = Brown: High beam solenoid +
4 = Black/White: HID -
5 = Red/blue: Side Marker +
6 = Red/blue: Parking light +
7 = Red: HID High/Low +
8 = Black: Turn signal -



Thank you guy for the help so far but I’ve also seen this layout and it also different from mine, the wire colors i have in the pic above is:
Black/white
Black
Black
Red
Red/blue
Brown
Green



yea that would be a good option, I’ll see if anyone nearby would be interested but Im in Winchester Tennessee



Black/white: HID ground
Black: ground
Black: ground
Red: HID 12v
Red/blue: Parking light 12v
Brown: HID high beam solenoid 12v
Green: Turn signal 12v



Don’t know where you got this information but it helps me out a lot, thank you



Past retrofitting experience, for the most part.

However, you only posted 7 wire colors. I think you're missing one somewhere. It's probably the side marker positive.



I know some of these wires don’t go to the headlight plug, I just need to know which one does and if you know where they go in the plug it would be very helpful
