Single Turbo VQ35HR Home Fab Project
Well, I finished this about 3 months ago on my 2008 Z. All I can say is that my next investment needs to be a lift.... this was all done in a garage with jacks and jackstands. Thought I'd post up some pictures of the work. It was 2 weeks of working on it when I'd get home from work at night here and there. I spent like 3 days trying to figure out why the car was going into limp mode when I had finished it cause like and idiot, I had the MAF reversed on the driverside... frustrating but super simple fix.
I've done full builds on many vehicles, but this one was quite an undertaking, but awesome. I was thinking about just buying a kit, but I love challenges. It gained some pretty nasty power especially at my elevation (5500 to 7500+ is my normal driving elevation). Judging by all my other builds, I'm right around 375hp.
The project is focused around a Borg Warner s366 with a TIAL MVS wastegate and HKS SSQV. Boost is springed at right about 6psi. AFR's in boost sit at about 11.5-11.6. My next plan is for an Osiris tune and 8 psi. I'll be doing a fully built motor this upcoming summer so I'll keep this updated
Here she is

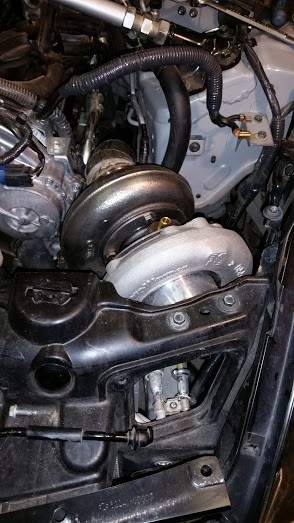

Finding the turbo placement-
Oil Pan Spacer- Thanks AAM!
Tacking up the exhaust to turbo
The pain in the *** up and over the cross member which swings under the oil filter
Exhaust from the turbo out
Finished exhaust piping wrapped up
TIAL MVS Wastegate
Finally got the piping equal length to both TB's to ensure more even air flow.
All done-
I've done full builds on many vehicles, but this one was quite an undertaking, but awesome. I was thinking about just buying a kit, but I love challenges. It gained some pretty nasty power especially at my elevation (5500 to 7500+ is my normal driving elevation). Judging by all my other builds, I'm right around 375hp.
The project is focused around a Borg Warner s366 with a TIAL MVS wastegate and HKS SSQV. Boost is springed at right about 6psi. AFR's in boost sit at about 11.5-11.6. My next plan is for an Osiris tune and 8 psi. I'll be doing a fully built motor this upcoming summer so I'll keep this updated
Here she is
Finding the turbo placement-
Oil Pan Spacer- Thanks AAM!
Tacking up the exhaust to turbo
The pain in the *** up and over the cross member which swings under the oil filter
Exhaust from the turbo out
Finished exhaust piping wrapped up
TIAL MVS Wastegate
Finally got the piping equal length to both TB's to ensure more even air flow.
All done-
Last edited by SPC_Cordova; 01-06-2015 at 12:53 PM.
#6
Registered User
Thread Starter
Join Date: Sep 2014
Location: Albuquerque
Posts: 17
Likes: 0
Received 0 Likes
on
0 Posts
Thanks guys. Yeah the 3" exhaust is very tight from the turbo back but no rubbing or anything. I think I'm into it for about 1800. I'll be putting together another one for a guy here in town in a couple weeks. Not sure if I'd be wanting to do anymore beyond that cause its a ton of work, but who knows, I always get bored and want projects to work on. ha ha.
Trending Topics
#9
Registered User
Thread Starter
Join Date: Sep 2014
Location: Albuquerque
Posts: 17
Likes: 0
Received 0 Likes
on
0 Posts
It is going to be alot easier since I know how to run everything now... hmmm maybe I will think about fabbing up more of these once I see how this second one goes for the other guy.
#11
Registered User
Thread Starter
Join Date: Sep 2014
Location: Albuquerque
Posts: 17
Likes: 0
Received 0 Likes
on
0 Posts
it actually sits higher that the oil pan does.
On the HR's you can't go with a DE turbo exhaust plumbing from most of the kits out there because of the starter being in the way on the driver side from what I could tell... I tried to keep it on the driver side at first but found out there was really no way.
On the HR's you can't go with a DE turbo exhaust plumbing from most of the kits out there because of the starter being in the way on the driver side from what I could tell... I tried to keep it on the driver side at first but found out there was really no way.
Last edited by SPC_Cordova; 01-06-2015 at 12:58 PM.
#19
350Z-holic
iTrader: (13)
Looks good Jake - start a build thread and load up some of your build pictures...I'm doing a little custom setup myself.
