This will be a write up of the evolution of the intake manifolds of the VQ, DE to Revup, but will also touch on a bit of the HR/VHR.
I believe that a sports car should have a linear powerband and take advantage of the entire rev range, it seems Nissan would agree because with every iteration they have closer and closer to a perfectly linear powerband. There will be some pictures comparing the DE and Revup lower plenums, some overlays of them and dynos of the DE vs Revup, and the HR vs VHR. The overlays are not perfect, but you get it lol.
The DE was a truck engine before it was put in a sports car, a quick glance at the dyno will show its truck roots. Because of this the manifold has different features than any other that came afterward. First off, the lower plenum have asymmetrical runners that are oval and have a gradual taper form the inlet of the air horns. Cylinders 1&6 have long runners, 2&5 have medium runners, and 3&4 have short runners. This leads to a more broad or "lumpy" powerband. Here are some measurements: DE
Runner upper length: cylinders 1&6 = 198mm / cylinders 2&5 = 185mm / cylinders 3&4 = 172mm
Runner upper width: air horn entry = 56mm / runners after taper ends = 47mm
Runner height: air horn and runner = 35mm
Lower surge tank depth from middle point = 26.7mm / distance from 1st air horn on right to plenum edge (at middle point) = 50mm
MREV2 clone (AKA DE) Lower surge tank Inside shot of how restricted the front cylinders are Left air horn machined for additional clearance Lower surge tank side view
With the introduction of the Revup Nissan switched to a lower plenum with symmetrical runners and never looked back, HR and VHR are symmetrical and have a rectangular shape.
Along with the new design they also shortened the runners to allow for better breathing in the higher rev range and minimize starvation to the front cylinders. Here are some measurements: Revup
Runner upper length: slight variations between 148-152
Runner upper width: air horn entry = 51mm / runners after taper ends = 47mm
Runner upper height: air horn entry = 45mm / runners after taper ends = 35mm
Lower surge tank depth from middle point = 35.4mm / distance from 1st air horn on right to plenum edge (at middle point) = 90mm

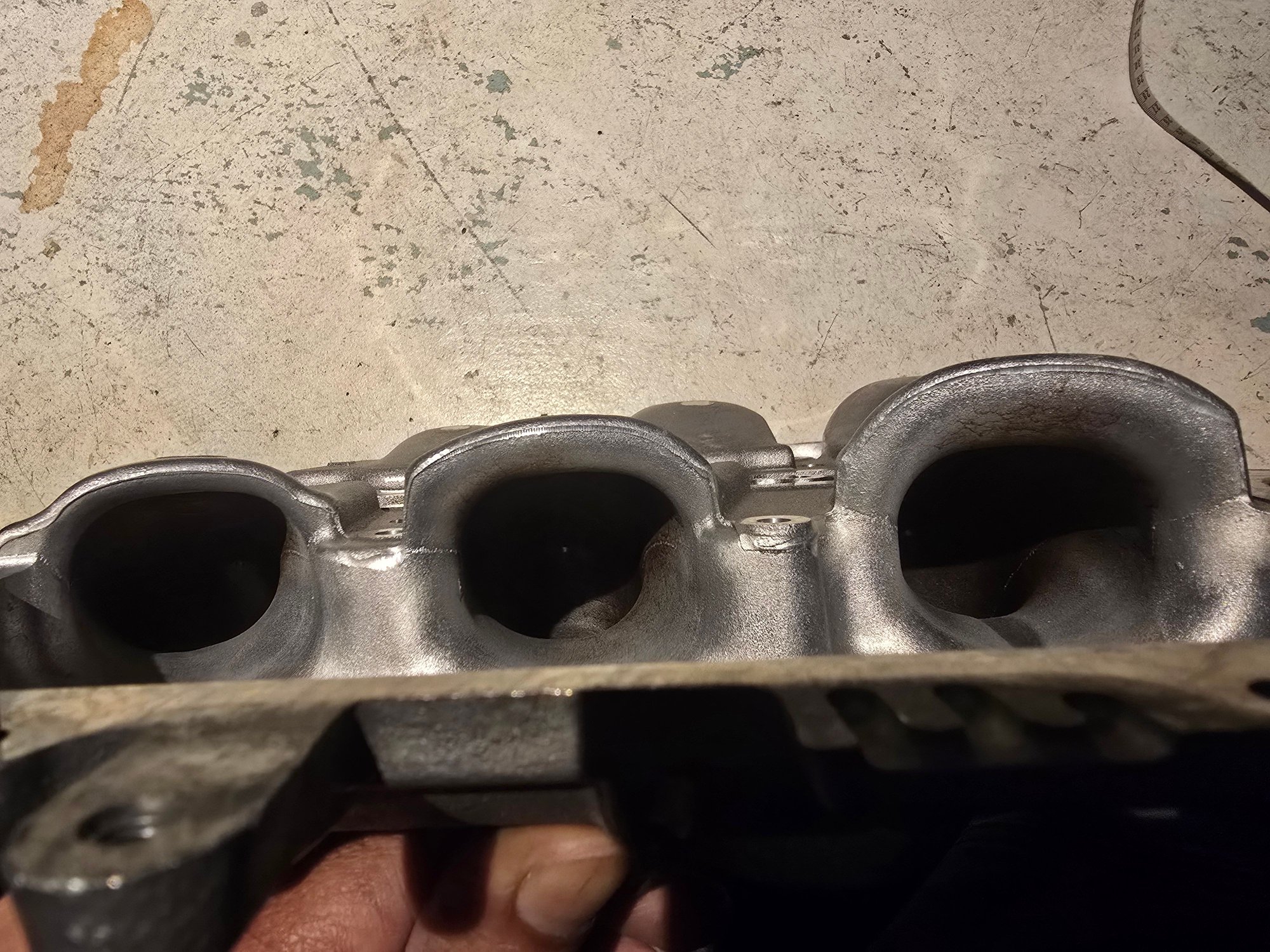

Revup lower plenum Notice how the air horns have changed up top to match the upper plenum for clearance Lower surge tank side view Lowe surge tank Space inside the right surge tank, much more space available for the front cylinder
HR
Upper manifold runner length = approximately 110mm
Now for some comparisons and overlay pics.

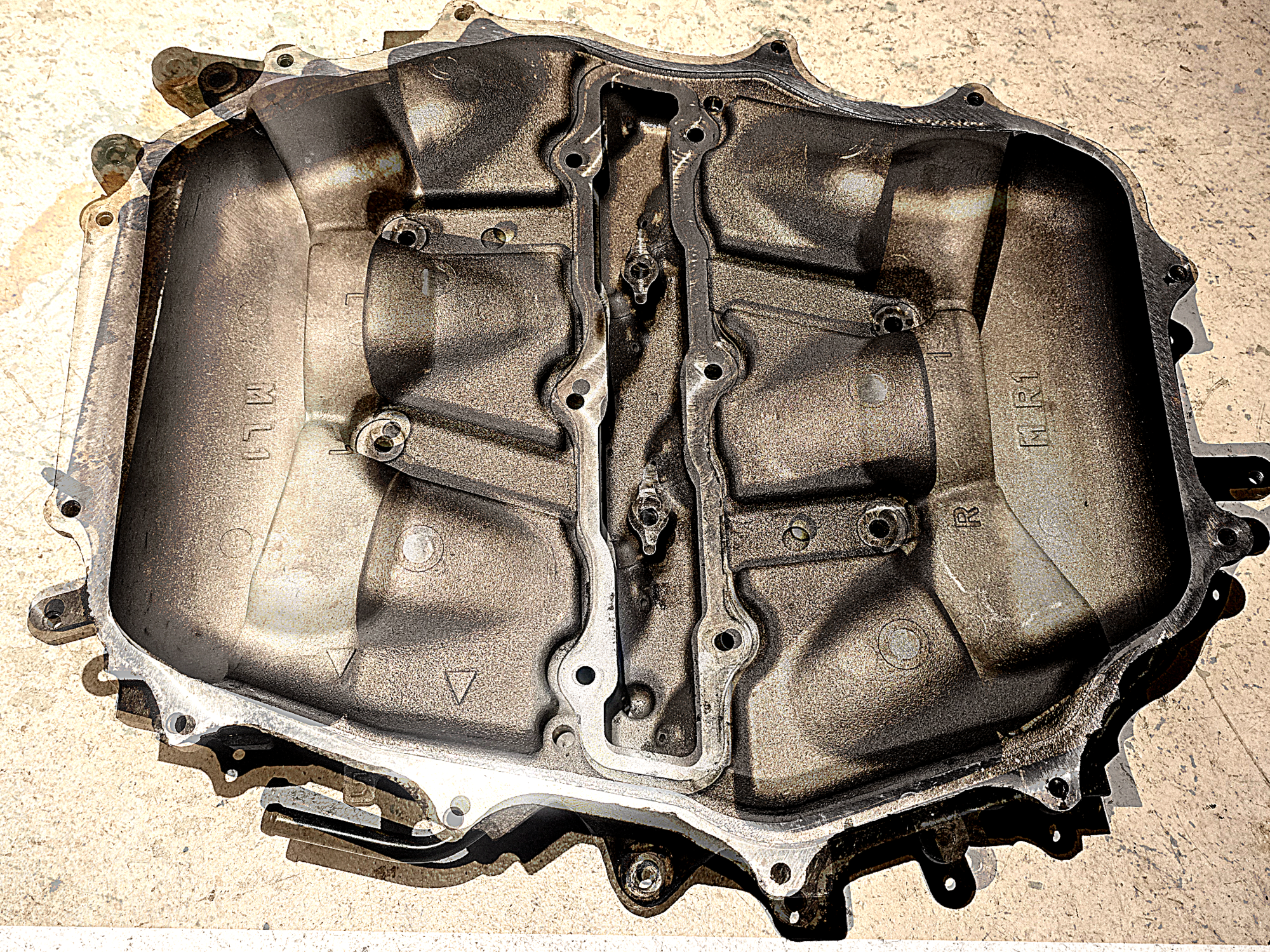

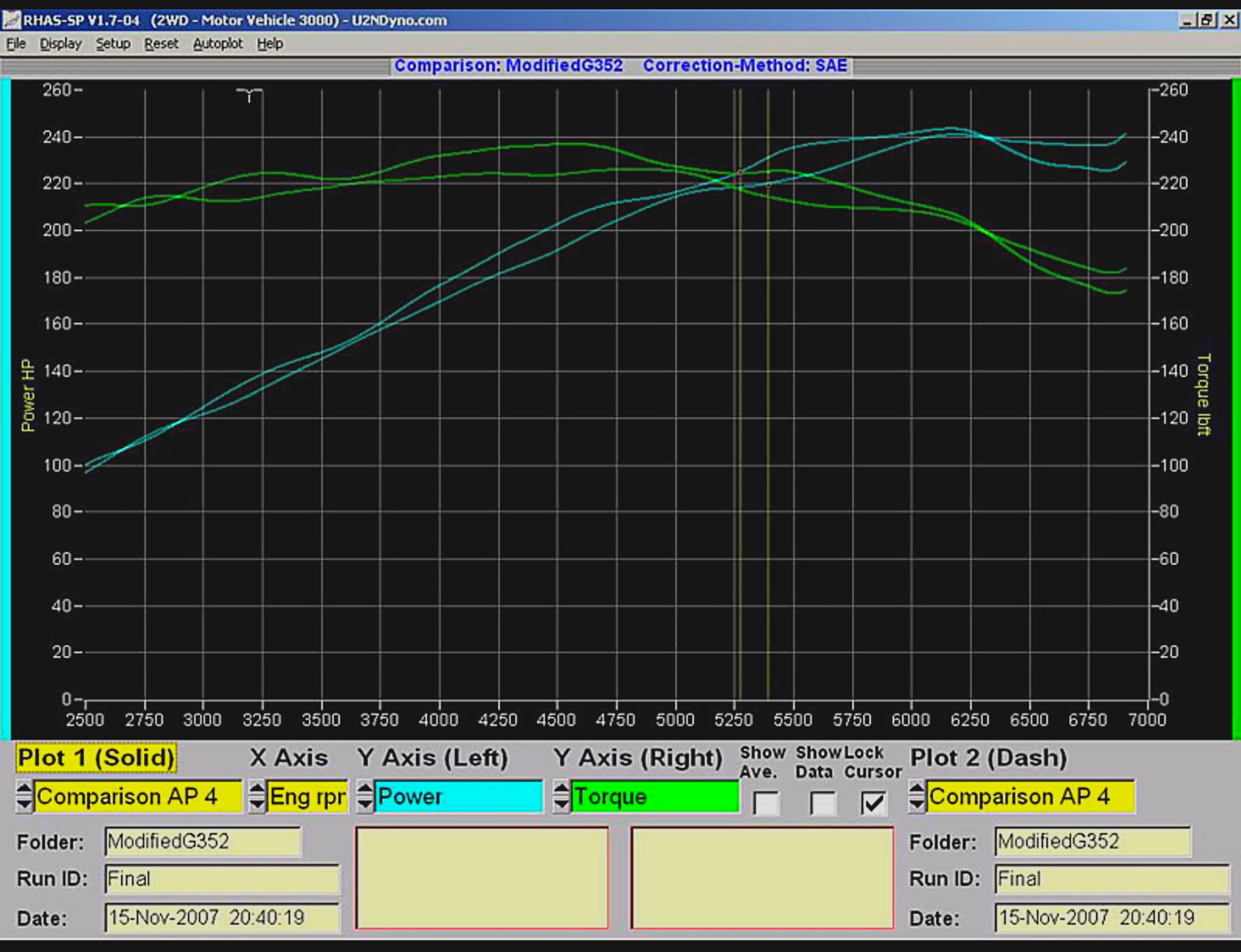

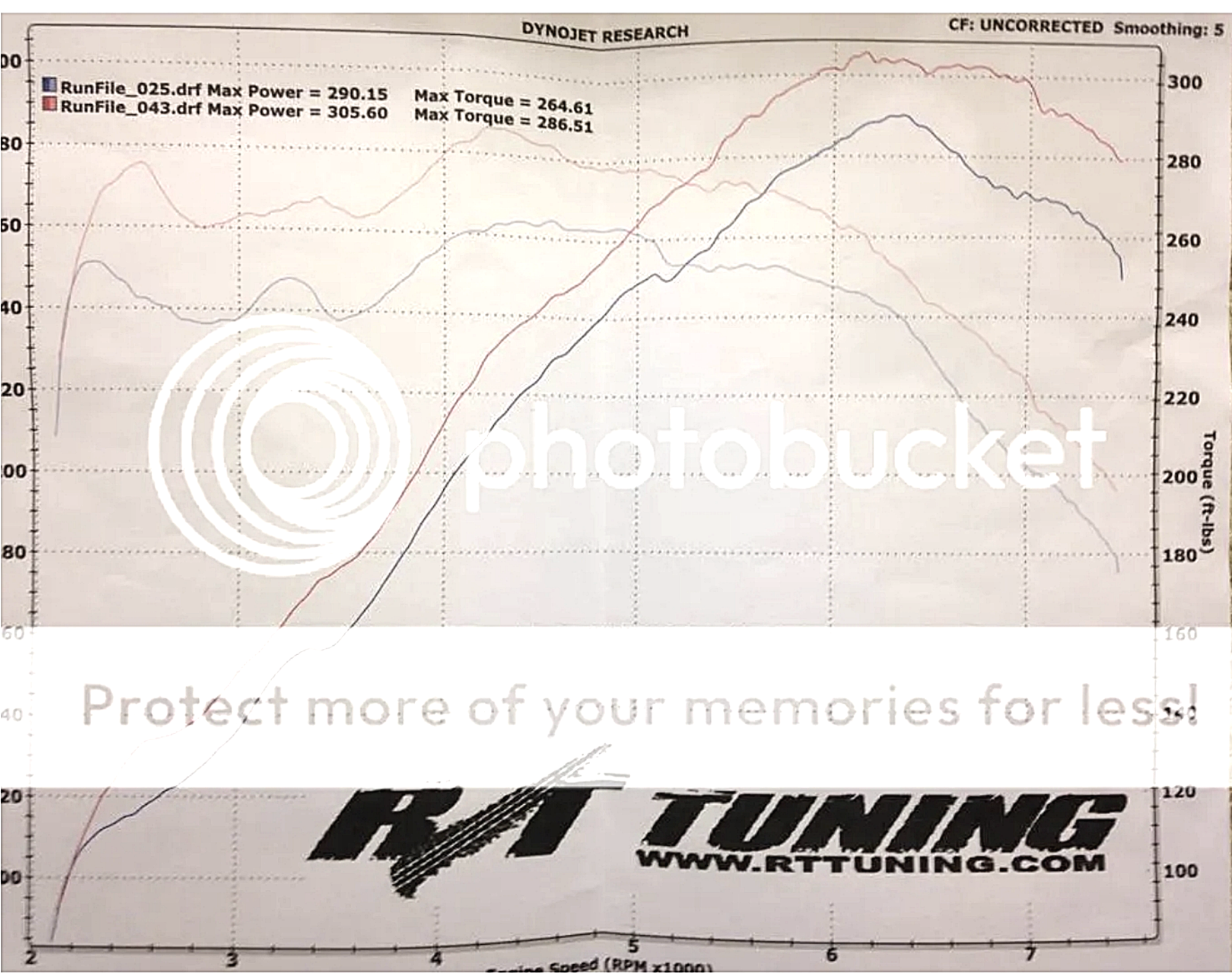

Comparison shot of both lower plenums HR plenum Overlay of DE and Revup plenums Stock DE vs Revup on same dyno Stock HR vs VHR on same dyno Average tuned DE Revup with MREV2 and spacer Tuned Revup Built DE with Kinetix Velocity
Call me crazy, but I truly believe the best option for the early cars is the Revup lower plenum, no starvation to front cylinders, no need for spacers and it will not fall on its face above 5500 rpm. Yes, you give up a bit of mid-range, but if I have learned ONE thing with the Kinetix Velocity is I want to be able to rev and not have the engine gasping for air. It should also be more boost friendly as well. I trust that Nissan had a reason for changing its design, and will be switching out my Velocity for it when I go for boost.
