Hi i need help, i need the name of this 3 parts



Part 2 says NABCO

Part 3 says 350z 30605-05U00


Part one is where the hose of clutch fluid container that you fill connects.

Do it looks like i need to replace part 1 or 2? as you can see it looks a little wet between the 2, or could i just add gasket silicone there?.

Can i buy part 1 and 2 separately or they come together?



Does this help?
http://www.courtesyparts.com/350z-pa...5_778_780.html



is that really the master cylinder in my photo?

it looks very different in shape



I'd like to see a picture taken from further away to see where on those parts are located on the firewall.

I see a (vacuum?)hose going into the black part with the green circle # 3 on it. I don't recognize that part, and the sealant application between it and what appears to be the clutch master cylinder doesn't look like a factory job.

The third post in this thread http://forums.nicoclub.com/jpn-us-pa...d-t583845.html shows the R32 Clutch master Cylinder has part number 30605-05U00, but it sounds like it's used on several models.



Ok, ill post more photos tonight when i get home



Here are the photos, the red line made in paint is where the path that the hose in part no 3 takes, what is the function of this hose, don't you have it?



That's in the right place to be the clutch master cylinder, but it doesn't look anything like what's in the parts diagram or the service manual for the 350Z. I just don't know.



Thanks, anyone else has more ideas?



Can i approach this from a different angle and ask what problems you are encountering?
Who told you these parts needed urgent replacement?
I know there's an obvious answer to this, I'm curious if you've come to this conclusion yourself or whether you've been told by a mechanic that these are the parts you need?



Maybe a picture from another 350Z will help.



Here you go. Just took these. Hope this helps you .



That's the brake master cylinder Club.....



Close, but yet so far away.

We need to see the part that the hose in the yellow outline connects to, please.



This is what the clutch master cylinder looks like.



The hose from the reservoir connects to the plastic fitting on top.



Oops,I left out the picture.


Yeah, that picture of the clutch master cylinder agrees with the parts diagram and the service manual, but the OP's pictures show some kind of vacuum booster arrangement. Is that something that's used on non-USA 350Zs? He's in the Dominican Republic.



Oh, I can't see the OP's pics. Might explain why I was lost.

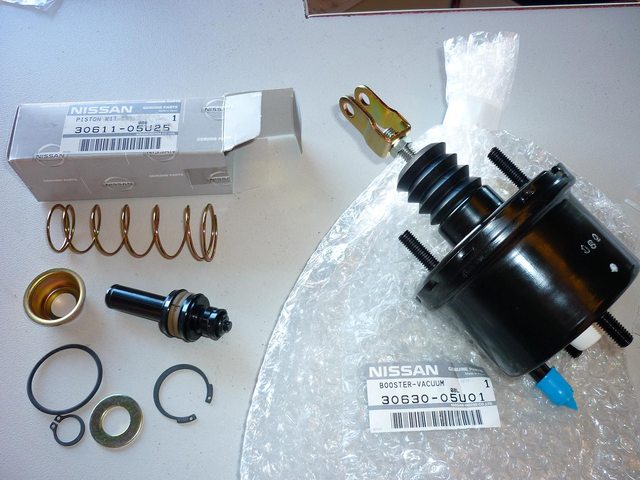

Part 3 definitely looks like a booster. part# 30605-05U00 came back as a r32 clutch master cylinder booster in one unit as stated above probably used in many models haven't seen this setup in the states though. Apparently in the 300zx TT models only. Part one looks as if its a cap to allow the cylinder to be mounted apart from the reservoir in the picture of an r32 the reservoir sits directly on top of the cylinder. If the cylinder is leaking at the booster seal as the formagasket suggest then it needs to be replaced. Hope this helps. Attachments may shed some light



Thanks i was on vacation i i couldn't check the forum, one different thing on the other 350z photos is that it doesn't has this connection in brake line hose like mine in this photo.

why would this connection with the clutch master cylinder be needed?
