2006 350z convertible top won't open... Not 5th bow motor!!!
#1
Registered User
Thread Starter
Join Date: Apr 2015
Location: New Jersey
Posts: 4
Likes: 0
Received 0 Likes
on
0 Posts
2006 350z convertible top won't open... Not 5th bow motor!!!

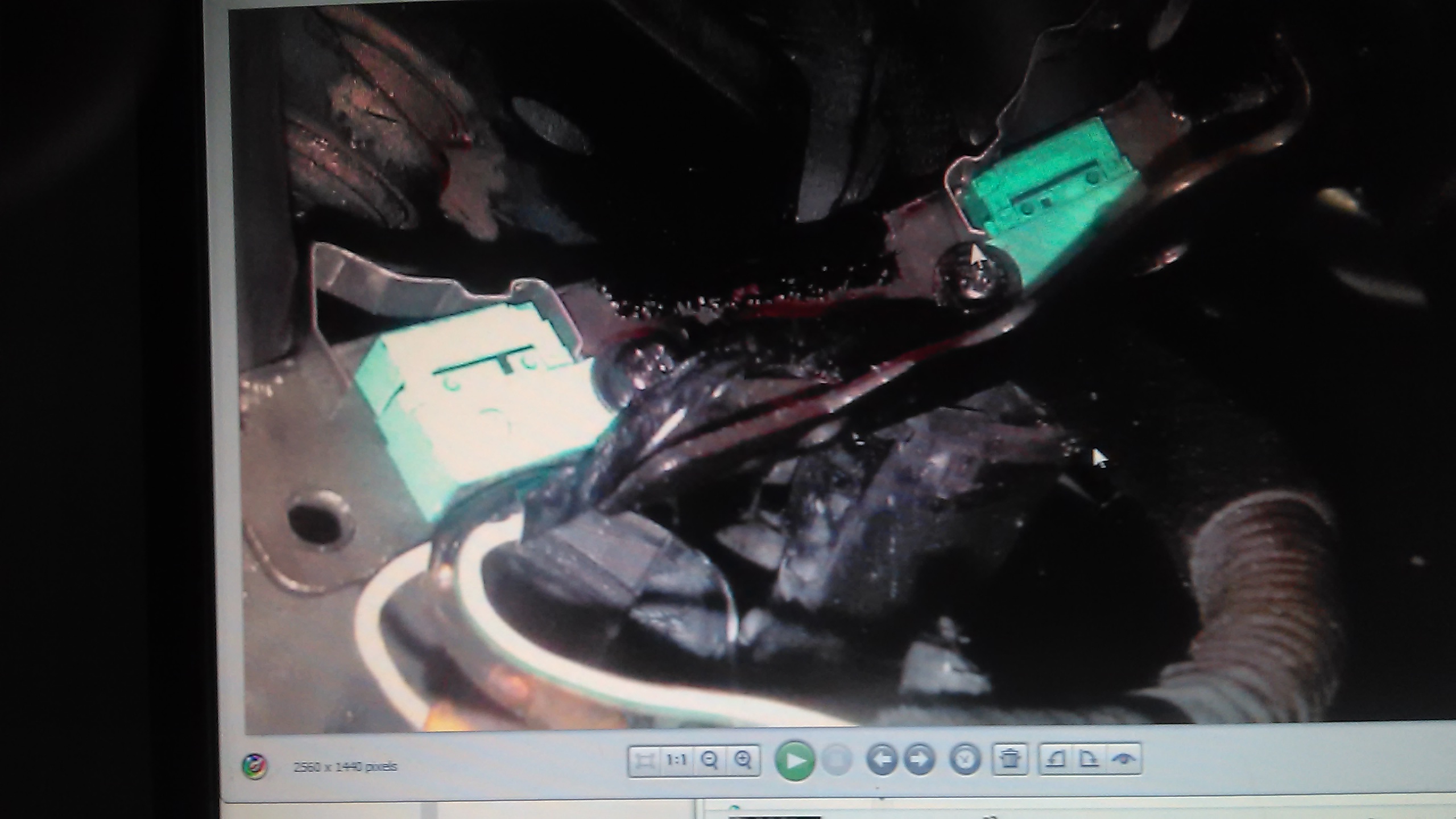

Hey guys first post on the forums but I need some help with my convertible top. I open up the top and it works fine, but when it tries to go in the trunk, all the motors shut off and wont tuck in. Now I thought it was the 5th bow motor, a common problem I heard and rebuilt the motor. It sounds brand new now but not the problem. Rebuilt the passenger side motor, still the same problem. Seems like a jam somewhere that's blocking the sensor. I made a video of my problem and will post the link below. If anyone can help me that would be awesome. Thanks my Z friends.
#2
Registered User
Cope, the picture is dark and jumps around making it hard to see each sequence step happening. However the motors sound healthy as well as the sound of the linkage articulating with the exception of the number two bow. All the other top bows are joined together and are pulled back by the two main top motors through linkage. The number two bow is the metal cross bar that is located approximately above your head when the top is closed. This bow is attached to free moving pivots on ether side of the top rails. Unlike the other bows it is not pulled into place, but simply falls back towards the number 3 bow as the top folds into the storage hatch.
At the ¾ mark of top operation you can hear the motors bind and struggle a bit as the number two bow jams in the top fabric. To diagnose and confirm that this is your problem, simply give the number two a little helpful nudge backwards with your hand when opening the top at about the ½ to ¾ point of opening.
If this allows the top to fully retract into the hatch and for the hatch cover to properly close, report back and we can explain how to fix this.
At the ¾ mark of top operation you can hear the motors bind and struggle a bit as the number two bow jams in the top fabric. To diagnose and confirm that this is your problem, simply give the number two a little helpful nudge backwards with your hand when opening the top at about the ½ to ¾ point of opening.
If this allows the top to fully retract into the hatch and for the hatch cover to properly close, report back and we can explain how to fix this.
#3
Registered User
Thread Starter
Join Date: Apr 2015
Location: New Jersey
Posts: 4
Likes: 0
Received 0 Likes
on
0 Posts
Identified the problem
With an extra man to help we found out that we had to pull the bar back in order for the top to retract fully in to the trunk. Now how do I fix the second bow so that it could do this automatically? Your help is much appreciated let me tell you!!
#4
Registered User
The second bow should only take a slight nudge backwards to help with the normal action. There should be two pieces of black elastic strapping a few inches wide, spanning between the second and the third bow (you can see them from inside the car). It is their job to supply a slight tug if needed as the top retracts. These straps are replaceable and will help an otherwise smooth working top fold properly.
I did see on your video the edge of the metal top attachment claw (on the second bow) was very chewed up. This leads me to think the top has been replaced on this car. as normal practice is to carefully unbend this clinch bracket to release the old top fabric and then carefully re-bend it over the new top fabric. Something is not right with yours, but we can’t see the whole area in the picture.
Again the bow should only take a small nudge to behave and work right. If that’s the case, then a simple replacement of the two elastic straps will put things right. If you have to use some real muscle to move it to the proper rearmost position, then the pivots, or the alignment of the bow, or the attachment of the fabric, or all of the above may need attention in addition to replacing the elastic straps. Nissan part # 97150-Z33010 I think you need to order two of these per car, (check that) best price would from an on-line dealer. Courtesy Nissan is a good one. The straps are about 5 inches long and it’s not hard to make up some from elastic band material from a sewing supply shop.
I did see on your video the edge of the metal top attachment claw (on the second bow) was very chewed up. This leads me to think the top has been replaced on this car. as normal practice is to carefully unbend this clinch bracket to release the old top fabric and then carefully re-bend it over the new top fabric. Something is not right with yours, but we can’t see the whole area in the picture.
Again the bow should only take a small nudge to behave and work right. If that’s the case, then a simple replacement of the two elastic straps will put things right. If you have to use some real muscle to move it to the proper rearmost position, then the pivots, or the alignment of the bow, or the attachment of the fabric, or all of the above may need attention in addition to replacing the elastic straps. Nissan part # 97150-Z33010 I think you need to order two of these per car, (check that) best price would from an on-line dealer. Courtesy Nissan is a good one. The straps are about 5 inches long and it’s not hard to make up some from elastic band material from a sewing supply shop.
The following users liked this post:
Nesbitt10 (04-29-2023)
#5
Registered User
Thread Starter
Join Date: Apr 2015
Location: New Jersey
Posts: 4
Likes: 0
Received 0 Likes
on
0 Posts
2nd bow......

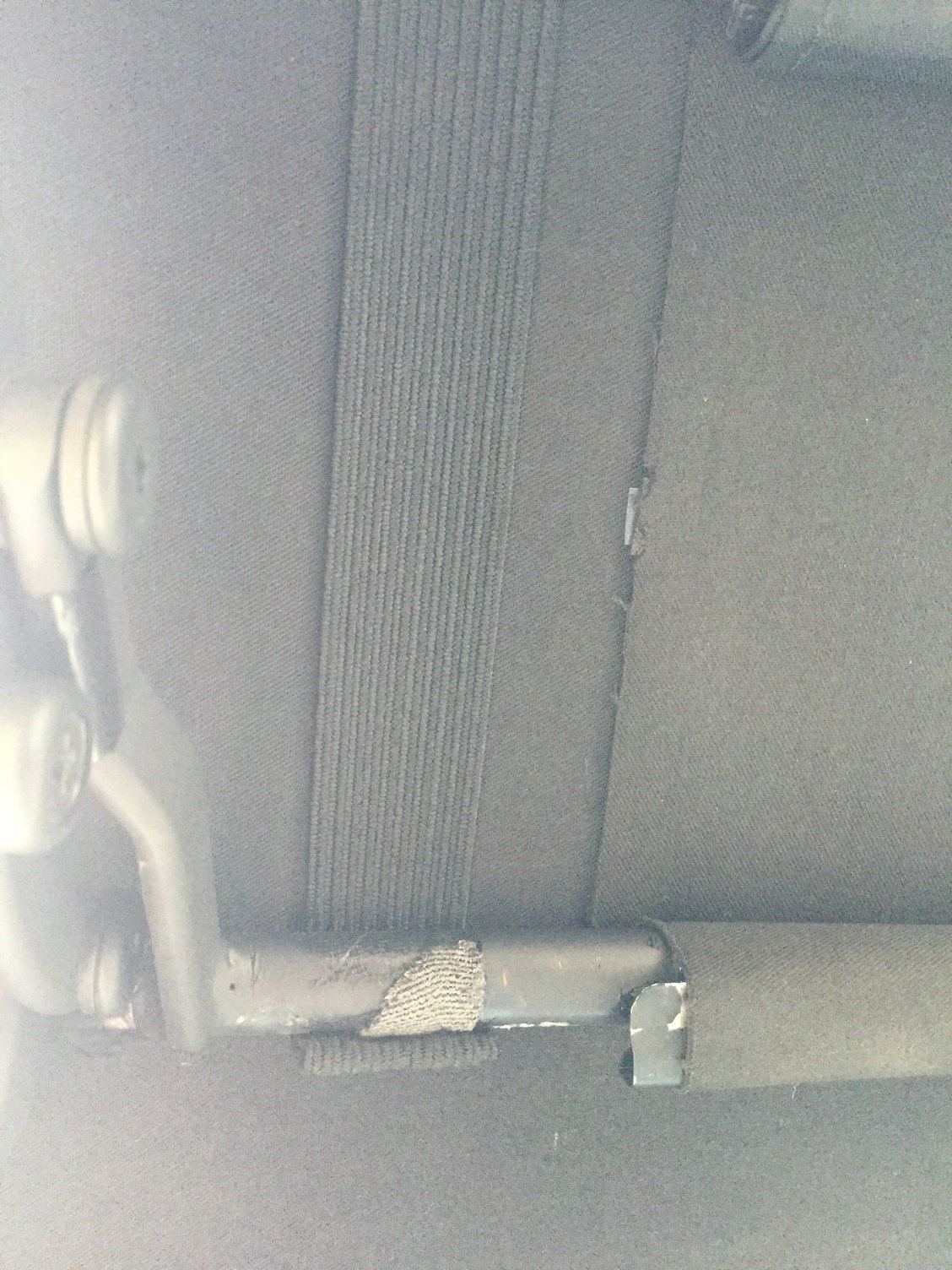

I just took a look at the bar above my head and took off some of the cloth covering it, it's in bad shape. I have pictures below to show both sides. You think I should insert rivits all along the bar to tighten it up?

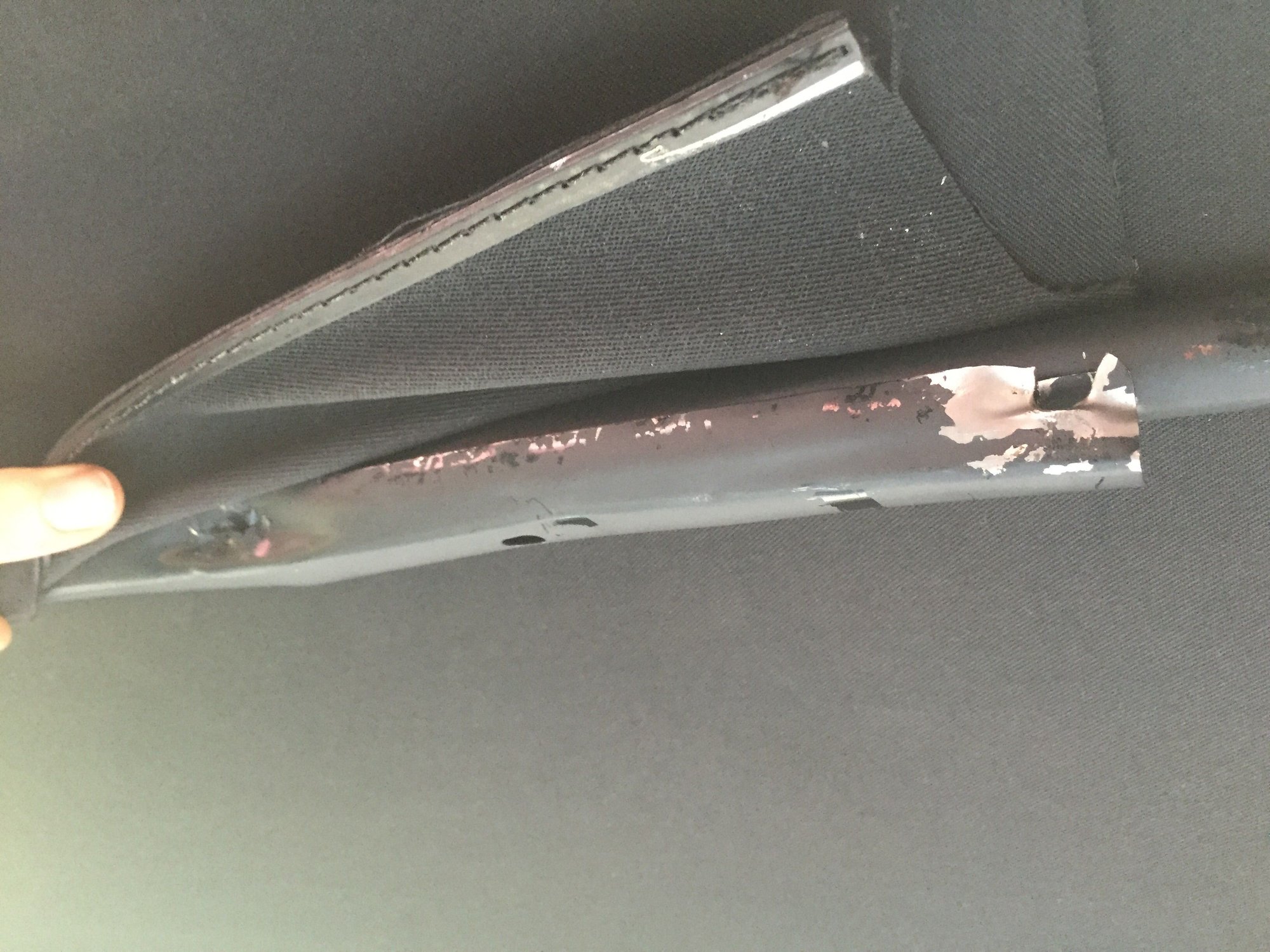

Above the driver side
Passenger side

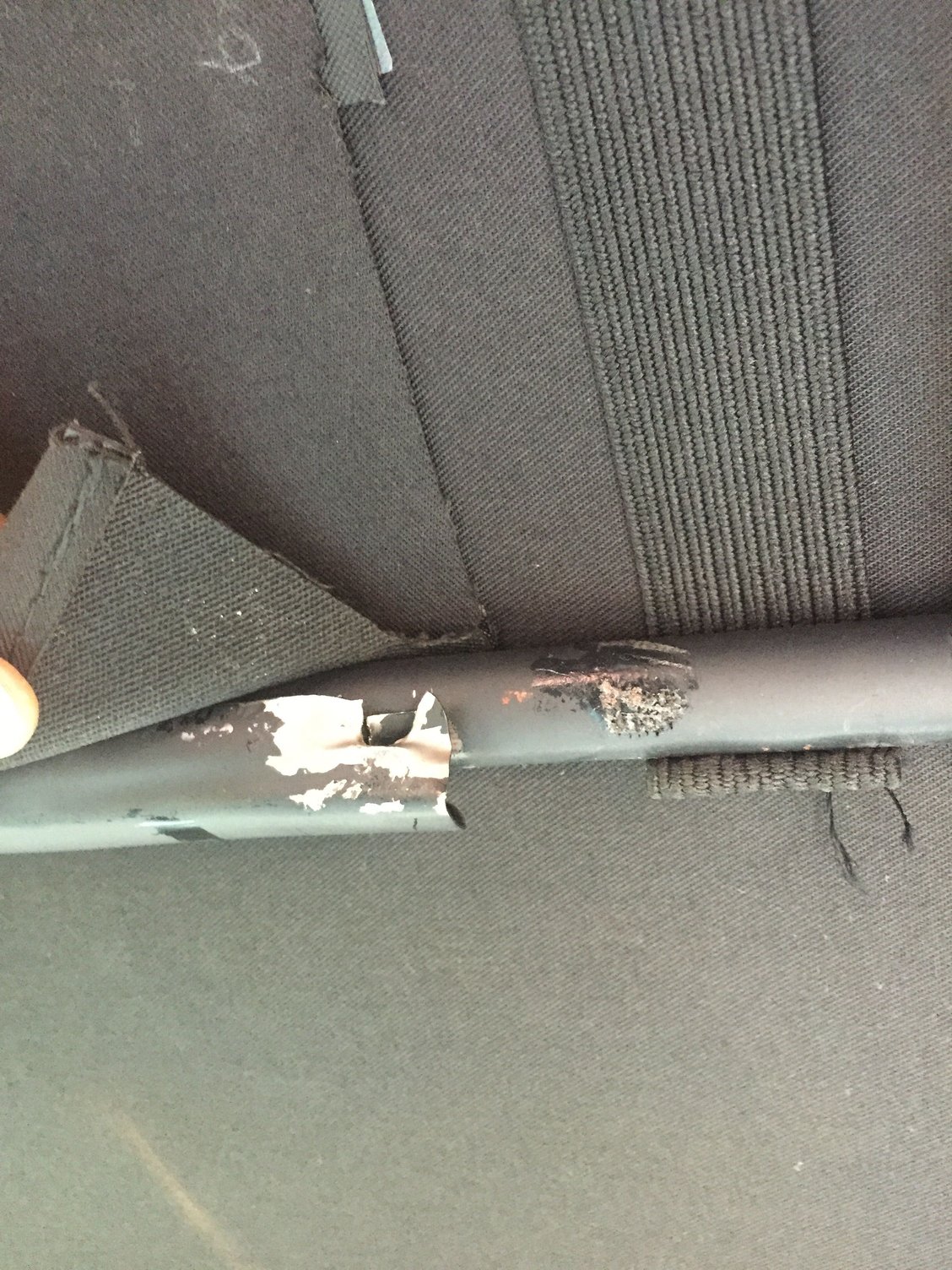

More passenger side
Above the driver side
Passenger side
More passenger side
#6
Registered User
Cope, Here is a giant pdf download with a bunch of factory service bulletins, service instructions and a ton of how-to photos describing the attachment the top to all the bows and frame work. Although I know how the top works, I’m just a girl without any ‘hands on’ experience. So I’ll leave you with all this and hope you get everything sorted.
http://home.comcast.net/~tempus01/topreplacement.pdf
http://home.comcast.net/~tempus01/topreplacement.pdf
The following users liked this post:
Nesbitt10 (04-29-2023)
#7
Registered User
Thread Starter
Join Date: Apr 2015
Location: New Jersey
Posts: 4
Likes: 0
Received 0 Likes
on
0 Posts
Top is officially FIXED
I just wanted to say thanks for helping me with my top problem. I bought an elastic roll from the store for 10 bucks and sewed the bands onto the top and it's never worked better. I appreciate the help!
Mike
Mike
Trending Topics
#8
Registered User
Good job Mike on getting everything sorted and working properly. Use the advanced search function here (set the ‘show results’ to posts instead of threads). Search by key word for top cleaners and top protectants to get some recommendations on products to clean, condition, and provide UV protection for your top. Take note that there are different formulas for vinyl or fabric coated tops.
Also, now that you have gained all this hands-on knowledge of the power top function, be sure to pass some of it on to others who inquire here.
Also, now that you have gained all this hands-on knowledge of the power top function, be sure to pass some of it on to others who inquire here.
#11
New Member
Join Date: Oct 2013
Location: Cherry Hill, NJ
Posts: 8
Likes: 0
Received 0 Likes
on
0 Posts
greetings all! Question.. I have issue with 5th bow motor. When i try to open top, I get passenger window going down, the passenger seat moves forward, I hear the click unlocking the top but the 5th bow motor never moves. I have tried removing motor and bench testing it and it tests ok if i apply power but not in the car. Is it possible the power is not activated because it's out of sequence? I have checked all fuses and all are good. Help me please because I don't want to spend 4500 at the nissan dealership. Yes i have already inquired with them.. THANK YOU.
#12
Registered User
[ATTACH][/ATTACH]manually open top by hand and check switches on pivot point by drivers door , on mine the switches on rite side lever was bent out of shape , got sw on line 50.00 bucks
#13
Registered User
Join Date: Nov 2018
Location: North Carolina
Posts: 2
Likes: 0
Received 0 Likes
on
0 Posts
You still have this car?
Having the exact same problem with mine (your video helps a bunch) and just got a $2,000 estimate to replace 5th bow motor and strap kit. I think the motors are fine, just getting hung up in the last part of the process. I would love to see a pic of your elastic band fix if that is possible. I want to try it. I am ready to sell this car, though I love her. My new commute is too long to put her on it every day and the insurance is too high to let her sit in the driveway. I sure didn't want to tell a prospective buyer that the top doesn't fully work and the fix will cost 2 grand.
#14
New Member
iTrader: (6)
Having the exact same problem with mine (your video helps a bunch) and just got a $2,000 estimate to replace 5th bow motor and strap kit. I think the motors are fine, just getting hung up in the last part of the process. I would love to see a pic of your elastic band fix if that is possible. I want to try it. I am ready to sell this car, though I love her. My new commute is too long to put her on it every day and the insurance is too high to let her sit in the driveway. I sure didn't want to tell a prospective buyer that the top doesn't fully work and the fix will cost 2 grand.
#15
Registered User
Join Date: Nov 2018
Location: North Carolina
Posts: 2
Likes: 0
Received 0 Likes
on
0 Posts
Appreciate the info
#16
Hey everyone!
I’m in a similar boat here and can use any kind of help possible from you all. I have power in the motors but when I press the open button, nothing works. My windows don’t move and seats don’t move. I had a Nissan dealership look at it and they think it’s the 5th bow and are telling me I’d be spending up to $6k on parts and labour. I don’t like the sounds of that. Anybody have any thoughts or and ideas what the issue might be.
Last edited by Lallz; 07-06-2019 at 06:35 PM.
#17
where is the switch located and is it easily accessible by just lifting the back part of the top up I cannot locate this switch but my top is doing the same thing as you have mentioned in your previous post what was the part number or how do I look up what that part is called I cannot find it anywhere online.... Can the switch be bi passed to see if it is the problem?
#18
Hey guys first post on the forums but I need some help with my convertible top. I open up the top and it works fine, but when it tries to go in the trunk, all the motors shut off and wont tuck in. Now I thought it was the 5th bow motor, a common problem I heard and rebuilt the motor. It sounds brand new now but not the problem. Rebuilt the passenger side motor, still the same problem. Seems like a jam somewhere that's blocking the sensor. I made a video of my problem and will post the link below. If anyone can help me that would be awesome. Thanks my Z friends.
2006 Nissan 350z Roadster Convertible Help!! - YouTube
