Just wanted to share with the hardcore guys out there what's going on with our race car. Kuah from SPL sent us his new rear spherical kit, and along with all of his arms everything from the subframe out will be solid, with the exception of the upper camber arm - which I will have to machine my own bearings for.
The front of the car is already full solid thanks to Kuah's lower control arm sphericals and our compression rod spherical bearing.
The only piece of the puzzle missing were the rear subframe bushings which don't seem to be available anywhere in aluminum, despite being very popular for the 240sx chassis. After pressing out the factory bushings I drew some simple aluminum ones and had the machine shop next door churn them out for me. They are also designed to raise the subframe a wee bit to help a little bit with suspension geometry. I would have loved to go higher but with the way the subframe is you would need to machine the entire rear of the subframe to get it any higher, and my fuel cell is already mighty close to the driveshaft!
If you're looking to be doing a lot of lapping / time attack or performance driving, I wish I could explain to you the difference sphericals make. In the front steering response time becomes seemingly negative, and the crazy wiggles from the back of the car at high speed are all but a painful memory!

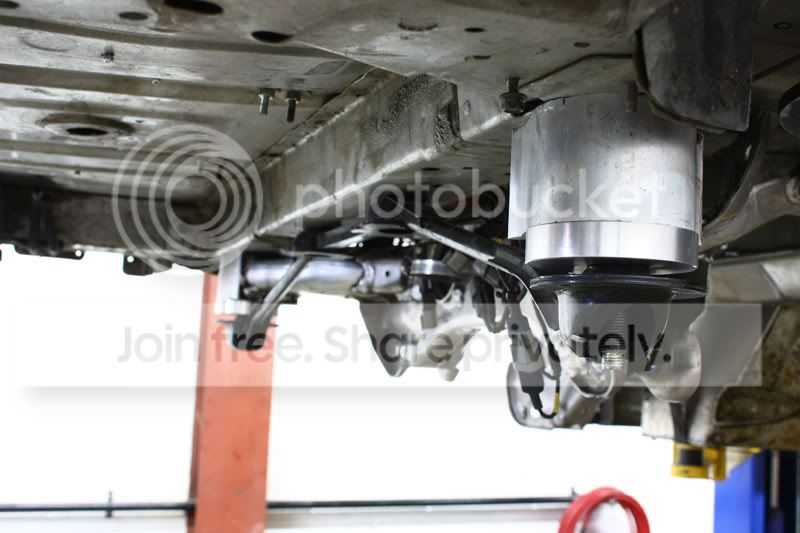

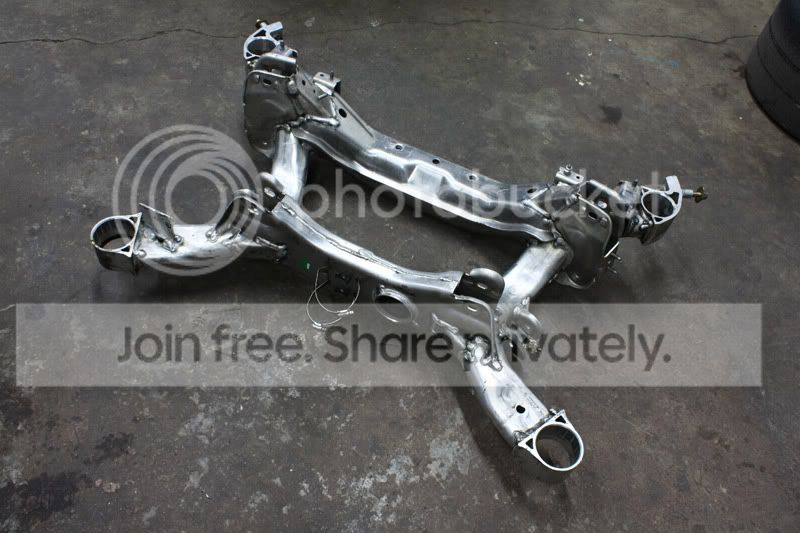

Here are some pictures:
And the front arms from last season:
The front of the car is already full solid thanks to Kuah's lower control arm sphericals and our compression rod spherical bearing.
The only piece of the puzzle missing were the rear subframe bushings which don't seem to be available anywhere in aluminum, despite being very popular for the 240sx chassis. After pressing out the factory bushings I drew some simple aluminum ones and had the machine shop next door churn them out for me. They are also designed to raise the subframe a wee bit to help a little bit with suspension geometry. I would have loved to go higher but with the way the subframe is you would need to machine the entire rear of the subframe to get it any higher, and my fuel cell is already mighty close to the driveshaft!
If you're looking to be doing a lot of lapping / time attack or performance driving, I wish I could explain to you the difference sphericals make. In the front steering response time becomes seemingly negative, and the crazy wiggles from the back of the car at high speed are all but a painful memory!
Here are some pictures:
And the front arms from last season:
I likes it a lot.
Trending Topics
04-01-2010, 05:09 PM
#13
Thanks Guys!
Jason, you can buy the front compression rod bushings from Kuah at SPL Pro Suspension, combined with the lower control arm bushings it makes an incredible difference.
I'll be assembling the subframe shortly but first I've got an engine to assemble tomorrow! High compression should make some sweet sweet jam.
Edit: Hopefully we'll get down to the Glen this year. Road Atlanta is my next favorite US track that I have to visit soon!
Jason, you can buy the front compression rod bushings from Kuah at SPL Pro Suspension, combined with the lower control arm bushings it makes an incredible difference.
I'll be assembling the subframe shortly but first I've got an engine to assemble tomorrow! High compression should make some sweet sweet jam.
Edit: Hopefully we'll get down to the Glen this year. Road Atlanta is my next favorite US track that I have to visit soon!
04-05-2010, 06:14 PM
#15
Hey Sharif,
We'll make it to the states for a time attack event when it has enough horsepower to not embarrass itself on the straights
As far as lapping days or regional races go, I would love to get down to the some of the larger tracks this year. All this iRacing training, I want to try the real thing now, god knows Mosport was 100% spot on!
Back to the car-
Got the subframe back in today and everything looks good. Because of the raised subframe, special upper spring pickups, SPL Mid-Link arm, and relatively low ride height we run, the rear spring options are going to be very difficult to sort out indeed. At the full compression I want to have in the suspension I'll have less than 3" between the upper and lower spring seats. That's not really enough for a blocked tender, spacer and 1000lb/in spring! Coil bind is bad news, so I'm going to look at making a custom insert for the SPL mid-link that will allow me to use a 2.25" spring and sit it down lower in the arm.
Here are some pictures with the new 18x10.5 RPF1s all around with 280/650/18 yok's
Just less than full droop

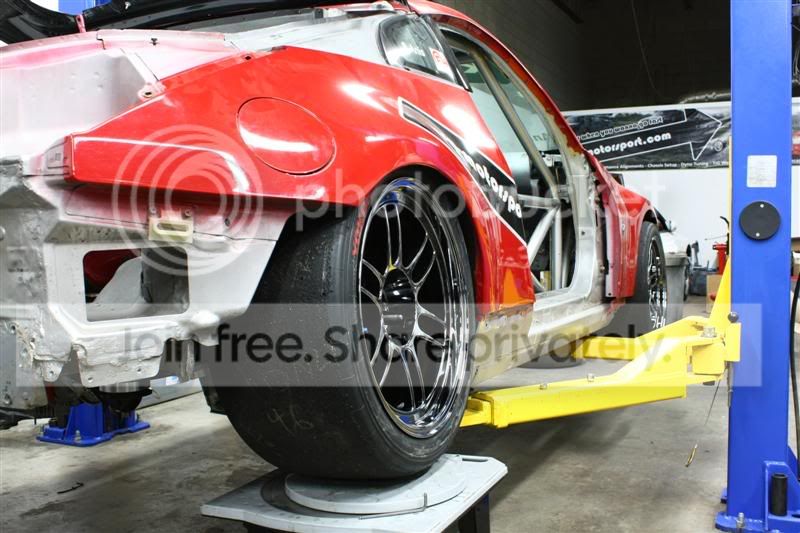

~Ride Height

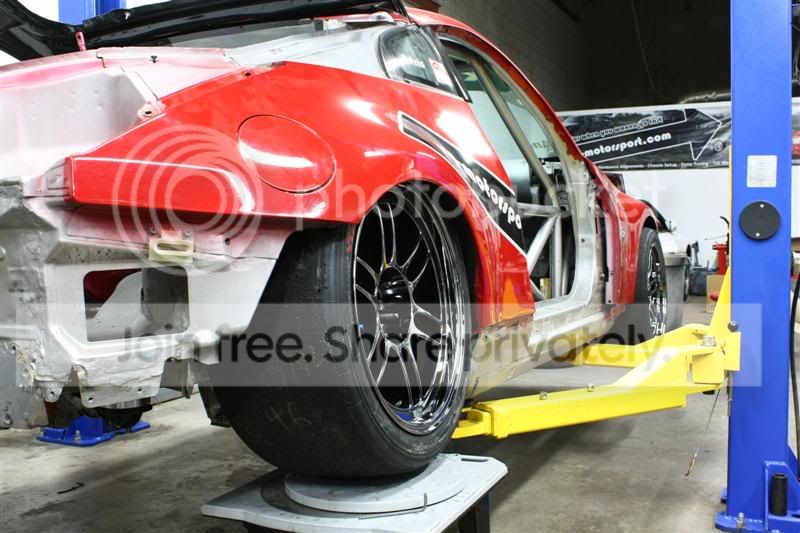

2" Bump:
