Brake ducts through bumper
Title is supposed to say 'through bumper' but I guess I can't edit it.
anyway...
After reviewing my class rules, it looks like I am open to modifying my bumper for brake/air ducting in any way I please.
Anyone who has run ducts from their front grill know its a painful and inefficient way of doing things, since there is almost 180 deg of bending to work around. Not to mention, crowding the front grill. Being a ghetto racer, I figured I would try running a more direct route.
I remember seeing a picture on here of someones car with ducts cut in to the side of the grill, but for the life of me can't find them (I think its the guy running the massive oil cooler?). I would love to see more detail on it though from anyone who has done this. What was in the way? Did you need to remove the washer fluid completely?
Also, side question, is there much value in the titek air ducts? Im not concerned about 'ram air' or whatever ebay is calling it these days, but decreased air and engine temps are always a plus.
anyway...
After reviewing my class rules, it looks like I am open to modifying my bumper for brake/air ducting in any way I please.
Anyone who has run ducts from their front grill know its a painful and inefficient way of doing things, since there is almost 180 deg of bending to work around. Not to mention, crowding the front grill. Being a ghetto racer, I figured I would try running a more direct route.
I remember seeing a picture on here of someones car with ducts cut in to the side of the grill, but for the life of me can't find them (I think its the guy running the massive oil cooler?). I would love to see more detail on it though from anyone who has done this. What was in the way? Did you need to remove the washer fluid completely?
Also, side question, is there much value in the titek air ducts? Im not concerned about 'ram air' or whatever ebay is calling it these days, but decreased air and engine temps are always a plus.
Last edited by GT-Rob; 09-14-2010 at 08:34 AM.
09-14-2010, 09:24 AM
#2
Super Moderator
MY350Z.COM
MY350Z.COM
iTrader: (8)
There are a few brake duct threads, just look around in this section. The intake duct, i want to get one and try some data logging. I doubt it will hurt.
09-14-2010, 11:31 AM
#4
Registered User
Thread Starter
iTrader: (5)
Join Date: Feb 2010
Location: Guelph
Posts: 721
Likes: 0
Received 0 Likes
on
0 Posts
Sorry let me clarify.
I already have run brake ducts, much like the ones in those threads. As you notice though, is it makes a 90deg turn, then another 90deg turn, which could be avoided if you ran from your bumper cover straight in (can MSPaint it to show what I mean).
I know there was a guy on here that did it, I think I came across the pic on here.
As for data, before brake ducts my left/right front rotors were close to identical temps after a 3 laps + 1 cool down. With ducts on 1 side only, that side was 20% cooler. Thats with all the bends, and the intake being just ziptied to the grill. I want MOAR.
I already have run brake ducts, much like the ones in those threads. As you notice though, is it makes a 90deg turn, then another 90deg turn, which could be avoided if you ran from your bumper cover straight in (can MSPaint it to show what I mean).
I know there was a guy on here that did it, I think I came across the pic on here.
As for data, before brake ducts my left/right front rotors were close to identical temps after a 3 laps + 1 cool down. With ducts on 1 side only, that side was 20% cooler. Thats with all the bends, and the intake being just ziptied to the grill. I want MOAR.
09-14-2010, 01:06 PM
#7
Registered User
iTrader: (1)
Join Date: Dec 2009
Location: Houston, Texas
Posts: 185
Likes: 0
Received 0 Likes
on
0 Posts
Some people have tossed around the idea of removing the factory blinkers and utilizing those slits. But, it would take some crafty fabrication work to get something that would fit the back then funnel into a 3 inch circular hole.
Trending Topics
09-14-2010, 01:27 PM
#8
Super Moderator
MY350Z.COM
MY350Z.COM
iTrader: (8)
Spoilsofwar if believe did a nice setup and cut into his bumper.
09-14-2010, 02:14 PM
#9
brake ducts...

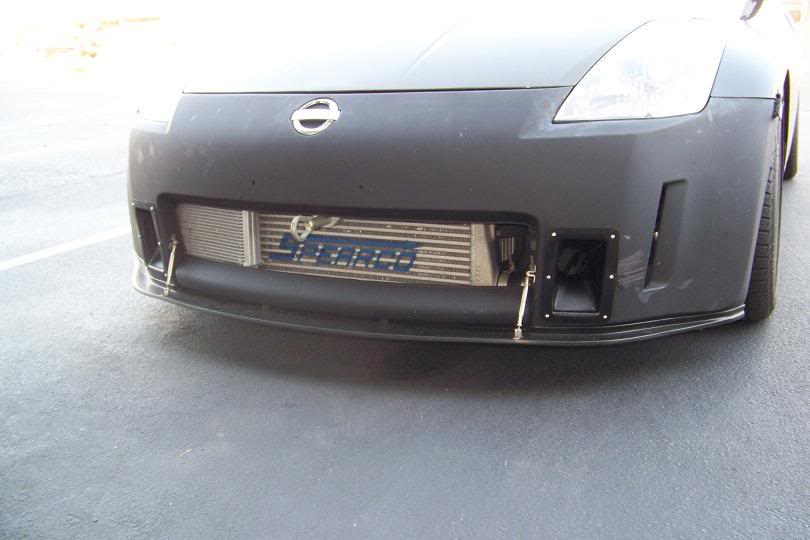

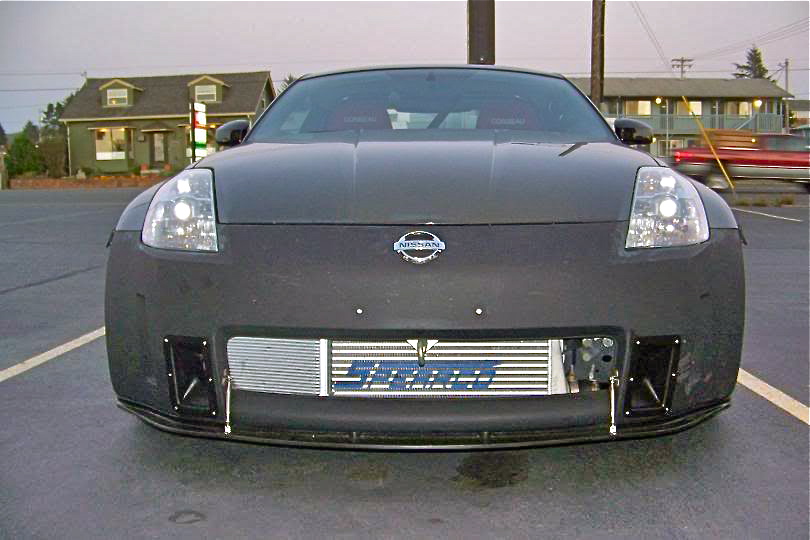

I think I have some photo's somewhere of going through the bumper. I'll see if I can find them. I almost went through the bumper and had laid out how to do this. I couldn't get over cutting the holes unless I had a back up spare front bumper. There were also some systems of going under the bumper but that seemed like it would only work if you could make some custom inlet ducts.
