DIY: Engine Bay Dress-Up Bolt/Washer Kits, NFSP Style
Alright guys, here's the list I've compiled working from what NFSP G35, midna, and NoSurf2Day had provided. I also cross referenced with the GalleryFresh kit list, Courtesy Parts' diagrams and datsun1200.com's part number decoding thread (interesting read on how to decipher nissan's part numbers).
*Disclaimer: I have not yet tried each of these out yet, but comparing between all sources has been pretty definitive.
This is for the HR motor, but much of it is the same for DE cars as well (just use half of the throttle body bolts, ignore the engine cover nuts/bolts, and add the plenum bolts that midna and NFSP have listed).
Headlights
(2) M6x1.00x20mm flat head allen bolts
(2) M6 countersunk washers
Strut Bar
(6) M10x1.25x25mm flanged hex bolts (use 30mm if you have a DE with a plenum spacer)
(2) M10x1.25 flanged nuts (normal hex nuts work too but require washers)
(8) M10 flat washers (these are only needed if you don't use flanged bolts/nuts above)
Shock Towers
(6) M8 flanged nuts (normal hex nuts work too but require washers)
(6) M8 flat washers (these are only needed if you don't use flanged nuts above)
Power Steering Bolts
(3) M6x1.00x25mm flat head allen bolts
(3) M6 countersunk washers
Radiator Support
(4) M8x1.25x16mm flat head allen bolts
(4) M8 countersunk washers
Engine Cover (HR specific two piece cover)
(3) M6x1.00x20mm flat head allen bolts
(3) M6 countersunk washers
(4) M6x1.00 dome(acorn) nuts
(4) M6 flat washers
Hood
(4) M8 flanged nuts (normal hex nuts work too but require washers)
(4) M8 flat washers (these are only needed if you don't use flanged nuts above)
Throttle Body (for DE motors, just get 4 of each)
(8) m6x1.00x60mm metric allen bolts
(8) m6 flat washers (the smaller the outside diameter the better)
Fender
(6) M6x1.00x20mm flat head allen bolts
(6) M6 countersunk washers
(4) M8x1.25x16mm flat head allen bolts
(4) M8 countersunk washers
You can get away with using 86 total pieces which include the 6 nuts for the shock tower (under the strut tower bar) of which only some are exposed. Reduced from the 104 I had originally noted since using flanged bolts/nuts in some places eliminates the need for washers.
*Disclaimer: I have not yet tried each of these out yet, but comparing between all sources has been pretty definitive.
This is for the HR motor, but much of it is the same for DE cars as well (just use half of the throttle body bolts, ignore the engine cover nuts/bolts, and add the plenum bolts that midna and NFSP have listed).
Headlights
(2) M6x1.00x20mm flat head allen bolts
(2) M6 countersunk washers
Strut Bar
(6) M10x1.25x25mm flanged hex bolts (use 30mm if you have a DE with a plenum spacer)
(2) M10x1.25 flanged nuts (normal hex nuts work too but require washers)
(8) M10 flat washers (these are only needed if you don't use flanged bolts/nuts above)
Shock Towers
(6) M8 flanged nuts (normal hex nuts work too but require washers)
(6) M8 flat washers (these are only needed if you don't use flanged nuts above)
Power Steering Bolts
(3) M6x1.00x25mm flat head allen bolts
(3) M6 countersunk washers
Radiator Support
(4) M8x1.25x16mm flat head allen bolts
(4) M8 countersunk washers
Engine Cover (HR specific two piece cover)
(3) M6x1.00x20mm flat head allen bolts
(3) M6 countersunk washers
(4) M6x1.00 dome(acorn) nuts
(4) M6 flat washers
Hood
(4) M8 flanged nuts (normal hex nuts work too but require washers)
(4) M8 flat washers (these are only needed if you don't use flanged nuts above)
Throttle Body (for DE motors, just get 4 of each)
(8) m6x1.00x60mm metric allen bolts
(8) m6 flat washers (the smaller the outside diameter the better)
Fender
(6) M6x1.00x20mm flat head allen bolts
(6) M6 countersunk washers
(4) M8x1.25x16mm flat head allen bolts
(4) M8 countersunk washers
You can get away with using 86 total pieces which include the 6 nuts for the shock tower (under the strut tower bar) of which only some are exposed. Reduced from the 104 I had originally noted since using flanged bolts/nuts in some places eliminates the need for washers.
The only thing I found is that the throttle bolts should be
m6x1.00x55mm instead of m6x1.00x60mm (for HR).

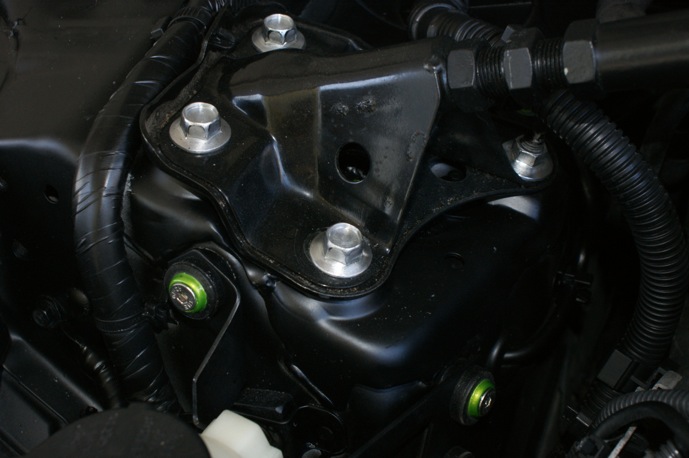

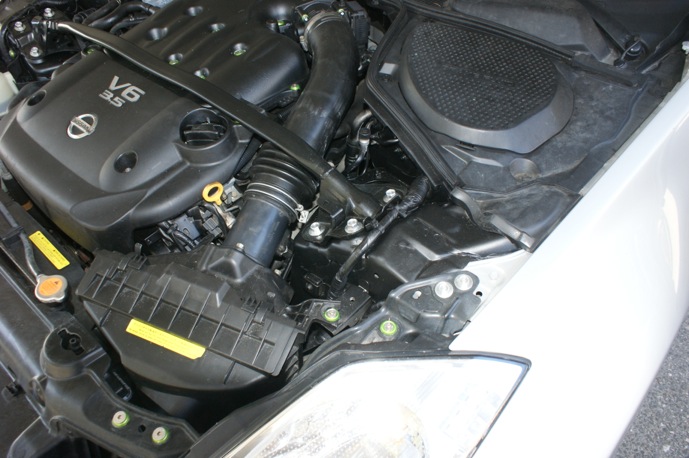

Here are a few shots of my setup.
Last edited by Kuhan; Aug 19, 2012 at 03:24 PM.
Unfortunately I submitted my order two days before you posted the correction. Looks like I'll need to cut my TB bolts down a bit.
Where'd you get your bolts from? They look good!
^thanks, guys. I bought bolts from allens fasteners, and i got washers and strut bar bolts/nuts from pro-bolt.com
Tpete, the outer two throttle bolts will extend and bite through the plenum plastic cover a bit. I kept the 60mm ones though, but 55mm is a perfect length.
Tpete, the outer two throttle bolts will extend and bite through the plenum plastic cover a bit. I kept the 60mm ones though, but 55mm is a perfect length.
Last edited by Kuhan; Aug 20, 2012 at 06:25 PM.
Did my engine bay this past weekend and the list I set up below worked perfectly (with the 55mm bolt Kuhan corrected).
Here's a quick link to the LIST.
And my engine bay (please excuse the poor quality):
Here's a quick link to the LIST.
And my engine bay (please excuse the poor quality):
Last edited by TPete19; Dec 14, 2012 at 09:32 AM.
