As the title says, I want to see some engine bays and List what all you have done too if ya don't mind.

I'll Start...


List:
Injen Intake
Crawford Plenum
Crawford Strut Bar
Borla TD Exhaust (Can't See)
And I painted the Break/Batter compartment letters as you can see

**NEXT**



Ops, I guess I can't spell. I meant "ENGINE" in the title.



Here you go...



Here's mine in DB.



[IMG][/IMG]



Engine Bay Dress Up Gallery

https://my350z.com/forum/showthread....92#post1582192





is that a real arc induction box? where did you gets it.



https://my350z.com/forum/intake-exhaust/139317-arc-intake-arc-strut-bar-arc-oil-catch-can-arc-whore.html



ok, just posted some pics in another thread but here they are again..
from the driver's side


from the passenger side


--mike



awsome

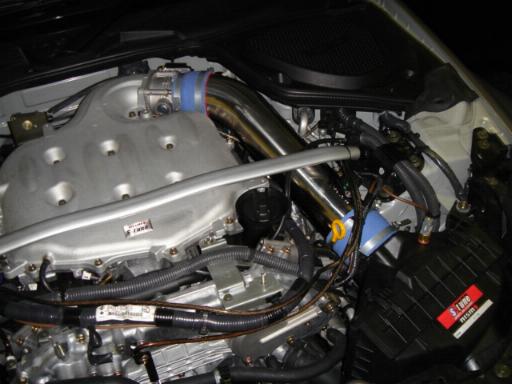

Here is mine...

Engine List:

Nismo S-tune Spec 1 engine kit
- Nismo Spec 1 Intake Cams (276 degrees, 11.0mm lift)
- Nismo Spec 1 Exhaust Cams (256 degress, 10.5 mm lift)
- Nismo Strenghten con-rod bolts
- Nismo VTC pulley gears
- Nismo valve springs

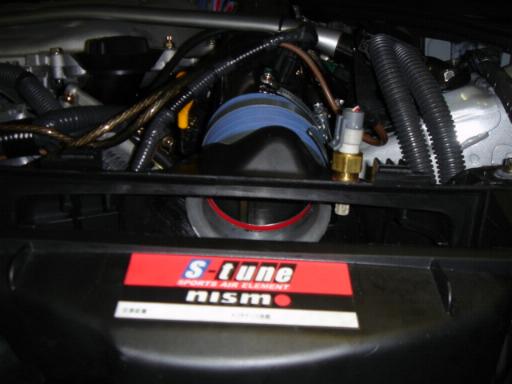

- 84mm Intake tube with 108mm bell mouth in the box


cheers,

richie



ha, brilliant minds:



Nismo Performance Cold Air Intake
Injen Super SES Straight Tip True Dual Exhaust
Helix High Flow Catalytic Converters
Altered Atmosphere Angled Plenum Spacer
Z-Xtreme Engine Grounding Kit
Nismo Performance Radiator Cap
Nismo Oil Filler Cap
Autotecknic Carbon Fiber Radiator Cooling Plate
DG Motorsports Carbon Fiber Engine, Battery, and Fluid Cover Set



I plan on putting some more work into it (painted cover, JIC strut, fluid caps), but this is what it looks like now.

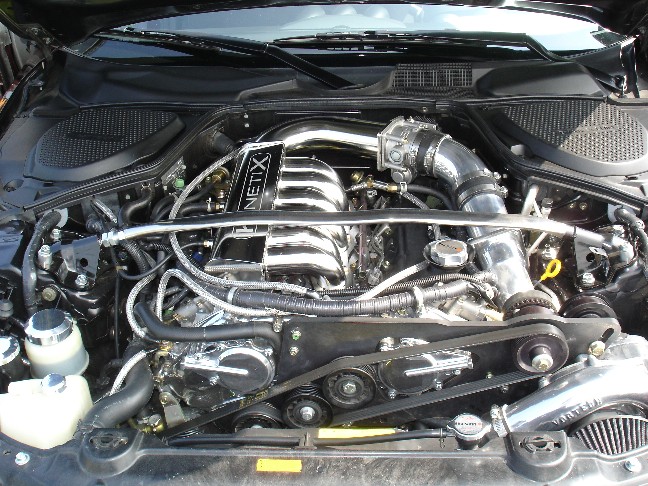

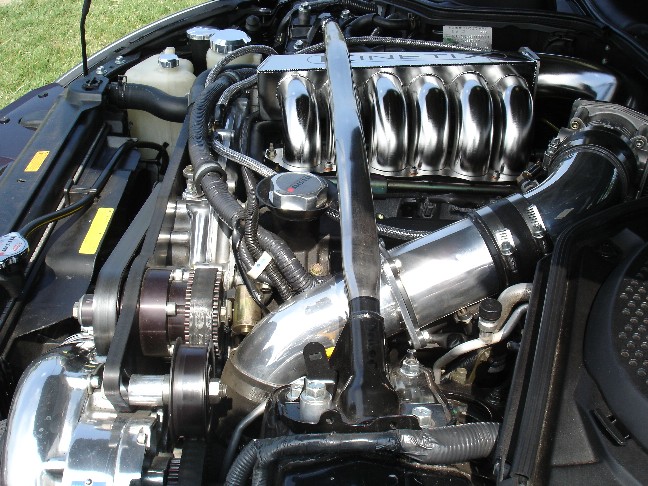

Not the best pic, but one from a recent show. Mods...

Vortech SC (polished)
Kinetix SSV
Max Grounding Kit
Polished factory strut bar
ZeeToyZ caps



Custom one off Plenum in Gloss black powdercoat.
Gloss Black powdercoated lower plenum.
Gloss Black powdercoated JWT Heat shield
Gloss Black powdercoated strut bar flange
Polished Strut bar
Gloss Black powdercoated front engine cover
Polished Cam Covers with custom cams behind

The only thing not pictured is I now have a polished Big Bore Throttle Body.



Here's mine.



Although not a straight on shot, here is mine with the entire car from both sides.

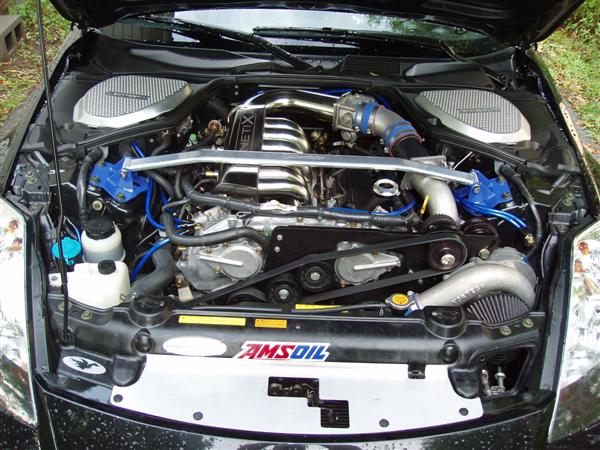

Mine!!

Kinetix SSV Manifold
Vortech SC
GReddy Air Diversion Plate
GReddy STB
Custom painted fluid/battery covers
Custom blue 6 wire grounding kit
Nismo Oil Cap

I think thats all you can see from the pic!
