How to install CJM Stage 2 fuel system

Old 03-14-2016, 07:37 AM
  #1
Staisman
Registered User
Thread Starter
iTrader: (13)

Join Date: Sep 2008
Location: Long Island, NY
Posts: 363
Received 32 Likes on 19 Posts
Default How to install CJM Stage 2 fuel system

This past weekend I was doing CJM Stage 2 upgarde installation and since the kit comes with no instructions whatsoever I looked for help online with no luck. So I decided to make this DIY guide.

Since I already had Stage 0 installed you will not find info about pump installation or return line in here.
See this for pump install (http://host.cj-motorsports.com/pdf/3...uel%20Pump.pdf)

1. Preparation

Start the job on Saturday to have Sunday in case you can't finish it the same day. It took me over 8 hours to do it.
Rise the car on the 4 stands and remove front and rear crossmembers under the car. Then remove intake manifold and fuel rails.

2. Installation

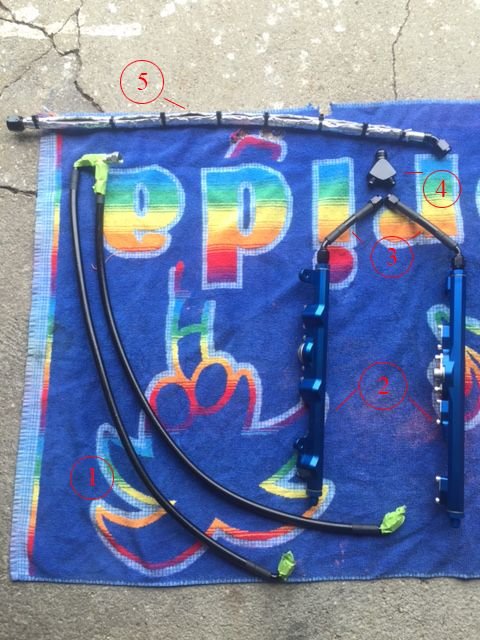

In the picture below:
#1 is your P-Regulator -> Front side Fuel rails line
#2 Fuel rails
#3 Two short lines that going from a back of your fuel rails to the Y adapter
#4 Y adapter
#5 Braided line (wrapped in insulation on the pic) that goes from Y adapter down to the hard pipe.



There is one more line that is not on the picture that goes from the hard line to the fuel pump at the gas tank side.

Remove and discard fuel rails with dampeners and metal bracket, we not gonna use any of it. Next, remove the old hardpipe. This is a hardest part. First unclip the line from plastic brackets, then it's a lot of twisting and pulling. You don't have to remove the fuel tank unless you want to preserve original fuel line. I literally destroyed my stock line by twisting and bending it under the car trying to get it out. After the stock line removed, you can start by putting a new hard pipe into the place.
This is how the line looks under the car.

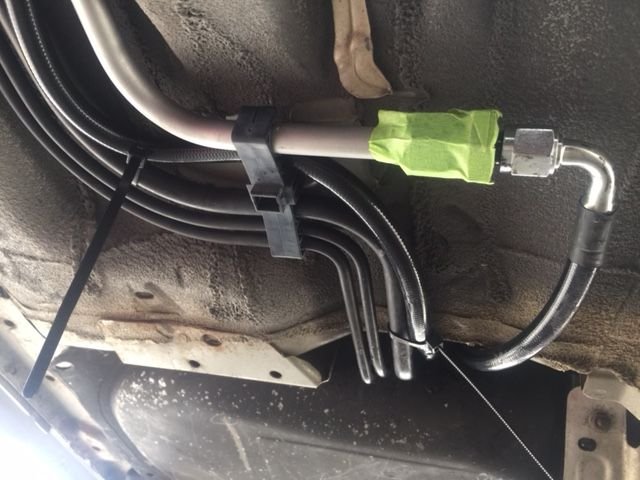

Tank side.

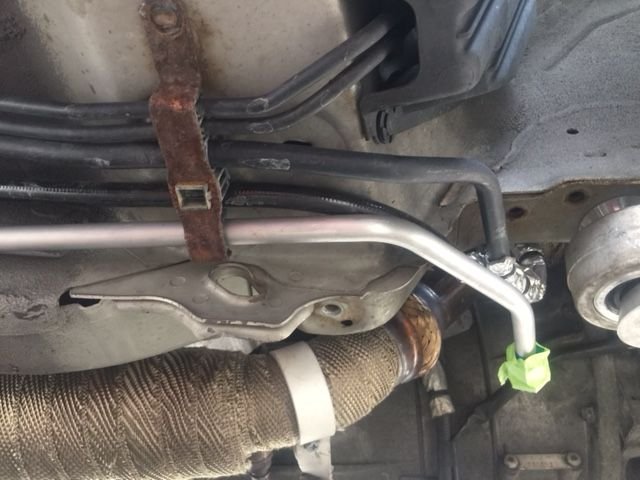

Front of the car.

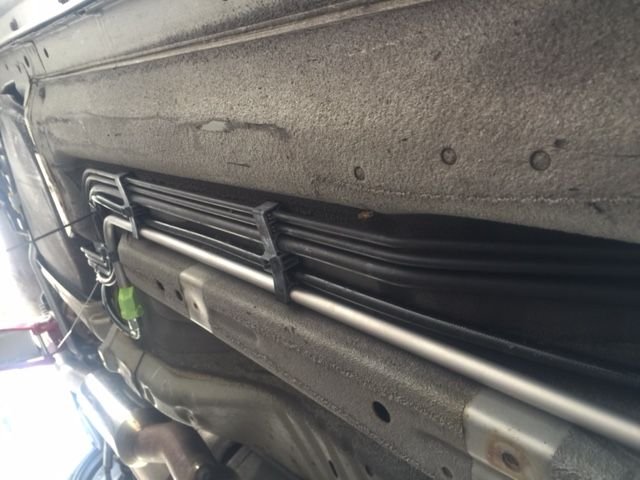

Middle.


After you done installing the pipe you can now drop the line from a pump assembly down to the hardpipe. There is single connector comes with a kit and has cut through nut in it. You will use it to connect this line and a pump assembly.

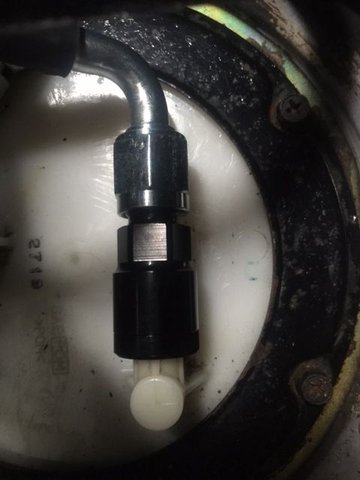

Connector with cut through nut on the pump assembly.




Now you can do your rails. You have to install your injectors into the rails first. Then you can install the rails. Now connect #1 line to the front side of your injectors. I put the line a long the sides of the rails and cross them on front of the engine block. See pic below:

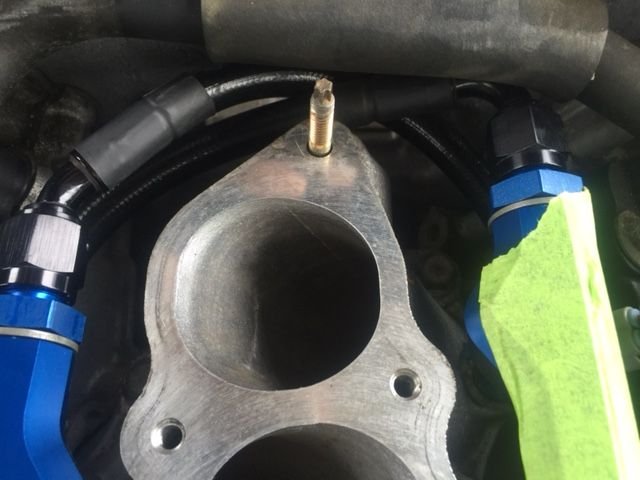

Front side of the engine. Left line to the right rails and a right line to the left rail.

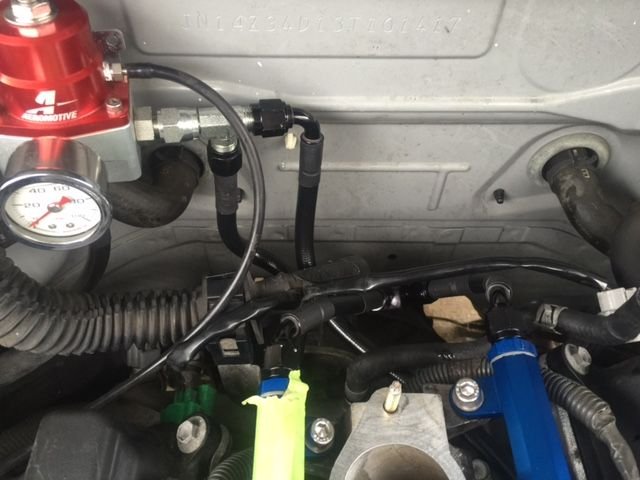

Connect another side with a T to your pressure regulator.



Now connect Y adapter #4 on to straight connector on the braided line. Drop the line down the firewall and connect two short lines #3 to the Y adapter. Now connect them to the back of your rails.



Go under your car and connect braided line #5 with 45 degree connector to the hard pipe.



Go over and tighten all the connections. Those that connect to the hard pipe tight very hard because they will leak.

Put you intake manifold back, connect two evac line together, reconnect all the connectors that you disconnected. Check everything one more time and now you can start your car. While it's running go over and check every connection on the fuel lines, because something will leak. Put your crossmembers back and drop the car.


Let me know if something is confusing and I will fix it.

P.S. This post is for informative purposes only. You do all the work at your own risk. Happy modding.

Last edited by Staisman; 03-14-2016 at 10:44 AM.
Staisman is offline
The following 3 users liked this post by Staisman:
phunk2 (03-14-2016), QuintonC (08-08-2016), rustyschopshop (03-14-2016)
Old 03-14-2016, 08:59 AM
  #2
phunk2
Registered User

Join Date: Mar 2013
Location: chicago
Posts: 329
Received 4 Likes on 3 Posts
Default

Thank you for sharing this!
phunk2 is offline
Old 03-14-2016, 06:45 PM
  #3
rustyschopshop
Registered User

rustyschopshop's Avatar

Join Date: Mar 2014
Location: Watauga, Texas
Posts: 805
Received 93 Likes on 79 Posts
Default

great write up!!
rustyschopshop is online now
Old 07-14-2016, 08:19 PM
  #4
TT03Z
Registered User

Join Date: Jul 2016
Location: Omaha
Posts: 325
Received 26 Likes on 22 Posts
Default

Awesome write up and info man! I will be doing this same install in the near future and will be using this as a guide so thank you!
TT03Z is offline
Old 07-14-2016, 08:21 PM
  #5
TT03Z
Registered User

Join Date: Jul 2016
Location: Omaha
Posts: 325
Received 26 Likes on 22 Posts
Default

Also if you don't mind me asking where did you get the kit from and how much did you pay for it? Did you also get the fuel dampers?
TT03Z is offline
Old 07-15-2016, 10:43 AM
  #6
phunk2
Registered User

Join Date: Mar 2013
Location: chicago
Posts: 329
Received 4 Likes on 3 Posts
Default

The CJM rails are not available without dampers since they were updated 3-4 years ago
phunk2 is offline
Old 07-15-2016, 12:18 PM
  #7
TT03Z
Registered User

Join Date: Jul 2016
Location: Omaha
Posts: 325
Received 26 Likes on 22 Posts
Default

Originally Posted by phunk2 View Post
The CJM rails are not available without dampers since they were updated 3-4 years ago
Ok I was curious because conceptZ lists it as an option when you order the stage 1 and 2 kits. I thinks it's like a $50 option. But I will definitely remember that.
TT03Z is offline
Old 07-15-2016, 12:45 PM
  #8
phunk2
Registered User

Join Date: Mar 2013
Location: chicago
Posts: 329
Received 4 Likes on 3 Posts
Default

If you ordered the kit without the dampers, they would still be required, just not included. You would have to spend $50 at the Nissan dealer to get them in order to plug the damper holes in the rails. So the option was just eliminated for the sake of simplification.
phunk2 is offline
Old 07-15-2016, 02:29 PM
  #9
Staisman
Registered User
Thread Starter
iTrader: (13)

Join Date: Sep 2008
Location: Long Island, NY
Posts: 363
Received 32 Likes on 19 Posts
Default

Originally Posted by TT03Z View Post
Also if you don't mind me asking where did you get the kit from and how much did you pay for it? Did you also get the fuel dampers?
This is a kit from cj motorsports (CJM), call them and Charles will get you everything you need for your HP target. Very nice guy
Staisman is offline
The following users liked this post:
phunk2 (07-16-2016)
Old 02-18-2017, 01:49 AM
  #10
BluestreamDE
Registered User

Join Date: Mar 2016
Location: South Carolina
Posts: 1,220
Received 287 Likes on 231 Posts
Default

sub'd for install reference.
BluestreamDE is offline
Old 12-05-2017, 09:05 PM
  #11
terrasmak
Super Moderator
MY350Z.COM
iTrader: (8)

terrasmak's Avatar

Join Date: Jan 2007
Location: Sin City
Posts: 25,582
Received 1,137 Likes on 827 Posts
Default

Looking at this install, I think I need rails before I do it
