What dealer systems are associated with all of these blanks?

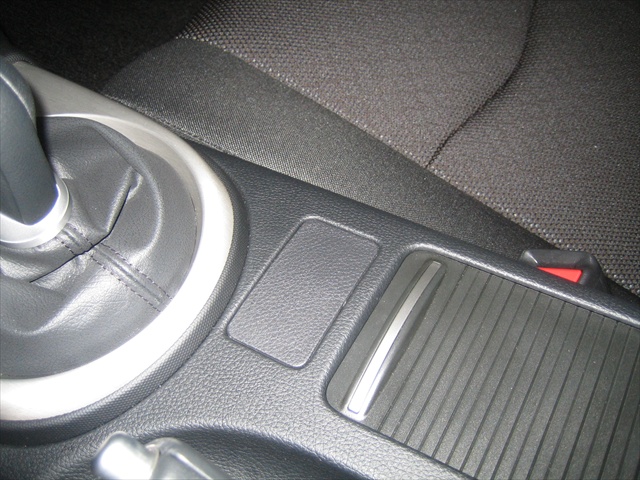

Just south of the shifter

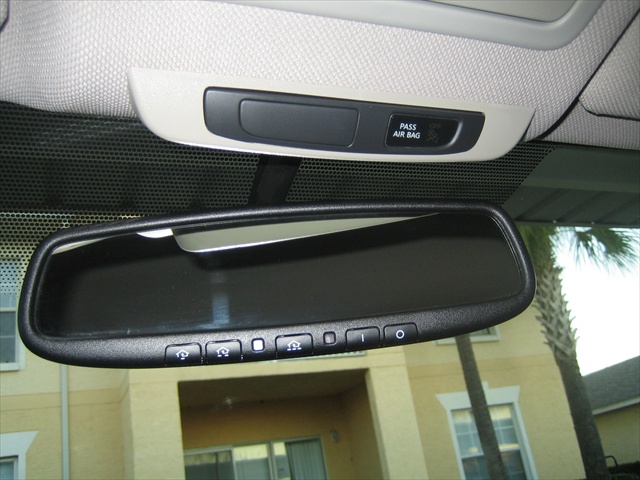

Just over the rearview mirror

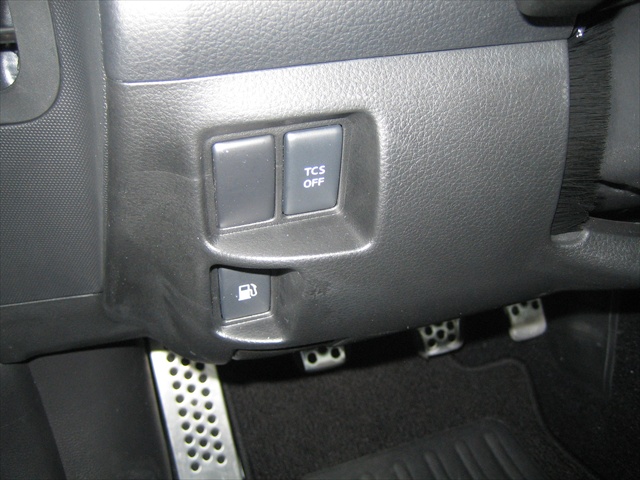

Next to the TCS button

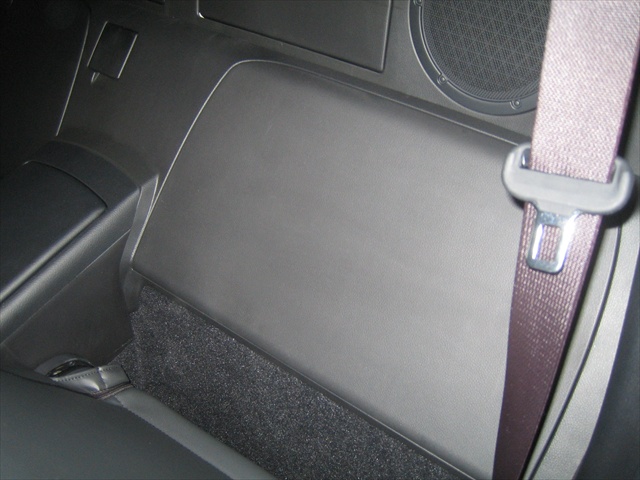

Where the BOSE Sub would go... I thought there would be a usable cubby?



the nismo's have the plaque that says nismo and has the serial number of each car on there.

not too sure about the others though.

and it would be cool if the subwoofer thing was a cubby.



Which place do you mean when you say "there"



Guessing here...
Picture 1 is the switch for the seat warmers on the Touring Model.
Picture 3 is for the switch that lowers the top on the Roadster.
No idea about Pictures 2 and 4.



oh sorry, im an idiot.

i meant to say the one under the shifter.



DId you open the cover behind the drivers seat? That is where I mounted my sub, the correct cover says Bose & can be had at your local stealership I think I paid $10.00 for the cover



+1 that is a good spot for an amp and electronics, plenty of work space and the cover is a great ventilator.

As for 3, that is a null blank, there is nothing that goes there.

Has anyone modified their blank on picture 1? I am thinking of placing a switch and buttons there.



Number 2 above the rear view:
that's the bluetooth and mic - for my GT



How do you open it?
I do want to (when i eventually put in a stereo) mount a couple of amps in there... but it would have been nice to have it more accessible/finished as a cubby.



Mic for the NAV? Damn.. I was hoping it would be a digital compass I could pick up at a dealership or something.



In pic 1 the seat heaters go there. Yet in my car theres a 3rd button which im not sure about. 2 Is a mic if you had bluetooth. 3 is blank on mine too. I assume one if for the top and the other for VDC. And that cubby, you just get your fingers in there and pull. Clips hold it in I think. Or use a screwdriver but wrap it so you dont scratch the plastic, if you had the bose youd laugh at the sub, its weird looking, like inverted.



is there a way to make the blank part under the shifter like some sort of pocket? it'd be a niffty little place for the cell phone or whatever.



yeah .. i have an 07 and by the shifter is the seat warmers but I only have 2 seats 2 switches .. so I always wondered WHY the 3rd blank switch ?

on 07s the tcs/vdc and the next is the top goes down button the the ZR



you telling me you didn't get the popcorn maker an rice cooker unit options?



The spot below the shifter where the seat warmer buttons would go is a great spot to mount a remote on/off / volume control for a Valentine One.



Not hard to do, just be patient and wrap the screwdriver with tape or a cloth to prevent scratches. The hole for the sub was precut on my 05 enthusiast, if you are planning to mount a pair of amps there you might have to do some cutting. I mounted 2 amps in my car, 1 each behind the seat vertically, be careful here with short self tapping screws, the gas tank is right behing this bulkhead. This made the wiring very easy and the seats still have plenty of room to be moved back, Rockford Fosgate amps are only approx 3.5" inches thick mounted like this.

Good luck on whatever you decide to do



Also if you have the heated seats you will notice there is room for another switch. I believe it is used as a spot to mount the switch for the Euro spec rear fog light. Some countries in the EU require it. Im not completely sure though.



IF YOU WANT A CUBBY THERE GET A JDM ONE.



"As for 3, that is a null blank, there is nothing that goes there.

Not true!!! That spot is for if you have the VDC.



No need to order JDM. We did an install of the second cubby on our old '03 Z. You need to order the plastic bit/frame that surrounds the cubby and subwoofer (it comes with the door installed for the cubby and the blank cover). Carefully take the door mechanism apart (there is a spiral spring and cord do-hickey) and attach the new door and latching plate to your old frame where the blank cover is. It is a perfect. Next order the cubby itself with the snap-in tray in the bottom and slip that into the space where the subwoofer would normally be. We fabricated a brace to mimic the welded-in unit on the passenger side to attach the back of the cubby to (two bolts). Put the frame with the TWO doors back on.....and, voila, you have two cubby holes with locks on them.

It was a pain dealing with the Nissan dealership for part numbers (before they started all the cool online stuff at Courtesy) but the install was an easy afternoon's worth of work.
