Need Help Identifying Front Bumper Piece
09-20-2012, 09:43 AM
#1
Registered User
Thread Starter
iTrader: (2)
Join Date: Jul 2012
Location: williamsburg
Posts: 94
Likes: 0
Received 0 Likes
on
0 Posts
Need Help Identifying Front Bumper Piece
I took my bumper off and that square plastic piece was just sitting behind it unsecured. Im about to put everything back together, but not sure where it goes. It says LH on the bottom, im assuming for left hand side, but not sure where its supposed to secure to???
09-20-2012, 09:51 AM
#2
Hardest Setting
iTrader: (3)
Join Date: Feb 2008
Location: MexiCali dodging potholes
Posts: 13,406
Received 130 Likes
on
102 Posts
it's the fricken swaybar fender shield!
EDIT:
a little bit more...if you check you right passenger side it should be a shield over the sway. now check the driver side once everything is back together you would have a space clearly to the engine bay.
I'm pretty sur that one of them to a side
EDIT:
a little bit more...if you check you right passenger side it should be a shield over the sway. now check the driver side once everything is back together you would have a space clearly to the engine bay.
I'm pretty sur that one of them to a side
Last edited by KingBaby; 09-20-2012 at 09:53 AM.
09-20-2012, 10:07 AM
#3
Registered User
Thread Starter
iTrader: (2)
Join Date: Jul 2012
Location: williamsburg
Posts: 94
Likes: 0
Received 0 Likes
on
0 Posts
ok, crazy question, how the hell did it get behind the bumper, if its what i think you're talking about it should be behind the radiator correct? im guessing some genius who had the car before me just threw it in there?
also, there isnt one on the drivers side, so im assuming thats gone, im not really sure where this goes, but it obviously wasnt where it was supposed to be. any harm in leaving it off? It bugs me, but I really cant find the 2 bolts it secures to.
also, there isnt one on the drivers side, so im assuming thats gone, im not really sure where this goes, but it obviously wasnt where it was supposed to be. any harm in leaving it off? It bugs me, but I really cant find the 2 bolts it secures to.
Last edited by pbgrep; 09-20-2012 at 10:09 AM.
09-20-2012, 10:14 AM
#4
Hardest Setting
iTrader: (3)
Join Date: Feb 2008
Location: MexiCali dodging potholes
Posts: 13,406
Received 130 Likes
on
102 Posts
only harm is more dust/rocks/elements to the engine bay...
go here...and do some reverse engineering
http://www.courtesyparts.com/350z-pa...008-c-714.html
go here...and do some reverse engineering
http://www.courtesyparts.com/350z-pa...008-c-714.html
09-20-2012, 10:57 AM
#5
New Member
iTrader: (2)
Join Date: Sep 2005
Location: memphis tn
Posts: 1,255
Likes: 0
Received 0 Likes
on
0 Posts
that isnt the shield for the swaybar, it mounts to the impact part of the front bumper. the big aluminum bar behind the bumper. these shields mound under it in front of the radiator and behind your grill on each side. i dont know their purpose, but mine fall out too. drives me nuts.
[62080Q] SHIELD-SIGHT,FRONT BUMPER LH 350Z (Z33) 62235-Z33001
[62080Q] SHIELD-SIGHT,FRONT BUMPER LH 350Z (Z33) 62235-Z33001
Last edited by ericjackson; 09-20-2012 at 10:58 AM.
Trending Topics
09-20-2012, 11:22 AM
#8
Super Moderator
MY350Z.COM
MY350Z.COM
iTrader: (8)
^^ yup, mounts to the bottem of the bumper, covers the power steering lines on the pass side amnd helps channel air to the radiator. Very good place to mount your brake ducts.
09-20-2012, 10:00 PM
#15
Super Moderator
MY350Z.COM
MY350Z.COM
iTrader: (8)
10-09-2012, 04:10 PM
#16
Registered User
Join Date: Nov 2005
Location: ....
Posts: 319
Likes: 0
Received 0 Likes
on
0 Posts
Sight Shield
I have a 35th anniversary Z. I had some front end damage, and it's apart right now. I also had the same problem ID'ing some of the parts...but I'm learning.
I went to my online Maintenance Manual, and found the shields. They are identified as "Bumper Sight Shields", and are indeed mounted at each end underneath the aluminum tubing called "Bumper Reinforcement". Actually, it's the only front bumper on the Z. The "Sight Shields" are mounted with (3) each plastic clips. Their ID is #C205 clips.
There are also a left, and right Intake duct. They are not listed, although shown in the diagram. I had a hard time ID'ing them also. Both were broken, but I am wondering if I shouldn't just make my own out of aluminum sheets.
As far as the real purpose of the "Sight Sheilds", I've seriously wondered myself. Because of the way they are shaped they are not at all aero-dynamic, and appear to block the air more than the view (sight). It would seem more ideal to have them mounted directly over the hydraulic lines rather than so far forward. I was thinking of not putting them back on. They don't protect anything being located where they are.
June
I went to my online Maintenance Manual, and found the shields. They are identified as "Bumper Sight Shields", and are indeed mounted at each end underneath the aluminum tubing called "Bumper Reinforcement". Actually, it's the only front bumper on the Z. The "Sight Shields" are mounted with (3) each plastic clips. Their ID is #C205 clips.
There are also a left, and right Intake duct. They are not listed, although shown in the diagram. I had a hard time ID'ing them also. Both were broken, but I am wondering if I shouldn't just make my own out of aluminum sheets.
As far as the real purpose of the "Sight Sheilds", I've seriously wondered myself. Because of the way they are shaped they are not at all aero-dynamic, and appear to block the air more than the view (sight). It would seem more ideal to have them mounted directly over the hydraulic lines rather than so far forward. I was thinking of not putting them back on. They don't protect anything being located where they are.
June
Last edited by june; 10-09-2012 at 04:19 PM.
10-14-2012, 01:01 PM
#17
Registered User
Join Date: Nov 2005
Location: ....
Posts: 319
Likes: 0
Received 0 Likes
on
0 Posts
Hi guys!

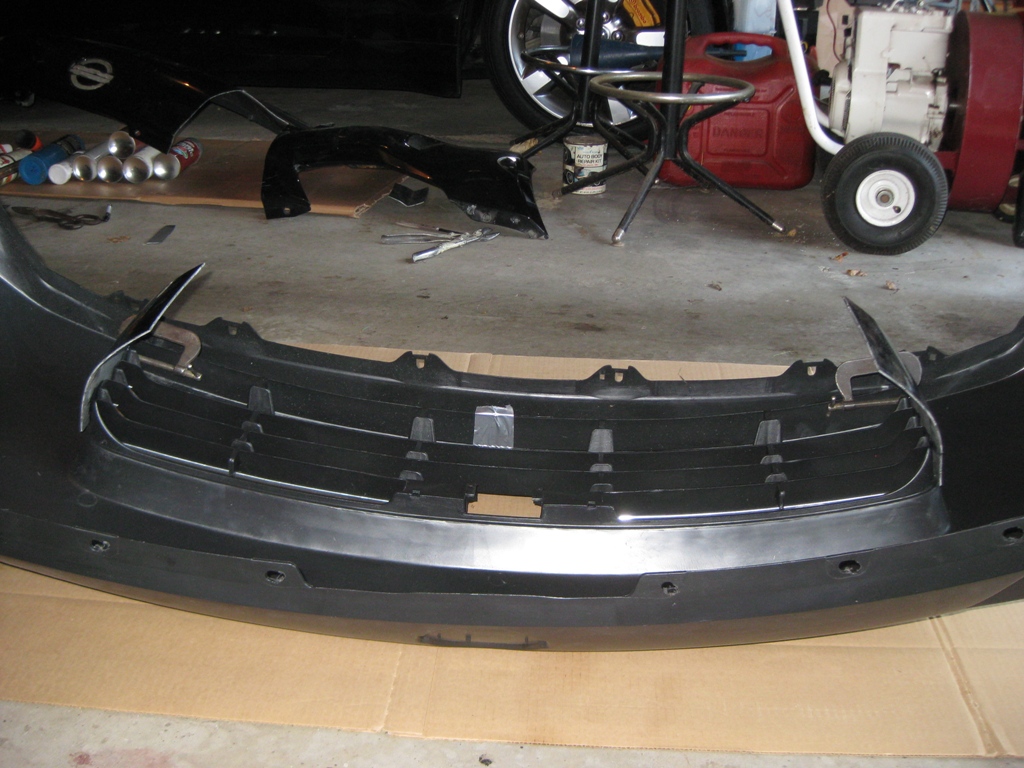

Here is my mod of the front air intake. I decided to get rid of the "sight shields", and to create my own air intake by adding two pieces of plastic from my old bumper. I used an apoxy to attach them. They will now direct the air to the radiator without need for the sight shields which only restricted the air flow. All they did anyway was to block the view on the sides of the radiator, something that could have been done in the first place by simply installing the air ducts on the bumper cover. I extended the lower lip of the new bumper cover using the lower lip of the old one.
June
Here is my mod of the front air intake. I decided to get rid of the "sight shields", and to create my own air intake by adding two pieces of plastic from my old bumper. I used an apoxy to attach them. They will now direct the air to the radiator without need for the sight shields which only restricted the air flow. All they did anyway was to block the view on the sides of the radiator, something that could have been done in the first place by simply installing the air ducts on the bumper cover. I extended the lower lip of the new bumper cover using the lower lip of the old one.
June
04-20-2017, 10:57 AM
#20
New Member
Join Date: May 2013
Location: Charles Town, WV
Posts: 58
Likes: 0
Received 0 Likes
on
0 Posts
I have some damage from a flying 5 gallon bucket and my bumper fascia needs replaced. During the visit with the insurance adjuster, I pointed out those two things floating around behind the bumper. He didn't know what they were but added them to the estimate.
After I got home, I poked around a bit and tried to figure out why they were called Sight Shields. They shield your sight from seeing the bumper bolts behind the bumper through the lower grill opening.
They hang down from the actual metal bumper that's behind the facia. They are held in with pop-clips as terrasmak said.
They don't direct air (block airflow, actually), they block from sight some of the ugly behind the bumper. Removing them will mostly be a cosmetic thing and allow more air to flow through the grill opening.
