Winter Project - Vortech Install
Completed yesterday.....Overall pleased with the results.....Headed to Ballastic Motorsports for tuning and final set-up in a couple of weeks.
03-22-2009, 01:57 PM
#6
hatersgonnahate
iTrader: (162)
+2 on the intake! looks nice
nice car you got there. what are the things hanging off the front impact bar?
Is the power fluid cooler a custom relocation job or is that a change in the kit? looks nice.
nice car you got there. what are the things hanging off the front impact bar?
Is the power fluid cooler a custom relocation job or is that a change in the kit? looks nice.
03-22-2009, 03:15 PM
#7
Registered User
Thread Starter
iTrader: (24)
Join Date: Sep 2006
Location: Rhode Island
Posts: 195
Likes: 0
Received 0 Likes
on
0 Posts
Thanks for the compliments....Some answers to your questions

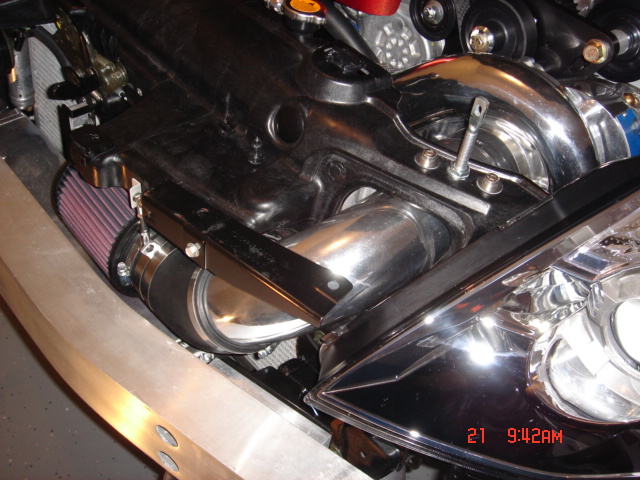

1. Installed a K&N breather filter on the driver's side valve cover and eliminated to spliced hose set-up to the air filter. Everything in this kit fits very tight, with minimal space. Routing a hose from the back of the valve cover to the front of the radiator support was just going to be another heartache I didn't want to deal with. Cost $22.00 from Summit Racing.
2. The CAI is a one-off made up of pieces from several vendors. 3.5" hump hose connector from Extreme PSI, polished aluminum elbow from Treadstone Performance, 45 degree EPDM elbow from Race Parts Solutions and a K&N filter from Summit Racing. Cost ~ $150
3. Adjustable strut rods off front bumper reinforcement are used to support/adjust front splitter.

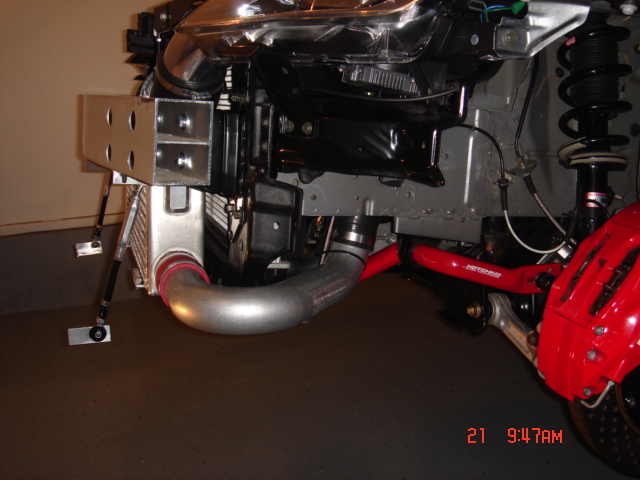

4. Power steering cooler is OEM that was re-positioned. I didn't like the way Vortech instructs you to "sandwich" cooler between the radiator and intercooler. Formula for a disaster.
1. Installed a K&N breather filter on the driver's side valve cover and eliminated to spliced hose set-up to the air filter. Everything in this kit fits very tight, with minimal space. Routing a hose from the back of the valve cover to the front of the radiator support was just going to be another heartache I didn't want to deal with. Cost $22.00 from Summit Racing.
2. The CAI is a one-off made up of pieces from several vendors. 3.5" hump hose connector from Extreme PSI, polished aluminum elbow from Treadstone Performance, 45 degree EPDM elbow from Race Parts Solutions and a K&N filter from Summit Racing. Cost ~ $150
3. Adjustable strut rods off front bumper reinforcement are used to support/adjust front splitter.
4. Power steering cooler is OEM that was re-positioned. I didn't like the way Vortech instructs you to "sandwich" cooler between the radiator and intercooler. Formula for a disaster.
Trending Topics
03-22-2009, 03:52 PM
#8
Registered User
Thread Starter
iTrader: (24)
Join Date: Sep 2006
Location: Rhode Island
Posts: 195
Likes: 0
Received 0 Likes
on
0 Posts

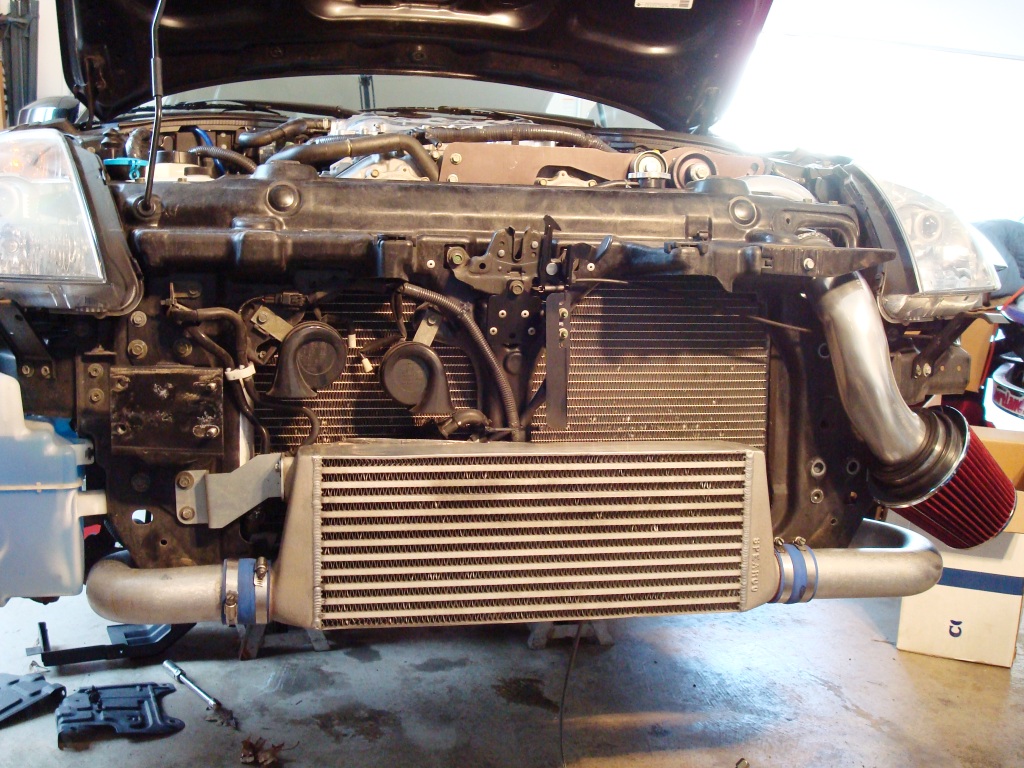

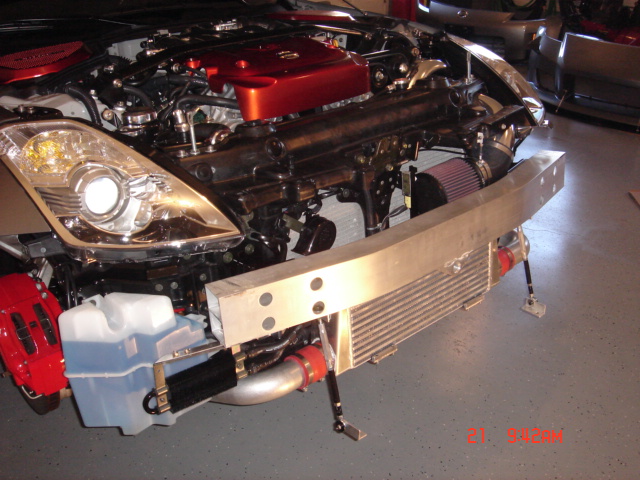

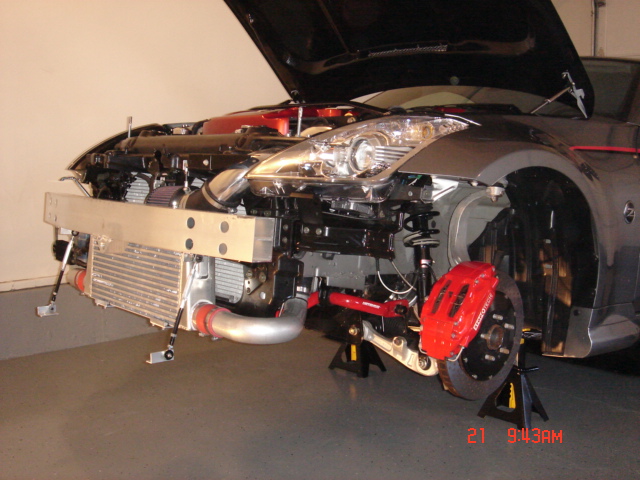

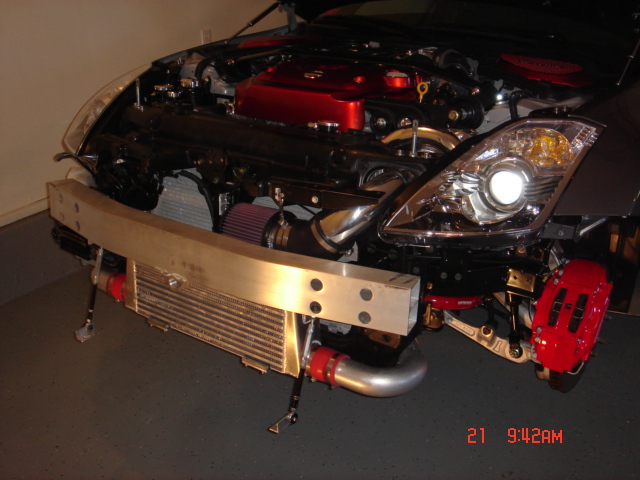

A couple of other things I would like to mention about the CAI and power steering cooler. I have an aftermarket front end, not the original bumper cover (see photo below). There is a lot of "open space" under my bumper for accessories.
In order for the air filter element to have adequate clearance, I needed to add a 3/4" aluminum spacer between the bumper bar and bracket on both sides.
The PS cooler brackets are a combination of the original equipment brackets that were modified and some aluminum angle.
In order for the air filter element to have adequate clearance, I needed to add a 3/4" aluminum spacer between the bumper bar and bracket on both sides.
The PS cooler brackets are a combination of the original equipment brackets that were modified and some aluminum angle.
Last edited by Fleet Z; 03-22-2009 at 03:54 PM.
03-23-2009, 06:03 PM
#14
Registered User
iTrader: (4)
Join Date: Oct 2007
Location: Columbus
Posts: 1,304
Likes: 0
Received 0 Likes
on
0 Posts

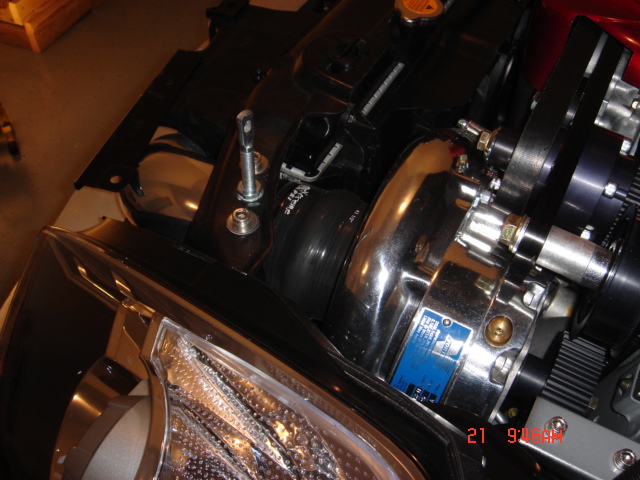

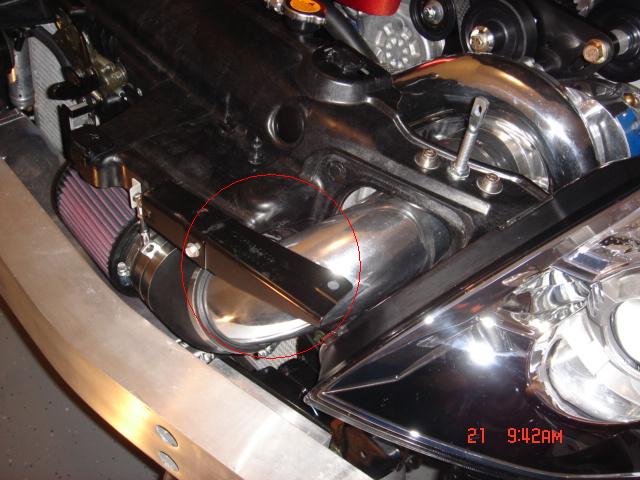

You should remove this bracket, it will make your sweet looking CAI even more visible. You have me inspired to change to your design. I'm hoping I can cut mine down and buy a 45 degree bend and a narrow filter. What was the model # of K&N filter you have? I included a pic of my cai (looking at mine again here makes me think I'm not going to be able to re-use for this conversion so I might be selling it) but your whole setup makes mine look bland lol Sorry, don't mean to change the direction of your thread.
