Converting volts to a A/F ratio
#3
Well Im not sure...I would think its what ever the stock ECU uses .Enthuzd is looking to getting a group buy going on a SS box with 4 extra analog inputs in it . So we can data log A/F and what ever 3 you would want . Plus I was looking at the Blitz R-vit 1 to do the same thing .
#4
Former Sponsor
iTrader: (564)
Join Date: Feb 2003
Location: Long Island, New York
Posts: 19,266
Likes: 0
Received 5 Likes
on
5 Posts
what type of 02 sensor are you using as the source? factory narrow band or a wideband? if narrow band its a 0-1 volt, if wideband it's a 0-5 volt span
I would personally not even go crazy to try to log a narrow band sensor...it can be used as a guide, but it can be so fickle with humidity changes, etc, it's very hard to tune off of.
I would personally not even go crazy to try to log a narrow band sensor...it can be used as a guide, but it can be so fickle with humidity changes, etc, it's very hard to tune off of.
#6
Registered User
Join Date: Apr 2004
Location: Northern Virginia
Posts: 393
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by booger
enthuzd is asking the SS people about how it would read on the R4 data log program . If it is a wide band 0-5 volt . How do you convert it to a actual A/F ratio ?
enthuzd is asking the SS people about how it would read on the R4 data log program . If it is a wide band 0-5 volt . How do you convert it to a actual A/F ratio ?
Trending Topics
#9
Registered User
Join Date: Apr 2004
Location: Northern Virginia
Posts: 393
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by gq_626
That is the chart for the AEM wideband. I dont think all 0-5V sensors use the same conversion factors. Some are linear..some are not.
best thing, like Z1 mentioned, is to contact the manufactuere of the sensor in question...and get it directly from them.
That is the chart for the AEM wideband. I dont think all 0-5V sensors use the same conversion factors. Some are linear..some are not.
best thing, like Z1 mentioned, is to contact the manufactuere of the sensor in question...and get it directly from them.
#11
Registered User
Join Date: Apr 2004
Location: Northern Virginia
Posts: 393
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by booger
If we get the new SS box . Does the AEM gauge have a lead to go to the SS box ?
If we get the new SS box . Does the AEM gauge have a lead to go to the SS box ?
YES!!!!!!!!! I think we're getting close Boog..
#12
Sponsor
Forged Performance
Forged Performance
iTrader: (92)
Originally posted by gspot35
Don't rain on my parade GQ. I did a good thing posting the chart. Booger has the AEM and he needed to know what the 0-5v was equivalent to. The split-second box will show you voltage input when you look at the recordings.
Don't rain on my parade GQ. I did a good thing posting the chart. Booger has the AEM and he needed to know what the 0-5v was equivalent to. The split-second box will show you voltage input when you look at the recordings.
Sorry...here is an umbrella. My bad. I didnt realize he had the AEM.
#13
Registered User
Join Date: Jul 2003
Location: 12 Second Club
Posts: 210
Likes: 0
Received 0 Likes
on
0 Posts

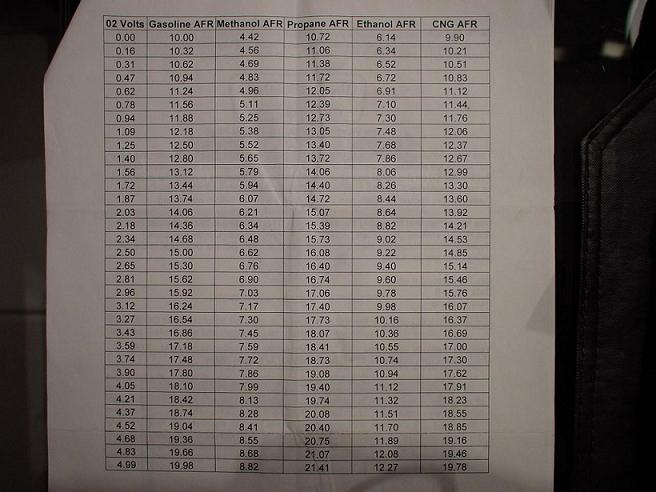

Here is what you need I believe
Volts===========AFR
0 ===== 10
0.0625 ===== 10.1
0.125 ===== 10.2
0.1875 ===== 10.3
0.25 ===== 10.4
0.3125 ===== 10.5
0.375 ===== 10.6
0.4375 ===== 10.7
0.5 ===== 10.8
0.5625 ===== 10.9
0.625 ===== 11
0.6875 ===== 11.1
0.75 ===== 11.2
0.8125 ===== 11.3
0.875 ===== 11.4
0.9375 ===== 11.5
1 ===== 11.6
1.0625 ===== 11.7
1.125 ===== 11.8
1.1875 ===== 11.9
1.25 ===== 12
1.3125 ===== 12.1
1.375 ===== 12.2
1.4375 ===== 12.3
1.5 ===== 12.4
1.5625 ===== 12.5
1.625 ===== 12.6
1.6875 ===== 12.7
1.75 ===== 12.8
1.8125 ===== 12.9
1.875 ===== 13
1.9375 ===== 13.1
2 ===== 13.2
2.0625 ===== 13.3
2.125 ===== 13.4
2.1875 ===== 13.5
2.25 ===== 13.6
2.3125 ===== 13.7
2.375 ===== 13.8
2.4375 ===== 13.9
2.5 ===== 14
2.5625 ===== 14.1
2.625 ===== 14.2
2.6875 ===== 14.3
2.75 ===== 14.4
2.8125 ===== 14.5
2.875 ===== 14.6
2.9375 ===== 14.7
3 ===== 14.8
3.0625 ===== 14.9
3.125 ===== 15
3.1875 ===== 15.1
3.25 ===== 15.2
3.3125 ===== 15.3
3.375 ===== 15.4
3.4375 ===== 15.5
3.5 ===== 15.6
3.5625 ===== 15.7
3.625 ===== 15.8
3.6875 ===== 15.9
3.75 ===== 16
3.8125 ===== 16.1
3.875 ===== 16.2
3.9375 ===== 16.3
4 ===== 16.4
4.0625 ===== 16.5
4.125 ===== 16.6
4.1875 ===== 16.7
4.25 ===== 16.8
4.3125 ===== 16.9
4.375 ===== 17
4.4375 ===== 17.1
4.5 ===== 17.2
4.5625 ===== 17.3
4.625 ===== 17.4
4.6875 ===== 17.5
4.75 ===== 17.6
4.8125 ===== 17.7
4.875 ===== 17.8
4.9375 ===== 17.9
5 ===== 18
