FS: Crawford Plenum/Maxima TB/CAI

Old 03-08-2018, 10:42 PM
  #1
reno56
Registered User
Thread Starter

Join Date: May 2011
Location: Reno, nv
Posts: 45
Likes: 0
Liked 0 Times in 0 Posts
Default Crawford Plenum/Maxima TB/CAI

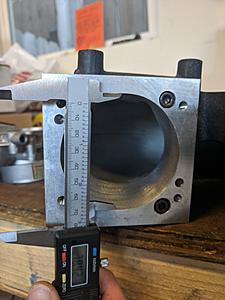

Crawford Plenum: The plenum is a cast unit with a black external coating that has been bored to just over 78mm at the opening. The unit has been on my car and functioned perfectly. There is a small chip (see picture) that does not effect the unit's ability to seal to lower IM.

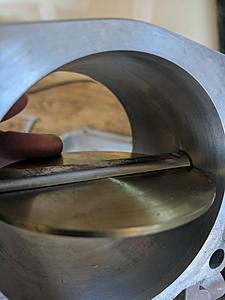

2009 Maxima throttle body: This TB has been bored (see picture) to just over 78mm with appropriately sized new butterfly. The rotating shaft has also been machined to reduce obstruction to airflow (see picture). Comes with gasket. Adapter plate: 0.5 inch aluminum bored to same dimensions.

Intake piping: Silicone and aluminum sections (88mm). Includes clamps and KN filter. See picture for setup in car. Aluminum elbow nearest TB has a NPT bung welded on for intake air temp sensor.

I used this setup for a very short time. I was in the process of getting the car tuned with this intake when my haltech shorted and had to be sent out for repairs in Australia. This took months and I returned to a stock configuration in the mean time. Now I am going down the ITB route so have no need for these components.

I used a self made deutsch connector to connect the TB to my 2006 Z. I can include that but this would require modification to your wiring harness. An easier option may be to source a new wiring connector from NWP engineering.

This setup (minus the intake piping) can be used with a stock ECU if you keep your MAF. Otherwise, this setup is well suited for alternative forms of tuning that do not use MAF.

Asking 650$ for all of it plus buyer pays shipping. Willing to separate the cold air intake components but not the TB and plenum+spacer since they are a matched set. Thanks for looking, let me know if you have any questions.
Attached Thumbnails Crawford Plenum/Maxima TB/CAI-fs5.jpg   Crawford Plenum/Maxima TB/CAI-fs1.jpg   Crawford Plenum/Maxima TB/CAI-fs2.jpg   Crawford Plenum/Maxima TB/CAI-fs3.jpg   Crawford Plenum/Maxima TB/CAI-fs7.jpg

Crawford Plenum/Maxima TB/CAI-fs8.jpg   Crawford Plenum/Maxima TB/CAI-fs9.jpg   Crawford Plenum/Maxima TB/CAI-fs10.jpg
reno56 is offline
Old 04-09-2018, 05:33 AM
  #2
Clynt405
Registered User

Join Date: Jun 2014
Location: Okc
Posts: 10
Likes: 0
Liked 0 Times in 0 Posts
Default

Price for plenum/🤣TB combo?
Clynt405 is offline
Old 04-09-2018, 10:22 PM
  #3
reno56
Registered User
Thread Starter

Join Date: May 2011
Location: Reno, nv
Posts: 45
Likes: 0
Liked 0 Times in 0 Posts
Default

500$ plus shipping.
reno56 is offline
Old 05-02-2018, 08:44 PM
  #4
reno56
Registered User
Thread Starter

Join Date: May 2011
Location: Reno, nv
Posts: 45
Likes: 0
Liked 0 Times in 0 Posts
Default

Still available!!
reno56 is offline
Old 06-11-2018, 09:54 AM
  #5
reno56
Registered User
Thread Starter

Join Date: May 2011
Location: Reno, nv
Posts: 45
Likes: 0
Liked 0 Times in 0 Posts
Default

still available!
reno56 is offline
Old 06-11-2018, 12:00 PM
  #6
onevq35de
Registered User

Join Date: May 2017
Location: Sweaty South NC
Posts: 508
Liked 74 Times in 59 Posts
Default

If I hadn't already slaved over fabricating my setup, I'd be all over this.
How are the itb's coming along?
onevq35de is offline
Old 06-16-2018, 08:59 PM
  #7
reno56
Registered User
Thread Starter

Join Date: May 2011
Location: Reno, nv
Posts: 45
Likes: 0
Liked 0 Times in 0 Posts
Default

Right on. What kind of setup do you have? Oh, the itbs are coming along slowly. I've been toying around with using the stock TB motors to run them and keep getting side tracked with other projects.
reno56 is offline
Old 06-17-2018, 01:58 AM
  #8
onevq35de
Registered User

Join Date: May 2017
Location: Sweaty South NC
Posts: 508
Liked 74 Times in 59 Posts
Default

V-plenum matched to a 3" maxima t.b. to a 4: pipe. I"ll change "fabricate" to "dremeled the **** out of". That's more appropriate.
I tried dumping the filter down in the wheel like you via more length and a bend after 1st going short & straight & getting it tuned for the large maf housing and it just killed performance. Lost 1 second 0-60, no ****, and that's with a 4" pipe. It'll be worse with a 3.5", fyi. You might wanna ditch the added length & bend before you spend the bucks on itb's?
onevq35de is offline
Old 06-17-2018, 07:29 PM
  #9
reno56
Registered User
Thread Starter

Join Date: May 2011
Location: Reno, nv
Posts: 45
Likes: 0
Liked 0 Times in 0 Posts
Default

Right on, thanks for sharing. Did you get the results you wanted out of the short 4 inch pipe? I actually ended up installing a 2007 radiator support that has the dual opening on each side. So when I get the itbs on, I can run 2 separate air boxes, each with their own short charge pipe.
reno56 is offline
Old 06-17-2018, 07:39 PM
  #10
onevq35de
Registered User

Join Date: May 2017
Location: Sweaty South NC
Posts: 508
Liked 74 Times in 59 Posts
Default

For my 4 door Z, the 4" and my diy intake mods were by far the biggest improvement in acceleration. You'd think I installed a mild supercharger or something. Really kinda unbelievable. I couldn't believe how negatively the extended pipe and 45* bend affected performance. Nutz.



onevq35de is offline
Old 06-18-2018, 12:53 PM
  #11
superpreditor
Registered User

Join Date: Dec 2015
Location: nassau
Posts: 20
Likes: 0
Liked 0 Times in 0 Posts
Default

Cost of plenum only?
superpreditor is offline
Old 06-22-2018, 10:33 AM
  #12
apex locator
Registered User
iTrader: (5)

apex locator's Avatar

Join Date: Nov 2002
Location: Long Beach, CA
Posts: 733
Liked 3 Times in 3 Posts
Default

onevq35de, so that straight pipe DIY intake is 4" diameter running stock MAF? You felt that was a noticeable improvement?
apex locator is offline
Old 06-22-2018, 06:27 PM
  #13
apex locator
Registered User
iTrader: (5)

apex locator's Avatar

Join Date: Nov 2002
Location: Long Beach, CA
Posts: 733
Liked 3 Times in 3 Posts
Default

so there should not be any sort of bend at the filter end? just straight to filter? thanks.

sorry op for the thread jack
apex locator is offline
Old 07-25-2018, 09:15 AM
  #14
Josh Bisram
Registered User

Join Date: Jul 2018
Location: Orlando
Posts: 2
Likes: 0
Liked 0 Times in 0 Posts
Default

Is there anyway you could give me some insight on how you did the wiring?
Josh Bisram is offline
Old 07-25-2018, 09:29 AM
  #15
onevq35de
Registered User

Join Date: May 2017
Location: Sweaty South NC
Posts: 508
Liked 74 Times in 59 Posts
Default

If u r referring to the wire tuck I did, check out the link to my thread above. If you're referring to what the OP did to install his setup, there should be no wire work needed but he can speak for himself.
OP's setup he has for sale is better than 99.9% of all naturally aspirated setup's for the VQ but I'd still install it without the bend near the filter for best results. I'd be willing to bet that one could do everything bolt-on related including a typical aftermarket intake, headers, etc., everything combined and the components for sale above alone will outperform them all.
onevq35de is offline
Old 07-26-2018, 03:18 PM
  #16
Josh Bisram
Registered User

Join Date: Jul 2018
Location: Orlando
Posts: 2
Likes: 0
Liked 0 Times in 0 Posts
Default

sorry should a been a little bit more specific, but I was referring to the wiring to run the throttle body, without the jumper, as far as I've been told it's not a plug and play setup.
Josh Bisram is offline
Old 08-26-2018, 08:00 PM
  #17
reno56
Registered User
Thread Starter

Join Date: May 2011
Location: Reno, nv
Posts: 45
Likes: 0
Liked 0 Times in 0 Posts
Default

still available!!
reno56 is offline
Old 08-27-2018, 06:35 PM
  #18
Ccengineer
Registered User

Join Date: May 2018
Location: Okc
Posts: 5
Likes: 0
Liked 0 Times in 0 Posts
Default

Not really interested in throttle body hassles. Programming manually is a ***** and aftermarket flashing tools have never worked for me in the past. Interested in selling just the intake yet?
Ccengineer is offline
Old 09-02-2018, 06:23 AM
  #19
dnash
Registered User
iTrader: (1)

Join Date: Jun 2004
Location: Ontario, Canada
Posts: 86
Liked 1 Time in 1 Post
Default

Originally Posted by Ccengineer View Post
Not really interested in throttle body hassles. Programming manually is a ***** and aftermarket flashing tools have never worked for me in the past. Interested in selling just the intake yet?
I would be interested in the throttle body if you could pick up the rest of the parts...pm me if you want.
dnash is online now
Old 09-19-2018, 05:12 PM
  #20
03threefiftyz
350Z-holic
iTrader: (25)

03threefiftyz's Avatar

Join Date: Aug 2007
Location: Frederick, MD
Posts: 9,845
Liked 113 Times in 60 Posts
Default

...and I'll take the plenum.
03threefiftyz is offline
