Default Braille battery vs stock battery

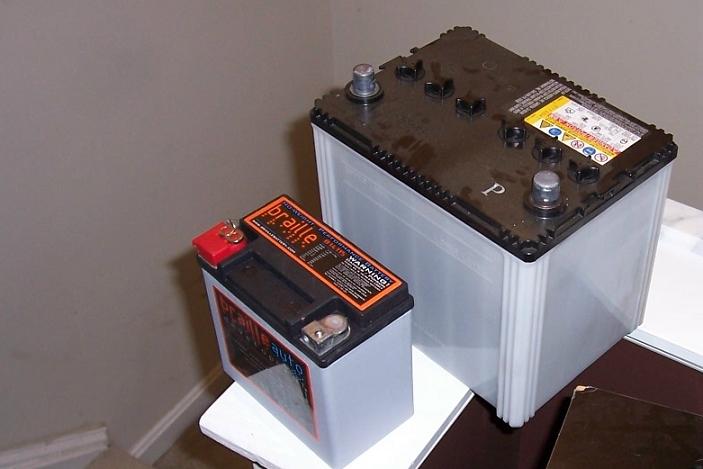

Just thought id show a pic of the Braille battery next to the stock battery.
Attached Thumbnails Braille battery vs stock battery-braille-b14115-vs.-350z-stock-battery.jpg
Reply
Old Sep 12, 2006 | 08:06 PM
  #2
Rickdogg's Avatar
Rickdogg
Out of hiatus
Premier Member
iTrader: (234)

Joined: Jul 2004
Posts: 10,759
Likes: 4
From: My350z
Default

Originally Posted by Brock@Braille
Just thought id show a pic of the Braille battery next to the stock battery.
I have that same battery! I heard that you guys were coming out with a device that would cut the power if the voltage got too low. I need that for my application
Reply
Old Sep 12, 2006 | 08:07 PM
  #3
FairladyZX's Avatar
FairladyZX
Registered User
iTrader: (19)

Joined: Sep 2005
Posts: 3,910
Likes: 0
From: 春城 - LA
Default

looks like a mini cooper standing next to a H2...that's gonna be 1 of my future mod too
Reply
Old Sep 12, 2006 | 08:08 PM
  #4
michaeljr6's Avatar
michaeljr6
New Member
iTrader: (14)

Joined: Jun 2005
Posts: 10,459
Likes: 0
From: small home.
Default

will this work with my aftermarket stereo? let's just say i have a capacitor that likes to drink a lot power
Reply
Old Sep 12, 2006 | 08:12 PM
  #5
FastZ33's Avatar
FastZ33
Registered User
iTrader: (29)

Joined: Jul 2005
Posts: 7,716
Likes: 0
From: SoCal
Default

if theres another gb let me know
Reply
Old Sep 12, 2006 | 08:14 PM
  #6
Z PHAT Z's Avatar
Z PHAT Z
New Member
20 Year Member
iTrader: (46)

Joined: Jun 2002
Posts: 1,068
Likes: 0
From: Amherst NY
Default

How is this battery compare to the Hawk Odyssey battery in wieght and power?
Reply
Old Sep 12, 2006 | 09:09 PM
  #7
Alpha's Avatar
Alpha
Registered User

Joined: Apr 2005
Posts: 73
Likes: 0
From: here
Default

I believe it might be a couple pounds lighter.
Reply
Old Sep 12, 2006 | 09:25 PM
  #8
Rickdogg's Avatar
Rickdogg
Out of hiatus
Premier Member
iTrader: (234)

Joined: Jul 2004
Posts: 10,759
Likes: 4
From: My350z
Default

Cranking Amp Tests / Braille B14115 / Dyna-Batt Odyssey / PC 680 / Hawker Energy Genesis G16EP
PCA 5 sec / 904 / 680 / 680 / 680
PCA 10 sec / 791 / 595 / 595 / 595
PCA 20 sec / 698 / 525 / 525 / 525
HCA 585 / 440 / 440 / 440
CA 486 / 360 / 360 / 360
CCA 360 / 280 / 280 / 280

Hawker PC680 = 15 lbs (not sure what the PC540 weighs)
Braille = 11.5 lbs
Reply
Old Sep 12, 2006 | 10:43 PM
  #9
Alpha's Avatar
Alpha
Registered User

Joined: Apr 2005
Posts: 73
Likes: 0
From: here
Default

The PC540 weighs 12 lbs. I had one but switch to the 680.
Reply
Old Sep 12, 2006 | 10:54 PM
  #10
FastZ33's Avatar
FastZ33
Registered User
iTrader: (29)

Joined: Jul 2005
Posts: 7,716
Likes: 0
From: SoCal
Default

Originally Posted by Rickdogg
Cranking Amp Tests / Braille B14115 / Dyna-Batt Odyssey / PC 680 / Hawker Energy Genesis G16EP
PCA 5 sec / 904 / 680 / 680 / 680
PCA 10 sec / 791 / 595 / 595 / 595
PCA 20 sec / 698 / 525 / 525 / 525
HCA 585 / 440 / 440 / 440
CA 486 / 360 / 360 / 360
CCA 360 / 280 / 280 / 280

Hawker PC680 = 15 lbs (not sure what the PC540 weighs)
Braille = 11.5 lbs


lol what do all those numbers mean............the question i really want to know is if my motor is off and my radio is playing. will the baille battery die fast?
Reply
Old Sep 12, 2006 | 11:42 PM
  #11
CaliTouring's Avatar
CaliTouring
Registered User
iTrader: (5)

Joined: Aug 2006
Posts: 1,826
Likes: 1
From: Los Angeles
Default

how much is it?
Reply
Old Sep 13, 2006 | 12:12 AM
  #12
35oZephyR's Avatar
35oZephyR
Registered User
iTrader: (4)

Joined: Apr 2003
Posts: 8,617
Likes: 1
From: san diego
Default

Originally Posted by FastZ33
lol what do all those numbers mean............the question i really want to know is if my motor is off and my radio is playing. will the baille battery die fast?
+1 lol
Reply
Old Sep 13, 2006 | 01:39 AM
  #13
Nitrouz's Avatar
Nitrouz
Back to Z
Premier Member
iTrader: (27)

Joined: Dec 2004
Posts: 6,626
Likes: 2
From: West Coast
Default

Originally Posted by FastZ33
lol what do all those numbers mean............the question i really want to know is if my motor is off and my radio is playing. will the baille battery die fast?
love your blunt honesty bro...
Reply
Old Sep 13, 2006 | 07:41 AM
  #14
Brock@Braille's Avatar
Brock@Braille
Thread Starter
Registered User
iTrader: (3)

Joined: Aug 2006
Posts: 90
Likes: 0
From: Sarasota
Default

Originally Posted by Rickdogg
I have that same battery! I heard that you guys were coming out with a device that would cut the power if the voltage got too low. I need that for my application

Rickdogg it is already out. here is info on it:

Braille Power Protector Features:

Never-Dead Battery Protection: The Braille Power Protector monitors battery voltage and usage with the vehicle running and when it is turned off. If it senses that the usage of the battery when the vehicle is turned off will exceed the amount of power needed to start the vehicle, the Braille Power Protector will disconnect the battery and protect it from being drained. This saves you from being stranded and wasted time due to a dead battery. It also avoids towing costs and extends the life of the battery.
Remote Control Battery Connection: Using a small key fob, you can connect and disconnect the battery. You can also operate the key fob to reconnect the power after the Power Protector has prevented a dead battery.
Anti-Theft Protection: Using the Remote you can disconnect the battery, preventing theft of the vehicle while away.
Passive Power Allowance: The Power Protector can be set up to allow some small amounts of power to serve the back up radio, ECU and clock functions in the vehicle.
Easy Installation: To install the Braille Power Protector, simple hand tools make this a bolt-on job. Comprehensive instructions with diagrams are provided to aid installation for many different vehicle applications and mounting configurations - this is a universal product for all vehicles

This battery will work with a stereo as long as your running a capacitor.

If you want to leave your stereo on with the car off for an extended period of time the 11.5 would not be idea but we also do make a 15lb for guys that love there stereo.
Reply
Old Sep 13, 2006 | 09:39 AM
  #15
Rickdogg's Avatar
Rickdogg
Out of hiatus
Premier Member
iTrader: (234)

Joined: Jul 2004
Posts: 10,759
Likes: 4
From: My350z
Default

Originally Posted by FastZ33
lol what do all those numbers mean............the question i really want to know is if my motor is off and my radio is playing. will the baille battery die fast?
Just saw it on a website, i'm assuming CA = crank amps, CCA= cold cranking amps....PCA= ?

EDIT*****

Check this out: http://www.brailleauto.com/downloads...%20sarasota%22

Last edited by Rickdogg; Sep 13, 2006 at 09:55 AM.
Reply
Old Sep 13, 2006 | 09:40 AM
  #16
Rickdogg's Avatar
Rickdogg
Out of hiatus
Premier Member
iTrader: (234)

Joined: Jul 2004
Posts: 10,759
Likes: 4
From: My350z
Default

Originally Posted by Brock@Braille
Rickdogg it is already out. here is info on it:

Braille Power Protector Features:

Never-Dead Battery Protection: The Braille Power Protector monitors battery voltage and usage with the vehicle running and when it is turned off. If it senses that the usage of the battery when the vehicle is turned off will exceed the amount of power needed to start the vehicle, the Braille Power Protector will disconnect the battery and protect it from being drained. This saves you from being stranded and wasted time due to a dead battery. It also avoids towing costs and extends the life of the battery.
Remote Control Battery Connection: Using a small key fob, you can connect and disconnect the battery. You can also operate the key fob to reconnect the power after the Power Protector has prevented a dead battery.
Anti-Theft Protection: Using the Remote you can disconnect the battery, preventing theft of the vehicle while away.
Passive Power Allowance: The Power Protector can be set up to allow some small amounts of power to serve the back up radio, ECU and clock functions in the vehicle.
Easy Installation: To install the Braille Power Protector, simple hand tools make this a bolt-on job. Comprehensive instructions with diagrams are provided to aid installation for many different vehicle applications and mounting configurations - this is a universal product for all vehicles

This battery will work with a stereo as long as your running a capacitor.

If you want to leave your stereo on with the car off for an extended period of time the 11.5 would not be idea but we also do make a 15lb for guys that love there stereo.
How much of one of these babies run?
Reply
Old Sep 13, 2006 | 12:05 PM
  #17
05-Z's Avatar
05-Z
Registered User
iTrader: (4)

Joined: Oct 2002
Posts: 4,176
Likes: 1
From: Ashburn VA
Default

I'll try posting a pic of the battery in my engine compartment too...

Stock 37lbs
Braille 11.5lbs

Other than removing the spare tire, this is the easiest weight saving mod. Car starts very easily, no problems.
Reply
Old Sep 14, 2006 | 07:25 AM
  #18
Brock@Braille's Avatar
Brock@Braille
Thread Starter
Registered User
iTrader: (3)

Joined: Aug 2006
Posts: 90
Likes: 0
From: Sarasota
Default

glad you like it
Reply
Old Sep 14, 2006 | 12:25 PM
  #19
jdm4eva's Avatar
jdm4eva
Registered User
iTrader: (1)

Joined: Feb 2006
Posts: 243
Likes: 0
From: Toronto, Ontario
Default

Originally Posted by Brock@Braille
glad you like it
i like it too, do you have any dealers in Canada? i'm interested in buying one in the next few weeks. Thanks in advance
Reply
Old Sep 14, 2006 | 12:49 PM
  #20
Brock@Braille's Avatar
Brock@Braille
Thread Starter
Registered User
iTrader: (3)

Joined: Aug 2006
Posts: 90
Likes: 0
From: Sarasota
Default

You know I dont think I have any dealers in canada yet. Sherif @ Forged Performance has them in stock ready to go
