I tried to search around and couldnt find a thread just for pics of nitrous systems.

So anyone want to share pics of their switches/panels/locations/bottles

sorry if there is already a thread for this



Here is a few of mine.

http://www.skwiz0d.com/pictures/dyno/



nice pics



nice set up.



moar!!!



skwid,
no disrespect sir but that setup doesnt look the greatest! nice looking NX selonids but their not hidden at all! maybe you wanted people to see that your spraying but nitrous is supposed to be a cheater system! which means that your shot is your wild card that no one knows you have! my setup is completely hidden! im gonna post some picts soon. im not trying to start anything cause maybe your agenda is different from mine! im trying to take as much money as possiable from these little turbo import guys and GT stinkstangs, and even some of the older zo6 vetts!



cant wait to see the pics of your install.



My pics --->https://my350z.com/forum/nitrous-oxide/260031-nitrous-install-pics.html

Dude, people in your area must be fools. I mean, if your racing for money and they don't see an intercooler, they can't figure out your sporting juice? People in this area know a modded Z is only good for about 13.8's ON THE STREET and if you were to run for money they would atomatically cal BS on not having power adders!

lucky for you your town is full of idiots!

You should make all your nitrous part easy to visually check and maintain. I was going to hide stuff but I didn't want to spend hours to check solenoid plungers and seals or changing jets! You do check your stuff periodically don't you?

I bet it looks like a monkey fukcing a football when you do!





if i took pictures of my kit... you would literally see nothing! cause everything is hidden... even the bottle and wires. so i guess pictures would be pointless cause you would be asking yourself, "why is this guy taking random pictures of his car?" lol
F*CKIN SWEET



If you know what you're looking for, I bet I can find it.



i placed my bottle in the spare tire well and there is no way to get the bottle completely under the level of the carpet if I use the bottle brackets...i dont see how yall say its "completely hidden"

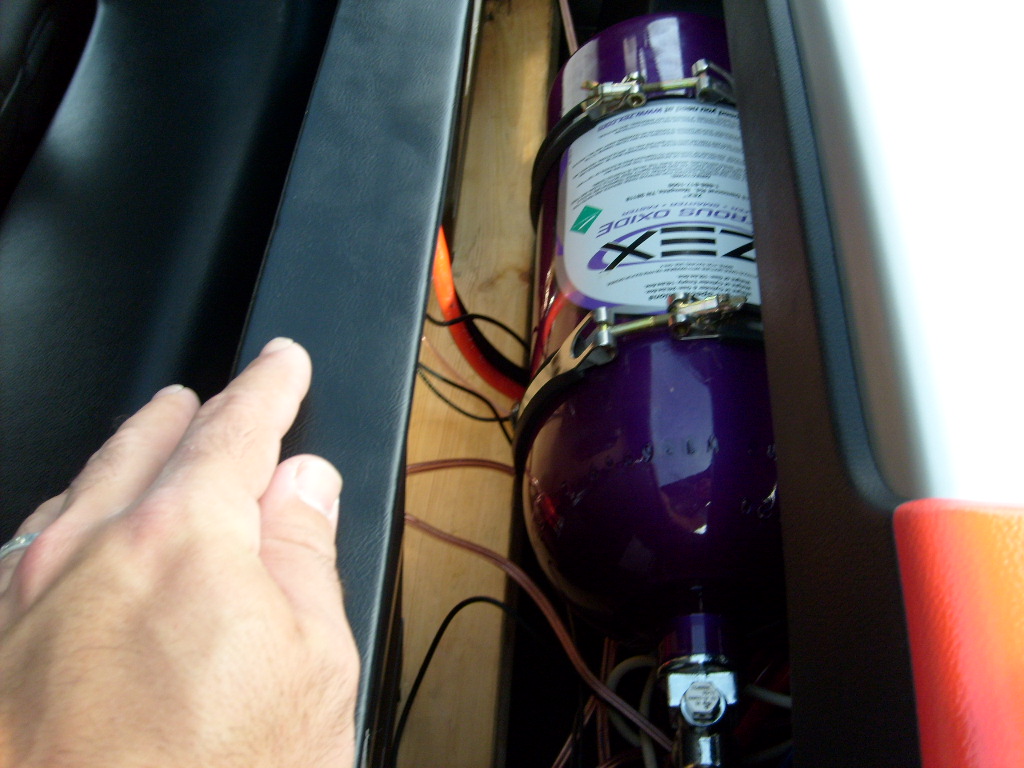

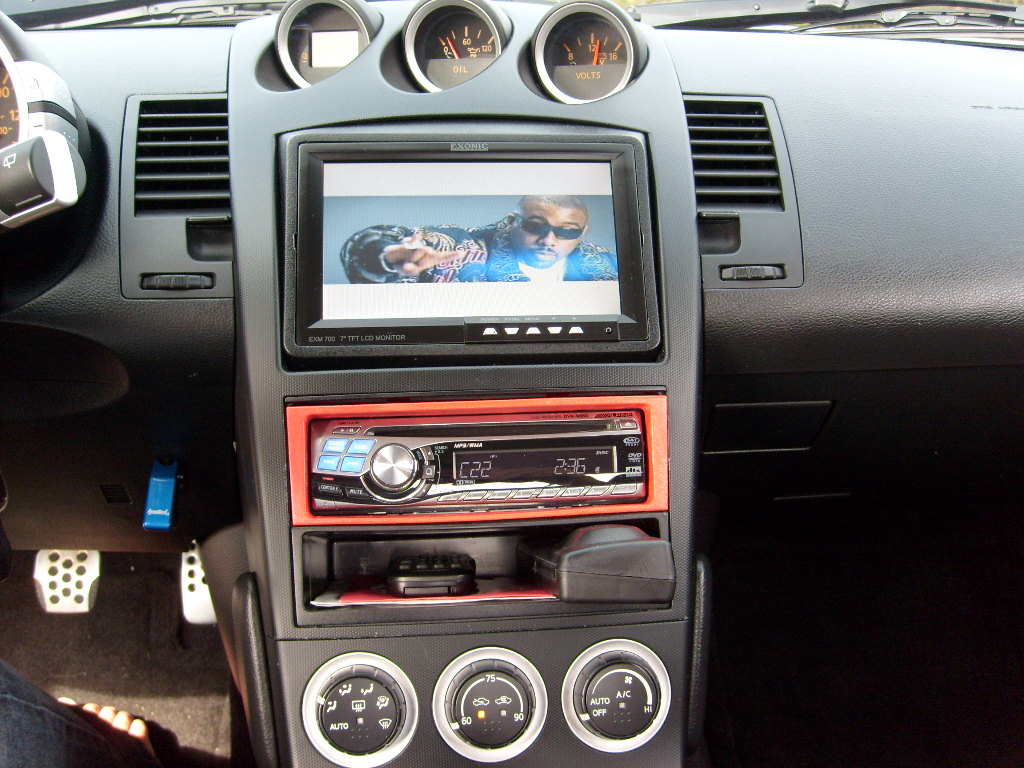

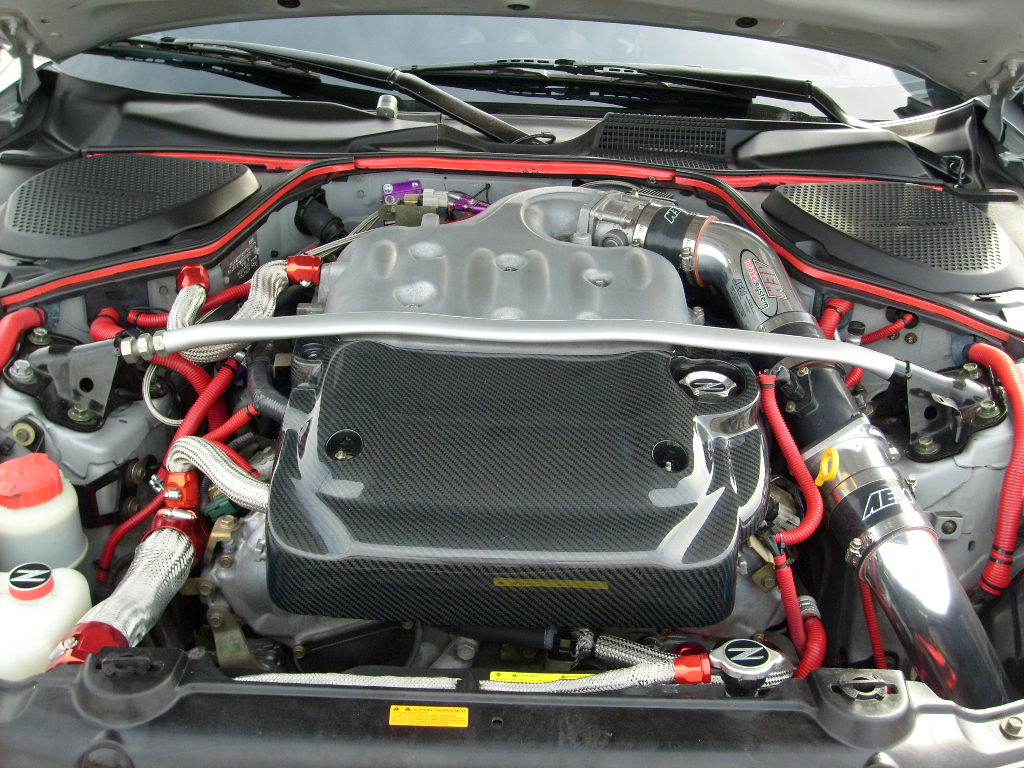

I have a Zex 2 stage Nitrous kit, the pictures will show where its hidden(behind amp rack, the brain under the hood(enlarge and you can see it one the firewall, and the switch to arm is in the t.v. picture by the steering wheel



i was thinking about buying a steel braided hose as a blow down tube. because your right....it sticks up pretty bad....i still dont think it will be all the way flush even after the diff blow down tube but itll help



all I have



modified...for some reason i have a feeling like your website is a spammer?! embed your pics instead of saying "look at my website"

^wckdclw, ya, it will stick up real bad with the blow tube...might have to go gym bag. does anyone run a steel braided hose for a blow down? I wouldnt think that would be nhra legal...



yeah i know it will now, i have it in right now and i have a huge hump in my carpet....im not worried about nhra legal,i just want it a little more hidden, ill just switch it out for the track.



OH Baby............. Nice set !!!



There was a red G35 at the track one day and I came pass to check it out for a sec and when I looked under the hood I was like aww its just a stock G. Then walked away then my buddy came over and said did you see that nitrous G and when I went back over he had his jets hidden under the throttle body and I didnt see any line or soilnoids. I couldnt beleive it. Nobody knew until he told them. I ended up racing him and he ran 13.4 to my 13.9. When I get mine put in its going to be hidden just like that.



but that the funny thing... i bet you cant. without removing anything from my car or taking things apart, you will see literally nothing... oh, except for my buttons.... (but those could be for anything)

your just assuming i put my bottle where everyone else does and that would be a mistake on your part cause my bottle really is hidden... completely. along with the solenoids and wires
