New ProEFI Display!!!

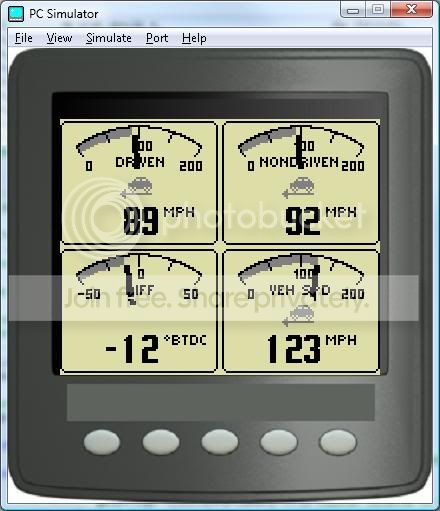

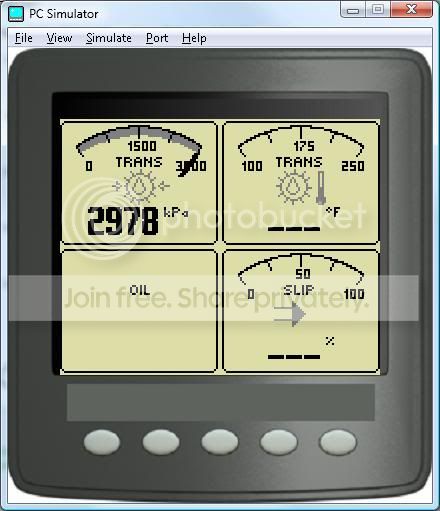

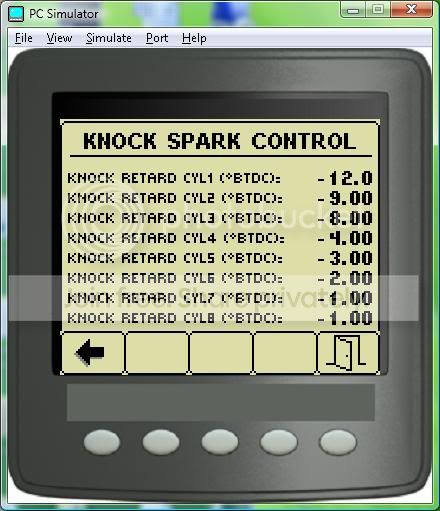

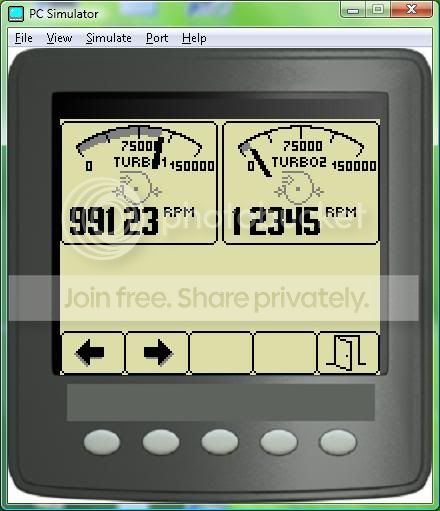

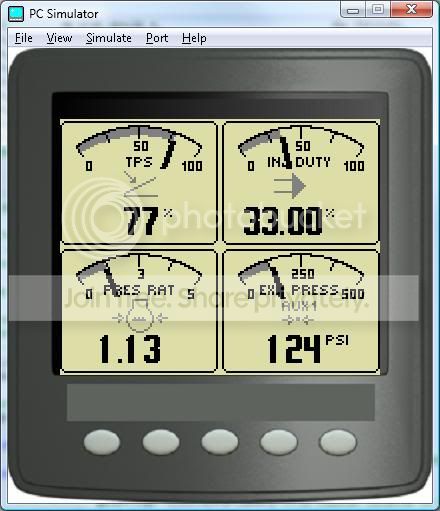

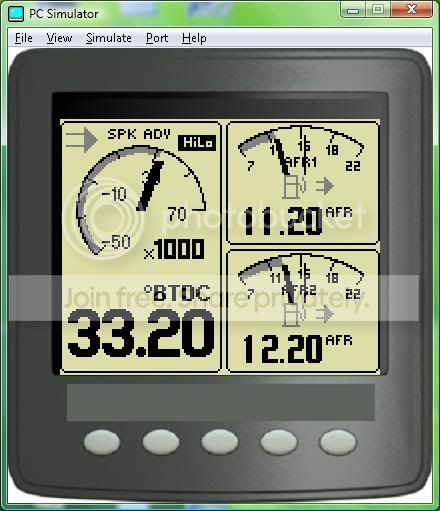

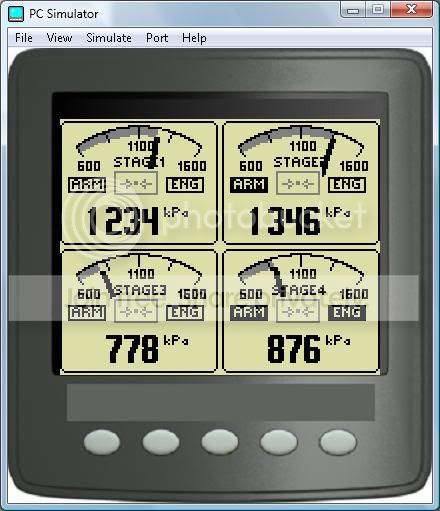

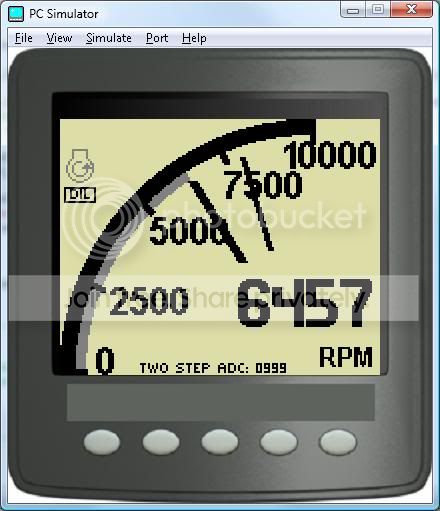

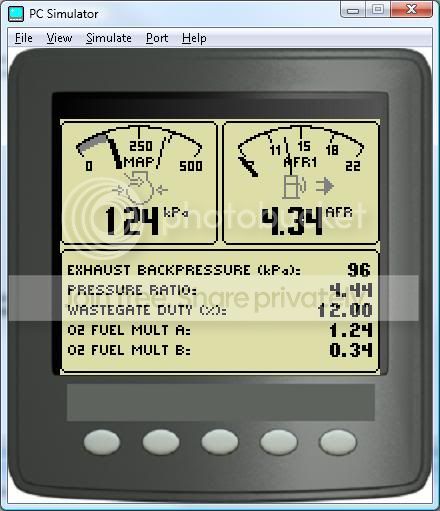

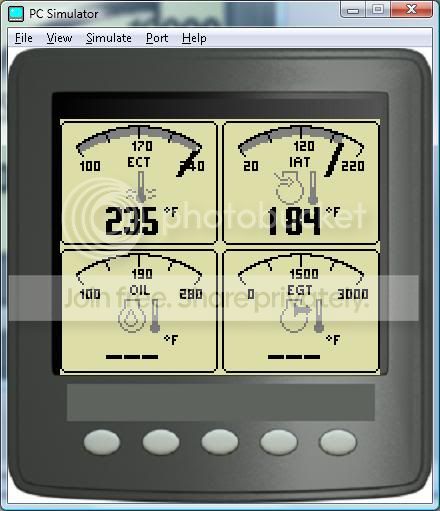

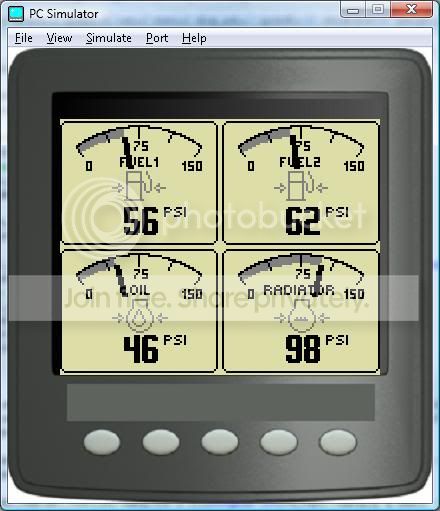

Will display up to four things at once but will give you the ability to change things like boost set point, rev limiters, etc. Will fit nicely in the little cubby hole above the heater controls on the Z !!!
Trending Topics
04-15-2010, 11:28 AM
#9
While the graphics do look a little chunky, data display and ECU control are the more important factors. 4.5" is big though - taller than double din.
Can the round CAN gauge buttons also perform the adjustment functions or do they just select functions?
Can the round CAN gauge buttons also perform the adjustment functions or do they just select functions?
Last edited by rcdash; 04-15-2010 at 12:59 PM.
04-15-2010, 02:55 PM
#10
Sponsor
Sound Performance
Sound Performance
Thread Starter
Yes, the can gauge can also changes settings.
Here is the big problem that we are facing.
On any 48 unit that wants to do traction control or vehicle speed based boost control we need to access the factory can data stream. Its communication speed is 500,000. Therefore we must set the 48 units can channel to communicate at 500,000. No problem, works fine. Unfortunately the can gauge only communicates at 250,000 therefore if you want to do those features on the 48 box, the can gauge stops working. The 128 unit has two can channels and we can set one at 250k and one at 500 k and both features work. This new gauge has selectable communication speeds so if you have a 48 box and want to do trac control etc, then you need this type of display. If you already have a can gauge, ProEFI will accept it as credit towards the new display as long as it is not scratched etc. Hope all of that makes sense!!!
Here is the big problem that we are facing.
On any 48 unit that wants to do traction control or vehicle speed based boost control we need to access the factory can data stream. Its communication speed is 500,000. Therefore we must set the 48 units can channel to communicate at 500,000. No problem, works fine. Unfortunately the can gauge only communicates at 250,000 therefore if you want to do those features on the 48 box, the can gauge stops working. The 128 unit has two can channels and we can set one at 250k and one at 500 k and both features work. This new gauge has selectable communication speeds so if you have a 48 box and want to do trac control etc, then you need this type of display. If you already have a can gauge, ProEFI will accept it as credit towards the new display as long as it is not scratched etc. Hope all of that makes sense!!!
04-19-2010, 09:46 AM
#16
Sponsor
Sound Performance
Sound Performance
Thread Starter
04-19-2010, 12:27 PM
#18
Registered User
iTrader: (22)
Join Date: Jun 2008
Location: Washington, DC
Posts: 945
Likes: 0
Received 0 Likes
on
0 Posts
Hey ya,
Not to be a bit of a nah sayer but my question is this: With all the technology out there why does this unit look a bit 16 bit Nintendo-ish?
I like the theory of the functionality but I dont like the delivery. Just my personal opinion.
Not to be a bit of a nah sayer but my question is this: With all the technology out there why does this unit look a bit 16 bit Nintendo-ish?
I like the theory of the functionality but I dont like the delivery. Just my personal opinion.
04-19-2010, 03:50 PM
#20
Registered User
Join Date: Nov 2007
Location: AZ
Posts: 198
Likes: 0
Received 0 Likes
on
0 Posts
You probably wouldn't like the price tag of the one you would 'like' the looks of. Pretty much all the aftermarket dashes are LCD.
