can someone tell me where to connect the PWK SW wire? and the blue wire from my amp do i connect that wire to EXT CONT (external amplifier control wire pink/black) or the AMP turn on wire (blue and white wire)??

thanks in advance



You can just ground the parking wire. It will allow the video to work while you're moving.
Are you sure the blue wire is the amp wire? I'm thinking it is the antenna amplifier, not the stereo amp.
Are you using a wiring harness? I used a Metra harness and it had all of the connections pretty well defined. I know on the 8120 harness and the Metra, the blue and white is the stereo amp wire (power control wire).



so ground the PWK SW wiree and connect the wire comming from the amp to the EXT CON wire from the Head Unit?
i'm using the metra harnes and there is a blue and white wire (Amp Turn on)
the blue wire is the wire that comes from my AMP
correct me if i'm wrong, thanks



If you're using the Metra harness, you should connect the blue/white from that harness to the blue/white coming out of the HU. This is your power control/amp turn on wire.

The blue wire on the Metra harness connects to the blue wire coming out of the HU. This is your power antenna wire. We don't have a power antenna, but there is an signal amp for the antenna.



so where do i connect the wire that comes from my amp is the wire that turn the amp on and off?



im still a little lost

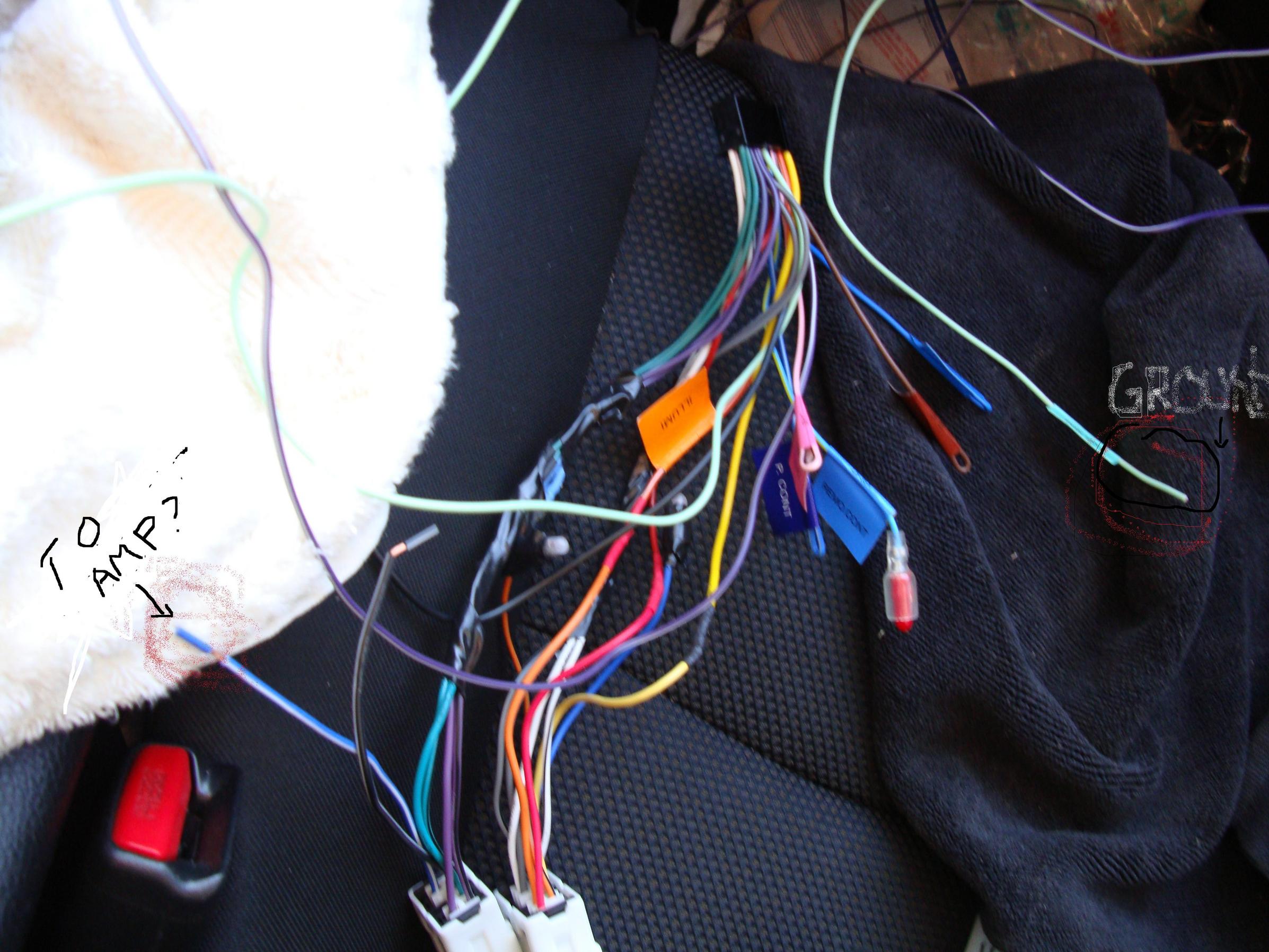

let me show you a picture maybe it can help



another question, there are two wires that comes out the head unit Relay 1 and Relay 2 what are these two wires for?



You shouldn't have to connect any wires directly to your car wiring. That's the purpose of the Metra harness. The blue and white wire that you have highlighted, which is coming from the Metra harness should connect to the blue and white coming out of the HU harness.

The relay 1 and 2 wires come into play if you connect other, non-stereo stuff. Some people have run relays to pop the trunk lid, open garage doors, etc. I haven't done this, so I'm clueless, but you don't need to do anything with those for the stereo to function.



cool man thanks, not i get it, but what about my amp where do i connect the wire that turns the amp on and off? i have Kenwood KAC-8104D
http://www.kenwoodusa.com/Car_Entert...iers/KAC-8104D
i'm guessing that i have to connect the amp wire to the red wire right?



Oh. I didn't realize you were using aftermarket amp. The blue/white is your amp turn on.



Now one last question, all the pieces to the puzzle falling into place, the EXT CONT (external amplifier control wire pink/black) wire that comes from the Head unit, what is this wire for?



I'm not sure about that one. I'm using the stock Bose speakers, so I don't have that one connected. Since you have a Kenwood amp, it may be needed. You might contact Kenwood directly or you could PM THEDUKE on here. He's very knowledgeable about the Kenwood stuff. My knowledge is pretty basic. Once you get it all hooked up, you'll LOVE this unit.



Thanks for all your help i appreciate it.



If it blows up, I'm changing my name and moving to Nebraska!



Ha ha ha, i'll look for you and hunt you down ha ha ha
