$6 radiator diversion plate

Reply




Old 01-10-2018, 03:37 PM
  #1
ru9n
Registered User
Thread Starter

Join Date: Apr 2017
Location: MA
Posts: 3
Thanks: 0
Thanked 6 Times in 2 Posts
Default $6 radiator diversion plate

Im 19 with tuition bills, so I can't really afford to fork over $60 for a steel plate. I try to save money where I can so I decided to give making my own radiator diversion plate a go.

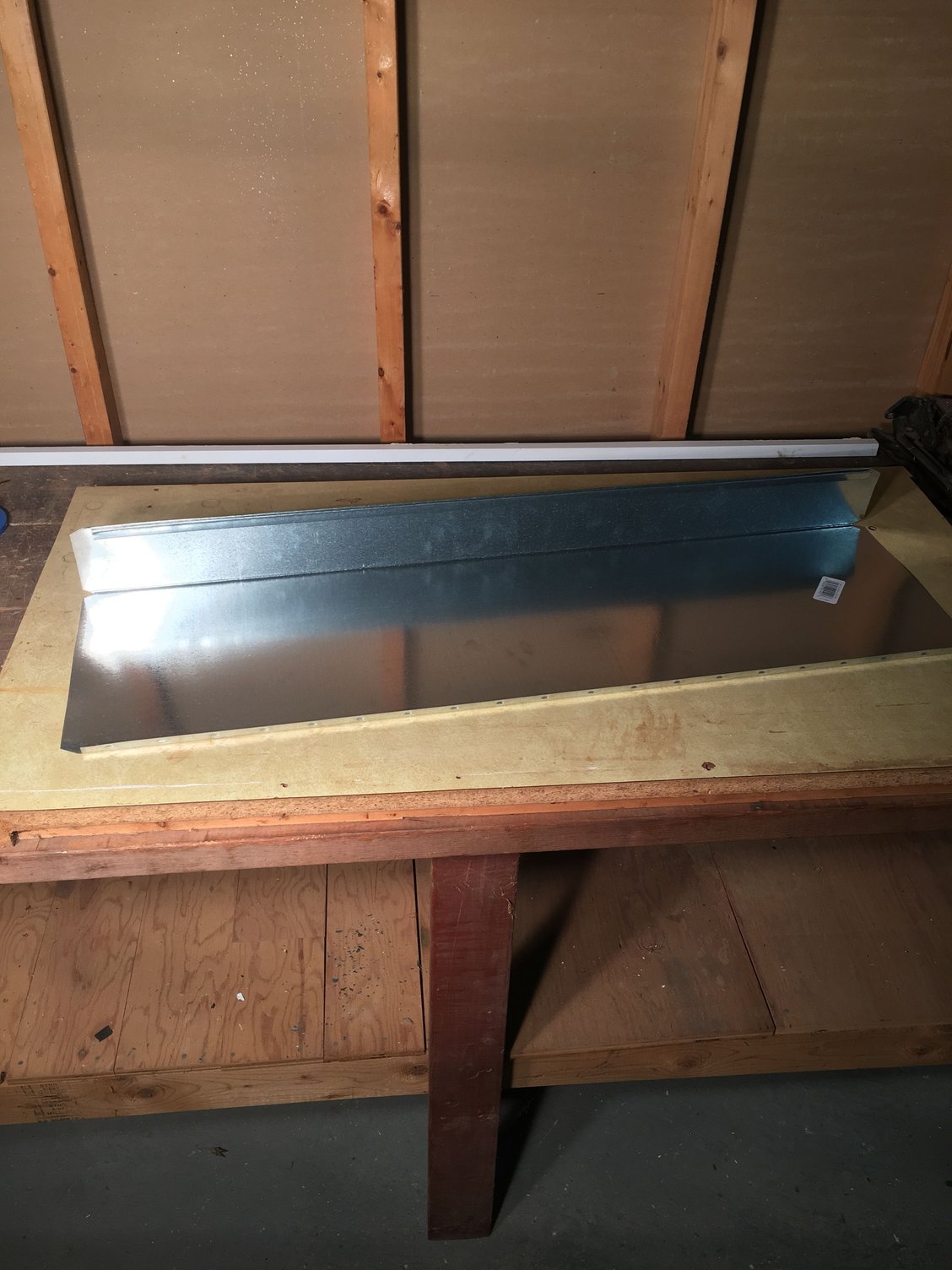

I found this $6 36" piece of ducting at home depot.


I went home and made a rough template out of cardboard of a basic shape of the diversion plate.



Im not an HVAC guy so i don't really know the best way to cut sheet metal, so i just sat around with some tin snips and carefully cut out the basic outline.



After trial and error and a lot of measuring, I eventually had the plate cut out. I used a rattail file and sandpaper to clean up the edges. I don't remember the drill bit size but I drilled holes in the OEM location where the bumper clips snap into the rad support. I used these to hold the plate in place.



Finished



ALSO, idk how forums work lol so hopefully I'm doing this right...
ru9n is offline
Reply With Quote
The Following 5 Users Say Thank You to ru9n For This Useful Post:
Atreyu'z 350 (01-12-2018), BigBlue (02-13-2018), edglazer (01-23-2018), iideadeyeii (02-14-2018), zakmartin (02-22-2018)
Old 01-10-2018, 03:59 PM
  #2
Cux350z
hatersgonnahate
iTrader: (162)

Cux350z's Avatar

Join Date: Apr 2005
Location: Greenville, SC
Posts: 11,628
Thanked 241 Times in 179 Posts
Default

Looks good.

Eyelids...meh.
Cux350z is offline
Reply With Quote
Old 01-11-2018, 10:13 AM
  #3
JMII
Registered User

JMII's Avatar

Join Date: Oct 2011
Location: Margate, FL
Posts: 536
Thanked 35 Times in 34 Posts
Default

Nice! I felt stupid after buying one for $70 and realizing just how simple it is. In fact mine didn't fit great so I had to trim with a Dremel.

FYI what front bumper is that?
JMII is offline
Reply With Quote
Old 01-11-2018, 10:41 AM
  #4
iideadeyeii
Registered User
iTrader: (6)

Join Date: Nov 2011
Location: Lawtown
Posts: 2,644
Thanked 191 Times in 151 Posts
Default

We need more posts like this. DIY-er's making things from "scratch" being cheap/functional.

This is actually a really nice job from the photos, I wouldn't have the patience to do that.(anymore)
iideadeyeii is offline
Reply With Quote
The Following 2 Users Say Thank You to iideadeyeii For This Useful Post:
Atreyu'z 350 (01-12-2018), KingBaby (01-12-2018)
Old 01-11-2018, 01:57 PM
  #5
eZg
Registered User
iTrader: (5)

Join Date: Nov 2002
Location: Nashville/Tupelo
Posts: 796
Thanked 30 Times in 28 Posts
Default

I paid $200 for a greddy CF one. Luckily it was cracked when it arrived. Biggest ripoff ever. The thing was as thin as cardstock........traced it and sent it back.
eZg is offline
Reply With Quote
Old 01-11-2018, 04:15 PM
  #6
CK_32
Registered User
iTrader: (1)

Join Date: Jan 2016
Location: California
Posts: 3,609
Thanked 358 Times in 307 Posts
Default

Looks good man.

I'm trying to make one for my splash guard. Just too lady to actually go buy it tho.
CK_32 is offline
Reply With Quote
Old 01-12-2018, 07:23 AM
  #7
KingBaby
Hardest Setting
iTrader: (3)

KingBaby's Avatar

Join Date: Feb 2008
Location: MexiCali dodging potholes
Posts: 13,417
Thanked 121 Times in 94 Posts
Default

Thanks for sharing!
KingBaby is offline
Reply With Quote
Old 01-12-2018, 10:03 AM
  #8
Atreyu'z 350
Label Pending..

Atreyu'z 350's Avatar

Join Date: Jan 2017
Location: Pennsylvania
Posts: 1,898
Thanked 246 Times in 215 Posts
Default

Wow. That looks damn good.. Well done!
Atreyu'z 350 is offline
Reply With Quote
Old 01-12-2018, 07:21 PM
  #9
terrasmak
Super Moderator
MY350Z.COM
iTrader: (8)

terrasmak's Avatar

Join Date: Jan 2007
Location: Sin City
Posts: 24,700
Thanked 946 Times in 685 Posts
Default

Good work, no idea how much I paid for my aluminum Greddy one
terrasmak is offline
Reply With Quote
Old 01-13-2018, 09:15 PM
  #10
rottingcat
Registered User
iTrader: (3)

Join Date: Dec 2015
Location: California
Posts: 125
Thanked 13 Times in 12 Posts
Default

Id buy one from you
rottingcat is offline
Reply With Quote
Old 01-14-2018, 07:17 AM
  #11
Voboy
Registered User
iTrader: (58)

Voboy's Avatar

Join Date: Feb 2004
Location: Houston, TX
Posts: 2,996
Thanked 3 Times in 3 Posts
Default

Nice job. Not sure if you did it or not, but you can clean up the inside corners better if you drill first before cutting.
Voboy is offline
Reply With Quote
Old 01-14-2018, 11:10 AM
  #12
MicVelo
350Z/370Z Tech Moderator
MY350Z.COM

MicVelo's Avatar

Join Date: Oct 2014
Location: Northern California
Posts: 6,202
Thanked 1,707 Times in 1,248 Posts
Default

Really nice workmanship, even better that it was so inexpensive!
MicVelo is online now
Reply With Quote
Old 02-13-2018, 03:02 PM
  #13
speedk1ng
Newbie
iTrader: (7)

speedk1ng's Avatar

Join Date: Oct 2012
Location: Colorado
Posts: 87
Thanked 2 Times in 2 Posts
Default

Nice work!!

Care to build me one and I'll buy it or sell me your cardboard template? We need one for our road racer.

You won't need to bend the lip where the diversion plate meets the radiator support....we have a sheet metal bending brake, so we can easily put that bend in once we get the flat diversion plate from you.

Last edited by speedk1ng; 02-13-2018 at 04:38 PM.
speedk1ng is offline
Reply With Quote
Old 02-14-2018, 05:42 AM
  #14
iideadeyeii
Registered User
iTrader: (6)

Join Date: Nov 2011
Location: Lawtown
Posts: 2,644
Thanked 191 Times in 151 Posts
Default

Shame he hasn't posted since
iideadeyeii is offline
Reply With Quote
Old 02-14-2018, 06:18 AM
  #15
speedk1ng
Newbie
iTrader: (7)

speedk1ng's Avatar

Join Date: Oct 2012
Location: Colorado
Posts: 87
Thanked 2 Times in 2 Posts
Default

Originally Posted by iideadeyeii View Post
Shame he hasn't posted since
agreed....

speedk1ng is offline
Reply With Quote
Old 02-15-2018, 06:21 PM
  #16
ru9n
Registered User
Thread Starter

Join Date: Apr 2017
Location: MA
Posts: 3
Thanks: 0
Thanked 6 Times in 2 Posts
Default

Originally Posted by speedk1ng View Post
Nice work!!

Care to build me one and I'll buy it or sell me your cardboard template? We need one for our road racer.

You won't need to bend the lip where the diversion plate meets the radiator support....we have a sheet metal bending brake, so we can easily put that bend in once we get the flat diversion plate from you.
Yeah Im always down to help out. You can PM me or something.
ru9n is offline
Reply With Quote
Old 02-15-2018, 08:13 PM
  #17
Bak3rme
Registered User
iTrader: (1)

Join Date: Dec 2013
Location: Boston, MA
Posts: 341
Thanked 32 Times in 29 Posts
Default

what part of mass? if u make one i'll drive up and pick it up if u selling
Bak3rme is offline
Reply With Quote
Old 02-16-2018, 07:01 AM
  #18
speedk1ng
Newbie
iTrader: (7)

speedk1ng's Avatar

Join Date: Oct 2012
Location: Colorado
Posts: 87
Thanked 2 Times in 2 Posts
Default

Originally Posted by ru9n View Post
Yeah Im always down to help out. You can PM me or something.
PM sent....
speedk1ng is offline
Reply With Quote
Old 02-19-2018, 08:09 AM
  #19
DarkCreep
Registered User
iTrader: (1)

DarkCreep's Avatar

Join Date: Mar 2013
Location: Los Angeles, CA
Posts: 744
Thanked 15 Times in 11 Posts
Default

Dude this is clean!! Looks great, hope you sell a lot.
DarkCreep is offline
Reply With Quote
Old 02-26-2018, 06:41 AM
  #20
achampagne
Registered User

Join Date: Dec 2017
Location: Panama City beach
Posts: 67
Thanked 8 Times in 7 Posts
Default

Hell I might make me one too. I've got some aluminum lying around in the garage.
achampagne is offline
