Ok ok here is your update!

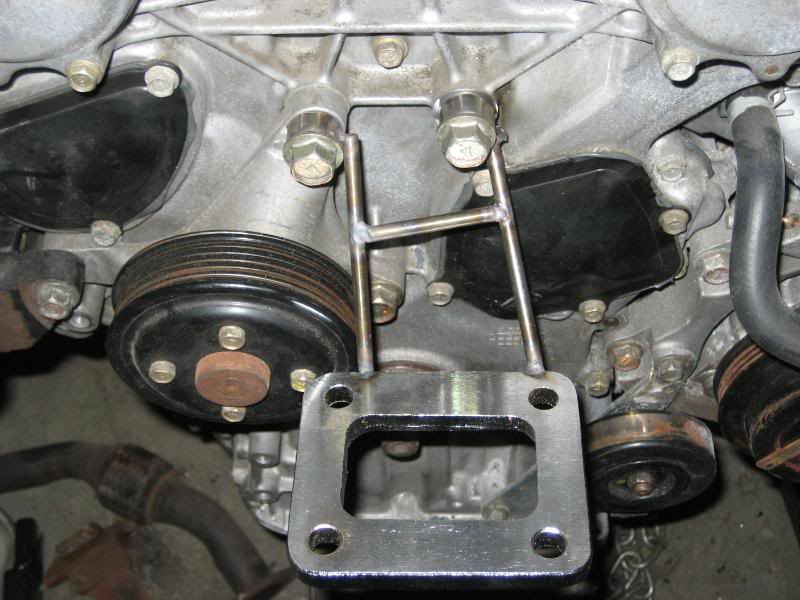

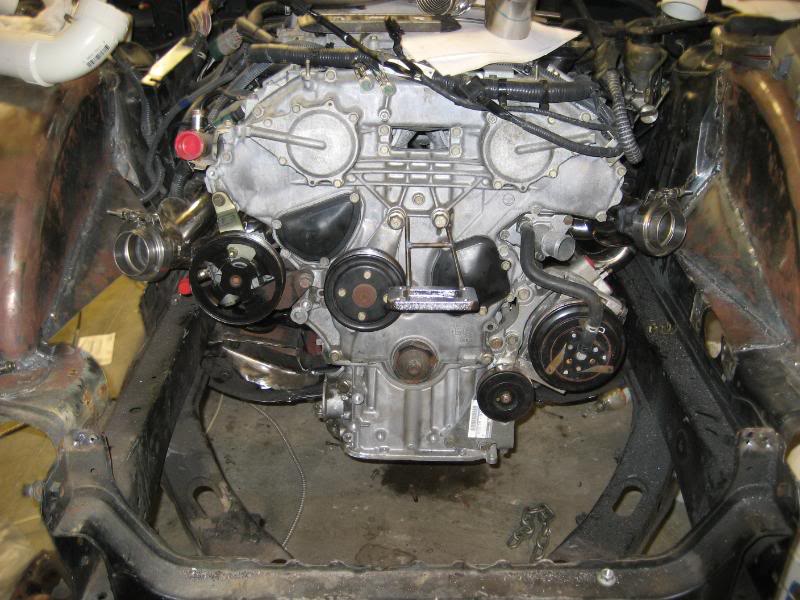

Well we finished welding the v-band flanges to the headers so next step was to get started on joining the two headers to the turbo. In order to do that I needed to support the T4 flange somewhere so I came up with this:

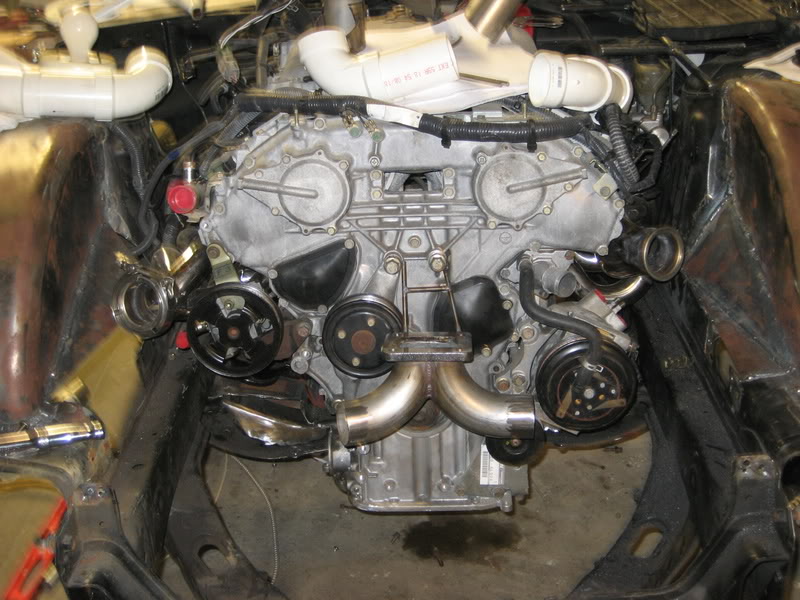

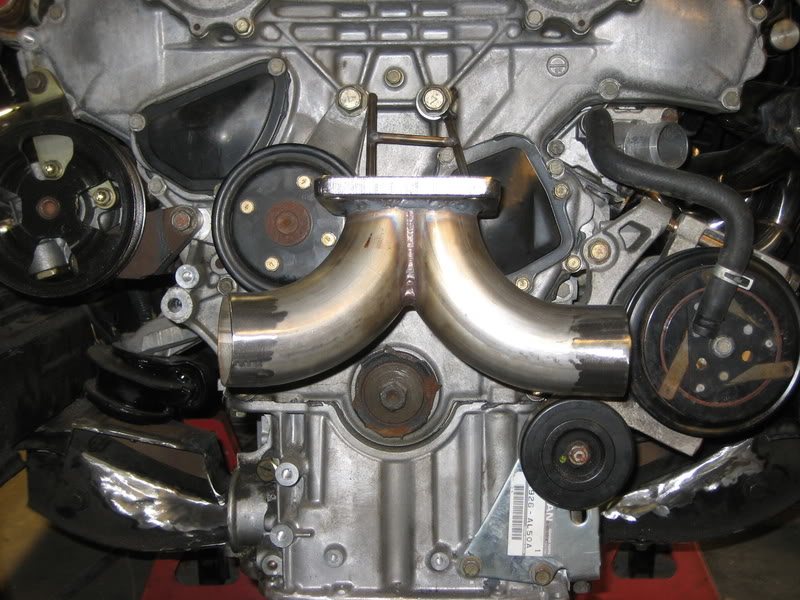

The turbo is supported pretty well at this point, but I have two more support points I am going to make for the flange to make sure the turbo is well supported off the motor and not the collector pipes.

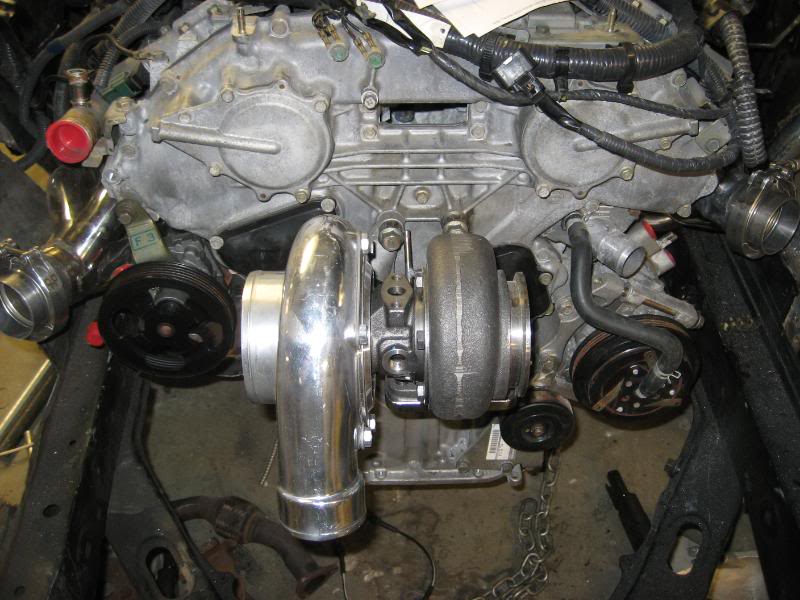

How the turbo will sit:

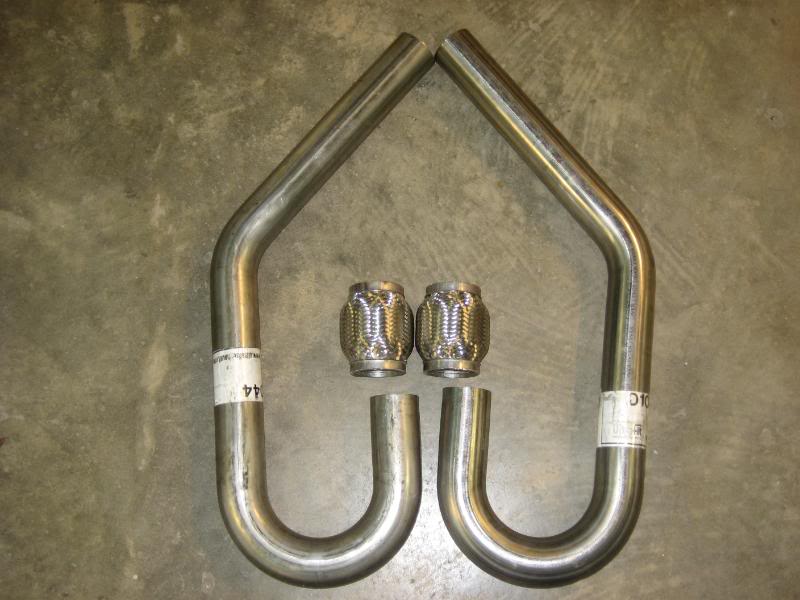

So next I bought some 2 1/4" mandrel bent stainless tubing to join the two headers to the turbo and then I bought two flex bellows to compensate for the heat so when everything expands and contrapts as it will there will be some give for the pipes so nothing will crack or break.

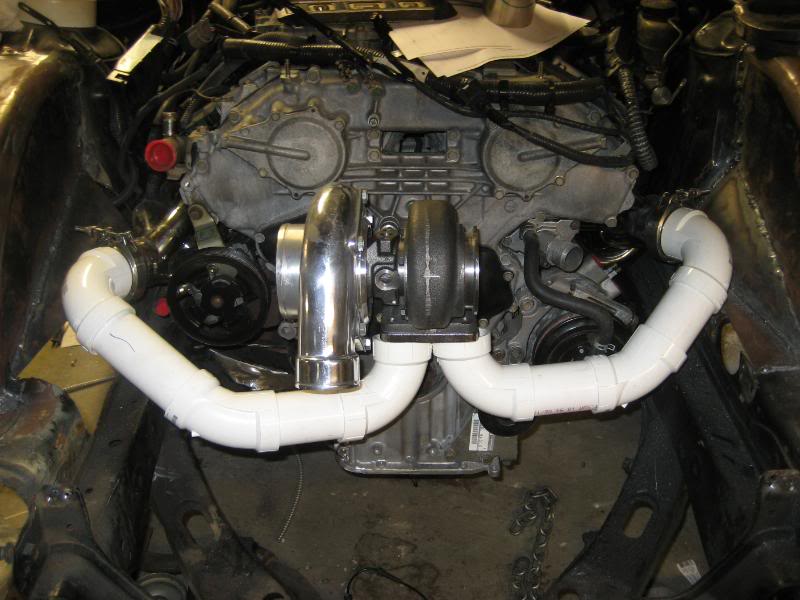

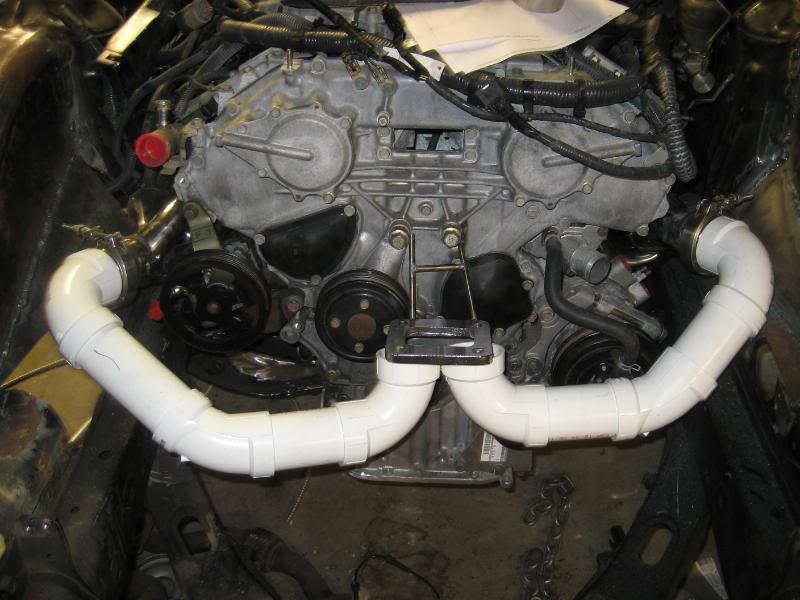

So as we all know stainless is expensive and I do not wish to buy anymore than I have to. So rather than use the guess and check method and waste more money than I have to, I figured it was best to make up a test dummy before I go cutting up the stainless. So I went to the local home depot and bought some 2" PVC and a bunch of PVC 90 degree elbows and 45 degree elbows as well. PVC is really cheap so it was easier on the wallet to guess and check with it instead of the stainless so here is what I came up with:

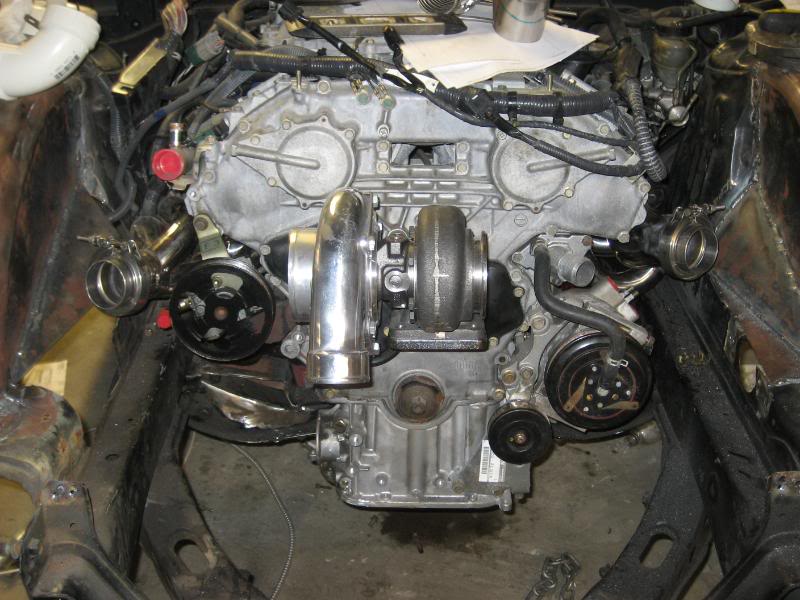

So you can all get an idea of how the turbo will look with the pipes:
And this is where I am at this point, this weekend I hope to have the pipes made up in the stainless.
Well we finished welding the v-band flanges to the headers so next step was to get started on joining the two headers to the turbo. In order to do that I needed to support the T4 flange somewhere so I came up with this:
The turbo is supported pretty well at this point, but I have two more support points I am going to make for the flange to make sure the turbo is well supported off the motor and not the collector pipes.
How the turbo will sit:
So next I bought some 2 1/4" mandrel bent stainless tubing to join the two headers to the turbo and then I bought two flex bellows to compensate for the heat so when everything expands and contrapts as it will there will be some give for the pipes so nothing will crack or break.
So as we all know stainless is expensive and I do not wish to buy anymore than I have to. So rather than use the guess and check method and waste more money than I have to, I figured it was best to make up a test dummy before I go cutting up the stainless. So I went to the local home depot and bought some 2" PVC and a bunch of PVC 90 degree elbows and 45 degree elbows as well. PVC is really cheap so it was easier on the wallet to guess and check with it instead of the stainless so here is what I came up with:
So you can all get an idea of how the turbo will look with the pipes:
And this is where I am at this point, this weekend I hope to have the pipes made up in the stainless.
