SRS error after changing clock spring
Hey all,
I recently changed the clock spring on my '07 HR 350z, due to the horn no longer working. Since doing so, the airbag light has started flashing. The flash pattern I'm getting is 1 long followed by 1 short. A scan with NDS II revealed the following error code: b1081, pre-ten front rh.
No accidents or malfunctions were witnessed, and airbags have not deployed during the car's lifetime. Unsure if this is a common issue, or if I'll need to replace the SRS module? Anyone have experience or knowledge on the issue?
Thanks in advance!
I recently changed the clock spring on my '07 HR 350z, due to the horn no longer working. Since doing so, the airbag light has started flashing. The flash pattern I'm getting is 1 long followed by 1 short. A scan with NDS II revealed the following error code: b1081, pre-ten front rh.
No accidents or malfunctions were witnessed, and airbags have not deployed during the car's lifetime. Unsure if this is a common issue, or if I'll need to replace the SRS module? Anyone have experience or knowledge on the issue?
Thanks in advance!
#3
New Member
iTrader: (4)
That's very odd, B1081 is for the Right Front Seat Belt Pre-tensioner.
The circuit is "open".
The clock spring replacement could be completely unrelated to this issue.
When you replaced the clock spring, did you have the battery disconnected and wait 5-10 min before proceeding?
Has any other work been done recently on the vehicle that may have involved interior wiring?
Cheers!
-Icer
The circuit is "open".
The clock spring replacement could be completely unrelated to this issue.
When you replaced the clock spring, did you have the battery disconnected and wait 5-10 min before proceeding?
Has any other work been done recently on the vehicle that may have involved interior wiring?
Cheers!
-Icer
#4
New Member
Thread Starter
Join Date: Oct 2021
Location: NSW
Posts: 16
Likes: 0
Received 0 Likes
on
0 Posts
I know right! The battery was disconnected - didn't wait 5-10 mins, however did pump the break, turn the key a few times, etc to try and drain the system as best as possible. Otherwise no other wiring work has been done (to my knowledge, at least).
Last edited by gh9886; 03-20-2024 at 06:30 PM.
#5
New Member
Thread Starter
Join Date: Oct 2021
Location: NSW
Posts: 16
Likes: 0
Received 0 Likes
on
0 Posts
That's very odd, B1081 is for the Right Front Seat Belt Pre-tensioner.
The circuit is "open".
The clock spring replacement could be completely unrelated to this issue.
When you replaced the clock spring, did you have the battery disconnected and wait 5-10 min before proceeding?
Has any other work been done recently on the vehicle that may have involved interior wiring?
Cheers!
-Icer
The circuit is "open".
The clock spring replacement could be completely unrelated to this issue.
When you replaced the clock spring, did you have the battery disconnected and wait 5-10 min before proceeding?
Has any other work been done recently on the vehicle that may have involved interior wiring?
Cheers!
-Icer
#6
New Member
iTrader: (4)
Pumping the brake and turning the key may not help in this case, I believe the SRS system has it's own capacitor that is unrelated to the ignition system. But I think you're probably safe in this case since you don't have any stored codes for the steering wheel airbag (must be removed to replace clock spring).
This will require some review of the wiring diagram for the SRS system and this pre-tensioner. It's very possible nothing is actually wrong with the pre-tensioner itself, it could just be a poor connection somewhere. But to rule out the clock spring, we need to check the wiring diagram. Just to confirm, the seatbelt is working correctly? Meaning it's not locked out or failing to retract?
Cheers!
-Icer
This will require some review of the wiring diagram for the SRS system and this pre-tensioner. It's very possible nothing is actually wrong with the pre-tensioner itself, it could just be a poor connection somewhere. But to rule out the clock spring, we need to check the wiring diagram. Just to confirm, the seatbelt is working correctly? Meaning it's not locked out or failing to retract?
Cheers!
-Icer
#7
New Member
Thread Starter
Join Date: Oct 2021
Location: NSW
Posts: 16
Likes: 0
Received 0 Likes
on
0 Posts
Pumping the brake and turning the key may not help in this case, I believe the SRS system has it's own capacitor that is unrelated to the ignition system. But I think you're probably safe in this case since you don't have any stored codes for the steering wheel airbag (must be removed to replace clock spring).
This will require some review of the wiring diagram for the SRS system and this pre-tensioner. It's very possible nothing is actually wrong with the pre-tensioner itself, it could just be a poor connection somewhere. But to rule out the clock spring, we need to check the wiring diagram. Just to confirm, the seatbelt is working correctly? Meaning it's not locked out or failing to retract?
Cheers!
-Icer
This will require some review of the wiring diagram for the SRS system and this pre-tensioner. It's very possible nothing is actually wrong with the pre-tensioner itself, it could just be a poor connection somewhere. But to rule out the clock spring, we need to check the wiring diagram. Just to confirm, the seatbelt is working correctly? Meaning it's not locked out or failing to retract?
Cheers!
-Icer
Trending Topics
#8
New Member
iTrader: (4)

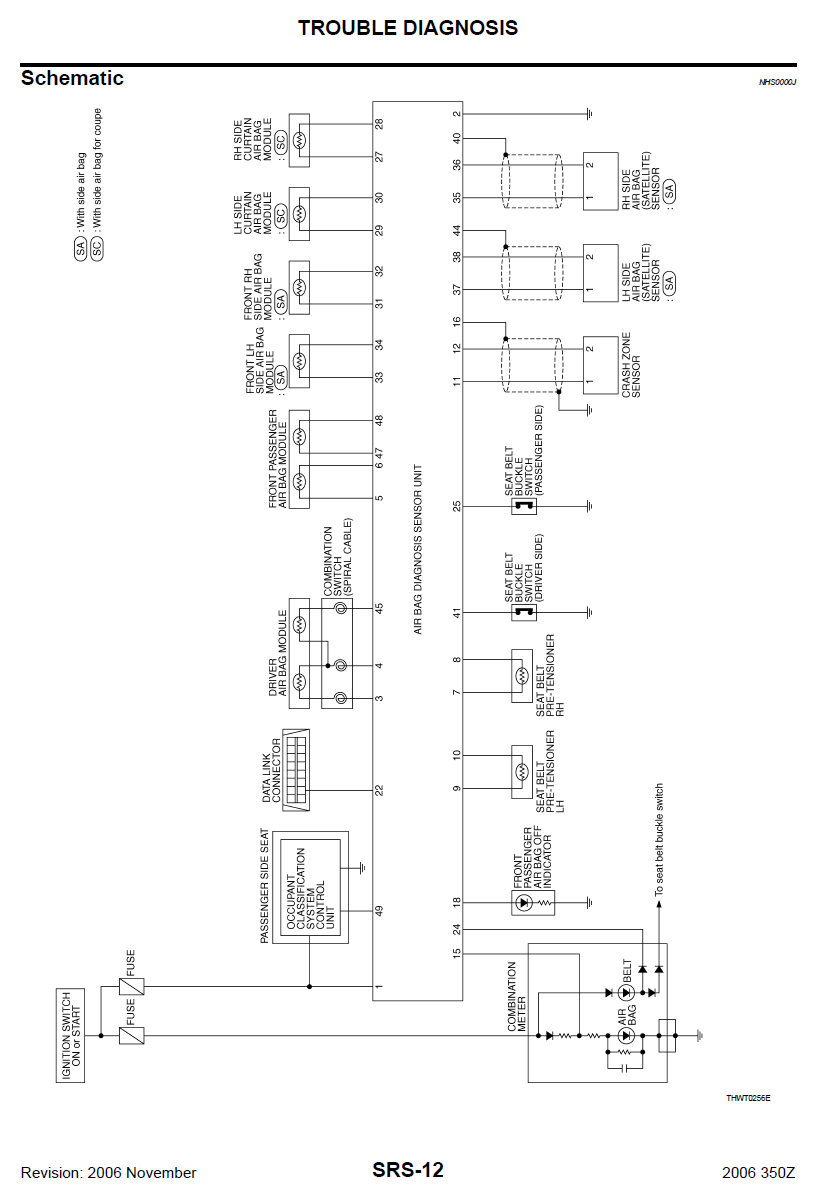

Ok, here's the wiring schematic for the SRS system. Now this is for a 2006 350Z, but I don't believe the SRS system really changed between the years. Some additional airbags might be present, but the overall wiring is more or less the same.
