Worked for 6 hours on above items, routing the stainless lines is super tough and time consuming. But the time was worth it. It is such a clean install. Nice to work with components from altered atmosphere super high quality, makes installation much easier.



Jonezin for updated pix!!!!! Keep us in the loop, I KNOW ya must be wrenchin' on that thing daily!!!!
J-man



hey kevin
how is you set up coming along



Kevin- the prep time you're putting in to do a clean install is truly where the magic is! Having said that, is there ANY chance that you'll have this together in time to join us on March 9th?



Waiting On A Part Was Supposed To Be Here Last Week. We Called Dhl It Is Still In Ca..... Kev Is Frustrated Should Be Here Mon Or Tues. So He Can Start Working Again.



Any more pics??



More Pics In 3 Minutes 46 Seconds





More leg!



Yes, more leg Kevin!

P.S. Is Bob slackin' off, it doesn't look like he's been very involved in the build.



Sexy Azz legs FTMFW



Here is the turbo timer mounted in the center box, lots of heat shield around turbo area. I added 2 fuse blocks in front of the shift, one 12v constant one sw, on the acc.
I need any advice on where to mount the boost controler, it is small, wires enter it from the back. I want to put it in a heasd up place. I don't like the idea of it in the nav. cubby at all, looks like cheese having that thing open all the time! Any ideas guys??

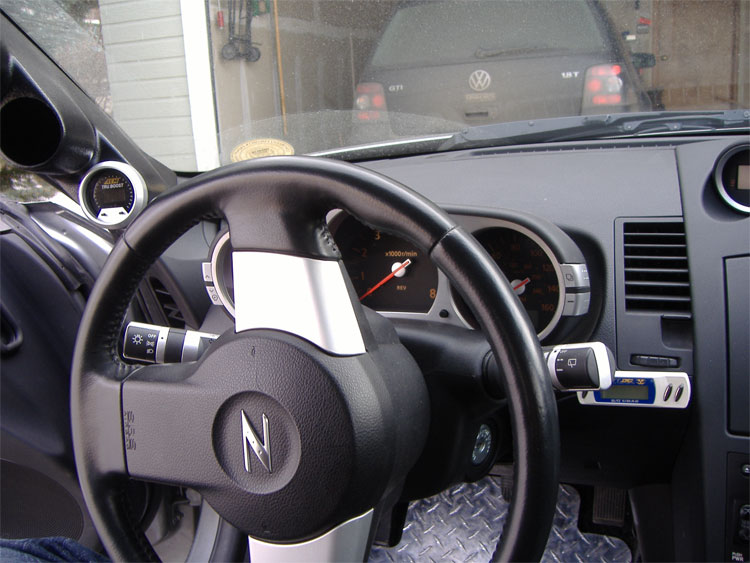

Hmm how about mounting the EBC in the same area where my turbo timer was mounted:


Pretty easily accessible and outta the way but not out of arms reach.



Funny, That is the same one I have...and that's where I put it!!!
J



I had dibs on it first! HAR HAR



Well mine is the "Special Edition" in Pearl white!



Lots of heat wrap, lots of areas exposed to heat that are not used to seeing heat


passenger side right before turbo was installed


The can in the lower left pic is the oil reserve catch can, the turbo sits so low that the return oil needs to be pumped back to the engine


Driver side turbo installed


Passenger side turbo



heat wrapped forward exhaust components


Bob overseeing the project


Passenger side dump tube installed


Different angle passenger side


Pic of oil return line driver side (covered in heat shield)







Drivers side exhaust completed


Pic of the driver side from front to back. The black cyclinder is a SVRT solid motor mount to the right is the driver side plumbing from the intercooler.







Need to weld in a third 02 bung for wide band 02. The only thing left to do is finish the exhaust on Passenger side. TIG in the two blow off valves. Finish the return oil system.


When it lights it is gonna be HELL ON EARTH



OMG!!! You are smokin' that install's @ss!!!!! Beautiful work as always!!!! Needless to say, you will be at the meet on March 9th!!!!!
Jman



Looking BAD AZZ!!!!!!



Can't wait to see the finished product!!! Projected numbers???
