DIY: DETAILED wheel stud replacement (front & rear ARP wheel stud friendly)

Old 08-16-2007, 06:28 PM
  #1
3hree5ive0ero
`.,,.*`.,,.*~[;::;]ᵒᴥᵒ)
Thread Starter
iTrader: (95)

3hree5ive0ero's Avatar

Join Date: Dec 2000
Location: Dallas / Chicago
Posts: 1,337,017,830
Received 75 Likes on 48 Posts
Wink DIY: DETAILED wheel stud replacement (front & rear ARP wheel stud friendly)

I broke yet another wheel stud and instead of paying the dealership $70 to do it, I decided to do it myself this time. I spent $4.04 (for replacement stud) + $1.00 (for 6 washers). This sure beats paying somebody else to do the work and is definitely more gratifying.

Hopefully, this DIY helps you guys who need their wheel stud(s) replaced.


level of difficulty:
1.5 out of 5 (5 being hardest)


approximate install time:
45-90 minutes


tools:
floor jack and jack stands
socket wrench/ratchet
14mm (9/16") and 19mm (3/4") sockets
wd-40 or pb blaster or liquid wrench
~6 washers
hammer or mallet


Replacing the wheel stud:
*I did the rear left side. The fronts should involve the same steps, but may or may not require different socket sizes.

1: Jack up the car high enough using the standard jack points (or frame) so you can slide under the car easily.
Name:  350ZJackpoints.jpg
Views: 3991
Size:  62.7 KB


2: Remove the wheel, exposing the studs, rotor, brake components, etc.
Name:  DSC00769.jpg
Views: 3234
Size:  338.8 KB


3: Locate the two 14mm bolts holding the brake caliper in place and remove them.
*Spraying the bolts with wd-40/pb blaster/liquid wrench makes the job much easier, especially if these bolts have not been removed recently.
**The bottom bolt cannot be taken off due to limited space behind it, so I used my floor jack to push up the suspension to create more space.
Name:  DSC00772a.jpg
Views: 3171
Size:  322.0 KB


4: Put the bolts some place where the grease won't collect stuff off the ground.
Name:  DSC00776.jpg
Views: 3205
Size:  208.6 KB


5: Rest the brake calipers so that it does not put any strain (put weight on) the brake lines. Take off the brake pads, if you haven't already.
Name:  DSC00778.jpg
Views: 3212
Size:  311.9 KB
Name:  DSC00779.jpg
Views: 3115
Size:  240.7 KB


6: Locate the two 19mm bolts holding the brake caliper bracket in place and remove them.
*Spraying the bolts with wd-40/pb blaster/liquid wrench makes the job much easier, especially if these bolts have not been removed recently.
**I couldn't take off the bolts by hand so I used the floor jack (while making sure the socket is on the bolt completely as to not strip it).
Name:  DSC00780a.jpg
Views: 3156
Size:  256.8 KB
Name:  DSC00783.jpg
Views: 3174
Size:  316.6 KB
Name:  DSC00784.jpg
Views: 3155
Size:  336.0 KB


7: Put the bolts some place where you won't lose them.
Name:  DSC00787.jpg
Views: 3194
Size:  241.9 KB


8: Remove the brake caliper bracket and the rotor and set it aside. They should just slide right out.
Name:  DSC00789.jpg
Views: 3212
Size:  289.7 KB


9: Spray wd-40/pb blaster/liquid wrench where the broken stud is and around it. Hammer away at the broken stud. (Optional: thread in an old/useless lug nut a little bit for added length and to prevent the stud from flying somewhere)
*Alternatively, you can use a C-clamp or something similar to get the stud out, if you don't feel comfortable hammering.
Name:  DSC00791.jpg
Views: 3317
Size:  282.8 KB


10: Take out the broken stud.
Name:  DSC00793.jpg
Views: 3192
Size:  247.5 KB


11: Spray the new stud down with wd-40/pb blaster/liquid wrench and put it through the hole where the broken stud was. Place ~6 washers on the stud and tighten the lug nut. Stop tightening when you can feel the head of the stud become flat like the other studs.
Name:  DSC00794.jpg
Views: 4139
Size:  334.0 KB
Name:  DSC00796.jpg
Views: 3206
Size:  303.8 KB


12: You're done! It should look like this.
Name:  DSC00797.jpg
Views: 3235
Size:  247.0 KB


13: Now put everything back together in the opposite order that you took them out in.
[self explanatory]
3hree5ive0ero is offline
Old 08-16-2007, 06:28 PM
  #2
3hree5ive0ero
`.,,.*`.,,.*~[;::;]ᵒᴥᵒ)
Thread Starter
iTrader: (95)

3hree5ive0ero's Avatar

Join Date: Dec 2000
Location: Dallas / Chicago
Posts: 1,337,017,830
Received 75 Likes on 48 Posts
Wink ARP wheel studs in the REAR

I understand that using a press may be preferable, but I don't have that and this is how I did it. You assume the risk if you choose to follow this DIY and I cannot be held accountable for anything that you do.

With that being said, I'm assuming that if you're tackling this task, you know how to get your brake components out of the way, including the rotor.

Required:
  • ARP 100-7716
  • 14mm, 17mm
  • needle nose pliers/vice grip
  • flat head screw driver
  • closed-ended lug nut
  • hammer
  • 10+ washers
  • open-ended lug nut with no lip & matching deep socket
  • impact gun (optional)

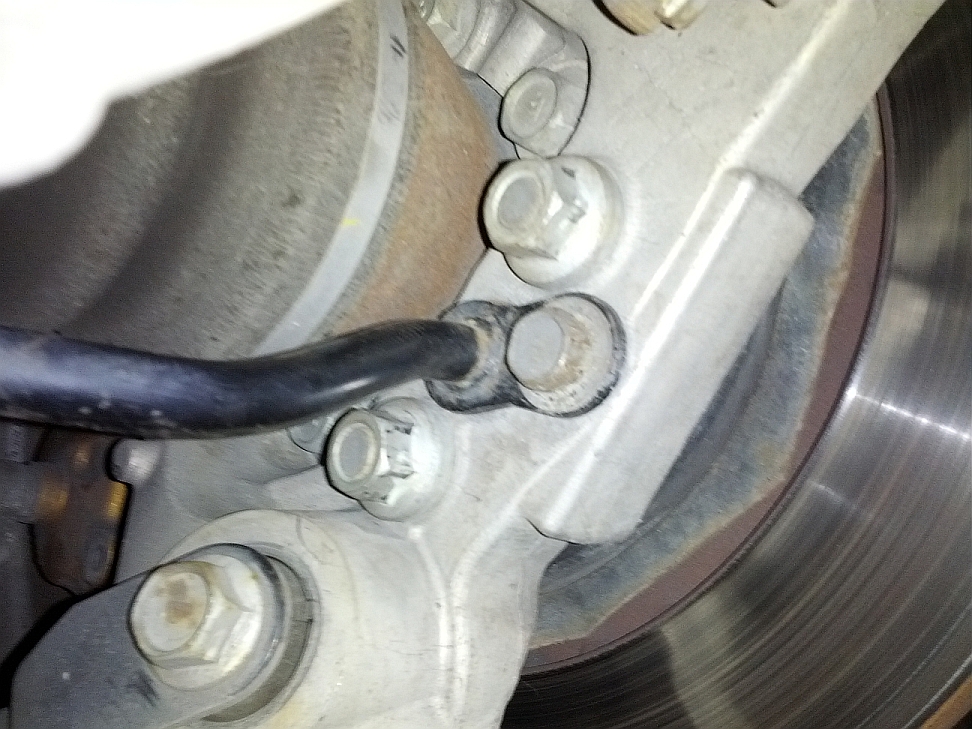

  1. Look behind the hub and loosen the one 14mm bolt, then loosen both 17mm nuts:

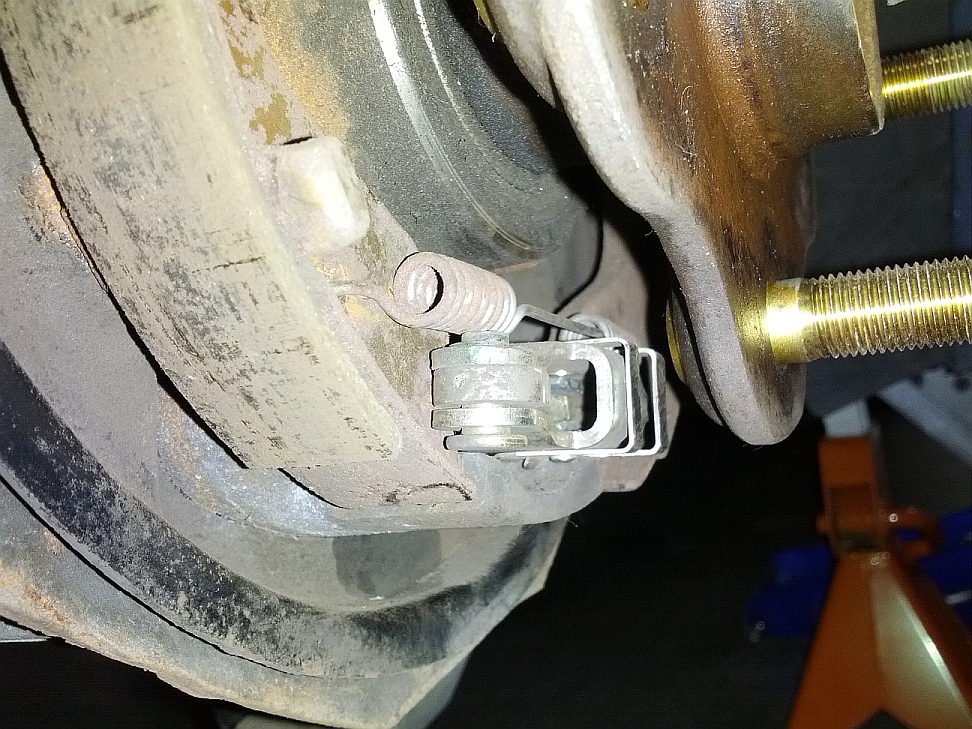

  2. Using a needle nose unhook the spring located toward the bottom of the e-brake assembly:

  3. Make sure you take note of this piece down here because you'll be taking it apart and putting it back together later:

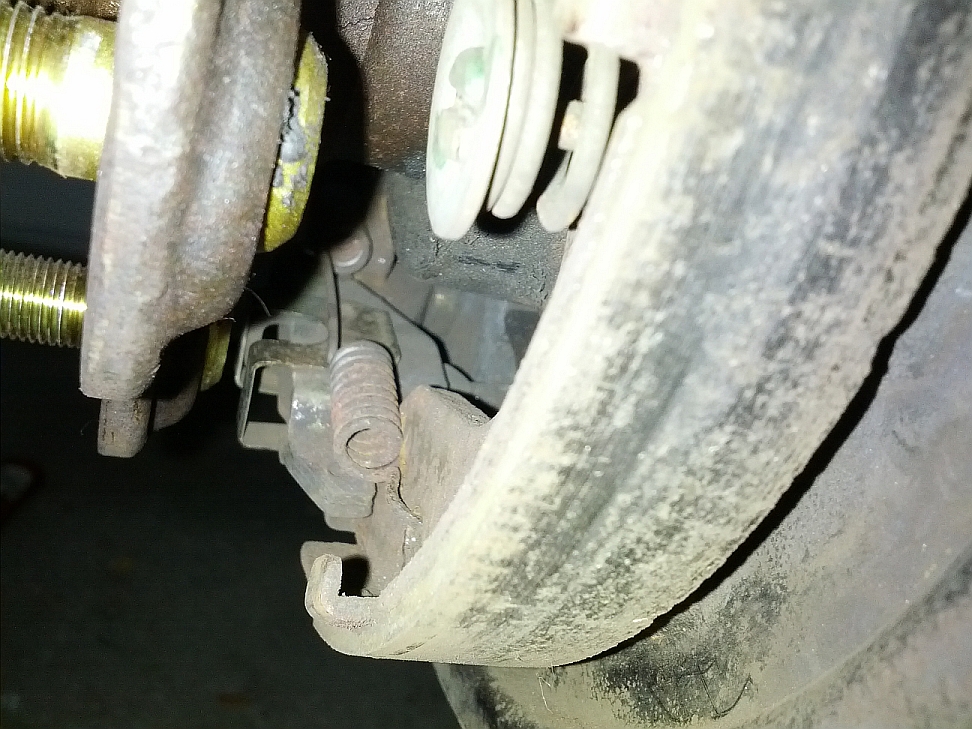

  4. Unhook the spring from this side and get it out of the way:

  5. Unhook the spring from the top of the e-brake assembly.
  6. Use a flat head and turn the screw 1/4 turn to let the screw out:

  7. Wiggle, or use your finger/screw driver, out the pin:

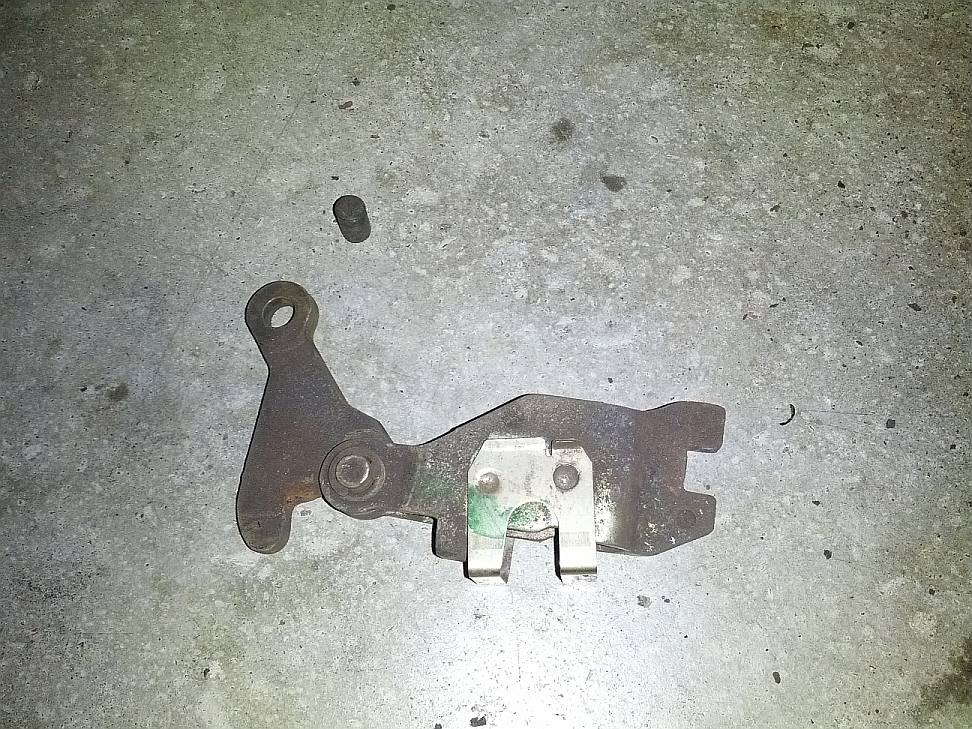

  8. What it looks like (remember the orientation):

  9. From behind the hub, pull out the e-brake cable (kind of looks like outlet plugs from the front side) and put it aside out of the way:

  10. Slide this bracket out:

  11. Press or bang out (put a closed-ended nut and hammer) the old wheel stud if you haven't already. Make sure you sprayed it down with some PB Blaster or WD-40.
  12. With more room (where the e-brake cable was), you should now be able to slide the ARP stud with ease. Dont' forget to lube the wheel stud and the hole.
  13. Use lots of washers, open ended nut with no lip with the flat side toward the washers, and an impact (optional) to seat the wheel studs (make sure you watch the stud from the behind the hub to know when to stop):

  14. Repeat for the rest, then work your way backwards making sure everything is seated as it was before dis-assembly
  15. It's likely that your rotor will not fit over the e-brakes that you just assembled. If so, fiddle with rotating gear (read: e-brake adjuster seen in step 5) so that your e-brakes are expanded to the size that's just smaller than the inner diameter of the rotor.
Attached Thumbnails DIY: DETAILED wheel stud replacement (front & rear ARP wheel stud friendly)-1.jpg   DIY: DETAILED wheel stud replacement (front & rear ARP wheel stud friendly)-2.jpg   DIY: DETAILED wheel stud replacement (front & rear ARP wheel stud friendly)-3.jpg   DIY: DETAILED wheel stud replacement (front & rear ARP wheel stud friendly)-4.jpg   DIY: DETAILED wheel stud replacement (front & rear ARP wheel stud friendly)-5.jpg

DIY: DETAILED wheel stud replacement (front & rear ARP wheel stud friendly)-6.jpg   DIY: DETAILED wheel stud replacement (front & rear ARP wheel stud friendly)-7.jpg   DIY: DETAILED wheel stud replacement (front & rear ARP wheel stud friendly)-8.jpg   DIY: DETAILED wheel stud replacement (front & rear ARP wheel stud friendly)-9.jpg   DIY: DETAILED wheel stud replacement (front & rear ARP wheel stud friendly)-10.jpg


Last edited by 3hree5ive0ero; 12-01-2012 at 09:10 PM. Reason: update with ARP rears!
3hree5ive0ero is offline
Old 08-16-2007, 06:28 PM
  #3
3hree5ive0ero
`.,,.*`.,,.*~[;::;]ᵒᴥᵒ)
Thread Starter
iTrader: (95)

3hree5ive0ero's Avatar

Join Date: Dec 2000
Location: Dallas / Chicago
Posts: 1,337,017,830
Received 75 Likes on 48 Posts
Default ARP wheel studs in the FRONT

I'm assuming that if you're tackling this task, you know how to get your brake components out of the way, including the rotor.

Required:
  • ARP 100-7716
  • closed-ended lug nut
  • hammer
  • 10+ washers
  • open-ended lug nut with no lip & matching deep socket
  • impact gun

Instructions are similar to the above (rears), but much simpler.
  1. Press out or bang out (using a closed-ended lug nut and hammer) the old wheel studs
  2. Slide in the new stud
  3. Use ~10 washers, open-ended lug nut with no lip with the flat side facing the washers, and an impact gun to seat the new studs (may want to lube the stud and the hole)
  4. Repeat for the remaining studs
Attached Thumbnails DIY: DETAILED wheel stud replacement (front & rear ARP wheel stud friendly)-img_20121120_134414.jpg   DIY: DETAILED wheel stud replacement (front & rear ARP wheel stud friendly)-img_20121201_152453.jpg

Last edited by 3hree5ive0ero; 12-01-2012 at 09:35 PM. Reason: update with ARP fronts!
3hree5ive0ero is offline
Old 08-16-2007, 06:46 PM
  #4
Motormouth
Banned
iTrader: (44)

Join Date: Aug 2005
Location: not here
Posts: 21,114
Likes: 0
Received 0 Likes on 0 Posts
Default

I could have sworn I read that hammering your hub can mess up the wheel bearing, have you heard this?

did you use the FSM?
Motormouth is offline
Old 08-16-2007, 06:57 PM
  #5
3hree5ive0ero
`.,,.*`.,,.*~[;::;]ᵒᴥᵒ)
Thread Starter
iTrader: (95)

3hree5ive0ero's Avatar

Join Date: Dec 2000
Location: Dallas / Chicago
Posts: 1,337,017,830
Received 75 Likes on 48 Posts
Default

I did hear that, but i highly doubt hammering it will affect it too much. As long as you spray it down with copious amounts of pb blaster (which I used), it doesn't take too much effort hammering it out.
3hree5ive0ero is offline
Old 08-16-2007, 07:06 PM
  #6
06blueZ
Registered User
iTrader: (10)

06blueZ's Avatar

Join Date: Jan 2006
Location: St. Louis
Posts: 901
Likes: 0
Received 0 Likes on 0 Posts
Default

Just to make it easier, you could have started with step 6. There is no need to remove the slide bolts with grease on them to remove the whole caliper if you are taking off the bracket as well...

Just my , thanks for the write up!
06blueZ is offline
Old 08-16-2007, 07:09 PM
  #7
mr. sparco
Registered User
iTrader: (13)

Join Date: Dec 2005
Location: Sunny Beaches
Posts: 6,587
Received 235 Likes on 182 Posts
Default

Cool write up.
mr. sparco is offline
Old 08-16-2007, 07:11 PM
  #8
3hree5ive0ero
`.,,.*`.,,.*~[;::;]ᵒᴥᵒ)
Thread Starter
iTrader: (95)

3hree5ive0ero's Avatar

Join Date: Dec 2000
Location: Dallas / Chicago
Posts: 1,337,017,830
Received 75 Likes on 48 Posts
Default

Originally Posted by 06blueZ
Just to make it easier, you could have started with step 6. There is no need to remove the slide bolts with grease on them to remove the whole caliper if you are taking off the bracket as well...

Just my , thanks for the write up!
Very true.. haha I was also inspecting my brake pads, as it was giving off too much dust. Good point, though.
3hree5ive0ero is offline
Old 08-17-2007, 12:39 PM
  #9
cubu
Registered User
iTrader: (21)

cubu's Avatar

Join Date: Dec 2005
Location: DFW, TX
Posts: 954
Likes: 0
Received 0 Likes on 0 Posts
Default

wow another stud.... you should start using a tq wrench, good right up! you still have that headlight?
cubu is offline
Old 08-17-2007, 01:58 PM
  #10
slaponte
Registered User
iTrader: (2)

slaponte's Avatar

Join Date: Jan 2003
Location: Gainesville, Florida
Posts: 1,461
Likes: 0
Received 0 Likes on 0 Posts
Default

Good write up and good pics. Small comment on the 19" bolts.

The method of the jack and the socket is kind of dangerous. That can slip out and go off flying and hurt something, or worse, damage the car. And, I don't think your socket wrench will last long doing that.

The proper tool is a breaker bar. I got one in a 1/2" drive and boy it makes easy work of about anything. If you plan to do a lot of suspension work on your car, brakes, etc, I highly recommend picking one up. It will save your time, your knuckles, and your socket wrench.

Now, the trick of the breaker bar is on the length of the bar. So another way to make this go is to extend your socket wrench arm with a tube of some kind. Back before I had my breaker bar I used to use the handle of my jack. Just slip the socket handle into it, and go. An extra foot of leverage will do the job nicely.

To put the bolt back you should use a torque wrench, and there is another long armed device that can help you take things off. Most people think of the torque wrench to put things on, but it can take the same bolt off easily. Again, the trick is on the length of the leverage.

One more option : there is a way to interlock two open end wrenches to make up a longer armed wrench. Under some situations this is a good trick to get a bolt started. Be careful because this can also slip and it can hurt.

Nothing beats the right tool. You will save so much time and frustration you will not know how you lived without it before. One 1/2" breaker bar can make any suspension/brake or tranny job a stroll in the park.

Oh, and another tip. Along my car travels I picked up a set of sockets of the kind you use for power tools (compressors, air tools). They are black and MUCH harder than regular sockets. They are great for work on suspension and brake jobs, and they won't eat up the bolts (as easily). They are heavy, so I keep a regular set but also have these for those tough jobs. Is a few extra bucks, but I bought them 10+ years ago and have never had to replace one.

Last edited by slaponte; 08-17-2007 at 02:05 PM.
slaponte is offline
Old 08-17-2007, 04:36 PM
  #11
redlude97
Registered User
iTrader: (11)

Join Date: Feb 2006
Location: Seattle/Portland
Posts: 2,755
Likes: 0
Received 0 Likes on 0 Posts
Default

Another tip, put the new studs in the freezer for a couple of hours before installing them, they'll contract and go in easier
redlude97 is offline
Old 08-17-2007, 07:12 PM
  #12
3hree5ive0ero
`.,,.*`.,,.*~[;::;]ᵒᴥᵒ)
Thread Starter
iTrader: (95)

3hree5ive0ero's Avatar

Join Date: Dec 2000
Location: Dallas / Chicago
Posts: 1,337,017,830
Received 75 Likes on 48 Posts
Default

Originally Posted by cubu
wow another stud.... you should start using a tq wrench, good right up! you still have that headlight?
Torquing them down wasn't the problem this time. The lugnut crossthreaded as I was taking it off. The lugnut stripped and got stuck between the threads on the stud. I tried to clean the stud, but the threads came off along with the lugnut strips that was on it. So, new stud.

And yes, I still have have the headlight casing. You never showed up to pick it up at any of the places. I have to go find it again and you'll have to come to McKinney to get it now.


Slaponte, I do have a breaker bar, but it didn't fit with the socket. Go figure. The jack method isn't too bad. I made sure that it wouldn't fly off or strip the bolt by holding it down on the bolt securely with my right hand while jacking it up with my left. Breaker bars that fit would definitely help, too, though.


Redlude97, I thought about putting it in the freezer, but that seems like it may hurt it as any material will break more easily when in lower temperatures. I have heard it before, however.
3hree5ive0ero is offline
Old 01-26-2008, 11:16 PM
  #13
ilovegirls
Registered User

Join Date: Jan 2008
Location: so cal
Posts: 66
Likes: 0
Received 0 Likes on 0 Posts
Default

thanks for the right up. is there a better way rather than pounding the stud out with a hammer? how do the shops do it?
ilovegirls is offline
Old 01-26-2008, 11:26 PM
  #14
3hree5ive0ero
`.,,.*`.,,.*~[;::;]ᵒᴥᵒ)
Thread Starter
iTrader: (95)

3hree5ive0ero's Avatar

Join Date: Dec 2000
Location: Dallas / Chicago
Posts: 1,337,017,830
Received 75 Likes on 48 Posts
Default

Originally Posted by ilovegirls
thanks for the right up. is there a better way rather than pounding the stud out with a hammer? how do the shops do it?
If you're worried about damaging something, then just be sure to look at the components where the "banged" stud will hit as it comes out. It shouldn't matter though. And no, I don't know what the shops do, but I don't imagine it to be much different from banging.
3hree5ive0ero is offline
Old 04-06-2008, 11:40 PM
  #15
DMK
Registered User
iTrader: (6)

Join Date: Aug 2006
Location: CA
Posts: 875
Likes: 0
Received 0 Likes on 0 Posts
Default

Where did you buy the wheel stud?
DMK is offline
Old 04-07-2008, 12:26 AM
  #16
3hree5ive0ero
`.,,.*`.,,.*~[;::;]ᵒᴥᵒ)
Thread Starter
iTrader: (95)

3hree5ive0ero's Avatar

Join Date: Dec 2000
Location: Dallas / Chicago
Posts: 1,337,017,830
Received 75 Likes on 48 Posts
Default

Originally Posted by DMK
Where did you buy the wheel stud?
Your local Nissan dealerships have them for real cheap - mine was $4.04 for 1 (with tax).
3hree5ive0ero is offline
Old 04-07-2008, 03:54 PM
  #17
imonlykidden
Registered User
iTrader: (11)

imonlykidden's Avatar

Join Date: Apr 2006
Location: My own world!
Posts: 7,727
Likes: 0
Received 0 Likes on 0 Posts
Default

Tried doing this with my buddy, that bolt was so hard when i cranked it with my own strength my whole nipple of the ratchet twisted off. now i only have 2. things are no joke to get off. wd-40 did not help much. Did not think of the jack though.
imonlykidden is offline
Old 04-07-2008, 04:17 PM
  #18
3hree5ive0ero
`.,,.*`.,,.*~[;::;]ᵒᴥᵒ)
Thread Starter
iTrader: (95)

3hree5ive0ero's Avatar

Join Date: Dec 2000
Location: Dallas / Chicago
Posts: 1,337,017,830
Received 75 Likes on 48 Posts
Default

Originally Posted by imonlykidden
Tried doing this with my buddy, that bolt was so hard when i cranked it with my own strength my whole nipple of the ratchet twisted off. now i only have 2. things are no joke to get off. wd-40 did not help much. Did not think of the jack though.
I did the exact same thing. I have a better breaker bar now, though, thanks to it breaking.

Yeah, using the jack (which can put much more force than you can) definitely helps. If you have a long enough breaker bar or a pipe to lengthen, it'll make things a lot easier.
3hree5ive0ero is offline
Old 10-27-2008, 01:14 PM
  #19
Brad350
Registered User
iTrader: (1)

Brad350's Avatar

Join Date: Aug 2007
Location: Columbia, MO
Posts: 38
Likes: 0
Received 0 Likes on 0 Posts
Default

Thanks for posting this. I just painted my brake calipers, but in the process I had a lugnut cease up on me and eventually broke the damn stud trying to break it free. I'll definitely be using this in the near future to replace it.
Brad350 is offline
Old 10-30-2008, 02:52 PM
  #20
SS728
Registered User
iTrader: (15)

SS728's Avatar

Join Date: Apr 2006
Location: Baltimore
Posts: 2,919
Likes: 0
Received 0 Likes on 0 Posts
Default

Nice.
Does removing this stud apply to any other stud that is "pressed" on the Z?

Because on my rear shock mounts (the 2 bolts that come down from the frame) one bolt is slightly bent. If I pb blast it and start hammering, will it come out?
SS728 is offline

Thread Tools
Search this Thread
Quick Reply: DIY: DETAILED wheel stud replacement (front & rear ARP wheel stud friendly)


Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

  • Ask a Question
    Get answers from community experts
Question Title:
Description:
Your question will be posted in:
