Default Master Cylinder

How do you get the d**n thing off?! I'm not new to cars by any means but I'm stuck on this one, I need to get it off, disassembled, reassembled and installe tonight. I replaced the clutch line with a SS braided one but my pedal is still losing pressure half way up. Any help would be greatly appreciated.
Reply
Old May 25, 2011 | 06:13 PM
  #2
sanford's Avatar
sanford
Registered User

Joined: Jul 2009
Posts: 118
Likes: 0
From: St. Louis
Default

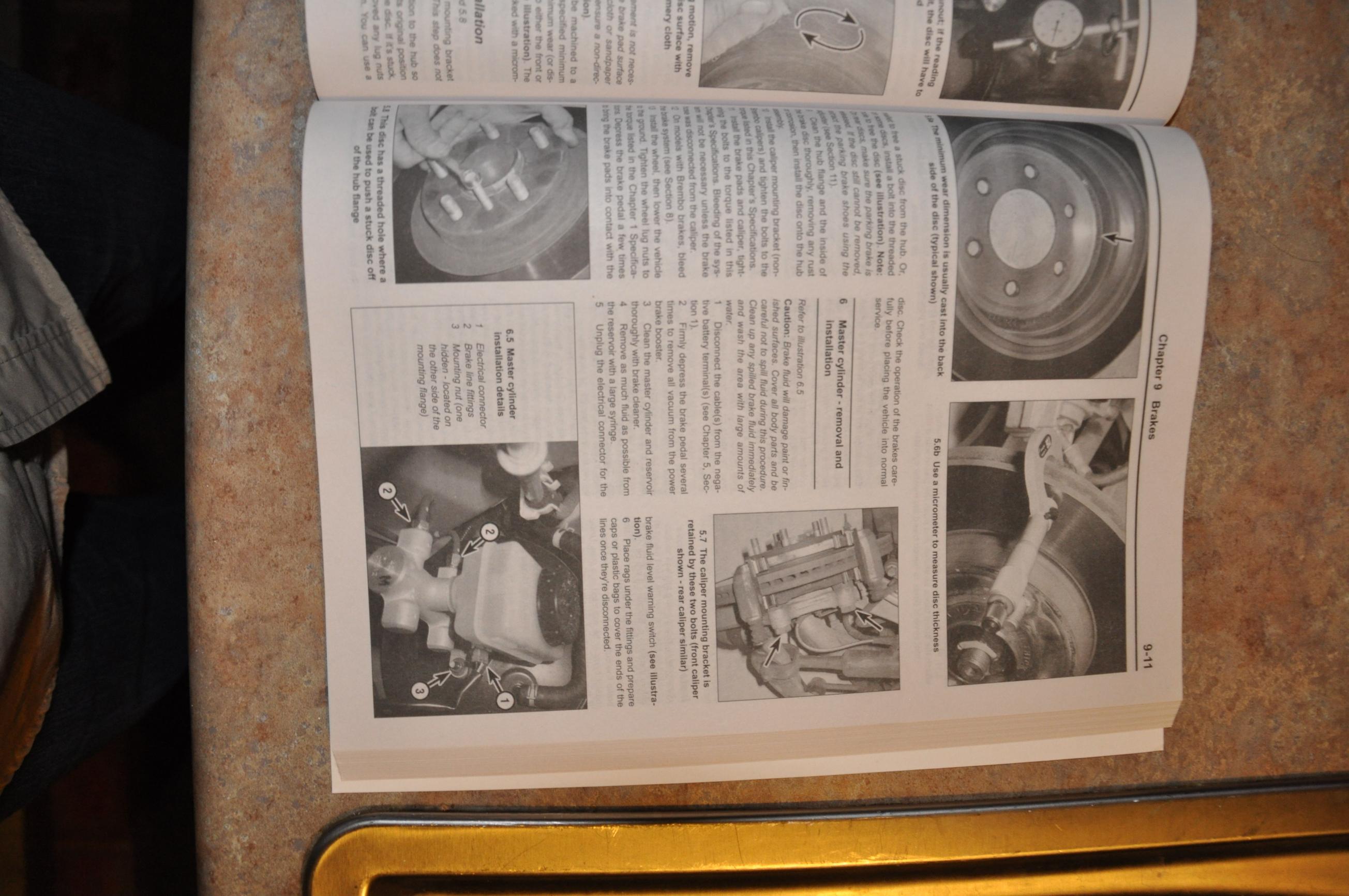

I got this info out of my Haynes Manual.
My scanner is not working correctly at the moment so I had to take pictures.
Hope it helps you.
Attached Thumbnails Master Cylinder-1.jpg   Master Cylinder-2.jpg

Last edited by sanford; May 25, 2011 at 06:16 PM.
Reply
Old May 25, 2011 | 06:15 PM
  #3
sanford's Avatar
sanford
Registered User

Joined: Jul 2009
Posts: 118
Likes: 0
From: St. Louis
Default

double post

Last edited by sanford; May 25, 2011 at 06:16 PM. Reason: double post
Reply
Old May 25, 2011 | 08:07 PM
  #4
onesexyz's Avatar
onesexyz
Thread Starter
Registered User

Joined: May 2011
Posts: 14
Likes: 0
From: Oceanside, Ca
Default

Originally Posted by sanford
I got this info out of my Haynes Manual.
My scanner is not working correctly at the moment so I had to take pictures.
Hope it helps you.
Thanks man, I should've been more specific I guess lol. I meant the CLUTCH master cylinder Thanks again though for your time.
Reply
Old May 25, 2011 | 11:42 PM
  #5
MR RIZK's Avatar
MR RIZK
New Member
iTrader: (7)

Joined: Nov 2002
Posts: 1,225
Likes: 1
From: Australia
Default

if you have alot of free play at the top of the pedal then remove the slave underneath the car and point the bleed nipple to the top so that the air can escape. make sure you clamp the salve piston though as when you pump the peddle the piston will shoot out.

Then bleed normally and then re-attach slave back to gearbox
Reply
Old May 26, 2011 | 07:07 AM
  #6
onesexyz's Avatar
onesexyz
Thread Starter
Registered User

Joined: May 2011
Posts: 14
Likes: 0
From: Oceanside, Ca
Default

Originally Posted by MR RIZK
if you have alot of free play at the top of the pedal then remove the slave underneath the car and point the bleed nipple to the top so that the air can escape. make sure you clamp the salve piston though as when you pump the peddle the piston will shoot out.
Then bleed normally and then re-attach slave back to gearbox
I know it's bled properly, I've bled it twice since I put the SS clutch line on it. Will flipping the slave cylinder make that much of a difference?
Reply
Old May 26, 2011 | 07:14 AM
  #7
MR RIZK's Avatar
MR RIZK
New Member
iTrader: (7)

Joined: Nov 2002
Posts: 1,225
Likes: 1
From: Australia
Default

I recently removed the clutch line off mine during my engine swap. When the engine went back in with a new nismo twin plate no matter how much we bled the system I had heaps of free play. No air was coming out of the system. Did some research on google and came across this issue for other cars so gave it a go. As soon as I did the peddle firmed up.

Well that was my experience
Reply
Old May 26, 2011 | 12:44 PM
  #8
sanford's Avatar
sanford
Registered User

Joined: Jul 2009
Posts: 118
Likes: 0
From: St. Louis
Default

You did say that I just have selective reading. Let me know if you still need it.

Last edited by sanford; May 26, 2011 at 12:46 PM.
