Hi gais,

I haz a question regarding the placement of the 3 vaccum hoses of the ARC version 2 lines.

Product shown here:
http://intensepower.com/noname5.html
^^^I bought item used and could not get instructions on where to run the lines to.

Before we I did do a search:
https://my350z.com/forum/engine-driv...catch-can.html
^^^home made

https://my350z.com/forum/engine-driv...k-install.html
^^^useful but only two hoses are routed, I got that far:


https://my350z.com/forum/engine-driv...n-diy-pix.html
^^^photobucket fail

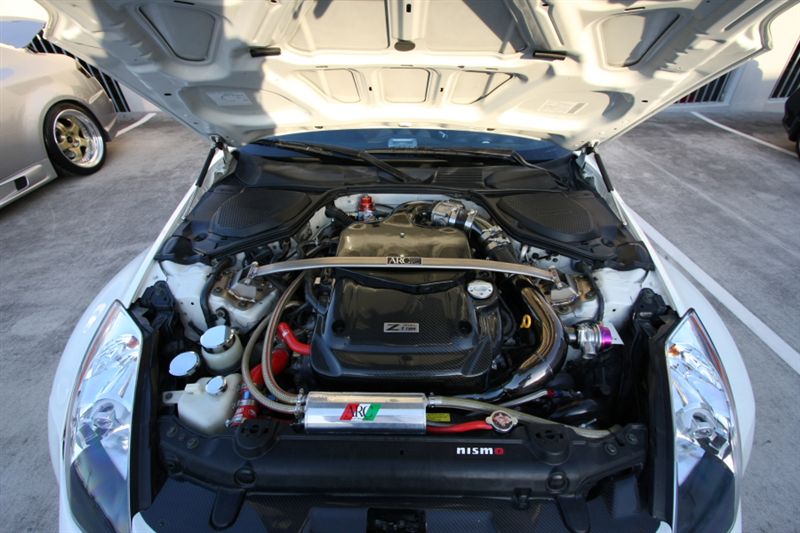

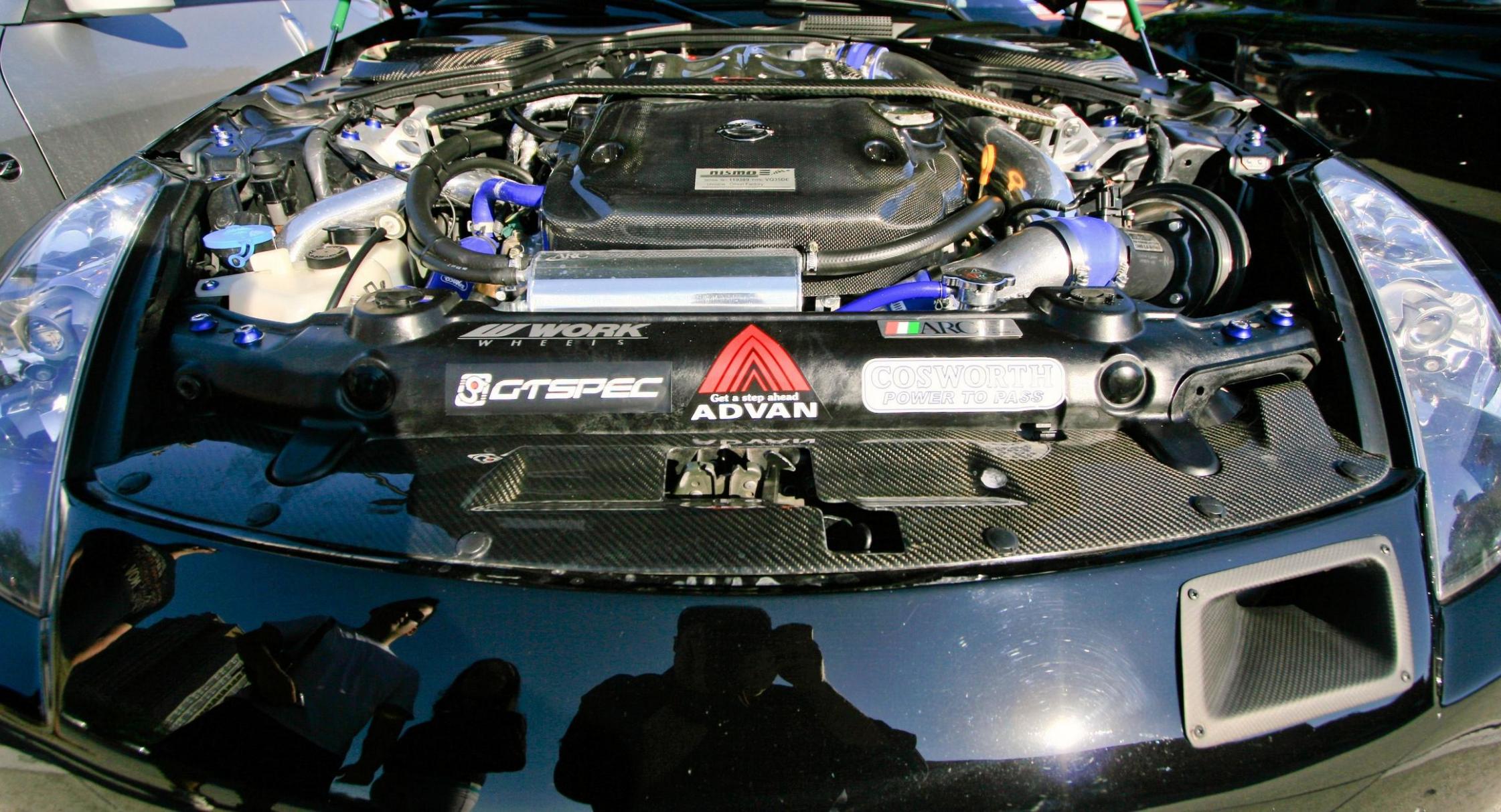

Oh and ive been trying to search for images on a placement for the lines. The problem is its very hard to tell where to run the lines. As you can see there are many ways to do it:
See attachments



Ill make this thread worth viewing:



One on passenger side, (left in the pics) the small one goes to the PCV on the valve cover, and the other goes around the engine to where the breather hose connects, the other valve cover. The one of the driver side (right in pics) goes to the intake, where the breather hose connected if stock style setup. Or get creative like the guy with the HKS S/C did in the last pic you posted.
Took me a while to figure this out from all the pics.



Okay I think I "understand"

For some of you this is easy as pie, but im friggin troubleshooting here.

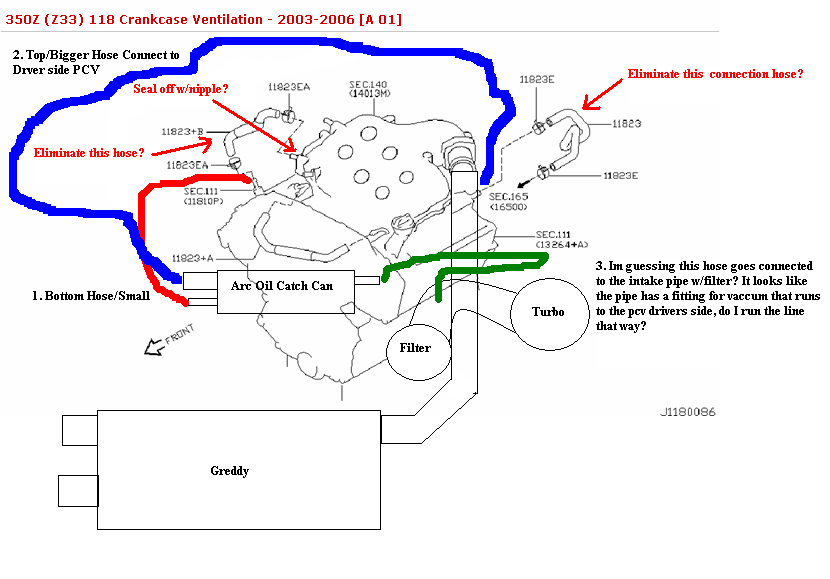

So correct me if im wrong:
1. Bottom hose (left side of catch can) goes to PCV passengers side. Oem hose is eliminated and the nipple from the plenum is sealed off?

2. Top hose (left side of catch can) goes to the drivers side PCV hose and the oem vaccum hose is eliminated?

3. Right/Drivers hose connects to the intake w/filter on the Greddy TT system?



ya you can do it the way you mentioned above. thats just fine.

each valve cover to the ARC. the nipple on the plenum plugged and the 3rd hose to the intake pipe on the greddy



Your so awesome right now, you don't even know!!! Thanx mayne



Kinda of old but do you think it works the same way for a V1 Arc catch can with out FI



I don't see why it wouldn't, lots of NA peeps run a catch can. Its just for blow by vapors/oil, it does nothing for performance.
