Worked on something else last night I'm using 2" OD runners for my intake manifold. I'm still working out the details for the plenum but it will be nice and big as usual. I make 1000hp supra manifolds and all the same concepts worked right into this one. Machining of the radius on the plenum plate isn't as aggressive but it's better than nothing.
I will be testing this manifold out before and after, NA and turbo
I will be testing this manifold out before and after, NA and turbo
#43
Registered User
iTrader: (10)
Join Date: Feb 2009
Location: puyallup WA
Posts: 3,016
Likes: 0
Received 0 Likes
on
0 Posts
Worked on something else last night I'm using 2" OD runners for my intake manifold. I'm still working out the details for the plenum but it will be nice and big as usual. I make 1000hp supra manifolds and all the same concepts worked right into this one. Machining of the radius on the plenum plate isn't as aggressive but it's better than nothing.
I will be testing this manifold out before and after, NA and turbo
I will be testing this manifold out before and after, NA and turbo
#44
Registered User
Thread Starter
Join Date: Jun 2011
Location: Portland, OR
Posts: 56
Likes: 0
Received 0 Likes
on
0 Posts
Me to haha!! When we tested the 2J motor, it used the same size runners but was quite shorter than this current manifold. We gained low end power and top end really just got cleaned up. This manifold design should be nice to test with. Just working with the stock uim I can see how restrictive it is so it should be interesting.
#45
Registered User
iTrader: (10)
Join Date: Feb 2009
Location: puyallup WA
Posts: 3,016
Likes: 0
Received 0 Likes
on
0 Posts
Me to haha!! When we tested the 2J motor, it used the same size runners but was quite shorter than this current manifold. We gained low end power and top end really just got cleaned up. This manifold design should be nice to test with. Just working with the stock uim I can see how restrictive it is so it should be interesting.
#48
OGPremierMafia
iTrader: (16)
Join Date: Feb 2005
Location: Cincinnati OH
Posts: 5,106
Likes: 0
Received 0 Likes
on
0 Posts
Not that I want to get into semantics argument, but DJ I made 503 on my prior setup that was stock motor and 60whp higher than what Dynosty's (injected at the time) dyno read. I would assume on pump fast low boost i am well into the 500s on a DJ. Id love to see those graphs and details. But comparing apples to oranges is hard when the testing isn't uniform and I know a blanket statement of you can't break 450 on stock manifolds may not be entirely true, if you run a big enough turbo it will spool and you'll get something out of it.
#49
Registered User
iTrader: (1)
Join Date: Feb 2008
Location: New England
Posts: 588
Likes: 0
Received 0 Likes
on
0 Posts
The biggest problem with any log time intake with the same diameter tubes, you will never have balanced airflow among all the runners. Basic flow requires the smaller tubes the furthest away from the entry. Not sure if the kinetix does this, or like the manifold above, someone just welded some tubes up, polished it and called it good.
#50
Registered User
iTrader: (10)
Join Date: Feb 2009
Location: puyallup WA
Posts: 3,016
Likes: 0
Received 0 Likes
on
0 Posts
The biggest problem with any log time intake with the same diameter tubes, you will never have balanced airflow among all the runners. Basic flow requires the smaller tubes the furthest away from the entry. Not sure if the kinetix does this, or like the manifold above, someone just welded some tubes up, polished it and called it good.
#51
Vendor - Former Vendor
iTrader: (14)
I would strongly suggest putting a flex pipe on the crossover pipe above the bell housing. Also, the end tanks on your FMIC are very poor design. I would consider changing those for sure. There are a lot of FMIC's you can buy off the shelf that would work perfect...like the one I use (vertical flow 22x9x3.5 core) .
Please don't take this as criticism, but a more like a suggestion from experience. The rest looks good. Why not do this on the passenger side though...there is a lot more room.
I am about to build a 370z ST kit, and will put it on the passenger side. Much more room to work with.
Please don't take this as criticism, but a more like a suggestion from experience. The rest looks good. Why not do this on the passenger side though...there is a lot more room.
I am about to build a 370z ST kit, and will put it on the passenger side. Much more room to work with.
Last edited by Boosted Performance; 02-01-2012 at 05:11 PM.
#52
Registered User
Thread Starter
Join Date: Jun 2011
Location: Portland, OR
Posts: 56
Likes: 0
Received 0 Likes
on
0 Posts
I would strongly suggest putting a flex pipe on the crossover pipe above the bell housing. Also, the end tanks on your FMIC are very poor design. I would consider changing those for sure. There are a lot of FMIC's you can buy off the shelf that would work perfect...like the one I use (vertical flow 22x9x3.5 core) .
Please don't take this as criticism, but a more like a suggestion from experience. The rest looks good. Why not do this on the passenger side though...there is a lot more room.
I am about to build a 370z ST kit, and will put it on the passenger side. Much more room to work with.
Please don't take this as criticism, but a more like a suggestion from experience. The rest looks good. Why not do this on the passenger side though...there is a lot more room.
I am about to build a 370z ST kit, and will put it on the passenger side. Much more room to work with.
#53
Vendor - Former Vendor
iTrader: (14)
Thanks for the suggestions. I will consider them if the design fails. I didn't want to use any off the shelf fmic because we only use Ets intercooler cores. We have tested these cores against other manufactures and it is hands down these cores are most efficient. We'll give it a shot and see how it goes.
http://www.treadstoneperformance.com...es+Intercooler
Great quality, and they do a great job at cooling the charge air.
#54
Registered User
Thread Starter
Join Date: Jun 2011
Location: Portland, OR
Posts: 56
Likes: 0
Received 0 Likes
on
0 Posts
I've tried Treadstone cores and Jason (owner of Treadstone) is a really cool guy. The funny thing is 3 years ago we tested a completely stock Genesis against ETS and Treadstone cores. You can already guess which core came out on top. Intercooler is really important to me after testings that we have done. I will say again, ETS has the best cores you will ever find or test!!! I could have made things easy and bought an off the shelf intercooler for half the cost. But you know for the extra couple hundred bucks and a few hours of work, I have the best fmic and I have all the confidence in the world in it. I wouldn't be able to say that with any other intercooler.
I made the hot side intercooler pipe last night and it came out shorter than I expected. We all know what length and bends do to flow so I wanted to make sure we're able to make our hp goal and beyond. Pipe is made from 2.5" OD with no off tangent cuts and is super short. I added a bracket right in the middle of the pipe. In case a coupler fails, the pipe stays in place. This also is an added insurance from couplers moving around and popping off.

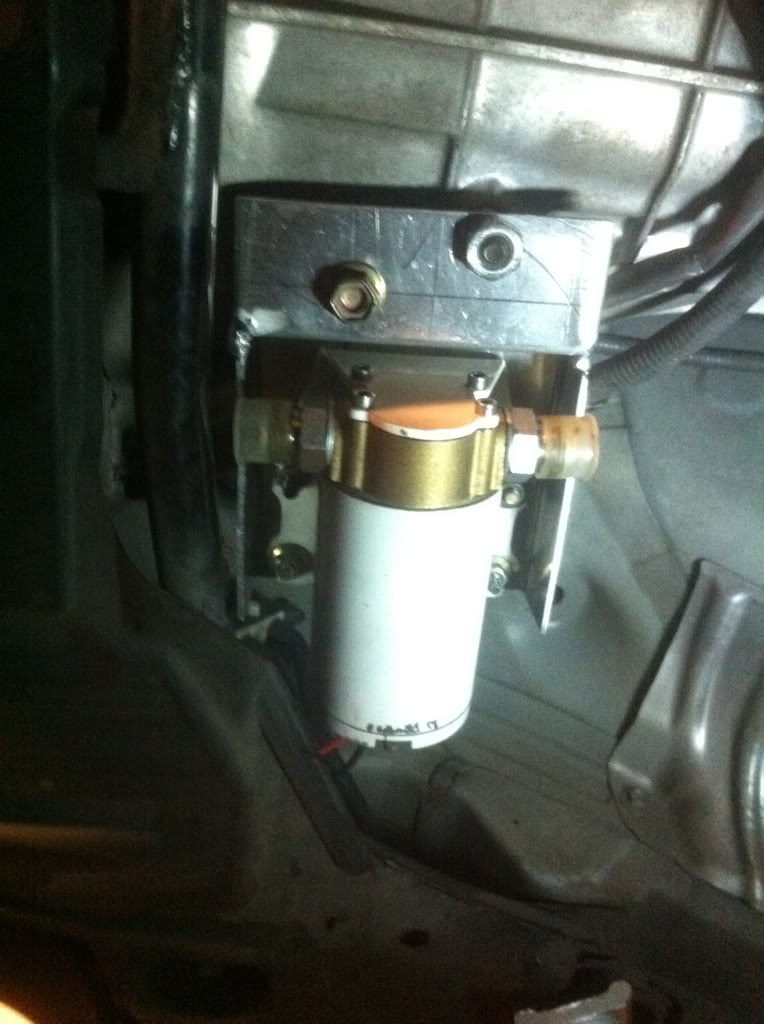

I also made a bracket for the oil scavange pump. I wanted to make sure I didn't have any ground clearance issues so the bracket tucks the pump above the chassis.
I made the hot side intercooler pipe last night and it came out shorter than I expected. We all know what length and bends do to flow so I wanted to make sure we're able to make our hp goal and beyond. Pipe is made from 2.5" OD with no off tangent cuts and is super short. I added a bracket right in the middle of the pipe. In case a coupler fails, the pipe stays in place. This also is an added insurance from couplers moving around and popping off.
I also made a bracket for the oil scavange pump. I wanted to make sure I didn't have any ground clearance issues so the bracket tucks the pump above the chassis.
Last edited by Phamspeed; 02-02-2012 at 02:46 PM.
#55
Registered User
iTrader: (1)
Join Date: Jul 2010
Location: charlotte nc
Posts: 29
Likes: 0
Received 0 Likes
on
0 Posts
looks good, i cant wait for it all to be done. I might even get the full kit from you.
I ran ETS parts on my 800hp evo, and their intercoolers are great.I made 600hp on 3.5 ets intercooler with no problems.
I ran ETS parts on my 800hp evo, and their intercoolers are great.I made 600hp on 3.5 ets intercooler with no problems.
#56
Vendor - Former Vendor
iTrader: (14)
I've tried Treadstone cores and Jason (owner of Treadstone) is a really cool guy. The funny thing is 3 years ago we tested a completely stock Genesis against ETS and Treadstone cores. You can already guess which core came out on top. Intercooler is really important to me after testings that we have done. I will say again, ETS has the best cores you will ever find or test!!! I could have made things easy and bought an off the shelf intercooler for half the cost. But you know for the extra couple hundred bucks and a few hours of work, I have the best fmic and I have all the confidence in the world in it. I wouldn't be able to say that with any other intercooler.
Looking forward to the results..
What turbine housing did you go with here?
Last edited by Boosted Performance; 02-02-2012 at 05:18 PM.
#58
New Member
iTrader: (8)
Join Date: Jan 2007
Location: terre haute, IN; STL, MO
Posts: 6,457
Likes: 0
Received 7 Likes
on
6 Posts
Thanks for the suggestions. I will consider them if the design fails. I didn't want to use any off the shelf fmic because we only use Ets intercooler cores. We have tested these cores against other manufactures and it is hands down these cores are most efficient. We'll give it a shot and see how it goes.
#59
Registered User
Thread Starter
Join Date: Jun 2011
Location: Portland, OR
Posts: 56
Likes: 0
Received 0 Likes
on
0 Posts

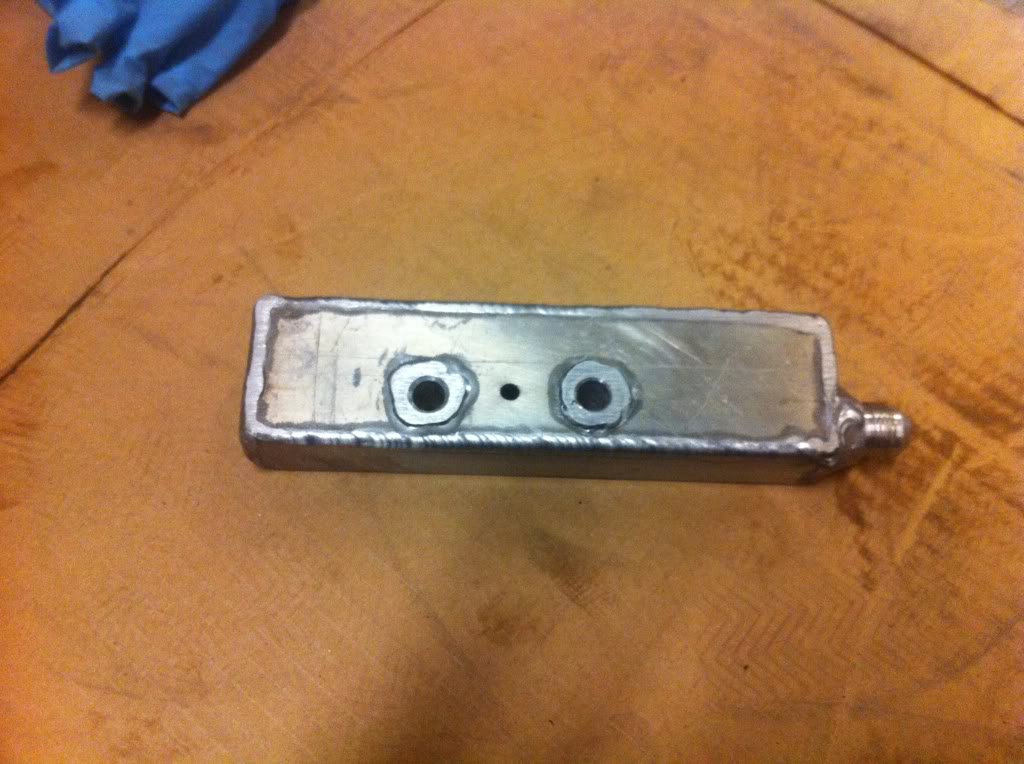

A few ounces of oil gets discharged from the turbo after the engine is shut off. This happens over a period of a few minutes. On lower mounted turbos that oil can sit in the bearings and seals and can cause premature failure. A simple solution would be to leave the scavenge pump on for a few minutes after engine shut off. What I did was made a pan that holds this oil. It holds about twice the amount of oil I measured after engine shut off. This should keep the turbo nice and dry.
Last edited by Phamspeed; 02-09-2012 at 12:51 AM.
#60
Shift_Boost
iTrader: (28)
Join Date: Dec 2005
Location: On a forum dedicated to Boost
Posts: 10,733
Likes: 0
Received 23 Likes
on
18 Posts
Nice work OP. +1 on treadstone cores. the cores aren't the only thing that determines efficiency. End tank design comes into play too. Never used ETS cores, so I can't speak on that.
