oh yea... the tri-pod cluster is not part of the ECU wiring ... I dont think the EUC and those gauges share information between each other.
I'd still revert back to the OEM harness and figure out why it's burning up coils ... that may be your issue overall?
I'd still revert back to the OEM harness and figure out why it's burning up coils ... that may be your issue overall?
#162
New Member
Thread Starter
Originally Posted by bealljk;[url=tel:11047632
11047632]oh yea... the tri-pod cluster is not part of the ECU wiring ... I dont think the EUC and those gauges share information between each other.
I'd still revert back to the OEM harness and figure out why it's burning up coils ... that may be your issue overall?
I'd still revert back to the OEM harness and figure out why it's burning up coils ... that may be your issue overall?
Last edited by Rinzlark; 04-07-2021 at 04:27 PM.
#163
New Member
Thread Starter
She does run btw still a little hard to start but I’m assuming that has something to do with the cam codes and misfire?
Last edited by Rinzlark; 04-07-2021 at 04:31 PM.
The following users liked this post:
OldManZ350 (04-08-2021)
#165
350Z-holic
iTrader: (13)
#166
New Member
iTrader: (23)
So was I , It scared the **** out of me, But it was not bad, and so Much Worth it........ Do it!
I took a Software Course on HP Academy. It's very helpful, plus they have lots of other videos to help you.
The Hook up is Easy, it's Plug & Play fo the most part. It uses a MAP sensor, but you keep the MAF for the AIT's
For the Wide band you use an Extension cable that plugs right in to the ECU, and Delete all 4 stock narrow band o2's
For your Fuel Pumps it's easy. There are a few optional wires to tape into for that.
So go for it! It works Awesome......
I took a Software Course on HP Academy. It's very helpful, plus they have lots of other videos to help you.
The Hook up is Easy, it's Plug & Play fo the most part. It uses a MAP sensor, but you keep the MAF for the AIT's
For the Wide band you use an Extension cable that plugs right in to the ECU, and Delete all 4 stock narrow band o2's
For your Fuel Pumps it's easy. There are a few optional wires to tape into for that.
So go for it! It works Awesome......
#167
New Member
Thread Starter
So was I , It scared the **** out of me, But it was not bad, and so Much Worth it........ Do it!
I took a Software Course on HP Academy. It's very helpful, plus they have lots of other videos to help you.
The Hook up is Easy, it's Plug & Play fo the most part. It uses a MAP sensor, but you keep the MAF for the AIT's
For the Wide band you use an Extension cable that plugs right in to the ECU, and Delete all 4 stock narrow band o2's
For your Fuel Pumps it's easy. There are a few optional wires to tape into for that.
So go for it! It works Awesome......
I took a Software Course on HP Academy. It's very helpful, plus they have lots of other videos to help you.
The Hook up is Easy, it's Plug & Play fo the most part. It uses a MAP sensor, but you keep the MAF for the AIT's
For the Wide band you use an Extension cable that plugs right in to the ECU, and Delete all 4 stock narrow band o2's
For your Fuel Pumps it's easy. There are a few optional wires to tape into for that.
So go for it! It works Awesome......
#168
New Member
Thread Starter
never mind I read through the features list and its not compatible with the factory widebands, which leads me to my next question, what are you guys doing for widebands? are you running dual, single what brand etc
+1 for HPA I'm running through a few of their tuning courses, I see they have a tutorial for the link g4 software. Ill have to look at that when i get the practical course for standalone tuning
+1 for HPA I'm running through a few of their tuning courses, I see they have a tutorial for the link g4 software. Ill have to look at that when i get the practical course for standalone tuning
Last edited by Rinzlark; 04-08-2021 at 02:15 PM.
#169
New Member
Thread Starter

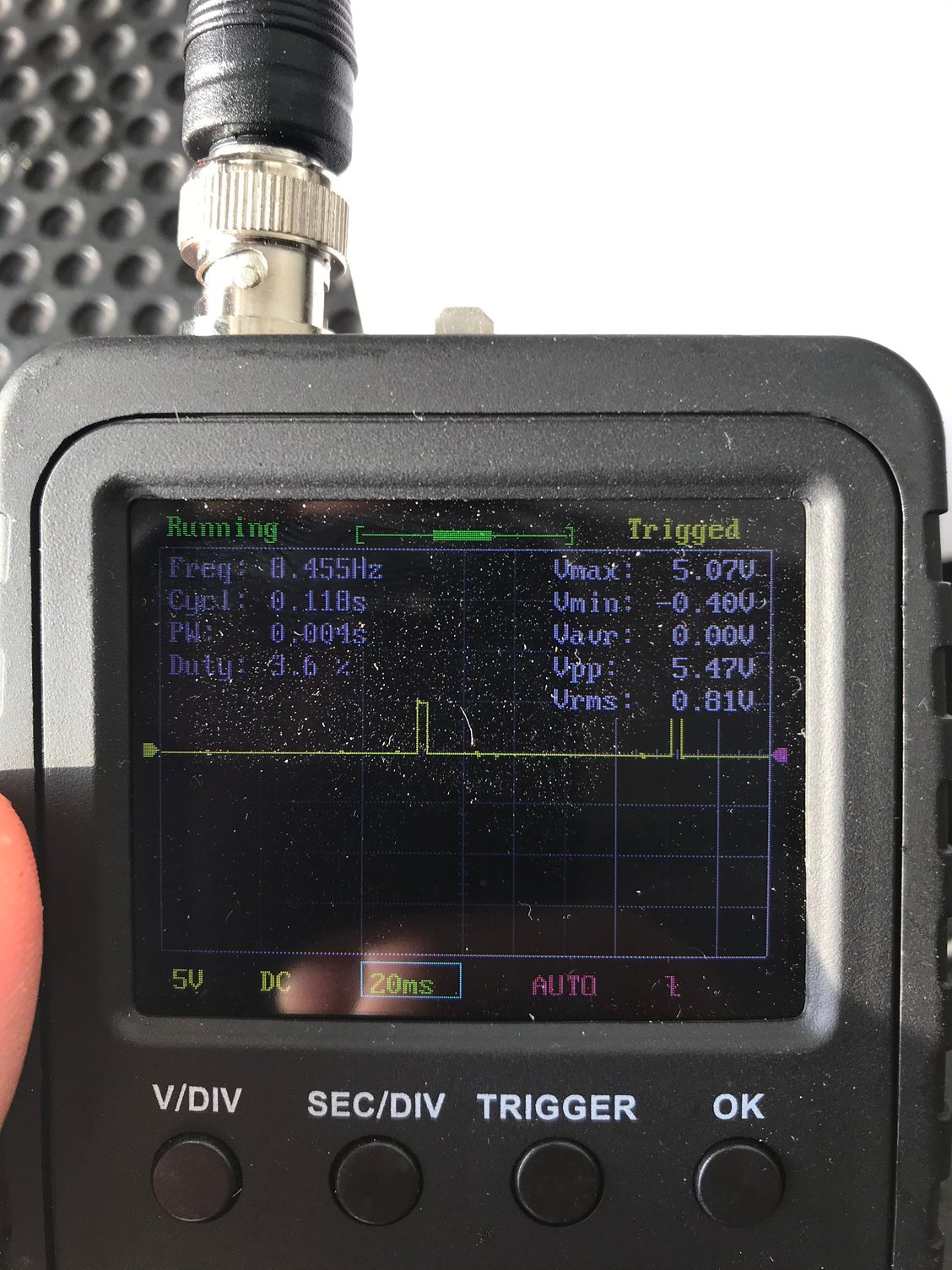

Double checked continuity between the ECU and the coil plug and that’s good. Setup the oscilloscope to read signal and I’m definitely getting a good signal. I had the #2 coil unplugged during the test, She idles exactly the same with cylinder number two completely unplugged versus plugged in. I’ve swapped coils, changed plugs, done a compression test, checked signal and grounds what else could I possibly do?
Reading from coil trigger wire and coil ground
Reading from coil trigger wire and coil ground
Last edited by Rinzlark; 04-08-2021 at 04:14 PM.
#170
New Member
iTrader: (1)
never mind I read through the features list and its not compatible with the factory widebands, which leads me to my next question, what are you guys doing for widebands? are you running dual, single what brand etc
+1 for HPA I'm running through a few of their tuning courses, I see they have a tutorial for the link g4 software. Ill have to look at that when i get the practical course for standalone tuning
+1 for HPA I'm running through a few of their tuning courses, I see they have a tutorial for the link g4 software. Ill have to look at that when i get the practical course for standalone tuning
#171
350Z-holic
iTrader: (13)
So was I , It scared the **** out of me, But it was not bad, and so Much Worth it........ Do it!
I took a Software Course on HP Academy. It's very helpful, plus they have lots of other videos to help you.
The Hook up is Easy, it's Plug & Play fo the most part. It uses a MAP sensor, but you keep the MAF for the AIT's
For the Wide band you use an Extension cable that plugs right in to the ECU, and Delete all 4 stock narrow band o2's
For your Fuel Pumps it's easy. There are a few optional wires to tape into for that.
So go for it! It works Awesome......
I took a Software Course on HP Academy. It's very helpful, plus they have lots of other videos to help you.
The Hook up is Easy, it's Plug & Play fo the most part. It uses a MAP sensor, but you keep the MAF for the AIT's
For the Wide band you use an Extension cable that plugs right in to the ECU, and Delete all 4 stock narrow band o2's
For your Fuel Pumps it's easy. There are a few optional wires to tape into for that.
So go for it! It works Awesome......
Using the PC Link Software is will take you a few interactions to learn the layout but is logically laid out and once you 'get' how link does their tables, settings, menus, features, etc it's pretty nice ... it is different than haltech and uprev ... 'Haltech : Mac' as 'Link : PC'. You can download PC Link for free and check the software out.
I thought hook up was pretty easy and I had to wire in a handful of inputs / outputs. I used their customer service chat feature to verify everything I needed and got their input too. I deleted the MAF and installed a GM IAT sensor and it's worked very well.
It was pretty straight forward (and not that I'm a genius or electronics expert) if you can read a pin table and can connect signal wires, can conceptualize which wires get 5volts and which get 12volts than you'll be fine. I havent gotten into CAN comm yet (probably wont tbh).
never mind I read through the features list and its not compatible with the factory widebands, which leads me to my next question, what are you guys doing for widebands? are you running dual, single what brand etc
+1 for HPA I'm running through a few of their tuning courses, I see they have a tutorial for the link g4 software. Ill have to look at that when i get the practical course for standalone tuning
+1 for HPA I'm running through a few of their tuning courses, I see they have a tutorial for the link g4 software. Ill have to look at that when i get the practical course for standalone tuning
I tend not to freak out about o2 wideband control and yeild on the side of caution / target a slightly richer AFR in areas of the map that are seeing high boost. A precisely tuned ignition map will have more impact on power and longevity of your engine.
Last edited by bealljk; 04-08-2021 at 11:40 PM.
#172
New Member
iTrader: (1)
This is true ... I tend to think that you're simply getting an average of all six cylinders or dual sets of three cylinders.
I tend not to freak out about o2 wideband control and yeild on the side of caution / target a slightly richer AFR in areas of the map that are seeing high boost. A precisely tuned ignition map will have more impact on power and longevity of your engine.
I tend not to freak out about o2 wideband control and yeild on the side of caution / target a slightly richer AFR in areas of the map that are seeing high boost. A precisely tuned ignition map will have more impact on power and longevity of your engine.
If the one wideband was in the Y after the two merge that is not a big big deal but, if you are only pulling from one side before the merge that is no bueno!
#173
New Member
iTrader: (23)
Just no need!
I only use a Drive's side Wide Band, as it is Always Leaner!
But having both banks is a better way to go.
https://www.aceperformancesystems.co...or-controller/
I only use a Drive's side Wide Band, as it is Always Leaner!
But having both banks is a better way to go.
https://www.aceperformancesystems.co...or-controller/
Last edited by OldManZ350; 04-10-2021 at 12:28 PM.
#174
New Member
Thread Starter
I purchased a link g4x, I had some money set aside for future mods and I think this is ultimately where I would have ended up anyway. I don’t plan on installing it right away I want to try and get the car running on the oem ecu first. I’m taking 5 classes on HPA now and once I’m comfortable with those I’ll move onto the stand alone, link tutorial, wiring basics, and club wiring courses. I also still need to buy widebands that have a 5v out, my old glowshift one doesn’t have the output and I would rather upgrade to the more rugged AEM X series than upgrade the controller. FedEx should deliver the link g4x tomorrow
as for the current issues with the car, I reset the ecu and cleared the codes. The codes for the cam solenoids haven’t come back yet, misfire on cylinder 2 seams to only be a problem at idle, I’ve taken the manifold off so many times it could be a leaking manifold gasket as they are usually one time use. I ordered another and it comes in Tuesday.
as for the current issues with the car, I reset the ecu and cleared the codes. The codes for the cam solenoids haven’t come back yet, misfire on cylinder 2 seams to only be a problem at idle, I’ve taken the manifold off so many times it could be a leaking manifold gasket as they are usually one time use. I ordered another and it comes in Tuesday.
The following 4 users liked this post by Rinzlark:
#175
New Member
Thread Starter
Went to the junkyard today to get some extra coils and an ecu backing plate for the G4, I don’t want to tear apart my oem ecu just for a mounting bracket. Played around with de-pining connectors, it’s interesting how many connectors use the same type of pins and seals
#176
New Member
Thread Starter
Second update for the day, link g4 ecu and fuel check valve came in

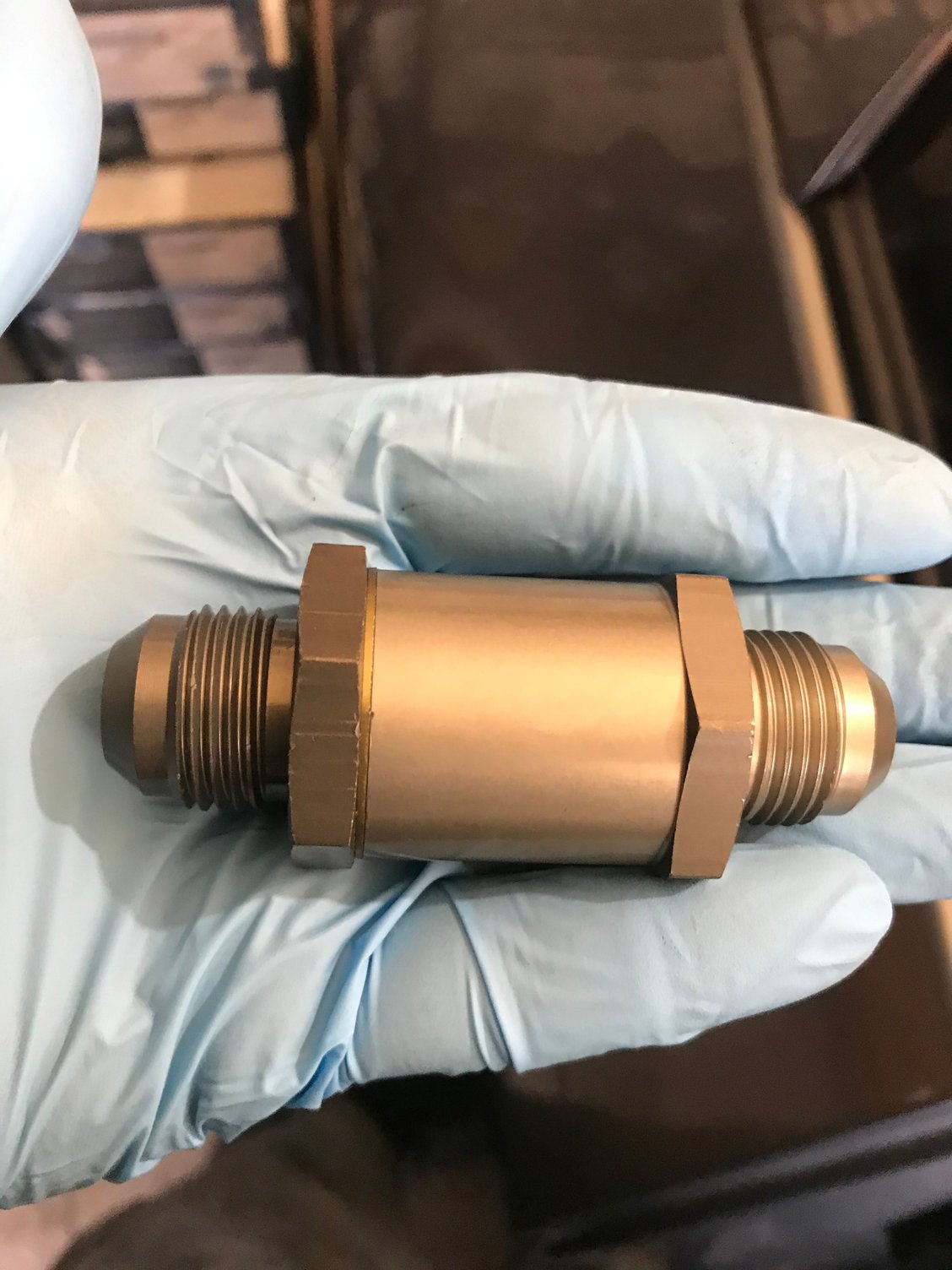

Flapper style check valve
If you look closely you can see the flap assembly
I swapped it with this union before the pump
And done
and of course the link g4x
Flapper style check valve
If you look closely you can see the flap assembly
I swapped it with this union before the pump
And done
and of course the link g4x
The following users liked this post:
OldManZ350 (04-10-2021)
#177
350Z-holic
iTrader: (13)
You may want to install the link and use it to test fire the coils and the injectors
The following users liked this post:
OldManZ350 (04-12-2021)
#180
350Z-holic
iTrader: (13)

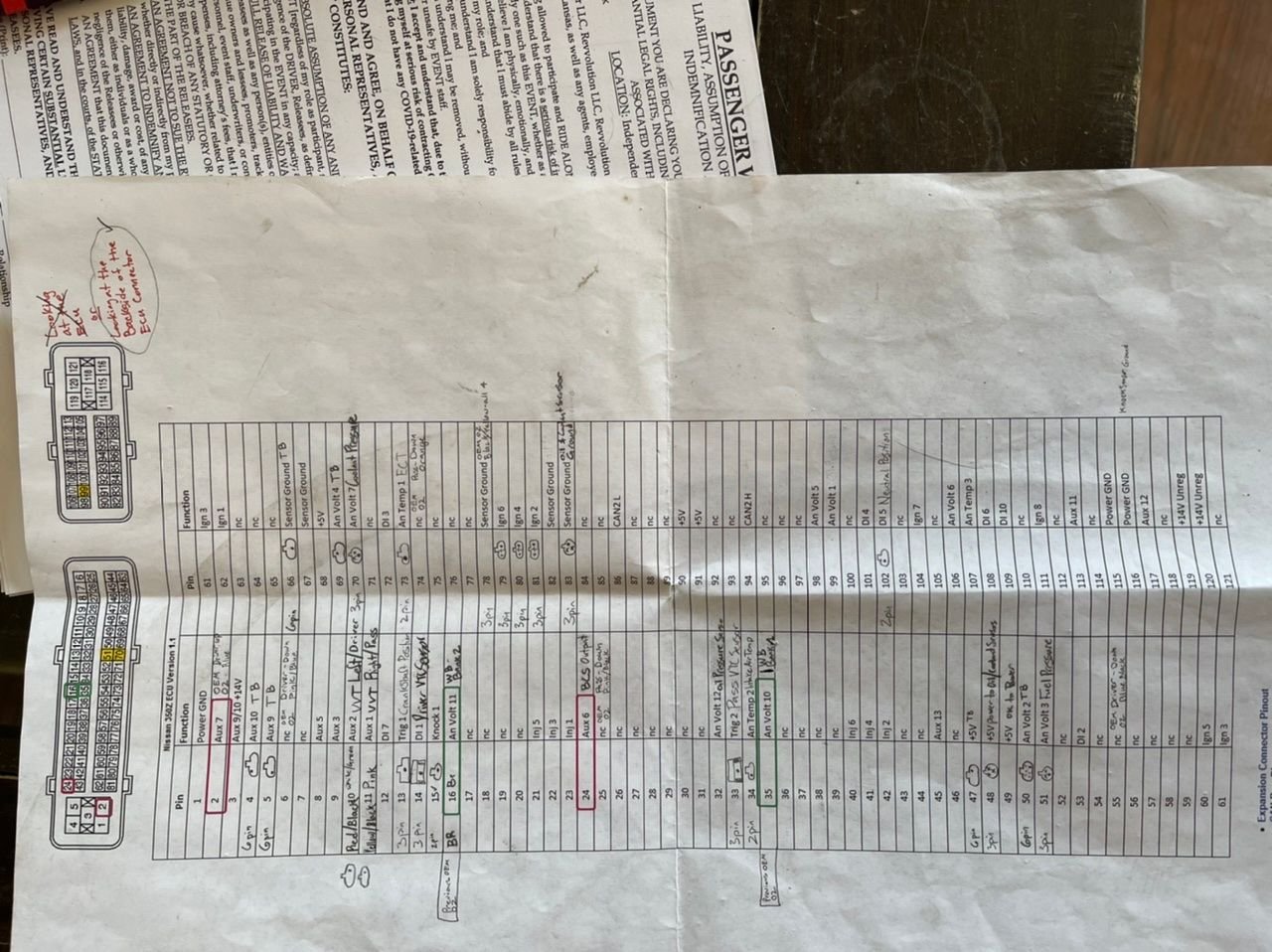

Here is my pin out table and pin function list ... disclaimer: it makes perfect sense in my head!
I am using AN Volt 10 (pin 35) and AN Volt 11(Pin 16) for my two widebands ... I cant remember which one I disabled to run a single WB.
If you need these templates (minus all the chicken scratch) let me know - I saved them down from the boys at Link.
I am using AN Volt 10 (pin 35) and AN Volt 11(Pin 16) for my two widebands ... I cant remember which one I disabled to run a single WB.
If you need these templates (minus all the chicken scratch) let me know - I saved them down from the boys at Link.
Last edited by bealljk; 04-13-2021 at 10:30 AM.
