I'm doing this from memory, so if I forget something, please feel free to add it in for everyone else's benefit. My apologies, just in case I do leave something out!

You will need:
Flathead Screwdriver
Phillipshead Screwdriver
10 MM Socket wrench (and extension if you've got it)
A friend to hold air filter in place for you

1. Remove all plastic fasteners on the top of the front bumper and all the metal fasteners underneath which hold the brush guard (and the front diffusor if you've got the Track) to the bumper. You don't need to actually remove the bumper, you just need to be able to get your hands in there in front of the radiator to install the air filter.

2. Disconnect the negative battery terminal.

3. Remove the Mass Air Meter from the stock intake piping with a screwdriver. Make sure to set this aside on top of the engine cover where it won't get pulled down underneath something.

4. Begin to disassemble stock intake. I started by removing the air filter, the the air box (which takes a little prying because of it's position), and I worked my way up to the throttle body.

5. Install heat shield on exhaust manifold. This is where the socket wrench extention will help out a lot!

6. Prep the thinnest/shortest piece of hose by placing the smaller clamps on either side. Slide it onto the throttle body half way and tighten the top clamp.

7. Remove the nut on the intake manifold, just above the strut bar.

8. Insert the long and angled metal tube into the hose and place it's extension/"arm" onto the bolt you just removed the nut from. Make sure you've got everything lined up the way you want it and then replace the nut to it's original position.

9. Prep the second shortest piece of hose with the two larger clamps, and then fit it halfway on the metal piping. Tighten the top clamp.

10. Insert the black plastic piece for the Mass Air Meter into the remaining half of the hose. Position it so that the Mass Air Meter fits in with enough slack in its wires. Make sure the metal end is facing towards the front of the car.

11. Prep the large hose with the appropriate clamps.

12. Insert large hose through the hole left behind by the stock air box. It will take a little forcing, but it does fit (snuggly) without any modifications.

13. Fit hose around MAF and tighten the clamp.

14. Connect air filter to the remaining metal tubing and secure the clamp.

15. (This is where your friend can help a TON!) Get underneath the car, pull down the front diffusor (if applicable) and insert the metal piping into the hose. Position filter to desired place. And as the filter is held in place, reach through the top opening by the hood lock and tighten the final clamp securely.

16. Reinsert the Mass Air Meter and tighten the screws.

17. Replace all the fasteners for the front bumper (and don't forget to put the brush guard back on like I did the first time! lol).

18. Reconnect the battery and you should be good to go.

It took me and hubby about an hour and a half from start to finish and I also had him look over this write up to make sure I didn't forget anything, but hey, it's been a while since we did this.

You will need to reset everything inside your car--radio stations, clock, etc. since the battery was disconnected, but since you had it disconnected during the install, the ECU should adjust itself properly for the new intake with no problems.

And if you come up with any other questions along the way, you're more than welcome to PM me and I'll get back to you as soon as I can!

I hope this helps some people who were wondering about doing the install themselves!



ok but how does it work once installed..any seat of the pants feeling on performance or anything that is noticed? Or is this a something that has to be dyno'd to be appreciated.



It starts pulling noticably harder when I get up around 4000 rpms than it did before my install. I haven't even had mine dynod yet (which I really need to do before I get my headers and Y pipe), so I don't know what kind of gains it actually gave me.



Thanks for taking the time to produce such a write-up. The little people like myself who want to learn more about installing our own parts really appreciate it.



Yep what he said Thanks a lot!


Ps- By any chance you have pictures of some of the installation?



I thought of that when I wrote this up. I don't have any pics from the actual install, but I'll try to take some pics this weekend to give everyone an idea of where things go!



Thanks!

Nice dog.

I see you are in Dallas, ever go to any Rangers games?

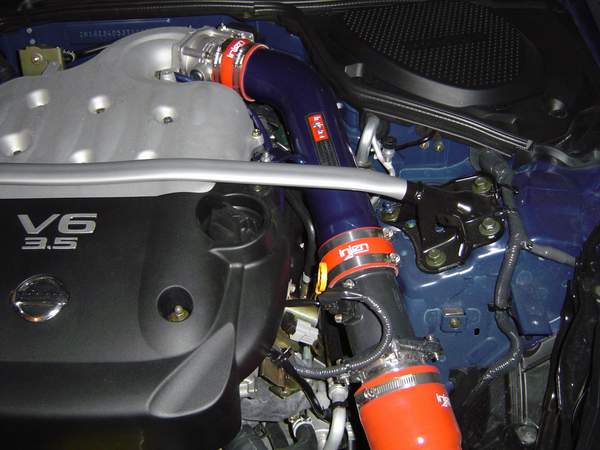

This one should give everyone an idea of whole everything fits together overall.

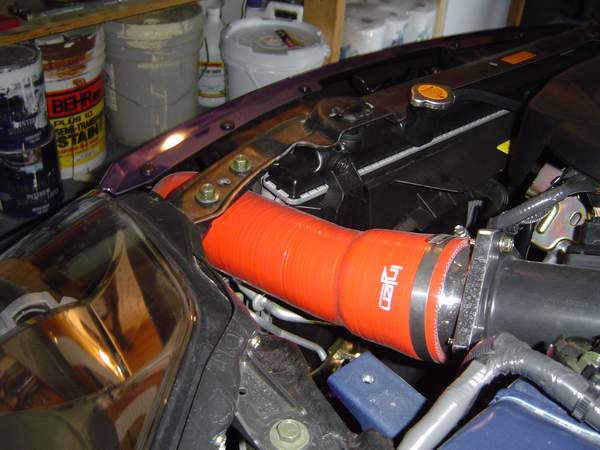

Another to show where the "bent" hose goes to get in front of the radiator.

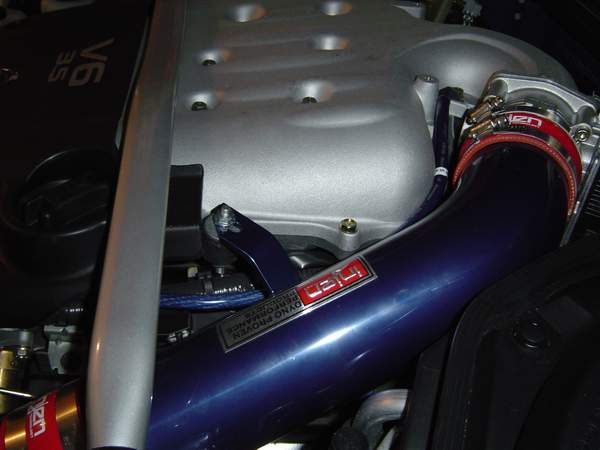

This one shows where to get the "arm" off the piping onto the top of the intake maifold. The pic is taken from the driver's side angle.

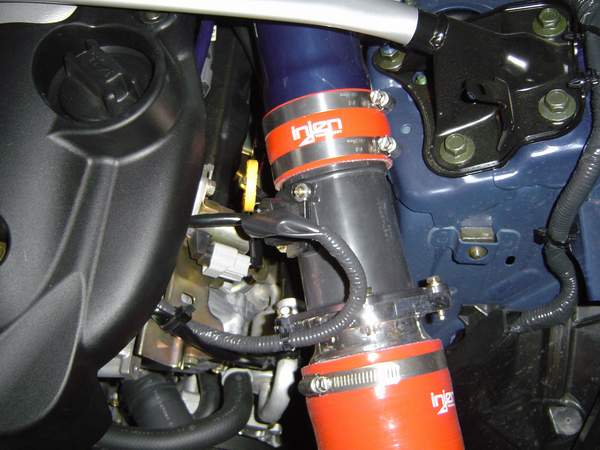

Last one! Shows where the Mass Air Meter goes back into the intake piping. Hope these pics can help everyone out when doing their own install! Like I said, you can PM me with any other questions you may have. Good luck!



Thanks a lot! I should have mine installed by Tuseday night, I'll post pics



Dyno results?



Dunno yet. Still have to get it done. I'll post as soon as I go.



Okay I got my intake in and I understand 99% of it except, Where do I put the head sheild? Do you have a picture of what it looks like when it installed so I have a general idea? Thanks!



Okay, Ricky. I hope this will help a little. It's kind of hard to get a good shot of the heat shield once it's installed, but I did my best.

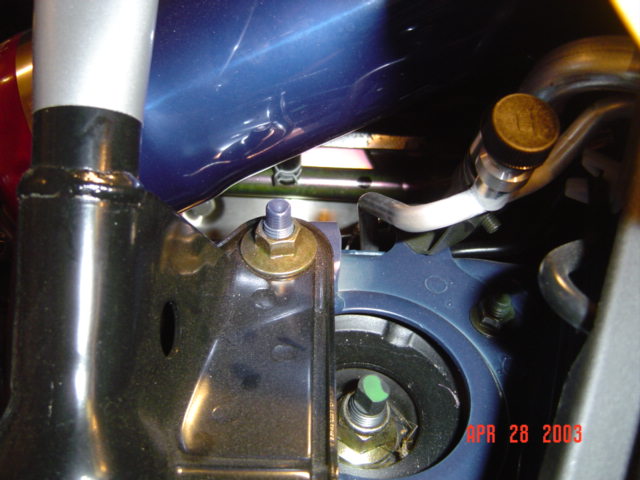

I took this hanging over the driver's side, in front of the wheel. You can see the front strut brace and the long curved pipe of the InJen. If you'll look underneath all that, you'll see most of a bolt and a brushed piece of metal. This is the front side of the Heat shield. The back of it is pretty much impossible to see. But if you'll position the heat shiled with the black side facing down, there's only one way it will fit, which should help you get it in there. Again, I hope this helps, since you can't really see a whole lot.
