so i got my z about a year and a half ago and finally put an aftermarket headunit it. ive got a very small amount of bass but nothing that i would expect. how loud is the stock sub supposed to be? i know its not gonna be crazy but am if my amp isnt working will i still have sound from the sub at all? or did the shop install my head unit wrong? lol
#144
New Member
the relay replacement worked

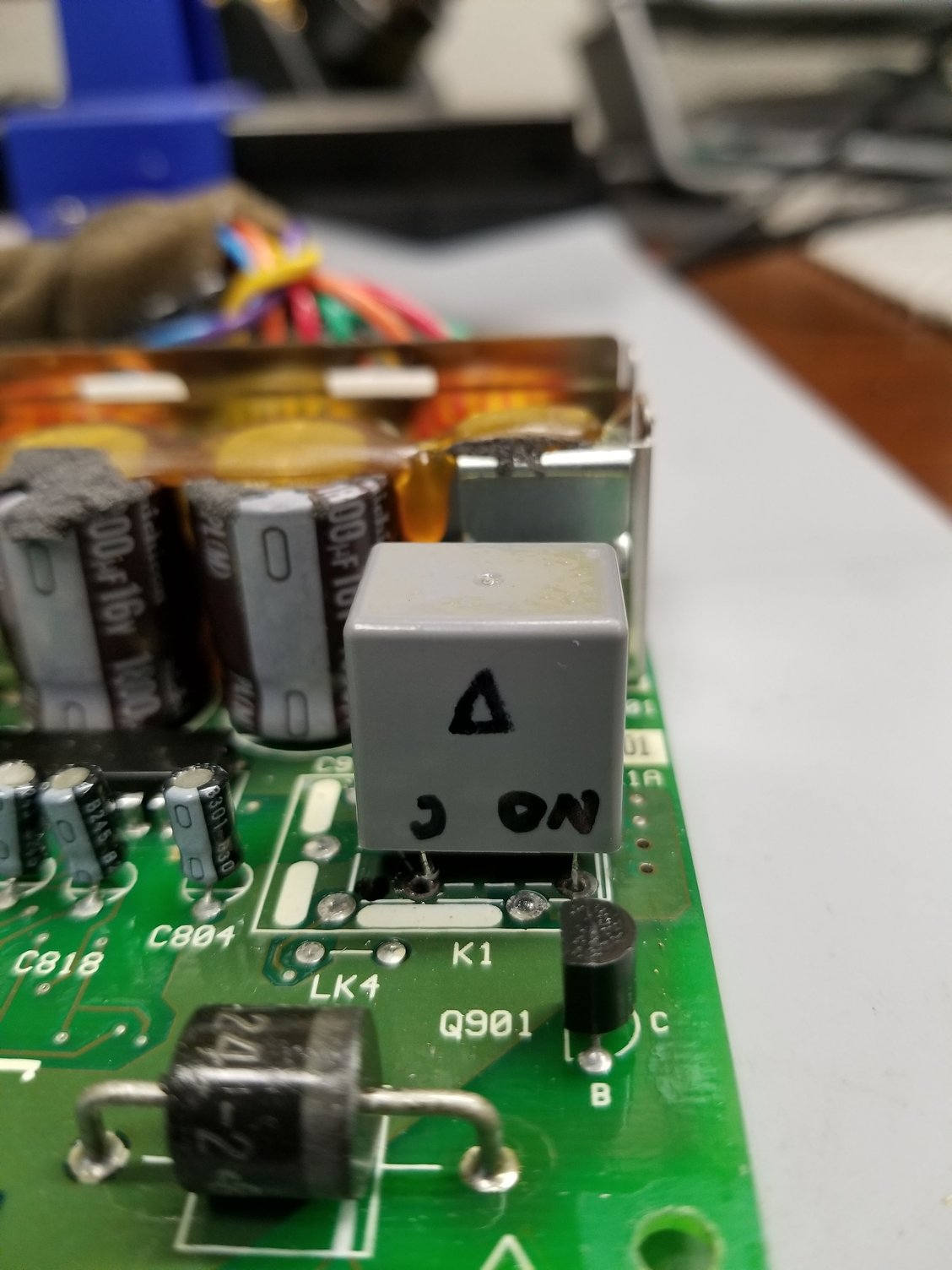

I just replaced the relay in my subwoofer amp with the part listed in this thread. I purchased the relay from Micro Center part# R46-5D12-12 UPC# 768249042976. It took me 1/2 an hour to desolder the original relay and solder in the new one. The replacement relay is larger that the original but don't worry the circuit board is set up for both size relays. Don't be afraid to try the repair. I was afraid of melting the circuit board or something like that. Really had no issues at all. Here are some photos of the finished repair.
Last edited by thekozos; 10-08-2017 at 01:03 PM.
#149
Registered User
Join Date: Jun 2016
Location: California
Posts: 2
Likes: 0
Received 0 Likes
on
0 Posts
I got tired of the relay pressure fix after the 4th time it failed and decided to go with a more permanent fix. Wish I'd seen https://my350z.com/forum/audio-and-v...l#post10919476 earlier since that relay fix is a drop in. Instead I followed a lead from another post - https://my350z.com/forum/audio-video...l#post10384212. Had to look up a replacement relay since that one was discontinued. I used Mouser.com substitute relay 551-EP1-3N1S Single 1 Form C for my fix. Pinout is different but I wired it in and used Velcro to mount in same place as old relay. Works great. Pics below show the schematics and install. Sorry for the extra large pictures.
Final top mount and wire path
Put relay in place in order to size wire to length for underside soldering
Soldered underside
Velcro mount and soldered relay
Color scheme for wires
Pinout location on relay
Pinout locations on board
Original relay pin identify
Pin ID on origin relay
Pin ID on original relay
Final top mount and wire path
Put relay in place in order to size wire to length for underside soldering
Soldered underside
Velcro mount and soldered relay
Color scheme for wires
Pinout location on relay
Pinout locations on board
Original relay pin identify
Pin ID on origin relay
Pin ID on original relay
#150
New Member
I just fixed mine, gonna test it.
I was lucky and had a relay in my junk box.
The board has spots for 2 types of relay, same circuit but leads are spaced further.
I got super lucky.
found the part here:
https://www.rx8club.com/series-i-int...1/#post4014266
R46-5D3-12 subs to: RAS-1210 12VDC
I was lucky and had a relay in my junk box.
The board has spots for 2 types of relay, same circuit but leads are spaced further.
I got super lucky.
found the part here:
https://www.rx8club.com/series-i-int...1/#post4014266
R46-5D3-12 subs to: RAS-1210 12VDC
