How To Repair 5th Bow Motor, with photos.

Old 08-27-2015, 05:06 PM
  #121
David P. Nelsen
Registered User

Join Date: Aug 2015
Location: Kansas City
Posts: 2
Thanks: 0
Thanked 0 Times in 0 Posts
Default Ebay Repair of 5th Bow Motor

Does anyone have any recommendations using vendors on Ebay who rebuild 5th Bow Motors
David P. Nelsen is offline
Old 08-27-2015, 09:40 PM
  #122
Jennifer 2
Registered User

Jennifer 2's Avatar

Join Date: Oct 2008
Location: Vancouver B C
Posts: 1,247
Thanks: 0
Thanked 24 Times in 14 Posts
Default

David, Kansas City will still have a few old school Auto Electric repair shops. Their bread and butter was always the repair/rebuilding of alternators, generators, starter motors and all other electric components. Look for an auto electric specialist and not a general car repair shop. Shaping brushes to fit your fifth bow top motor and installing them will be a quick and easy job for them. That motor is almost identical to power window and power seat motors. In addition to the radio controlled electric car motor brushes, you can also file down brushes from battery-powered tools (drills etc.). A good shop will almost certainly have a selection of brushes that can be adapted.
Jennifer 2 is offline
Old 09-26-2015, 01:20 PM
  #123
fonzefm
Registered User

Join Date: Mar 2013
Location: ft laud fl
Posts: 9
Thanks: 0
Thanked 1 Time in 1 Post
Smile fifth bow motor

after 2mos chasing rainbows I made a tool to remove that tough screw in back which hard to get out .I took 11/32 socket &cut a old Phillips tip and use 2part epoxy and let it set on screw overnite viola out with small vice grips
fonzefm is offline
Old 09-26-2015, 01:22 PM
  #124
fonzefm
Registered User

Join Date: Mar 2013
Location: ft laud fl
Posts: 9
Thanks: 0
Thanked 1 Time in 1 Post
Default

yes I used a guy from kisimmmee fl on ebay
fonzefm is offline
The Following User Says Thank You to fonzefm For This Useful Post:
Flick Montana (08-22-2016)
Old 09-26-2015, 01:29 PM
  #125
fonzefm
Registered User

Join Date: Mar 2013
Location: ft laud fl
Posts: 9
Thanks: 0
Thanked 1 Time in 1 Post
Default 5th bow motor

after 2 mos chasing rainbow I made a tool to get num 3 screw out , you can to c photo


use a good 2 part epoxy and cut a tip of old Phillips screwdriver epoxy tip to screw set overnite &viola in morning out &sent away for repair to mike from ebay in Kissimmee fl
fonzefm is offline
Old 10-24-2015, 09:10 PM
  #126
CLERlC
Registered User

Join Date: Oct 2013
Location: Australia
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Hi There,

My roof has started to struggle for some time now, now it doesn't even engage, i can here something release but the roof dosnt start moving,
Im pretty sure its this 5th bow motor issue, i have been searching for brushes to replace them but can seem to find any anywhere, could someone please point me in the right direction, or post a link where i can buy some.

Thanks heaps
CLERlC is offline
Old 10-25-2015, 06:31 AM
  #127
RedSkyHawk88
Registered User

Join Date: Aug 2015
Location: U S A
Posts: 8
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Originally Posted by CLERlC View Post
Hi There,

My roof has started to struggle for some time now, now it doesn't even engage, i can here something release but the roof dosnt start moving,
Im pretty sure its this 5th bow motor issue, i have been searching for brushes to replace them but can seem to find any anywhere, could someone please point me in the right direction, or post a link where i can buy some.

Thanks heaps

Check out amain.com. I purchased TRI4499NT. Had to file them down to fit in the plastic piece. I bought a couple in case one broke or in the future I have to change them again.
RedSkyHawk88 is offline
Old 10-26-2015, 05:37 PM
  #128
CLERlC
Registered User

Join Date: Oct 2013
Location: Australia
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Originally Posted by RedSkyHawk88 View Post
Check out amain.com. I purchased TRI4499NT. Had to file them down to fit in the plastic piece. I bought a couple in case one broke or in the future I have to change them again.
Thanks a lot Red for the info, I bought a few like you suggested, there is nothing down here in OZ, went to so many hobby stores.

How did your roof function after you replaced the brushes?

Cheers Mate
CLERlC is offline
Old 10-26-2015, 05:52 PM
  #129
RedSkyHawk88
Registered User

Join Date: Aug 2015
Location: U S A
Posts: 8
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Originally Posted by CLERlC View Post
Thanks a lot Red for the info, I bought a few like you suggested, there is nothing down here in OZ, went to so many hobby stores.

How did your roof function after you replaced the brushes?

Cheers Mate
Remember the first time you opened your top? Even better than that! The time to open and close is very fast and smooth. Congrats on the purchase and good luck on the fix.
RedSkyHawk88 is offline
Old 12-26-2015, 04:30 AM
  #130
350zKSA
Registered User

Join Date: Dec 2015
Location: Saudi
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
Default

FIRST POST @ BlueBadge

Please help the brilliant photos you uploaded have disappeared!!!???
350zKSA is offline
Old 12-26-2015, 04:33 AM
  #131
350zKSA
Registered User

Join Date: Dec 2015
Location: Saudi
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
Default

FIRST POST EVER @ BLUEBADGE

Please help your photos are no longer displaying???!!!

Desperately need them.
350zKSA is offline
Old 01-08-2016, 01:04 PM
  #132
RichV
Registered User

Join Date: Jan 2016
Location: Winston Salem NC
Posts: 135
Thanked 8 Times in 7 Posts
Default

Im in the same boat. I just bought an 04 350Z and the top is a little lazy and doesn't always go all the way down. I see needing to repair this motor also, but can't see the photos. They are gone for some reason. Any help would be great!
RichV is offline
Old 01-10-2016, 05:10 AM
  #133
neilsaunders
Registered User

Join Date: Jan 2016
Location: London
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Same boat also - I've ordered the replacement brushes but would like to see the photos before I start disassembling my car!!

If we can get the photos I'll record a video of how the repair goes
neilsaunders is offline
Old 01-11-2016, 08:54 AM
  #134
350zKSA
Registered User

Join Date: Dec 2015
Location: Saudi
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
Default

please can someone who knows bluebadge contact him for the greater good of 350z owners!!!!!!!! I wish i had not procrastinated - his pics were brilliant
350zKSA is offline
Old 01-11-2016, 09:23 AM
  #135
sluggoZ
Registered User
iTrader: (128)

sluggoZ's Avatar

Join Date: Feb 2004
Location: Hudson, Ohio
Posts: 2,308
Thanked 9 Times in 7 Posts
Default

Originally Posted by neilsaunders View Post
Same boat also - I've ordered the replacement brushes but would like to see the photos before I start disassembling my car!!

If we can get the photos I'll record a video of how the repair goes
PM me your email address...I can help ya!
sluggoZ is offline
Old 01-11-2016, 09:36 AM
  #136
neilsaunders
Registered User

Join Date: Jan 2016
Location: London
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Right - I've got all parts on order and should arrive in a couple of weeks. I'm going to attempt the fix and will record a video and post it (Assuming success!)

In the mean time I've done quite a bit of research on this and feel like I've got enough information without the photos (Though having them would be excellent): Some resources:

1) A youtube video of the exact same repair being done on another (Window) motor using the same brushes:

2) A exploded schematic of the roof components:
http://nissan-europe.epcdata.ru/imgel/Z33/737B_002.png

3) A picture of a 5th Bow motor:
http://www.ebay.com/itm/NISSAN-350Z-...-/151887333921

4) A Nissan TSB for a very similar sounding problem:
http://www.myzroadster.com/Files/tsb.../NTB03-122.pdf

So it seems that my roof has two separate problems that I previously thought were related:

1) When opening the roof "sticks" going in to the compartment, same as this guy:

2) The roof not fully closing as per the TSB

It's currently in an underground carpark as the roof is stuck open - Will pick it up on Thursday and try running through the TSB to get the roof fully closed, then wait for the parts to arrive (Brushes are from the states) and attempt to rebuild the 5th bow motor - Assuming it's successful I'll post a video (If not I'll post a picture of me sobbing holding a bill from Nissan services)
neilsaunders is offline
Old 01-12-2016, 03:34 PM
  #137
johnnyo
Registered User

Join Date: Feb 2009
Location: Richardson, TX
Posts: 9
Thanked 0 Times in 0 Posts
Default










johnnyo is offline
Old 01-14-2016, 11:00 AM
  #138
johnnyo
Registered User

Join Date: Feb 2009
Location: Richardson, TX
Posts: 9
Thanked 0 Times in 0 Posts
Default

Originally Posted by neilsaunders View Post

2) The roof not fully closing as per the TSB

It's currently in an underground carpark as the roof is stuck open - Will pick it up on Thursday and try running through the TSB to get the roof fully closed, then wait for the parts to arrive (Brushes are from the states) and attempt to rebuild the 5th bow motor - Assuming it's successful I'll post a video (If not I'll post a picture of me sobbing holding a bill from Nissan services)
I am having exact same problem as you. This after fixing and replacing the 5th bow motor(which is much stronger and quicker now). I am guessing it might bean alignment problem?????? Anyone know the problem?
johnnyo is offline
Old 01-15-2016, 09:13 AM
  #139
johnnyo
Registered User

Join Date: Feb 2009
Location: Richardson, TX
Posts: 9
Thanked 0 Times in 0 Posts
Default

Finally found the answer to my problem of the top not closing all the way. Almost closes buy hangs up the last few inches. This guy's video and temp fix acuarately show what I have been experiencing.
johnnyo is offline
Old 01-15-2016, 12:58 PM
  #140
Brian Henning
Registered User

Join Date: Jan 2016
Location: Thousand oaks
Posts: 1
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Originally Posted by bluebadge View Post
*** How To Repair 5th Bow Motor ***

The model featured is my 2004 Touring Roadster, Current mileage is about 123k and I have never cleaned this motor or replaced the brushes before, so this is what you can expect if you are doing this for the first time.

Ok, so I've been wanting to do a how to guide for a while and this is a doozie! yup, 5th Bow Motor Repair!! If your 5th bow is getting stuck or not retracting your soft top in the storage compartment, the is a high probability that the brushes in the 5th bow motor are worn out. My how to will show you how to replace these brushes... The brushes can be bought online and they are the same ones used in the tutorial for fixing a sticking window motor, in fact this is pretty much the same as that, only easier!

What you'll need before you start.

1) A couple of hours spare time
2) A right angled (90 degree) phillips head screwdriver (or really short screwdriver)
3) Pair of suitable brushes got mine from Amazon (http://www.amazon.com/MBS5-Stand-Up-.../dp/B001BHLX0W )
4) Small socket set (not 100% needed but useful)
5) Soldering Iron, Flux and Solder
6) Scissors
7) Egg Box and Double Sided Sticky Tape (just messing!)
8) Electrical Contact Cleaner and Rag
9) Fine sand paper (the wives nail file would do!)
10) A couple of band aids just in case!

The whole process took me a couple of hours with help from domrvt (cheers dude!)

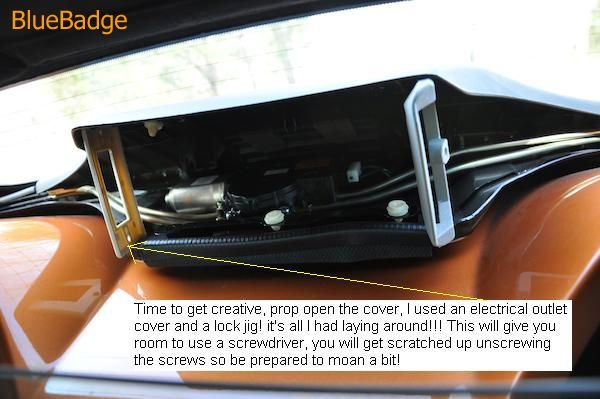

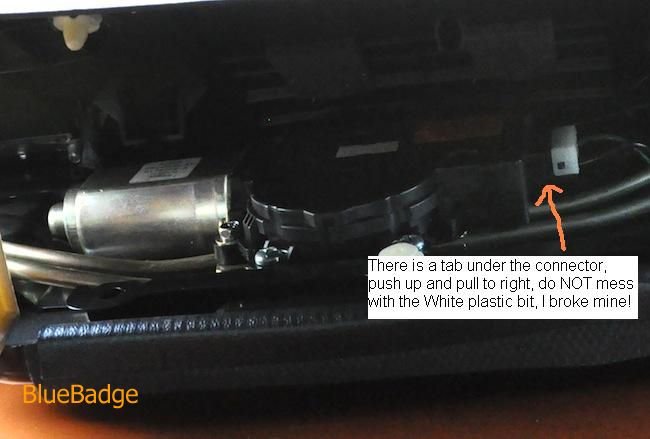

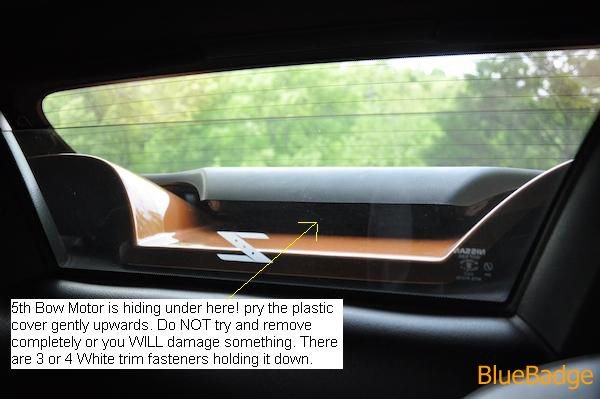

Ok first you want to cram yourself inside your Zee (if you are over 6ft I feel for you!) Everything from this point is in picture format so .....


































Once I got the motor back in the car I re-attached the electrical harness and press the button for the roof, and voila! it worked, then put it all back together, now my roof works flawlessly! Hope this How To was of help to those (like me) who were facing a $1000 plus repair job! this only cost me a couple of hours and about $10.

Cheers, feel free to re-post this on any other forums that you know of where people are having the same issue!!!

If you have any questions please message me. This is my first how to, so feedback is welcome.

BlueBadge

PS You will notice that I didn't re-lube the components as I didn't have any grease on hand, but I definitely recommend it! (i'll do mine later!)
Do the pictures still work?
Brian Henning is offline
