O2 Sensor Wiring Help

Old 01-24-2018, 12:10 PM
  #1
ddegrande21
Registered User
Thread Starter

Join Date: Dec 2014
Location: Southern Cal
Posts: 24
Received 0 Likes on 0 Posts
Default O2 Sensor Wiring Help

Hey guys!

I crept out of hiding to ask a question that a simple forum search and factory wiring diagram have yet to answer:

How does an electronically challenged Z owner re-wire his o2 sensor?

Long story short, previous owner lowered my 2008 Nismo and the original connectors paid the price.

I now have two shoddy splice jobs and code p0057 HO2S heater circuit.



The passenger side is ok for now (could probably use some actual solder and shrink wrap) but the driver side is my issue, especially because I don't know which colored wire from the main harness corresponds to the 4 o2 sensor wires.

I have scavenged a connector to splice into the harness, and I purchased a new o2 sensor that comes with the factory connector attached.

Can someone do me a favor and peek under their HR z and jot down which color (purple/white, red/black, red/yellow, green/red) wire connects to it's respective o2 sensor wire (black, gray, and 2 whites) on the harness?
ddegrande21 is offline
Old 01-24-2018, 07:34 PM
  #2
Cavemanz33
Registered User

Join Date: Nov 2017
Location: San Bernardino
Posts: 32
Likes: 0
Received 2 Likes on 2 Posts
Default

I was hoping to help out with this, but my car is 06 so the wire colors are different. You don't have a copy of the service manual for your Z? It contains the wiring colors you need to repair your sensor connection.

EDIT: I did a quick search for the FSM for your car, according to the manual, the wires should be connected as:
(Harness connector to oxygen sensor)
Red/Black === Black
Purple/White === White
Red/Yellow === White
Green/Red === Gray

Make sure you strip at least an inch of the wire insulation, wrap them around each other, and solder it real well, wrap in electrical tape, and cover with a proper electrical wire wrap. If you decide not to solder, butt connectors should suffice, so long as you crimp them well at the ends to secure the wire. Wrap in electrical tape and wire wrap as well. Let me know if this fixes your DTC issue.

Last edited by Cavemanz33; 01-24-2018 at 07:49 PM. Reason: Obtained new helpful information
Cavemanz33 is offline
The following users liked this post:
ddegrande21 (01-25-2018)
Old 01-25-2018, 08:06 AM
  #3
ddegrande21
Registered User
Thread Starter

Join Date: Dec 2014
Location: Southern Cal
Posts: 24
Received 0 Likes on 0 Posts
Default

Originally Posted by Cavemanz33 View Post
You don't have a copy of the service manual for your Z? It contains the wiring colors you need to repair your sensor connection.

EDIT: I did a quick search for the FSM for your car, according to the manual, the wires should be connected as:
(Harness connector to oxygen sensor)
Red/Black === Black
Purple/White === White
Red/Yellow === White
Green/Red === Gray
You're the man!

I'll hook it all up per your instructions and follow up with the code cleared. There's quite a few threads that have this question unanswered.

I was in the FSM,
http://www.nicoclub.com/FSM/350Z/cou...oupe+Roadster/
and the only info I found in the PG was what fuse the sensors run on. Where'd you find the detailed schematic?

Last edited by ddegrande21; 01-25-2018 at 08:10 AM.
ddegrande21 is offline
Old 01-25-2018, 08:26 AM
  #4
Cavemanz33
Registered User

Join Date: Nov 2017
Location: San Bernardino
Posts: 32
Likes: 0
Received 2 Likes on 2 Posts
Default

Originally Posted by ddegrande21 View Post
You're the man!

I'll hook it all up per your instructions and follow up with the code cleared. There's quite a few threads that have this question unanswered.

I was in the FSM,
http://www.nicoclub.com/FSM/350Z/cou...oupe+Roadster/
and the only info I found in the PG was what fuse the sensors run on. Where'd you find the detailed schematic?
By PG do you mean the Power and Ground chapter of the manual? You won't find it there I think. I found the wiring diagram in Engine Control System chapter. IIRC it was page 163, but you'll definitely find it if you look up the DTC p0057.
Cavemanz33 is offline
Old 01-25-2018, 10:24 AM
  #5
ddegrande21
Registered User
Thread Starter

Join Date: Dec 2014
Location: Southern Cal
Posts: 24
Received 0 Likes on 0 Posts
Default

Originally Posted by Cavemanz33 View Post
By PG do you mean the Power and Ground chapter of the manual? You won't find it there I think. I found the wiring diagram in Engine Control System chapter. IIRC it was page 163, but you'll definitely find it if you look up the DTC p0057.
Yeah, I was in the wrong chapter.

EC-167... clear as day.

Thanks!
ddegrande21 is offline
Old 10-30-2018, 09:26 PM
  #6
Evanryno55
Registered User

Join Date: Oct 2018
Location: Ontario CA
Posts: 7
Likes: 0
Received 0 Likes on 0 Posts
Default Iím having the same issue but with my DE does anyone know which wire goes where?

Originally Posted by ddegrande21 View Post
Hey guys!!!

I crept out of hiding to ask a question that a simple forum search and factory wiring diagram have yet to answer:

How does an electronically challenged Z owner re-wire his o2 sensor?

Long story short, previous owner lowered my 2008 Nismo and the original connectors paid the price.

I now have two shoddy splice jobs and code p0057 HO2S heater circuit.



The passenger side is ok for now (could probably use some actual solder and shrink wrap) but the driver side is my issue, especially because I don't know which colored wire from the main harness corresponds to the 4 o2 sensor wires.

I have scavenged a connector to splice into the harness, and I purchased a new o2 sensor that comes with the factory connector attached.

Can someone do me a favor and peek under their HR z and jot down which color (purple/white, red/black, red/yellow, green/red) wire connects to it's respective o2 sensor wire (black, gray, and 2 whites) on the harness?
Evanryno55 is offline
Old 03-05-2019, 09:01 PM
  #7
Luke Spears
Registered User

Join Date: Mar 2019
Location: Kentucky
Posts: 2
Likes: 0
Received 0 Likes on 0 Posts
Default NEED O2 sensor wiring diagram!!!

I need the wiring diagram for bank 1 and bank 2 downstream o2 sensors on a 03 350z de. I have to straight wire them. New o2 sensors have 2 white and a grey and black wire. PLEASE HELP
Luke Spears is offline
Old 03-05-2019, 09:04 PM
  #8
bealljk
Registered User
iTrader: (13)

Join Date: Apr 2010
Location: North Denver
Posts: 4,104
Received 450 Likes on 376 Posts
Default

Originally Posted by Luke Spears View Post
I need the wiring diagram for bank 1 and bank 2 downstream o2 sensors on a 03 350z de. I have to straight wire them. New o2 sensors have 2 white and a grey and black wire. PLEASE HELP
what colors do you have on the engine harness side?
bealljk is online now
Old 03-06-2019, 05:04 AM
  #9
Heel Til I Die
Registered User
iTrader: (2)

Join Date: Apr 2013
Location: Raleigh, NC
Posts: 818
Received 195 Likes on 143 Posts
Default

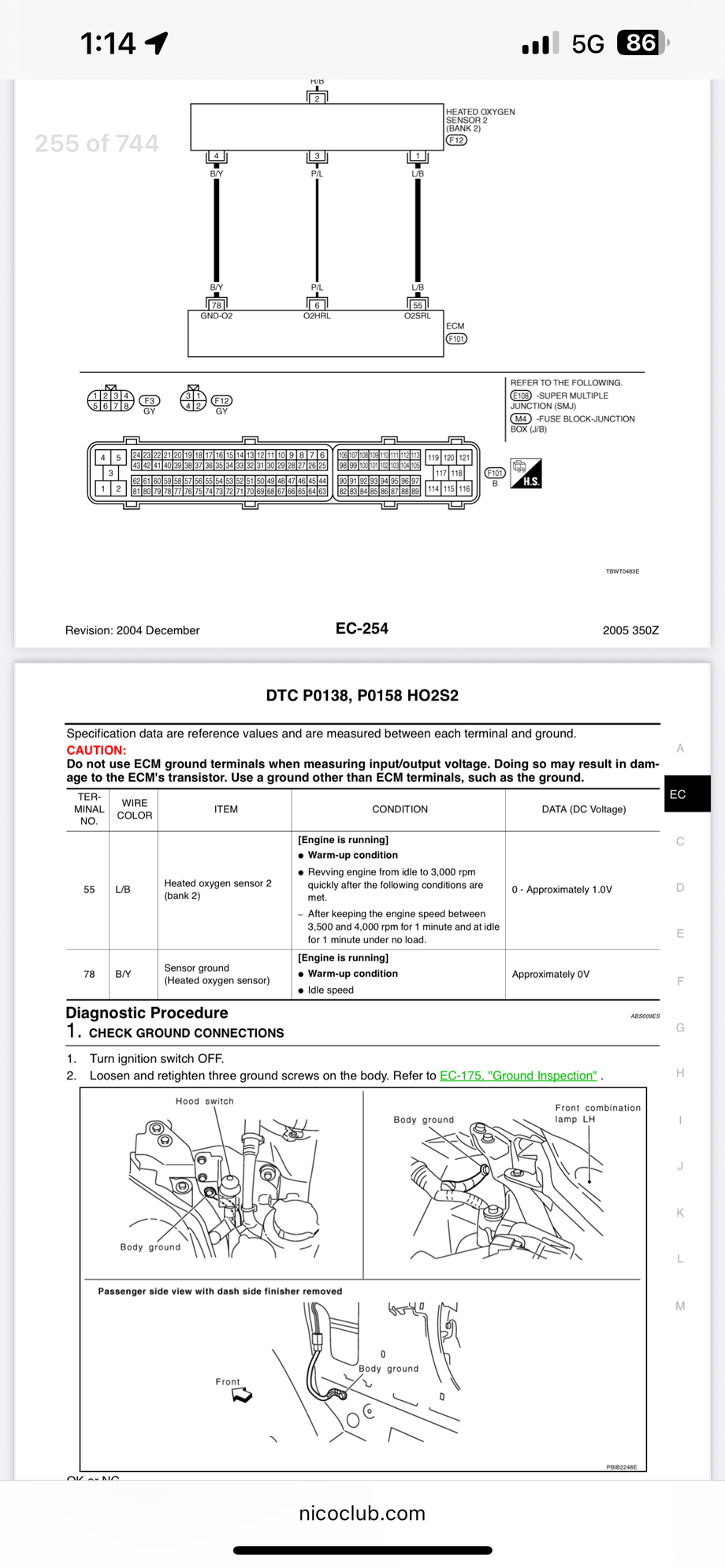

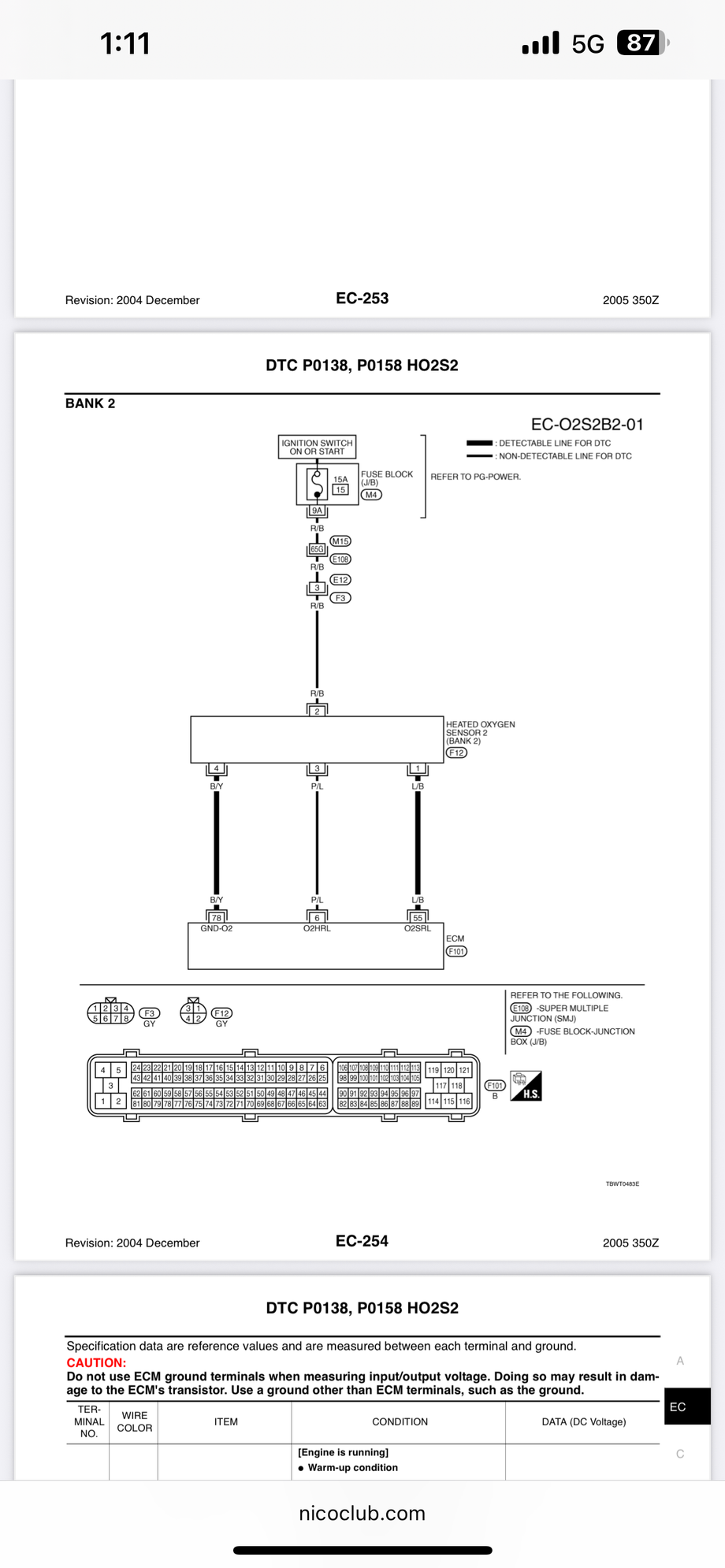

These should be the relevant portions from the '03 FSM. Hopefully, it helps.








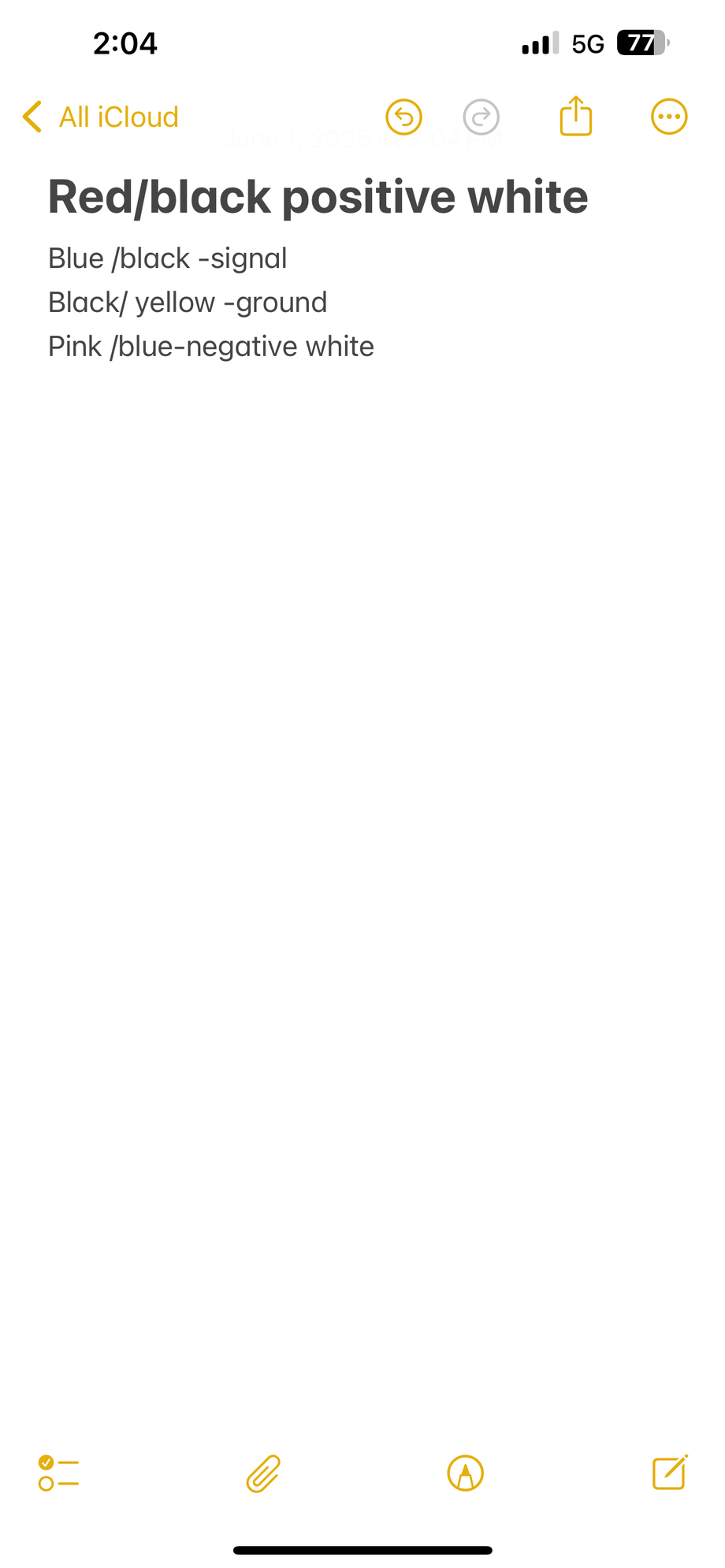

R/B = red/black
P/B = pink/black
B = black
W = white
P/L = pink/blue
B/OR = black/orange

Heel Til I Die is offline
Old 07-12-2019, 05:59 AM
  #10
Bak3rme
Registered User
iTrader: (1)

Join Date: Dec 2013
Location: Boston, MA
Posts: 372
Received 45 Likes on 35 Posts
Default

Hijacking. Does anyone know if the female end of the O2 sensors are readily available from online parts store? mine got too close to the cats and started melting and now they won't plug in correctly.
Cheers!
Bak3rme is offline
Old 07-12-2019, 06:41 AM
  #11
bealljk
Registered User
iTrader: (13)

Join Date: Apr 2010
Location: North Denver
Posts: 4,104
Received 450 Likes on 376 Posts
Default

I have extra sets / pig-tails if you need them - PM me.
