Just wondering if we can get some pics up here on where people are placing there stuff, like bottle, fuel tap, Nozzle, purge, how they run ther lines ect.
it helps the Back yard and first time installers (like me) to install, picture is worth a 1000 ya know, and people get creative and it helps to add to the creativity for others and for some not to torch there ride



do a search...most of us have posted pics of our installs.



I seen some of them and they look great, but I just wanted a little more detail if I could, but what I found is cool and helped me.



Not too many people on here use the "NOS" system

However many of us have pics of other nitrous brand kits installed in our z's. Several threads pertain to this topic on the first page of these nitrous forums



My install.

https://my350z.com/forum/nitrous-oxide/200733-nitrous-installed-now-the-pics.html

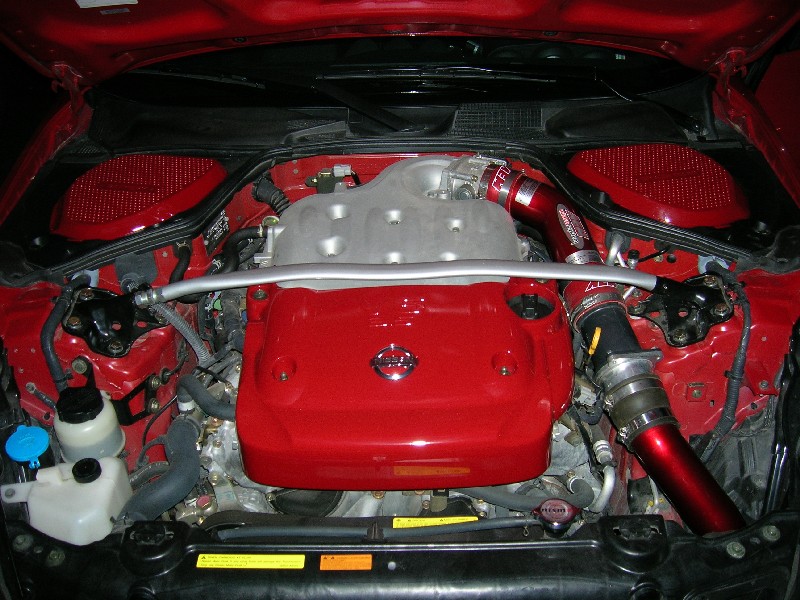

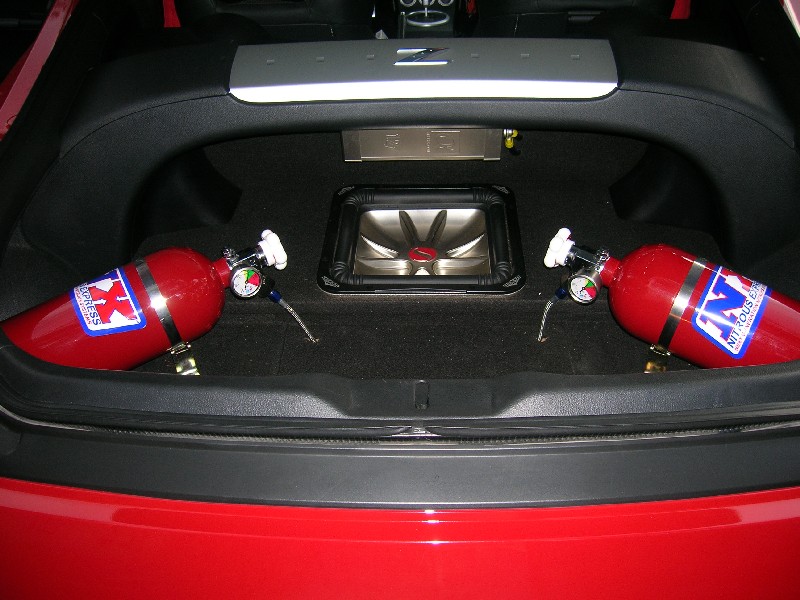

Here a pic of bottle placement and the engine bay. I don't have any close ups of the engine yet but will get some. Everyhting is completely hidden though.



any pics of gauge locations



nos, naz, NAAWWZZ..





sorry.. I always have to type that evertime I see NOS on the thread heading



I need more nawz....give me 2 of them, the big ones



Kitty to the rescue.



The rest of my pictures are here.



looks good integrity....very similar to mine except i went with the dynotune digital gauge. i need my bottle filled ASAP.
