Wanted: UpRev Tuning DIY - Tuning 101?
#61
Living in 350Z
Thread Starter
iTrader: (30)
Join Date: May 2009
Location: Spartanburg(SparkleCity), SC
Posts: 4,293
Likes: 0
Received 2 Likes
on
2 Posts
I would set my fuel compensation table so that all cells are 100, clear saved data from RAM (so that I'm running as close as possible to the tune), and then log.
I would log MAF voltage, target afr, & actual afr - compare those, and make the changes to the dataword column for the voltages that aren't hitting the target afr. Run some logs again and compare until it is getting close to the correct AFR for all MAF voltages.
#63
Living in 350Z
Thread Starter
iTrader: (30)
Join Date: May 2009
Location: Spartanburg(SparkleCity), SC
Posts: 4,293
Likes: 0
Received 2 Likes
on
2 Posts
You should really be on a dyno to mess with timing... more timing doesn't always mean more power... putting timing just before knock doesn't always mean max power... it's trial and error. Best thing you can do for now is get your A/F's corrected, you will see some gains from that and it's much safer. Once you get on a dyno you can worry about max power.
#65
Under Boost!
iTrader: (16)
you're on the right track.. Keep it up!
try to learn tuning in general, cuz whatever you get on Osiris, will be different on others. they might use different values and different multipliers. i got 3 of the books suggested earlier, they're good reads and gives you general idea on engine operation before going into tuning details, which broaden your knowledge on how things works together and what affects what.
i'm subbing to this thread. rich info.
thanks Sparkle
try to learn tuning in general, cuz whatever you get on Osiris, will be different on others. they might use different values and different multipliers. i got 3 of the books suggested earlier, they're good reads and gives you general idea on engine operation before going into tuning details, which broaden your knowledge on how things works together and what affects what.
i'm subbing to this thread. rich info.
thanks Sparkle
#66
Registered User
iTrader: (1)

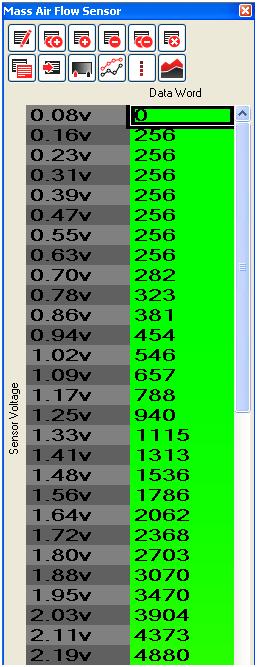

Just so that I'm clear, this is the screen that we're talking about tuning when we're talking about tuning the MAF.
I would set my fuel compensation table so that all cells are 100, clear saved data from RAM (so that I'm running as close as possible to the tune), and then log.
I would log MAF voltage, target afr, & actual afr - compare those, and make the changes to the dataword column for the voltages that aren't hitting the target afr. Run some logs again and compare until it is getting close to the correct AFR for all MAF voltages.
I would set my fuel compensation table so that all cells are 100, clear saved data from RAM (so that I'm running as close as possible to the tune), and then log.
I would log MAF voltage, target afr, & actual afr - compare those, and make the changes to the dataword column for the voltages that aren't hitting the target afr. Run some logs again and compare until it is getting close to the correct AFR for all MAF voltages.
And the stock target of 11.8 is way conservative for N/A, I'd bump it to 12.5 or 13.0 minimum and you should see some gains just from doing that.... but be sure to dial them in on the MAF as well --- they tune it so rich from the factory because it tends to end up running lean.... I've seem stock tunes hitting in the 14's at WOT LOL.
#70
Living in 350Z
Thread Starter
iTrader: (30)
Join Date: May 2009
Location: Spartanburg(SparkleCity), SC
Posts: 4,293
Likes: 0
Received 2 Likes
on
2 Posts
Ok, tonight I flashed my ECU for the first time. For testing and initial tuning, I made the following changes:
MAP 1
------
Pretty much left at the stock settings
MAP 2
------
Changed all fuel compensation to 100
Changed Target AFR to djamps suggestion of 12.5-13.5 at WOT
Added 1 to ignition table

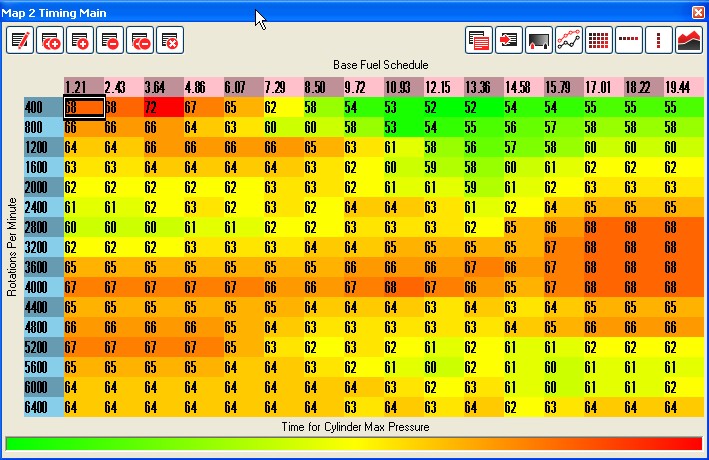

NOTE: My screenshots for Map 2 are attached.
The one thing that I noticed is that Cipher doesn't have a field for "Target AFR", so I couldn't log this to easily compare it to "Actual AFR".

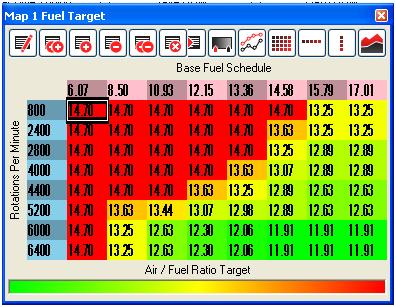

When tuning the MAF (step 1), do most folks just set one of their Osiris Maps to have AFR Target as 14.7 in every cell and Fuel Compensation as 100 in every cell for the purpose of tuning the MAF, or do they reference and look up what the target AFR should be based on the Base Fuel Schedule and RPM for each log entry that is recorded?
MAP 1
------
Pretty much left at the stock settings
MAP 2
------
Changed all fuel compensation to 100
Changed Target AFR to djamps suggestion of 12.5-13.5 at WOT
Added 1 to ignition table
NOTE: My screenshots for Map 2 are attached.
The one thing that I noticed is that Cipher doesn't have a field for "Target AFR", so I couldn't log this to easily compare it to "Actual AFR".
When tuning the MAF (step 1), do most folks just set one of their Osiris Maps to have AFR Target as 14.7 in every cell and Fuel Compensation as 100 in every cell for the purpose of tuning the MAF, or do they reference and look up what the target AFR should be based on the Base Fuel Schedule and RPM for each log entry that is recorded?
#71
Registered User
iTrader: (1)
Ok, tonight I flashed my ECU for the first time. For testing and initial tuning, I made the following changes:
MAP 1
------
Pretty much left at the stock settings
MAP 2
------
Changed all fuel compensation to 100
Changed Target AFR to djamps suggestion of 12.5-13.5 at WOT
Added 1 to ignition table
NOTE: My screenshots for Map 2 are attached.
The one thing that I noticed is that Cipher doesn't have a field for "Target AFR", so I couldn't log this to easily compare it to "Actual AFR".
When tuning the MAF (step 1), do most folks just set one of their Osiris Maps to have AFR Target as 14.7 in every cell and Fuel Compensation as 100 in every cell for the purpose of tuning the MAF, or do they reference and look up what the target AFR should be based on the Base Fuel Schedule and RPM for each log entry that is recorded?
MAP 1
------
Pretty much left at the stock settings
MAP 2
------
Changed all fuel compensation to 100
Changed Target AFR to djamps suggestion of 12.5-13.5 at WOT
Added 1 to ignition table
NOTE: My screenshots for Map 2 are attached.
The one thing that I noticed is that Cipher doesn't have a field for "Target AFR", so I couldn't log this to easily compare it to "Actual AFR".
When tuning the MAF (step 1), do most folks just set one of their Osiris Maps to have AFR Target as 14.7 in every cell and Fuel Compensation as 100 in every cell for the purpose of tuning the MAF, or do they reference and look up what the target AFR should be based on the Base Fuel Schedule and RPM for each log entry that is recorded?
For open loop (WOT) you have to go off the A/F instead of corrections (because correction will always be 100) and there's a little more guesswork as to what multiplier to use on each MAF voltage. I've found that 1% change in MAF roughly equals 0.1 A/F change... but it might be different with your stock setup.
I've also found that the ECU doesn't always target what you think it should anyways...so going off corrections and actual A/F's might be the best way to go.
Alternatively you can filter using my log tool based on fuel schedule and RPM... but it might make it easier if you set the target columns the same so it's not RPM dependant. I basically just set everything except the 1st column to 11.8 then scaled the horizontal axis so it only targets 11.8 under higher loads (nearing boost, ect).
Last edited by djamps; 04-26-2011 at 08:10 AM.
The following users liked this post:
350Z_Al (08-05-2015)
#74
Living in 350Z
Thread Starter
iTrader: (30)
Join Date: May 2009
Location: Spartanburg(SparkleCity), SC
Posts: 4,293
Likes: 0
Received 2 Likes
on
2 Posts
UPDATE: The car has been down for major interior work (rollcage, audio, new interior) so I haven't been as active lately with tuning info.
I will be going to a dyno day in 2 weeks and I will be getting 3 different pulls each using a different map. I plan to use stock map for the initial pull, my map with modified fuel targets/timing posted earlier, and I hope to log enough in the next few weeks and use djamp's log tool to make some additional changes for a 3rd map. I will post the dyno results here along with screenshots of the settings used for each pull.
Additionally, I am looking at one of 3 shops to do my dyno tuning before I go to VIR in September. I will be having them tune with my Osiris cable and will be asking for copies of the ROM files so that I can post those dyno sheets along with the specific Osiris settings. That should give us 4 different sets of dyno sheets and settings to compare and discuss.
I will be going to a dyno day in 2 weeks and I will be getting 3 different pulls each using a different map. I plan to use stock map for the initial pull, my map with modified fuel targets/timing posted earlier, and I hope to log enough in the next few weeks and use djamp's log tool to make some additional changes for a 3rd map. I will post the dyno results here along with screenshots of the settings used for each pull.
Additionally, I am looking at one of 3 shops to do my dyno tuning before I go to VIR in September. I will be having them tune with my Osiris cable and will be asking for copies of the ROM files so that I can post those dyno sheets along with the specific Osiris settings. That should give us 4 different sets of dyno sheets and settings to compare and discuss.
#75
Registered User
iTrader: (1)
UPDATE: The car has been down for major interior work (rollcage, audio, new interior) so I haven't been as active lately with tuning info.
I will be going to a dyno day in 2 weeks and I will be getting 3 different pulls each using a different map. I plan to use stock map for the initial pull, my map with modified fuel targets/timing posted earlier, and I hope to log enough in the next few weeks and use djamp's log tool to make some additional changes for a 3rd map. I will post the dyno results here along with screenshots of the settings used for each pull.
Additionally, I am looking at one of 3 shops to do my dyno tuning before I go to VIR in September. I will be having them tune with my Osiris cable and will be asking for copies of the ROM files so that I can post those dyno sheets along with the specific Osiris settings. That should give us 4 different sets of dyno sheets and settings to compare and discuss.
I will be going to a dyno day in 2 weeks and I will be getting 3 different pulls each using a different map. I plan to use stock map for the initial pull, my map with modified fuel targets/timing posted earlier, and I hope to log enough in the next few weeks and use djamp's log tool to make some additional changes for a 3rd map. I will post the dyno results here along with screenshots of the settings used for each pull.
Additionally, I am looking at one of 3 shops to do my dyno tuning before I go to VIR in September. I will be having them tune with my Osiris cable and will be asking for copies of the ROM files so that I can post those dyno sheets along with the specific Osiris settings. That should give us 4 different sets of dyno sheets and settings to compare and discuss.
#76
Living in 350Z
Thread Starter
iTrader: (30)
Join Date: May 2009
Location: Spartanburg(SparkleCity), SC
Posts: 4,293
Likes: 0
Received 2 Likes
on
2 Posts
That is one of my requirements for paying them to dyno tune my car. And they will be tuning using my existing map as a base and will be using my tuner cable and Osiris Tuner license. If they don't want them posted, they aren't getting my business.
#77
Registered User
Join Date: Apr 2006
Location: new york
Posts: 48
Likes: 0
Received 0 Likes
on
0 Posts
Hai guys!
I have been trying to follow along as best as I can with on my stock car. Please tell me if if I have everything backwards.
1) as suggested I started by bumping up the Target AFR's as so (albeit more conservative then suggested). I am N/A and do not have aftermarket injectors or anything fancy like that
From what is being explained in this thread, I assume that the X axis "Base fuel schedule" is a measurement of engine load derived from the many factors listed in the uprev manual, especially MAF input.
You input your dream AFRs for each RPM:BFS block. You then run data logs to see if your car is hitting those AFR's. If not, you fine tune it with the "Fuel Compensation table"
2) Well I started the data logs, specifically just a WOT 0-60 run, and found my car to be a whole digit too lean at every RPM on my new target map.
I ran to the fuel compensation table (which I previously reset to 100 as suggested) to add a few digits of fuel to the RPM:BFS blocks that I recored as too lean on my data logs. But when I got to the fuel comp table, I see the Y axis is replaced with "Data bytes" Do I have to guess which blocks to add fuel to? flash, log and revise? (I guess you wouldnt have to flash each time if I knew how to use RTT!)
now am I heading in the right direction, or am I completely off the hook? If I am completely hopeless, just say so and I will go read some books haha
I have been trying to follow along as best as I can with on my stock car. Please tell me if if I have everything backwards.
1) as suggested I started by bumping up the Target AFR's as so (albeit more conservative then suggested). I am N/A and do not have aftermarket injectors or anything fancy like that
From what is being explained in this thread, I assume that the X axis "Base fuel schedule" is a measurement of engine load derived from the many factors listed in the uprev manual, especially MAF input.
You input your dream AFRs for each RPM:BFS block. You then run data logs to see if your car is hitting those AFR's. If not, you fine tune it with the "Fuel Compensation table"
2) Well I started the data logs, specifically just a WOT 0-60 run, and found my car to be a whole digit too lean at every RPM on my new target map.
I ran to the fuel compensation table (which I previously reset to 100 as suggested) to add a few digits of fuel to the RPM:BFS blocks that I recored as too lean on my data logs. But when I got to the fuel comp table, I see the Y axis is replaced with "Data bytes" Do I have to guess which blocks to add fuel to? flash, log and revise? (I guess you wouldnt have to flash each time if I knew how to use RTT!)
now am I heading in the right direction, or am I completely off the hook? If I am completely hopeless, just say so and I will go read some books haha
Last edited by Neal516; 08-06-2011 at 05:27 AM.
#79
Living in 350Z
Thread Starter
iTrader: (30)
Join Date: May 2009
Location: Spartanburg(SparkleCity), SC
Posts: 4,293
Likes: 0
Received 2 Likes
on
2 Posts
You have the right idea, and that is the way that I started out tuning. However, the more that I've gotten into it, the more that I've heard that tuning the MAF voltages first to get things "calibrated" is the first step. This is because it is the only thing that you can do to affect both open and closed loop since fuel compensation changes won't.
To tune/calibrate the MAF voltage table, I just set one of my map selections to have stoich for every AFR target cell. I also set the fuel compensation to be 100 in every cell. Then, you can log data with cipher and with djamps' tool, you can look at fuel compensation and your AFR to determine where you need to make adjustments to the MAF voltages. Once I have that calibrated, I then move on to the AFR & Fuel comp tuning.
Again, I'm a noob at this, so some of the others with more experience may have some additional pointers, but that is my 10000ft view of tuning with Osiris on stock engine/injectors without a dyno. Once you're dyno tuning and changing IGN timing there may be some back and forth as an IGN timing change may affect what changes are needed to maintain your target AFR's.
The thing that I'm starting to learn is that with Osiris or piggyback, the ECU is still making it's own decisions about what the true target AFR is (based on environmental factors, etc), so your settings in the AFR table in a real world situation aren't the "cold hard target". It's like you're trying to hit a moving target with a bow and arrow, through the mist, on a day with gusty winds versus an exact science.
To tune/calibrate the MAF voltage table, I just set one of my map selections to have stoich for every AFR target cell. I also set the fuel compensation to be 100 in every cell. Then, you can log data with cipher and with djamps' tool, you can look at fuel compensation and your AFR to determine where you need to make adjustments to the MAF voltages. Once I have that calibrated, I then move on to the AFR & Fuel comp tuning.
Again, I'm a noob at this, so some of the others with more experience may have some additional pointers, but that is my 10000ft view of tuning with Osiris on stock engine/injectors without a dyno. Once you're dyno tuning and changing IGN timing there may be some back and forth as an IGN timing change may affect what changes are needed to maintain your target AFR's.
The thing that I'm starting to learn is that with Osiris or piggyback, the ECU is still making it's own decisions about what the true target AFR is (based on environmental factors, etc), so your settings in the AFR table in a real world situation aren't the "cold hard target". It's like you're trying to hit a moving target with a bow and arrow, through the mist, on a day with gusty winds versus an exact science.
