RPM signal... adapter?
#1
RPM signal... adapter?
well since i need to pull the RPM signal off the ECU for my heads up display... i can only get 1/6th the pulse off the coils..
does anyone know how the greddy or ultimate racing RPM adapter wiring works? is it just taking the signals off of the ECU pins 60, 61, 62, 79, 80, 81 and just merging them into one wire and adding a ground wire?
i really dont want to spend like $50 it if it only takes like $2.99 to make from radio shack..
can anyone help me out?
thanks
does anyone know how the greddy or ultimate racing RPM adapter wiring works? is it just taking the signals off of the ECU pins 60, 61, 62, 79, 80, 81 and just merging them into one wire and adding a ground wire?
i really dont want to spend like $50 it if it only takes like $2.99 to make from radio shack..
can anyone help me out?
thanks
Last edited by Chebosto; 04-26-2004 at 02:47 PM.
#2
Registered User
Join Date: Sep 2002
Location: So Cal
Posts: 1,368
Likes: 0
Received 0 Likes
on
0 Posts
Hey Cheston,
You're correct. The Greddy RPM Adapter takes 6 signals off the ECU then sends 1 signal to the e-manage and 1 ground wire.
Jeff
Oops.. it's 60,61,62,79,80, and 81.
You're correct. The Greddy RPM Adapter takes 6 signals off the ECU then sends 1 signal to the e-manage and 1 ground wire.
Jeff
Oops.. it's 60,61,62,79,80, and 81.
Last edited by 350Now; 04-26-2004 at 05:29 PM.
#3
yea.. i just want to figure out the 'black box' wiring diagram...
the FSM says the average voltage for the even coils were 0.4V at 2500, and 0.4V average for the odd coils..
what i gotta figure out is do they total at the ECU signal, or is it 0.4V for all six...
then that would be simple-
the ground wire, needs to keep the system in the loop...
check out ultimate racing's wiring adapter.. looks too simple--
the FSM says the average voltage for the even coils were 0.4V at 2500, and 0.4V average for the odd coils..
what i gotta figure out is do they total at the ECU signal, or is it 0.4V for all six...
then that would be simple-
the ground wire, needs to keep the system in the loop...
check out ultimate racing's wiring adapter.. looks too simple--
#6
Charter Member #34
Join Date: May 2002
Location: -
Posts: 1,228
Likes: 0
Received 0 Likes
on
0 Posts
cheston: your HUD cannot be set to use 1 signal RPM? that's wierd...
anyways... i can get my hands on the black box tomorrow...
i assume there is just 8 wires (6 in, 1 out, 1 ground), 6 diodes (to prevent cross-talk) and maybe a resistor... i will let you know tomorrow.
m
anyways... i can get my hands on the black box tomorrow...
i assume there is just 8 wires (6 in, 1 out, 1 ground), 6 diodes (to prevent cross-talk) and maybe a resistor... i will let you know tomorrow.
m
#7
Thanks Michael-
yea. its 6 in 1 out, 1 grnd...
i think there is a rectifier diode attached to the 6 inputs (from the power transformer) and probably a voltage regulator to keep the output around 0.4V...
freakin A... HUD makin me dust off my old EE books.. %#@ i wish i was 19 again...
yea. its 6 in 1 out, 1 grnd...
i think there is a rectifier diode attached to the 6 inputs (from the power transformer) and probably a voltage regulator to keep the output around 0.4V...
freakin A... HUD makin me dust off my old EE books.. %#@ i wish i was 19 again...
Trending Topics
#8
Charter Member #34
Join Date: May 2002
Location: -
Posts: 1,228
Likes: 0
Received 0 Likes
on
0 Posts
cheston: there was a fire in my building at work this morning... haven't met up with tim to get the black box yet... i guess i will give you another update tonight.
m
m
#9
hmm..
so i was looking up rectifier diodes..
you can create a Diode Logic gate with the 6 input signals off the ECU.. in either an OR gate or an AND gate.
the ECU, i believe is acting as an AND gate for the all-injector pulse signals for engine RPM signal..
am i correct to assume this?
so i was looking up rectifier diodes..
you can create a Diode Logic gate with the 6 input signals off the ECU.. in either an OR gate or an AND gate.
the ECU, i believe is acting as an AND gate for the all-injector pulse signals for engine RPM signal..
am i correct to assume this?
#10

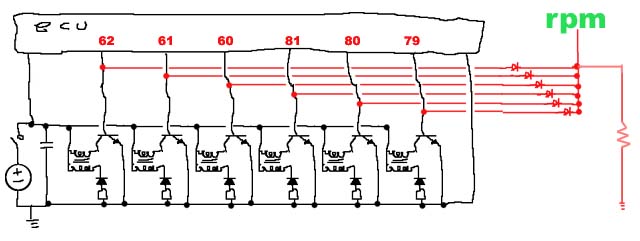

OR gate-
disreguard the above AND question.. i think now the ECU is OR gate. because if 5 out of the 6 coil were to work, your engine would still go, still giving RPM signal, but if it was an AND gate- you would get a false signal if 5 of 6 were going....
disreguard the above AND question.. i think now the ECU is OR gate. because if 5 out of the 6 coil were to work, your engine would still go, still giving RPM signal, but if it was an AND gate- you would get a false signal if 5 of 6 were going....
Last edited by Chebosto; 04-28-2004 at 12:41 PM.
#11
Charter Member #34
Join Date: May 2002
Location: -
Posts: 1,228
Likes: 0
Received 0 Likes
on
0 Posts
hey cheston, why the ground is necessary...? i would think it would work fine without it, no? whatever you are using to read the signal should reference it to ground internally, right?
m
m
#13
you gotta ground the resistor else you might burn out the diode- to limit the current..
also. what is important to note is you dont want to fukk up the signal the ECU gets to the injector signal, because thats what the ECU also uses those signals for VDC- so you should make sure the current only flows one way-
also. what is important to note is you dont want to fukk up the signal the ECU gets to the injector signal, because thats what the ECU also uses those signals for VDC- so you should make sure the current only flows one way-
Last edited by Chebosto; 04-28-2004 at 01:53 PM.
