Here's some pictures

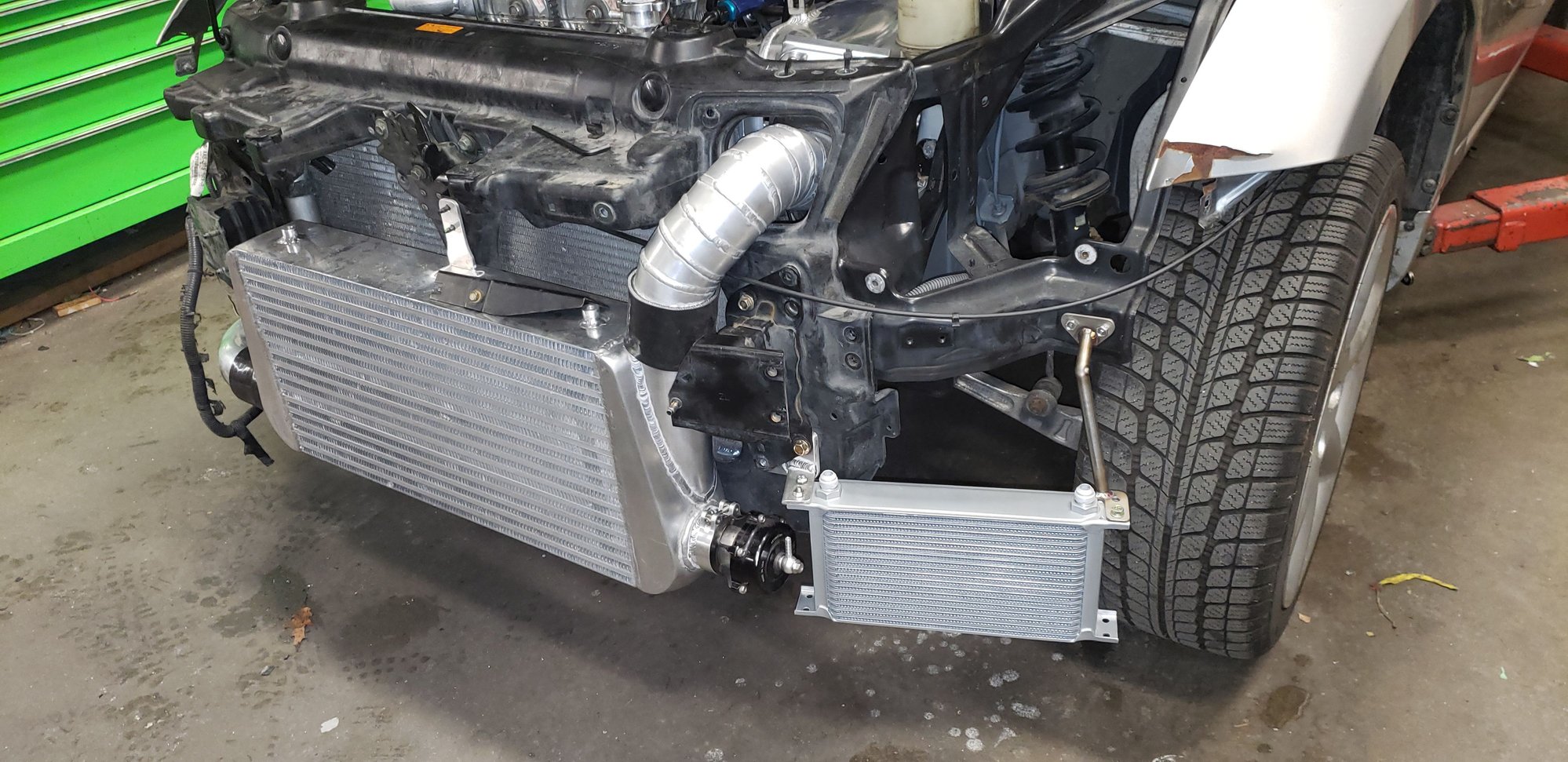

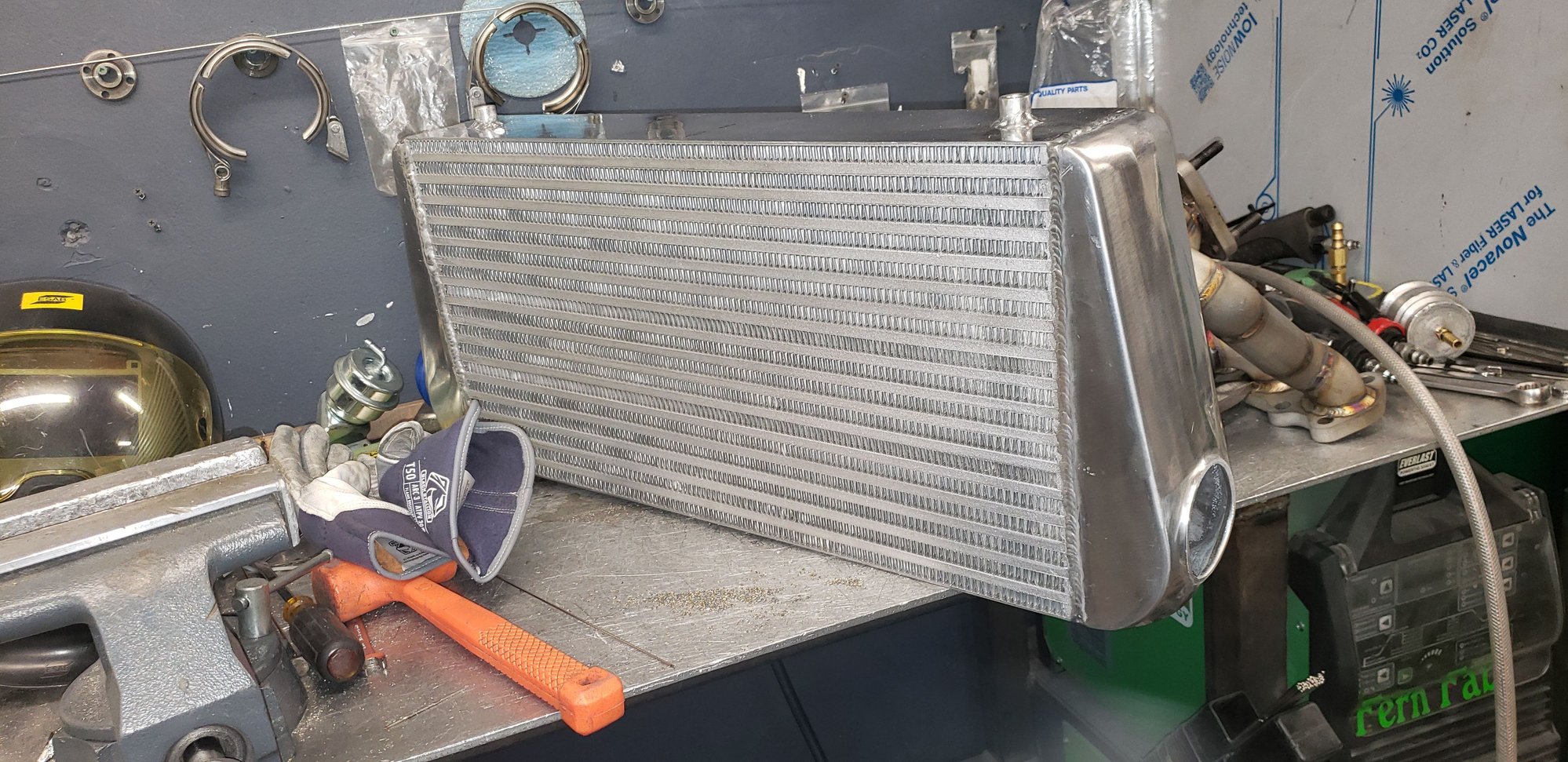

Also I we decided to drop the cx racing intercooler and go custom for better fitment and a larger core



Good stuff Raggan - love the picutres. Appreciate the time & effort you've put into documenting your build.



exactly!



Thanks guys







nice work - I can appreciate the fabrication time put into it.

That's one thing I don't like about the Z - the intake from the IC to the manifold is 7 feet!



Yeah the shop reccommended we keep it short as possible and use a 4 inch core as the turbo is 700hp capable. Supposedly the car will be finished this week or early next week. All fabrication will be finished



So there is some delays with the car the fabricator had to finish a job last minute and put my car on hold. He finished that car and is working on mine again down pipe pretty much done just needs to be fully welded. We are currently waiting on my muffler from vibrant after he gets that it should be pretty much wrapped up by the end of this coming week or the following.

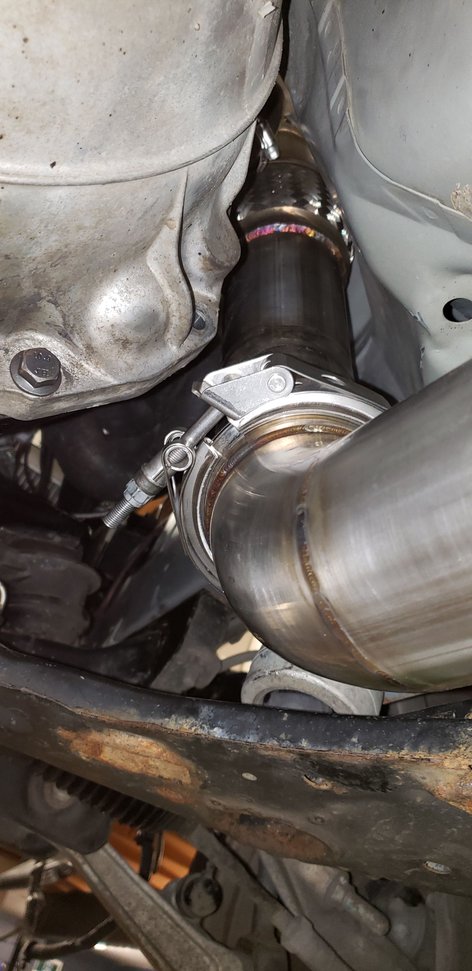

Down pipe almost done



Hey guys just an update a lot of the fab work is finished, not all of it yet as they will be making a bunch of brackets for oil cooler and power steering reservoir, etc...


I believe the car will be in the shop all month.

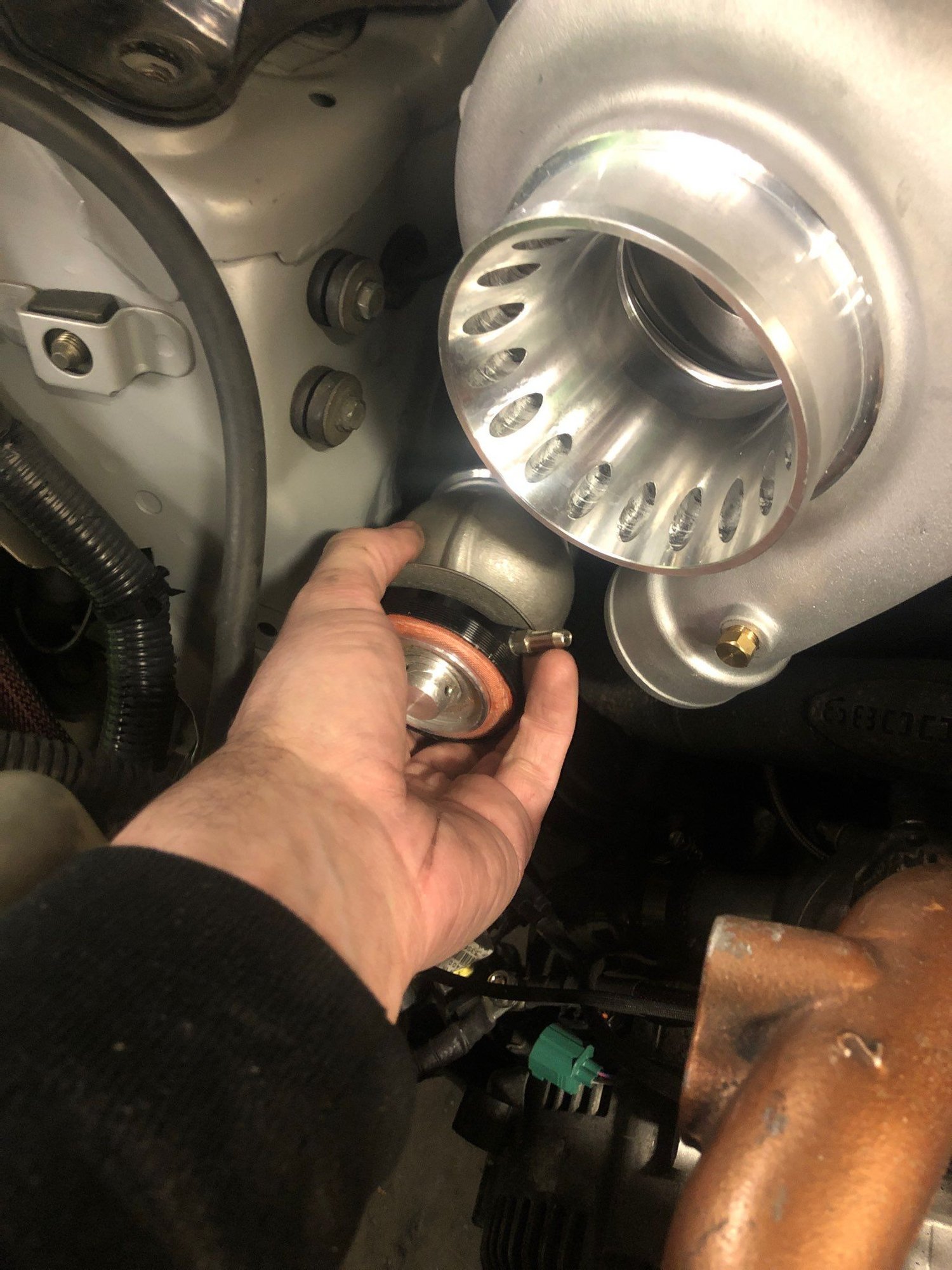

Dual waste gates? Is that typical? Who made your collector?

Pretty nice results on your IC and the BOV - looks good!

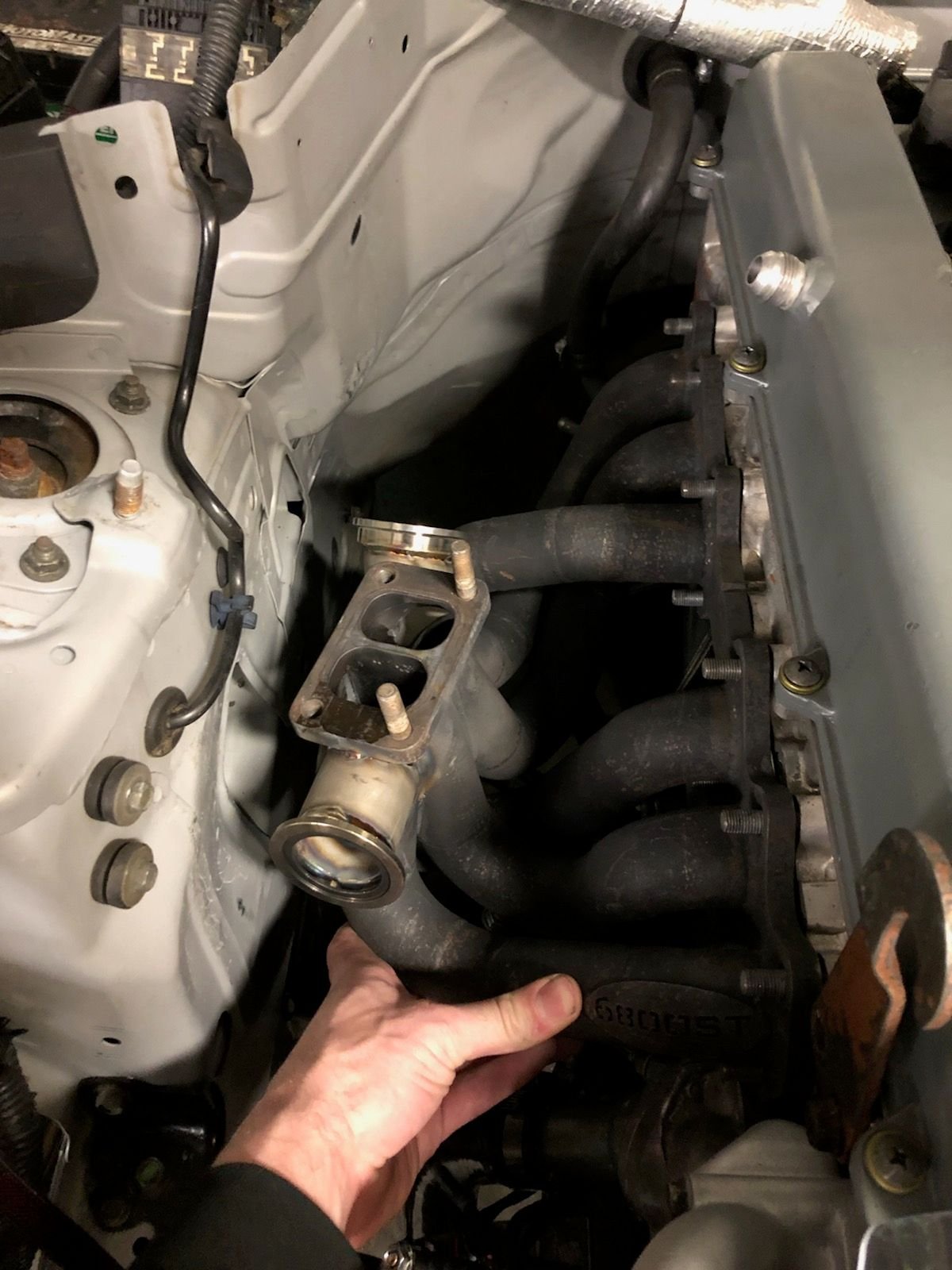

the collector is made by 6 boost but modifed by spectrum motor sport solutions to a dual wastegate setup from a single.

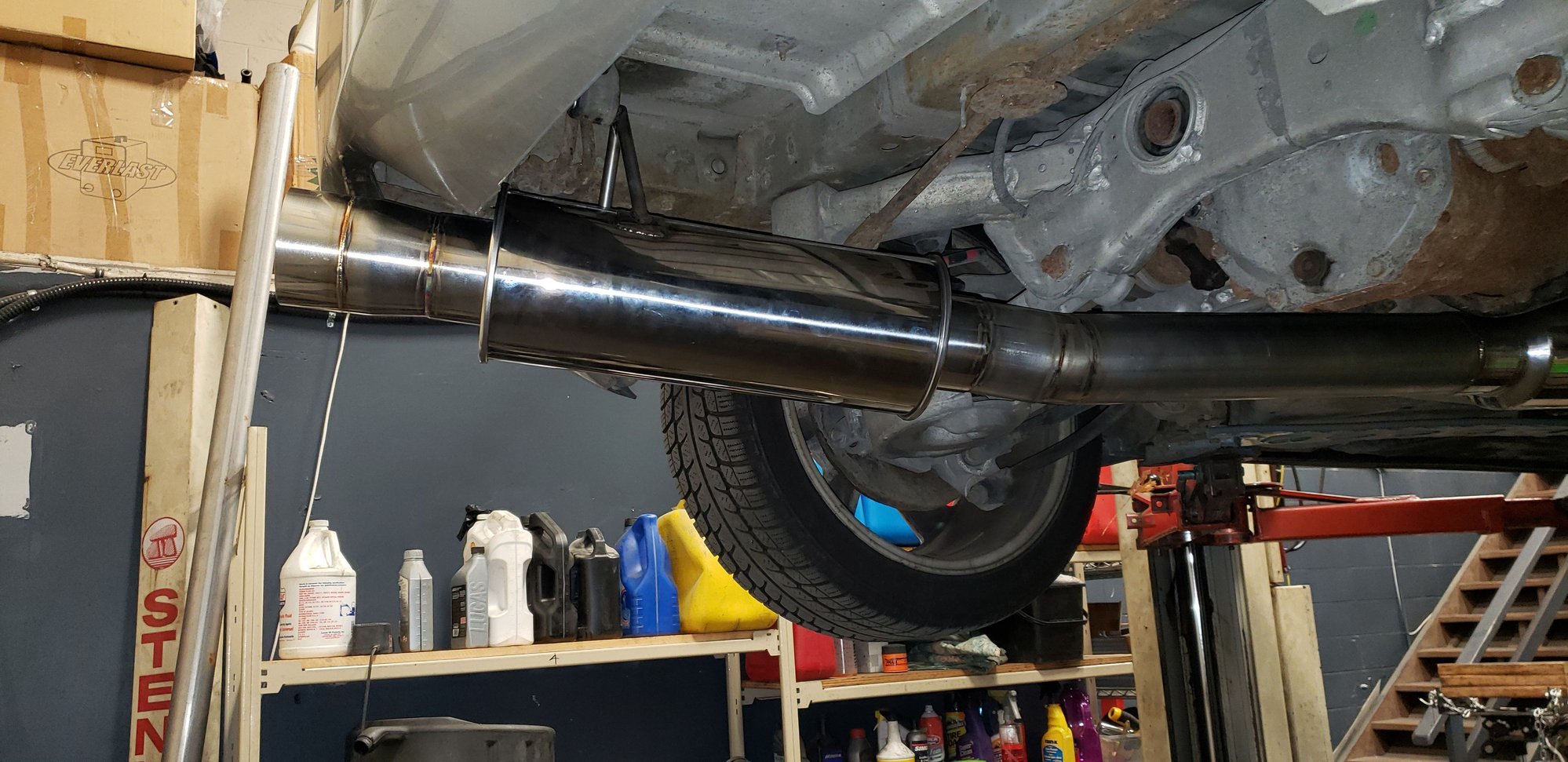

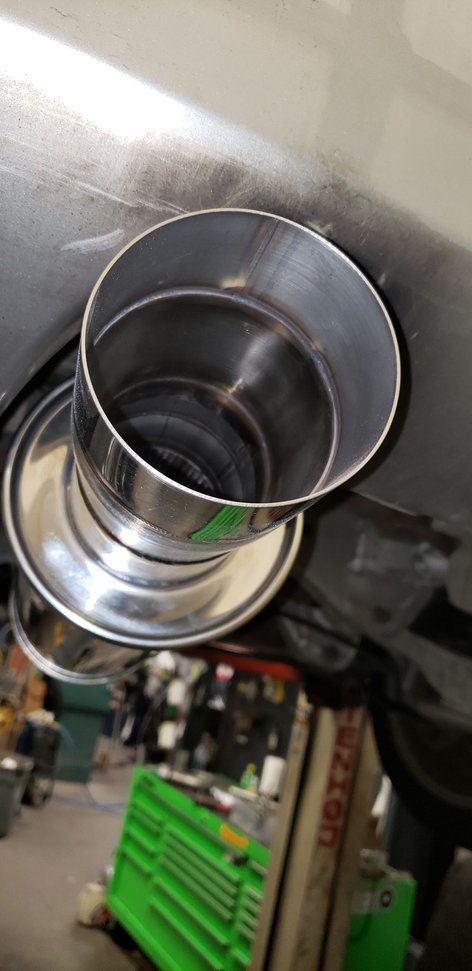

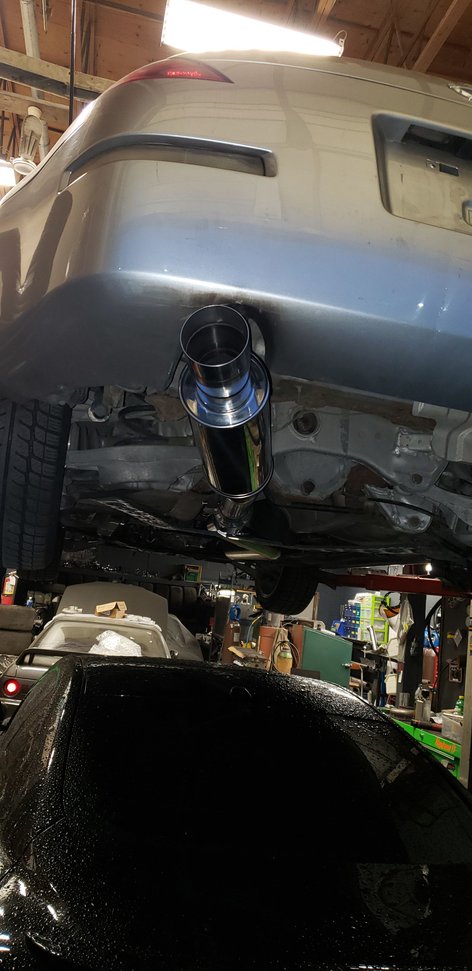

Exhaust is done the muffler is not installed on the car and I couldnt get a picture of it. The cars coming along nicely very close to being finished with the fab work



Fab work is wrapped up I will be bringing the car home early January.

I highly recommend spectrum motor sports solutions.
the service was amazing and they did a great job.

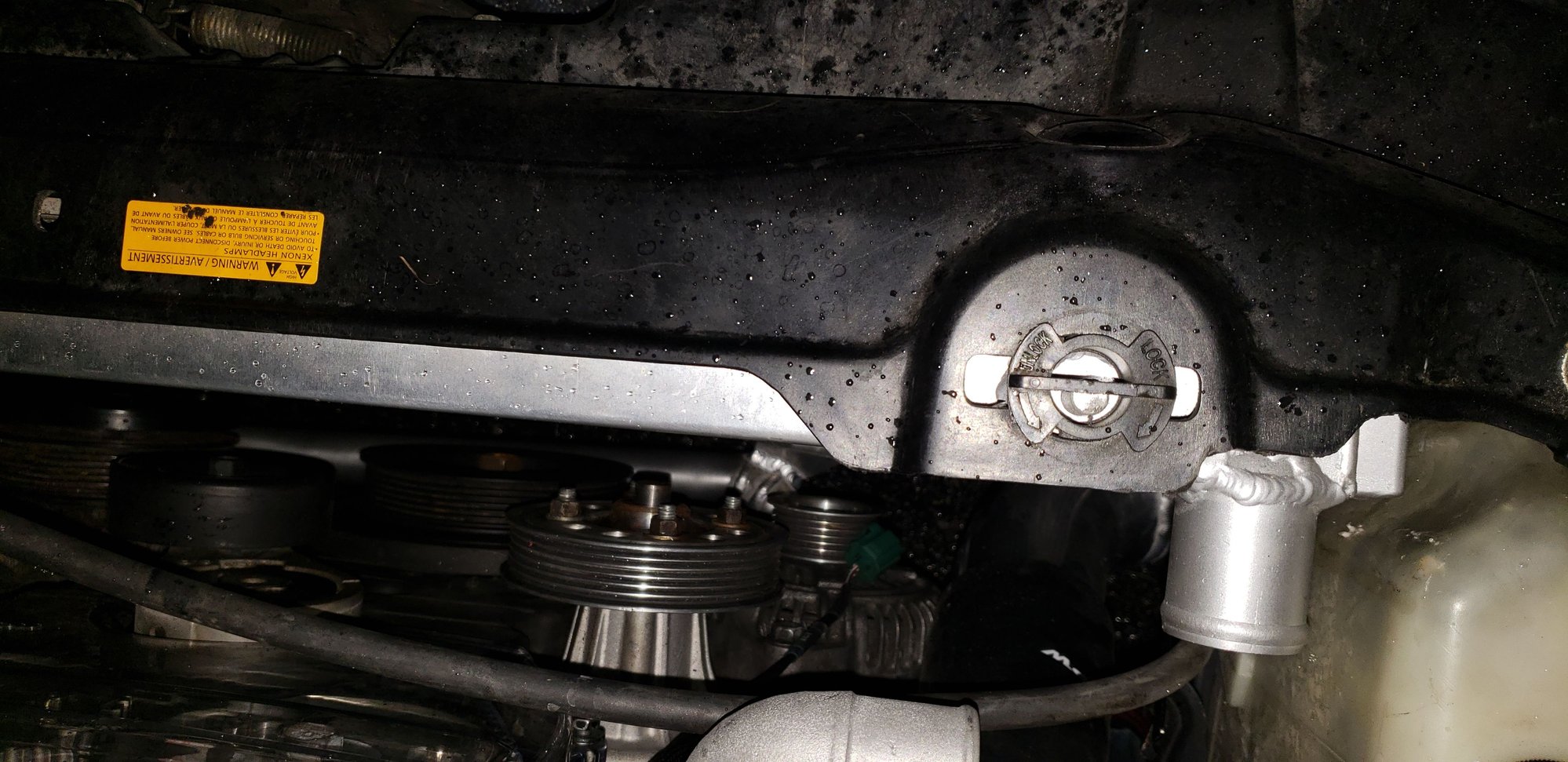

They mounted the resuviour perfectly and the dipstick too



Looks good! Happy things are coming together!

is your down pipe & exhaust a 4" ?



3.5 inch



I get the car back from the fab shop tomorrow hopefully if I can get a tow truck driver.



Whats next after you bring her home ?

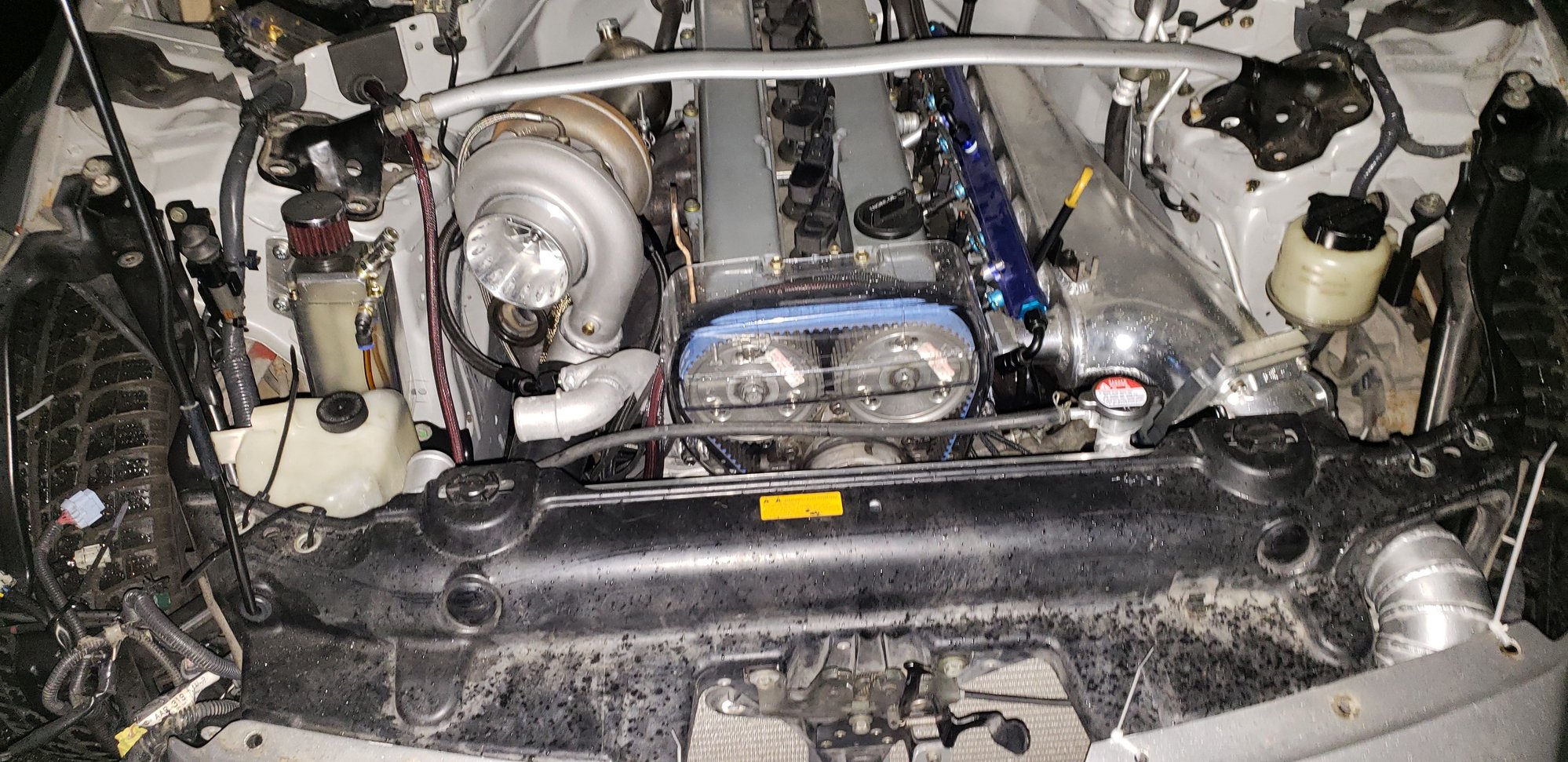

Final assembly, everything is just mocked up on the turbo side.

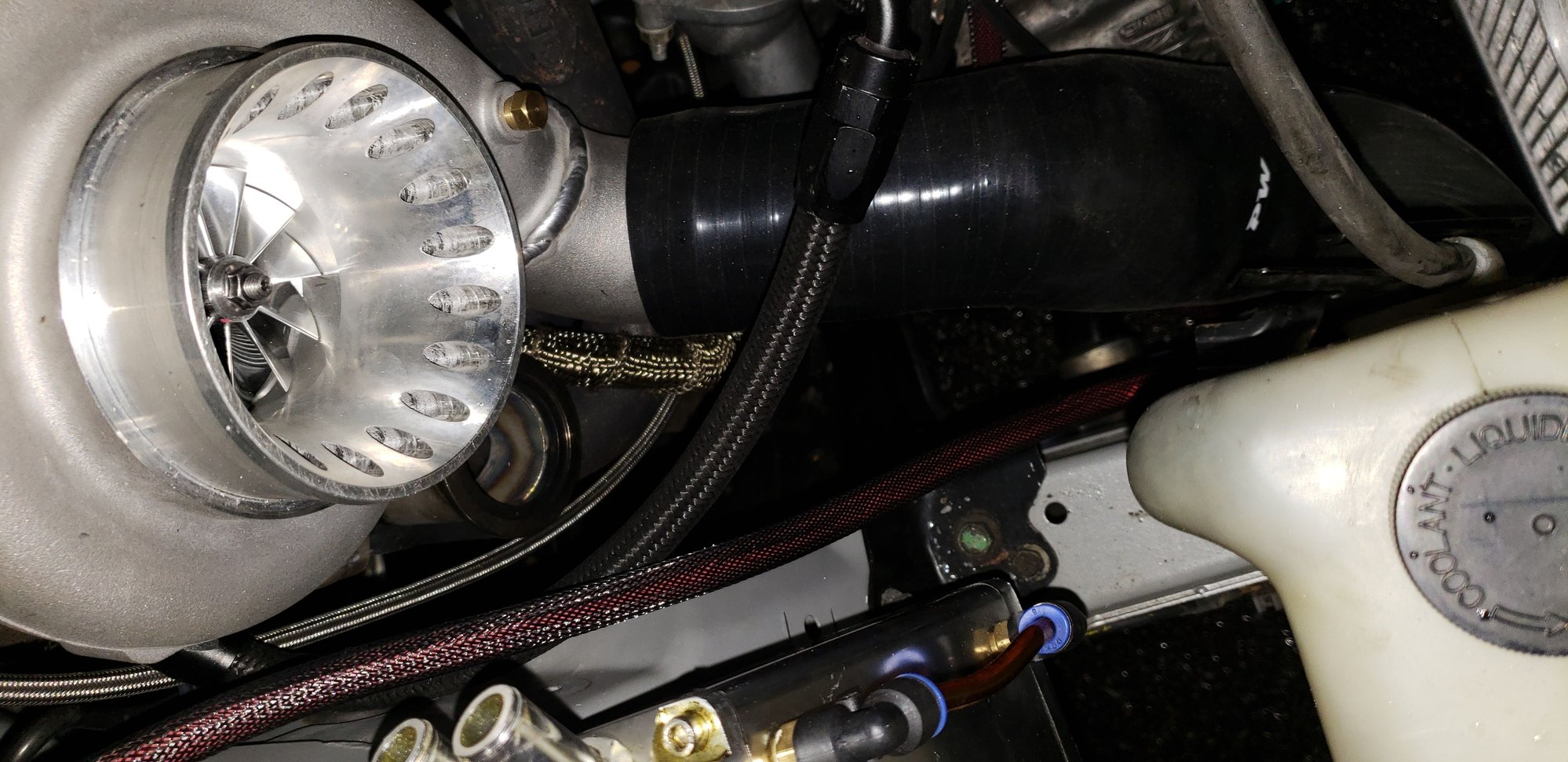

Install throttle cable, fans oil cooler lines etc...need another waste gate.



Cars back at my buddies house now. We cleaned out the shop while the car was in the fab shop. I will post more updates soon as the car will be going into the shop tomorrow when the final dump run is done in the shop
